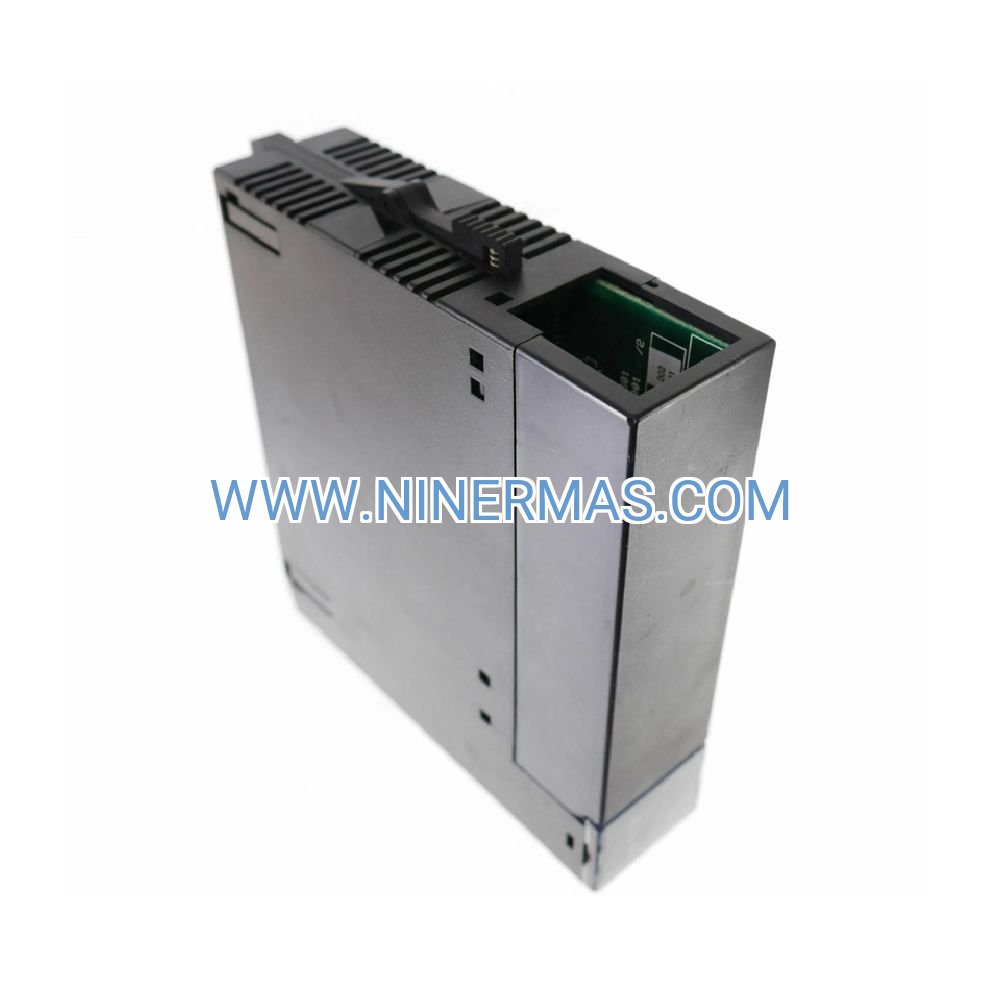

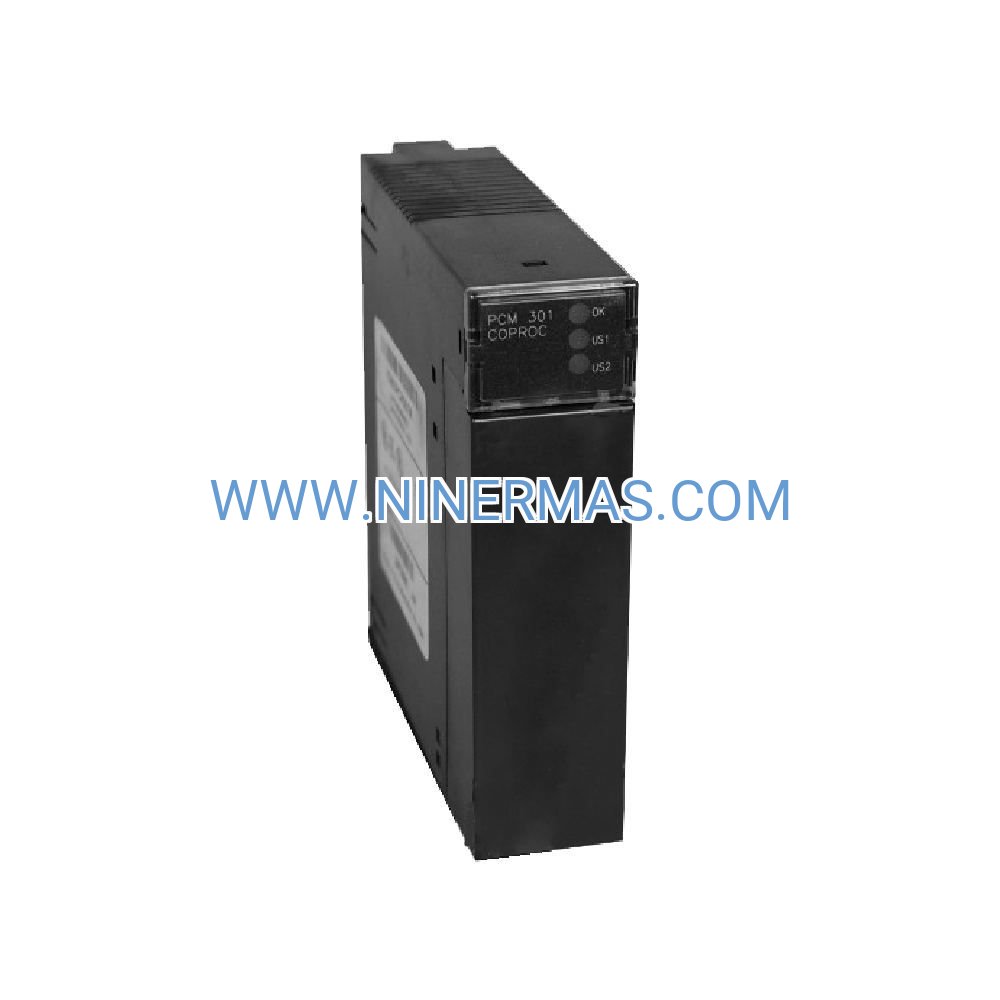

IC693PCM301 Industrial Coprocessor Module (High-Performance Computing for GE Series 90-30)

The IC693PCM301 represents a specialized computing solution engineered to augment Series 90-30 programmable logic controllers with auxiliary processing capacity. This industrial-grade coprocessor module addresses the computational bottlenecks inherent in complex automation workflows by providing dedicated hardware resources for algorithm-intensive operations, real-time data manipulation, and synchronized motion sequences.

Manufacturing facilities deploying multi-axis positioning systems, high-speed packaging lines, or advanced process control strategies benefit from offloading computational overhead to this purpose-built module. Integration engineers and plant automation managers select the IC693PCM301 when standard CPU cycles prove insufficient for concurrent execution of control logic, communication protocols, and mathematical transformations.

Key differentiators include deterministic execution timing for mission-critical applications, hot-swap serviceability to minimize production downtime, and native compatibility with the complete Series 90-30 ecosystem—from entry-level controllers to high-capacity CPUs.

Core Capabilities & Business Impact

→ Distributed Processing Architecture
Executes user-defined subroutines independently from main CPU scan cycles, reducing latency in time-sensitive control loops by up to 40% compared to single-processor configurations.

→ Custom Algorithm Deployment
Supports proprietary control strategies written in IEC 61131-3 languages, enabling implementation of specialized PID tuning, predictive models, or industry-specific calculations without vendor lock-in.

→ Backplane Communication Protocol
Leverages high-speed Series 90-30 bus architecture for sub-millisecond data exchange with I/O modules, analog converters, and network interfaces—eliminating external wiring complexity.

✓ Field-Replaceable Design
Tool-free installation and removal procedures allow maintenance personnel to swap modules during scheduled maintenance windows or emergency repairs without specialized training.

✓ Environmental Hardening
Conformal coating and industrial-temperature components ensure reliable operation in environments with airborne contaminants, thermal cycling, and electromagnetic interference typical of factory floors.

✓ Diagnostic LED Indicators
Front-panel status lights provide instant visibility into module health, communication status, and fault conditions—accelerating troubleshooting during commissioning and production runs.

Industrial Application Profiles

Precision Motion Coordination
Automotive assembly plants utilize the IC693PCM301 to synchronize robotic welding arms with conveyor positioning systems. The module calculates trajectory profiles and velocity ramps in real time, while the main CPU handles safety interlocks and HMI communication. This division of labor achieves ±0.05mm repeatability in pick-and-place operations.

High-Volume Data Logging
Pharmaceutical batch processes require continuous recording of temperature, pressure, and flow parameters at 100ms intervals. The coprocessor aggregates sensor inputs, performs statistical analysis, and timestamps records—freeing the primary controller to manage recipe execution and regulatory compliance reporting.

Energy Management Optimization
Food processing facilities deploy this module to execute load-shedding algorithms that balance production throughput against utility demand charges. Real-time power consumption calculations trigger equipment sequencing adjustments, reducing peak demand costs by 15-25% annually.

Quality Inspection Systems
Packaging lines integrate the IC693PCM301 with vision systems and weight checkers to perform multi-parameter product validation. The module processes inspection data, applies statistical process control rules, and triggers reject mechanisms—all within the 200ms cycle time required for 120 units/minute throughput.

Technical Parameters & Selection Guide

Selection Criteria: Specify the IC693PCM301 when your application requires execution of floating-point mathematics, trigonometric functions, or iterative algorithms that exceed 15% of total CPU scan time. For basic discrete control or simple analog scaling, standard CPU resources typically suffice. Consult system integrators if concurrent motion axes exceed four or communication protocols include multiple Modbus/Ethernet connections.

Extended Integration Options

SCADA Connectivity: The module supports data exchange with supervisory systems via the Series 90-30 communication modules, enabling remote monitoring of coprocessor status, program execution metrics, and diagnostic counters through standard OPC-UA or Modbus TCP interfaces.

Redundancy Configurations: Pair with hot-standby CPU architectures to maintain coprocessor functionality during primary controller failover events—critical for continuous process industries where unplanned shutdowns incur six-figure hourly losses.

Third-Party Device Integration: Communicate with servo drives, variable frequency drives, and intelligent sensors using manufacturer-specific protocols—the coprocessor handles protocol conversion while the main CPU focuses on sequence control.

Delivery Timeline & Service Commitments

Standard Fulfillment: In-stock units ship within 1-2 business days via express courier services. Typical transit time to major industrial centers: 3-5 days (domestic), 7-10 days (international).

Custom Configuration: Pre-programmed modules with customer-specific firmware or tested assemblies require 5-7 business days for preparation and quality verification.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Coverage includes replacement module shipment and return freight for defective units.

Technical Support: Application engineers available via phone and email for configuration assistance, programming guidance, and troubleshooting support. Average response time: 4 hours during business hours (GMT+8).

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and programming examples. Complete user manuals and software utilities available for download via product support portal.

Frequently Asked Questions

What programming software is compatible with the IC693PCM301 coprocessor module?
The module is programmed using GE's Machine Edition (formerly Proficy) or legacy Logicmaster 90-30 software. Both platforms support ladder logic, structured text, and function block programming per IEC 61131-3 standards. Configuration files transfer via Ethernet or serial connections.

How does the coprocessor module communicate with the main Series 90-30 CPU?
Data exchange occurs through shared memory regions on the backplane bus—no external cabling required. The main CPU writes input parameters to designated memory addresses; the coprocessor reads these values, executes algorithms, and writes results back to output addresses accessible by the CPU's scan cycle.

Can this module operate in hazardous location environments?
The IC693PCM301 carries standard industrial certifications but is not intrinsically safe or explosion-proof rated. For Class I Division 2 installations, mount the module in a purged enclosure with appropriate area classification documentation. Consult local electrical codes and certification bodies for specific requirements.

What is the maximum number of IC693PCM301 modules per chassis?
Configuration limits depend on chassis size and power budget. A 10-slot baseplate typically supports 2-3 coprocessor modules alongside standard I/O and communication modules. Verify total backplane current draw does not exceed power supply ratings (reference IC693PWR series specifications).

Does the module support firmware updates for future feature enhancements?
Yes, firmware updates install via programming software during maintenance windows. Update procedures preserve user programs and configuration data. Always review release notes for compatibility with existing CPU firmware versions before applying updates.

How do I troubleshoot communication errors between the coprocessor and CPU?
Verify module seating in the backplane slot, check LED status indicators for fault codes, and review system configuration for memory address conflicts. Use diagnostic software to monitor backplane traffic and confirm the CPU recognizes the module in the I/O configuration table.
