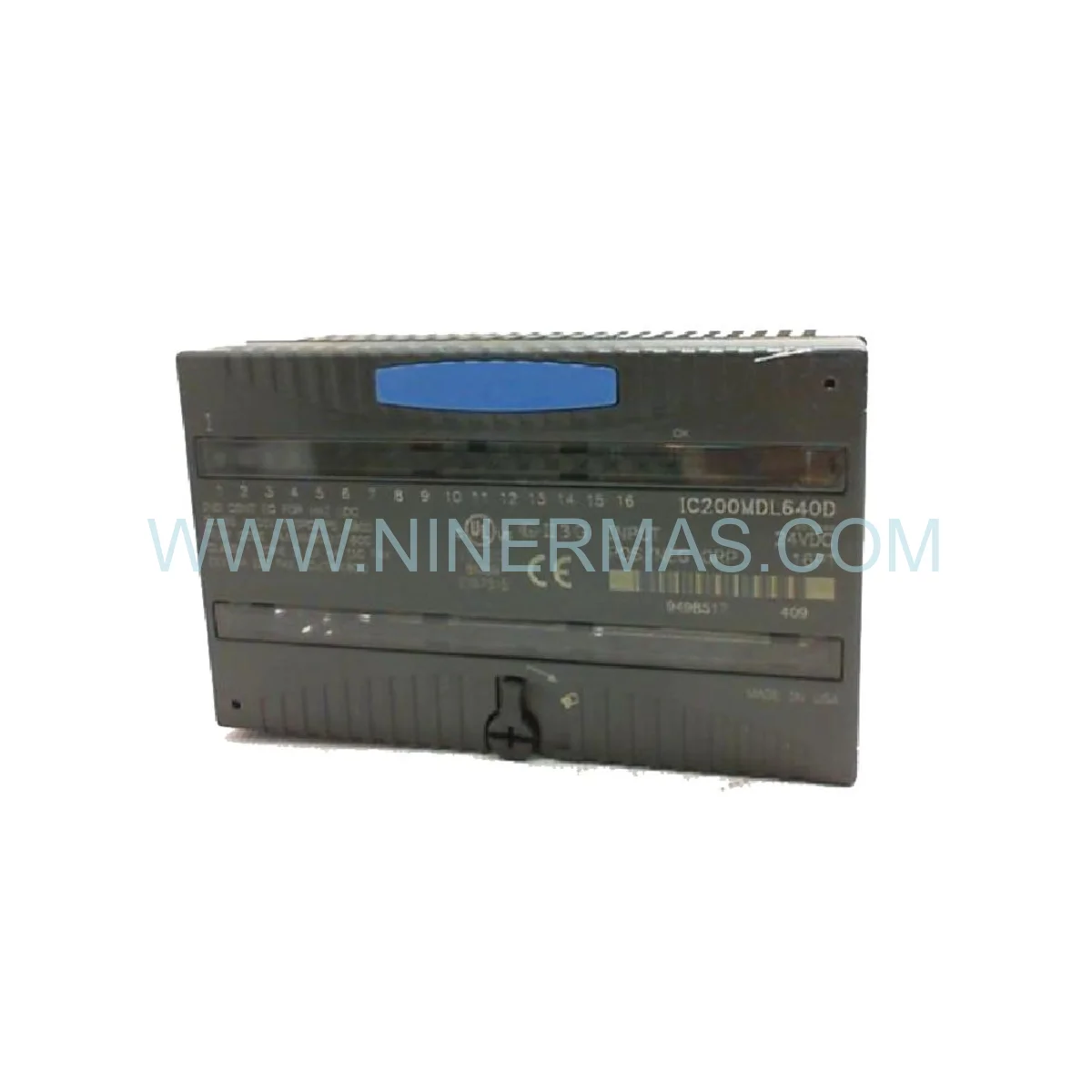

IC200MDL640 Digital Input Module (Industrial-Grade 24VDC Signal Acquisition)

The IC200MDL640 represents a proven solution for discrete signal monitoring in VersaMax-based control architectures. Featuring 16 independent 24VDC input channels organized into dual isolated groups, this module delivers dependable performance across manufacturing, process control, and infrastructure automation sectors. Designed for engineers who demand field-proven reliability, the IC200MDL640 integrates seamlessly into existing GE PLC ecosystems while offering the flexibility to accommodate both sourcing and sinking sensor configurations.

Whether you're upgrading legacy systems or designing new installations, this input module provides the robust signal conditioning and noise immunity required for mission-critical applications. Its hot-swappable architecture minimizes maintenance windows, while intelligent backplane processing ensures microsecond-level response times for time-sensitive control logic.

Backed by comprehensive technical documentation and 12-month warranty coverage, the IC200MDL640 serves as a cornerstone component for scalable, future-ready automation infrastructure.

Core Capabilities & Technical Advantages

✓ Dual-Isolated Group Architecture
Two electrically isolated 8-point groups eliminate ground loop interference and enable independent common wiring for mixed-voltage field devices. This design reduces troubleshooting complexity in multi-zone installations.

✓ Universal Logic Compatibility
Configurable for positive (sourcing) or negative (sinking) logic operation without hardware modifications. Supports NPN/PNP proximity sensors, photoelectric switches, and mechanical contact devices from any manufacturer.

✓ Backplane-Powered Operation
Draws all operating power from the VersaMax carrier, eliminating external power supplies and reducing panel wiring by up to 40% compared to standalone I/O blocks.

→ Hot-Swap Serviceability
Field-replaceable during system operation when used with compatible carriers. Reduces mean time to repair (MTTR) from hours to minutes in 24/7 production environments.

→ Extended Environmental Range
Operates reliably from 0°C to 60°C with conformal coating protection against humidity, dust, and chemical exposure. Ideal for foundries, wastewater treatment, and outdoor enclosures.

→ Compact Footprint Efficiency
Delivers 16 I/O points in a single-slot module, maximizing cabinet density. Typical installations achieve 30-50% space savings versus terminal block solutions.

Proven Application Scenarios

Automated Assembly & Packaging Lines
Monitor part presence sensors, conveyor jam detectors, and quality inspection gates across multi-stage production cells. The IC200MDL640's fast scan rate (typically <5ms) ensures precise synchronization with high-speed pick-and-place robots and servo-driven indexing systems.

Water & Wastewater Treatment
Interface with float switches, flow meters, and valve position feedback in pump stations and filtration systems. Dual-group isolation prevents electrical noise from VFD-driven pumps from corrupting sensor signals, maintaining regulatory compliance for SCADA reporting.

Energy Management Systems
Capture status signals from circuit breakers, generator run indicators, and UPS alarms in commercial buildings and data centers. Integrate with VersaMax analog modules for comprehensive power quality monitoring.

Material Handling & Sortation
Detect package position, diverter gate status, and emergency stop conditions in distribution center automation. Pair with VersaMax high-speed counter modules for barcode scanner integration and throughput analytics.

Machine Tool Control
Read limit switches, tool breakage sensors, and safety interlock status on CNC mills, lathes, and grinding machines. The module's industrial temperature rating supports installation in machine-mounted control enclosures.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IC200MDL640 when your application requires 16 or fewer discrete 24VDC inputs with group isolation. For higher channel counts, consider the IC200MDL650 (32-point) or distribute multiple IC200MDL640 modules across VersaMax expansion carriers. When mixing AC and DC I/O, maintain physical separation using dedicated carriers to prevent cross-coupling.

Advanced Integration Options

Industrial Network Connectivity
Deploy the IC200MDL640 in distributed I/O configurations using VersaMax Network Interface Units (NIUs). Supported protocols include DeviceNet, PROFIBUS-DP, and Ethernet/IP, enabling integration with Rockwell, Siemens, and Schneider control platforms.

Redundant System Architectures
Implement fault-tolerant designs by pairing dual IC200MDL640 modules with redundant VersaMax CPUs. Automatic failover logic ensures continuous operation during controller switchover events.

Custom Diagnostic Dashboards
Leverage built-in module diagnostics accessible via GE Proficy Machine Edition software. Monitor input state, wire-off detection, and power supply health in real-time for predictive maintenance strategies.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial hubs: 3-5 business days (North America/Europe), 5-7 days (Asia-Pacific).

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Warranty includes advance replacement service to minimize downtime.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting, and system design consultation. Average response time: <4 hours during business hours.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to full user manual (PDF). CAD drawings and 3D STEP files available upon request.

Frequently Asked Questions

What is the maximum recommended cable length for 24VDC input wiring?
For optimal noise immunity, limit field wiring to 100 meters (328 feet) using 18 AWG shielded twisted-pair cable. Longer runs up to 300 meters are possible with signal repeaters or by reducing scan speed to compensate for cable capacitance.

Can I use this module with non-GE PLCs or third-party controllers?
Yes, when paired with a VersaMax Network Interface Unit (NIU), the IC200MDL640 communicates via standard industrial protocols. We've successfully integrated these modules with Allen-Bradley CompactLogix, Siemens S7-1200, and Mitsubishi iQ-R series controllers.

How do I configure positive versus negative logic operation?
Logic polarity is set via jumper blocks on the module's front edge. Consult the installation manual for jumper position diagrams. No software configuration is required—changes take effect immediately upon power cycle.

Does the module support remote I/O expansion over long distances?
Absolutely. Using VersaMax expansion cables (IC200CBL series), you can locate I/O modules up to 15 meters from the CPU carrier. For distances beyond 15 meters, deploy a VersaMax NIU with fiber optic or Ethernet connectivity for ranges exceeding 100 kilometers.

What diagnostic features help identify wiring faults or sensor failures?
Each input channel includes LED status indicators visible through the module's transparent cover. Additionally, the VersaMax CPU provides wire-off detection alerts when input current falls below threshold, enabling proactive maintenance before complete sensor failure.

Is the IC200MDL640 suitable for safety-rated applications?
This module is designed for standard industrial control and does not carry SIL or PLe safety certifications. For safety-critical interlocks (emergency stops, light curtains), specify GE's VersaMax Safety I/O modules or integrate with certified safety relays.
