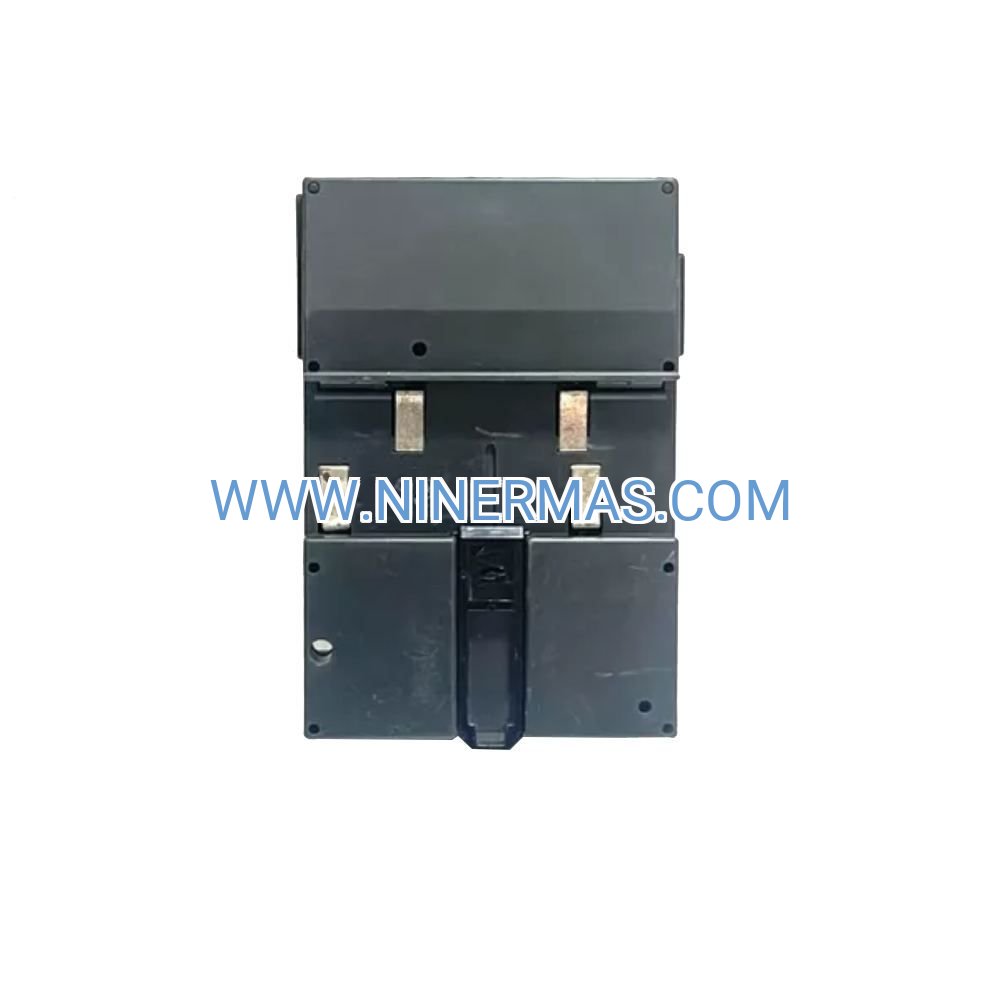

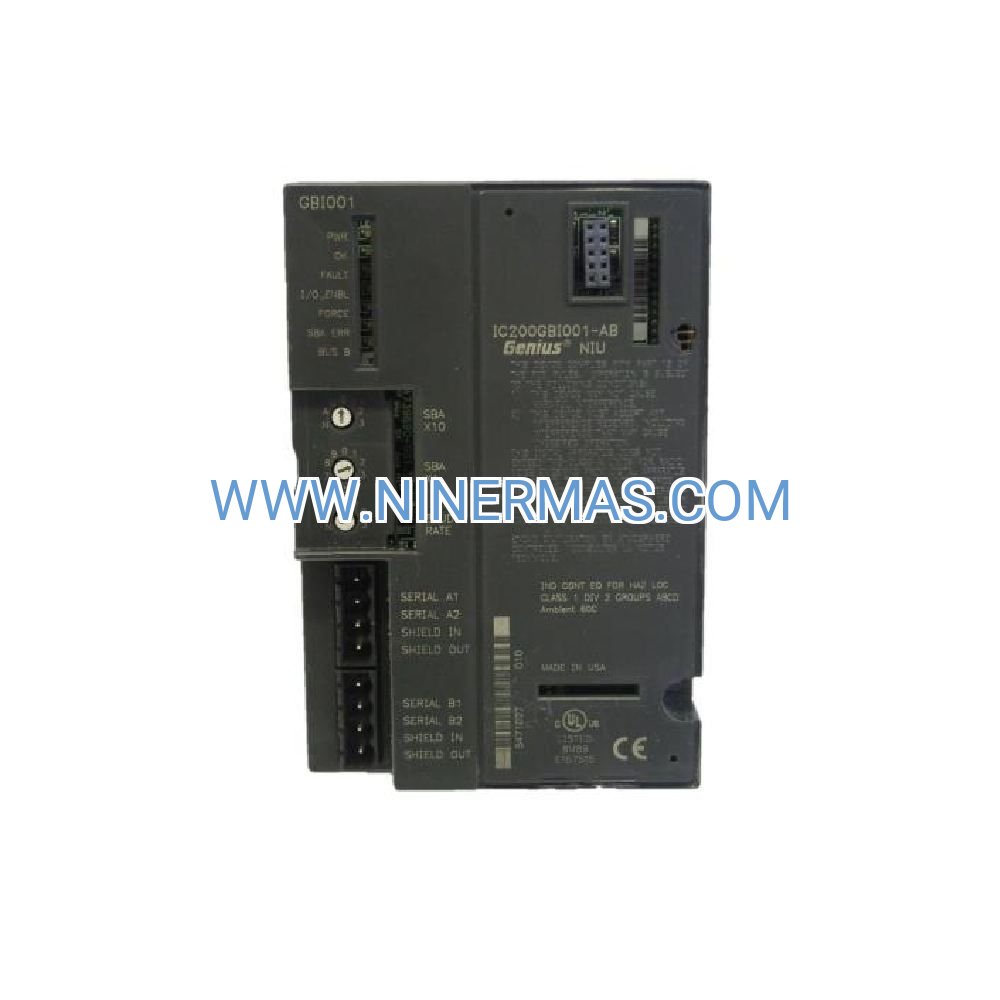

GE IC200GBI001 Genius Bus Interface (Dual-Terminal Network Controller)

The GE IC200GBI001 is an industrial-grade Genius Bus interface module engineered to bridge VersaMax control systems with distributed I/O networks. Featuring dual independent terminals and support for up to 1,024 discrete points, this controller delivers the scalability and fault tolerance demanded by high-stakes manufacturing, energy, and process industries.

Designed for environments where downtime translates directly to revenue loss, the IC200GBI001 integrates seamlessly into redundant architectures while maintaining backward compatibility with legacy Genius I/O infrastructure. Whether you're modernizing an existing installation or building a greenfield automation network, this interface provides the reliability and flexibility to future-proof your investment.

From automotive assembly to water treatment, the IC200GBI001 serves as the communication backbone for mission-critical operations. Its rugged construction, wide temperature tolerance, and compliance with global safety standards make it the go-to choice for engineers who refuse to compromise on uptime.

Core Features & Benefits

→ Dual-Terminal Architecture for Uninterrupted Operation
Two independent Genius Bus terminals enable hot-swappable redundancy configurations, ensuring your process continues even during maintenance or component failure. Ideal for pharmaceutical, chemical, and utility applications where continuous operation is non-negotiable.

→ Massive I/O Capacity in Compact Form Factor
1,024-point addressing capability eliminates the need for multiple interface modules, reducing panel space, wiring complexity, and total system cost. Streamline your cabinet design while expanding control reach.

→ Cross-Generation Compatibility
Works with both modern VersaMax modules and legacy IC660-series Genius blocks, protecting your existing hardware investment while enabling phased migration strategies. No forklift upgrades required.

✓ Plug-and-Play Integration with GE Ecosystems
Native support for Series 90-30, VersaMax, and PACSystems controllers via standard Genius Bus protocol. Configuration through familiar GE programming environments—no proprietary tools or training overhead.

✓ Industrial-Hardened for Harsh Environments
Operates reliably from 0°C to 60°C with 95% humidity tolerance. Conformal coating and vibration-resistant construction withstand the punishment of foundries, offshore platforms, and heavy manufacturing floors.

✓ Certified for Global Deployment
UL, CE, and RoHS compliance ensures regulatory acceptance across North America, Europe, and Asia-Pacific markets. Simplify multi-site standardization with a single part number.

Application Scenarios

Automotive Manufacturing & Assembly Lines
Coordinate robotic welding cells, conveyor systems, and quality inspection stations across distributed zones. The IC200GBI001's dual-terminal design provides the redundancy required for just-in-time production schedules where a single point of failure can halt an entire plant. Pair with high-speed digital I/O for sub-millisecond response times in safety-critical interlocks.

Water & Wastewater Treatment Facilities
Monitor and control pumps, valves, and chemical dosing systems across sprawling treatment plants. Genius Bus's 7,500-foot reach eliminates the need for intermediate repeaters, reducing infrastructure costs. Redundant communication paths ensure regulatory compliance for SCADA reporting even during network disruptions.

Oil & Gas Pipeline Monitoring
Interface with remote terminal units (RTUs) for pressure, flow, and leak detection across pipeline segments. The IC200GBI001's wide temperature range and sealed construction handle extreme climates from Arctic to desert installations. Integrate with Modbus gateways for enterprise-level data aggregation.

Food & Beverage Processing
Orchestrate mixing, pasteurization, and packaging lines with washdown-rated I/O modules. The interface's deterministic communication ensures precise recipe execution and batch traceability for FDA compliance. Hot-swappable redundancy minimizes sanitation downtime during maintenance windows.

Building Energy Management Systems
Centralize HVAC, lighting, and power monitoring across commercial campuses. Connect hundreds of zone controllers through a single interface, reducing engineering hours and commissioning complexity. Native BACnet/Modbus bridging enables integration with third-party building automation platforms.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the IC200GBI001 when your application requires distributed I/O control beyond 128 points, redundant communication paths, or integration with existing Genius infrastructure. For smaller systems (<128 points), consider standalone I/O carriers. For Ethernet-based architectures, evaluate the IC200ETM001 Ethernet module as an alternative.

Extended Functions

IoT & Cloud Connectivity
Bridge to Industrial IoT platforms via Modbus TCP gateways or OPC UA servers. Stream real-time I/O data to cloud analytics engines for predictive maintenance and energy optimization. Compatible with AWS IoT Greengrass and Azure IoT Edge deployments.

Advanced Diagnostics
Built-in LED indicators provide instant visual feedback on bus health, terminal status, and communication errors. Integrate with GE's Proficy software suite for remote diagnostics, firmware updates, and performance trending.

Custom Configuration Options
Factory-configurable terminal assignments and I/O mapping available for OEM integrators. Contact our engineering team for pre-programmed units tailored to your machine specifications, reducing commissioning time by up to 40%.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours. Custom configurations require 2-3 weeks for factory programming and testing.

Warranty: 12-month comprehensive coverage against manufacturing defects. Extended warranty plans available for critical infrastructure applications.

Technical Support: Lifetime access to our automation specialists for configuration assistance, troubleshooting, and system design consultation. Average response time: <4 hours during business days.

Documentation Package: Every shipment includes installation manual, wiring diagrams, configuration templates, and sample ladder logic. Downloadable CAD models and 3D STEP files available for panel design integration.

Frequently Asked Questions

How does the IC200GBI001 interface with modern Ethernet-based control systems?
While the IC200GBI001 uses Genius Bus natively, it integrates with Ethernet networks through GE's IC200ETM001 Ethernet module or third-party Modbus/Profinet gateways. This hybrid approach preserves your Genius I/O investment while enabling enterprise connectivity.

What is the maximum I/O density achievable per Genius terminal?
Each terminal supports 512 points, totaling 1,024 across both terminals. Actual density depends on module selection—high-density blocks like the IC660BBA026 provide 32 points per unit, allowing 32 blocks per terminal.

Can I mix analog and digital I/O on the same Genius Bus network?
Yes. The IC200GBI001 supports any combination of digital, analog, and specialty modules (temperature, motion, etc.) up to the 1,024-point limit. Bus scan time increases proportionally with analog module count—budget 2-5ms per analog block.

Is hot-swapping supported for redundant terminal configurations?
Redundant operation requires both terminals to be active simultaneously. While the bus itself supports hot-swap of I/O modules, switching between primary and backup terminals involves a brief communication interruption (typically <100ms). Design your control logic to handle this transition gracefully.

What cable specifications are required for reliable Genius Bus communication?
Use Belden 9463 or equivalent: 2-conductor, 22 AWG, 120-ohm impedance, foil + braid shield. Terminate both ends with 120-ohm resistors. For runs exceeding 2,000 feet, consider fiber-optic repeaters to maintain signal integrity.

Does the IC200GBI001 require external power supply or draw from the backplane?
The module requires a dedicated 24V DC supply (150mA draw). It does not draw power from the VersaMax backplane, allowing flexible placement in distributed cabinets without backplane power budget constraints.

Ready to Upgrade Your Automation Network?

The GE IC200GBI001 represents decades of proven Genius Bus technology refined for modern industrial demands. Whether you're expanding an existing system or designing a new installation, this interface delivers the performance, reliability, and scalability to keep your operation running 24/7/365.

Order now to secure inventory for your next project. Our team is standing by to answer technical questions, provide application-specific recommendations, and expedite delivery to meet your timeline.
