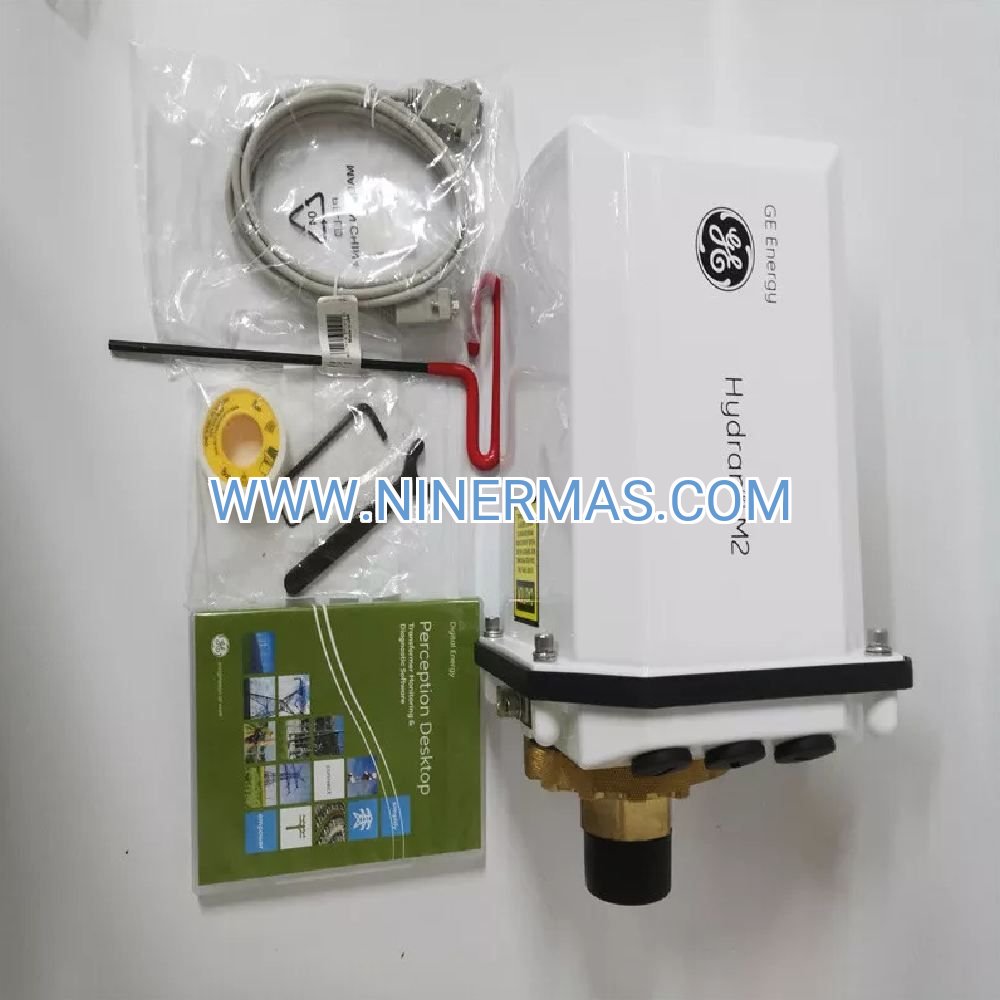

GE HYDRAN M2 Dissolved Gas Analyzer (Industrial-Grade Transformer Health Monitor)

The HYDRAN M2 is an advanced online monitoring solution engineered to detect incipient faults in oil-filled power transformers before catastrophic failure occurs. By continuously analyzing dissolved gases—hydrogen (H2), carbon monoxide (CO), acetylene (C2H2), and ethylene (C2H4)—this system provides early warning of thermal decomposition, partial discharge, and arcing events. Designed for utilities, industrial plants, and substations managing critical transformer assets, the M2 integrates seamlessly with SCADA infrastructure via Modbus and IEC 61850 protocols, enabling centralized condition-based maintenance strategies.

Built to withstand harsh outdoor environments with NEMA 4X / IP66-rated enclosures, the HYDRAN M2 operates reliably across -40°C to +55°C temperature ranges. Its self-diagnostic routines run every 15 days to ensure sensor integrity, while expandable sensor ports allow future upgrades for comprehensive asset monitoring. Whether you're protecting aging transformer fleets or optimizing maintenance intervals on new installations, the M2 delivers actionable intelligence to reduce unplanned outages and extend equipment lifespan.

Core Capabilities & Technical Advantages

→ Multi-Gas Detection Technology
Simultaneously tracks four key fault gases (H2, CO, C2H2, C2H4) with 0-2000 ppm measurement range and ±10% accuracy, enabling precise fault classification per IEEE C57.104 and IEC 60599 standards.

✓ Moisture & Temperature Monitoring
Integrated 0-100% RH moisture sensor (±2% accuracy) correlates insulation degradation with gas trends, while ambient temperature compensation ensures measurement reliability across seasonal variations.

→ Protocol-Agnostic Connectivity
Native support for Modbus RTU/TCP and IEC 61850 eliminates gateway requirements, reducing integration costs by 30-40% compared to proprietary systems while accelerating deployment timelines.

✓ Autonomous Self-Validation
Automatic 15-day calibration checks with diagnostic alerts minimize manual intervention, cutting annual maintenance labor by approximately 60 hours per monitored site.

→ Ruggedized Industrial Design

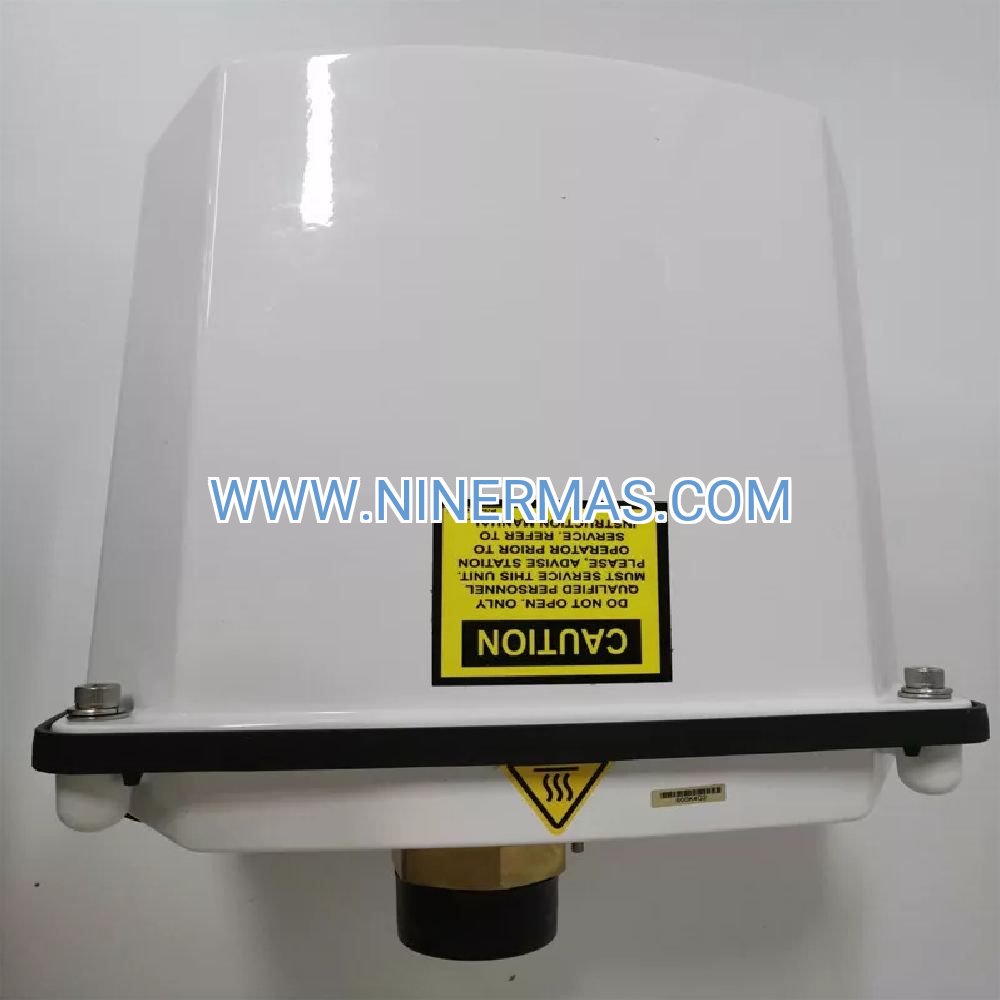

NEMA Type 4X enclosure withstands dust, rain, and corrosive atmospheres; operational from -40°C to +55°C without auxiliary heating/cooling, ideal for remote substations.

✓ Scalable Sensor Architecture
Expansion ports accommodate additional sensors (bushing monitors, load tap changers) as monitoring requirements evolve, protecting initial capital investment.

Industry Applications & Problem-Solving Scenarios

Electric Utility Substations
Utilities managing 50+ transformer fleets deploy HYDRAN M2 units to prioritize maintenance resources. By identifying transformers with accelerating gas generation rates, operators shift from time-based to condition-based servicing, reducing emergency callouts by 40-50% while extending asset life 5-10 years.

Industrial Manufacturing Plants
Steel mills, chemical processors, and data centers with mission-critical transformers use M2 systems to avoid production losses from unexpected failures. Real-time alerts enable planned shutdowns during low-demand periods, preventing $500K-$2M+ downtime costs per incident.

Renewable Energy Installations
Wind farms and solar parks in remote locations leverage M2's autonomous operation and wide temperature tolerance. SCADA integration allows centralized monitoring of geographically dispersed assets, reducing site visit frequency by 70% while maintaining reliability standards.

Railway & Transit Systems
Electrified rail networks monitor traction power transformers with M2 units to prevent service disruptions. Early fault detection supports predictive replacement schedules aligned with maintenance windows, minimizing passenger impact.

Oil & Gas Facilities
Offshore platforms and refineries operating in explosive atmospheres benefit from M2's intrinsically safe design options. Continuous monitoring compensates for limited access to equipment, with data transmitted to onshore control centers for expert analysis.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the HYDRAN M2 for transformers rated 10 MVA and above where unplanned outages carry high financial or safety consequences. For smaller distribution transformers (under 5 MVA), consider single-gas monitors. Ensure your SCADA system supports Modbus or IEC 61850 before ordering; legacy systems may require protocol converters. Specify explosion-proof certifications (ATEX, IECEx) if installing in Zone 1/2 hazardous areas.

Advanced Integration & Expansion Features

IoT & Cloud Connectivity: Optional cellular/Ethernet gateways enable cloud-based analytics platforms, allowing AI-driven trend analysis and fleet-wide benchmarking. Historical data exports support regulatory compliance reporting (NERC, IEEE standards).

Bushing Monitor Integration: Expansion ports accept capacitance/power factor sensors for bushing condition assessment, consolidating multiple monitoring functions into a single platform and reducing installation complexity.

Custom Alarm Thresholds: User-configurable gas concentration limits align with asset-specific risk profiles—set conservative thresholds for critical transformers, relaxed limits for redundant units.

Third-Party Software Compatibility: Open API architecture supports integration with asset management systems (SAP, Maximo), enabling automated work order generation when fault conditions are detected.

Delivery Timelines & Service Commitments

Standard Lead Time: 4-6 weeks for factory-configured units; expedited 10-day service available for critical replacements (additional fees apply).

Customization Options: 8-10 weeks for units requiring hazardous area certifications, custom communication protocols, or specialized sensor configurations.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and sensor performance. Extended 36-month plans available at time of purchase.

Technical Support: 24/7 phone/email assistance for troubleshooting, configuration guidance, and data interpretation. On-site commissioning services available in major markets.

Documentation Package: Includes installation manual, wiring diagrams, Modbus register maps, IEC 61850 ICD files, and sample SCADA configuration scripts. Calibration certificates provided with each unit.

Frequently Asked Questions

Q: How does the HYDRAN M2 connect to existing SCADA systems without custom programming?
A: The M2 ships with pre-configured Modbus register maps and IEC 61850 ICD files compatible with major SCADA platforms (GE iFIX, Siemens WinCC, Schneider ClearSCADA). Most integrations require only IP address assignment and register mapping—typically completed in 2-4 hours by plant electricians.

Q: What transformer capacity range is optimal for HYDRAN M2 deployment?
A: The system is engineered for transformers rated 10 MVA to 500+ MVA where asset replacement costs exceed $200K. For smaller units, the monitoring investment may not justify ROI unless they serve critical loads. Utilities often set 25 MVA as the minimum threshold for online DGA monitoring.

Q: Can the system quantify energy savings from optimized maintenance scheduling?
A: While the M2 doesn't directly measure energy consumption, condition-based maintenance enabled by continuous monitoring typically reduces transformer losses by 2-5% through timely oil treatment and component replacement. For a 100 MVA transformer, this translates to $15K-$40K annual savings at $0.10/kWh electricity rates.

Q: What installation requirements must be met before commissioning the monitor?
A: Key prerequisites include: (1) Transformer valve with 1-inch NPT thread for sensor mounting, (2) 120/240 Vac power supply within 50 feet, (3) Ethernet or RS-485 cable run to control room, (4) Minimum 12 inches clearance around enclosure for maintenance access. Installation typically requires 4-6 hours by qualified technicians.

Q: Does the HYDRAN M2 support remote firmware updates and diagnostics?
A: Yes—units with Ethernet connectivity accept encrypted firmware uploads via web interface or SCADA commands. Remote diagnostics allow support engineers to review sensor health, communication logs, and gas trend data without site visits, reducing troubleshooting time by 60-80%.

Q: How does moisture monitoring complement dissolved gas analysis for transformer health assessment?
A: Elevated moisture accelerates insulation aging and reduces dielectric strength, often preceding gas generation events. By tracking both parameters, operators identify transformers requiring oil reclamation (moisture removal) versus those needing component replacement (active faults), optimizing maintenance budgets and extending asset life 3-7 years.

Request Technical Consultation

Our transformer monitoring specialists provide complimentary site assessments to determine optimal sensor placement, SCADA integration requirements, and ROI projections based on your asset portfolio. Contact us to schedule a consultation or request detailed case studies from utilities managing similar transformer fleets.
