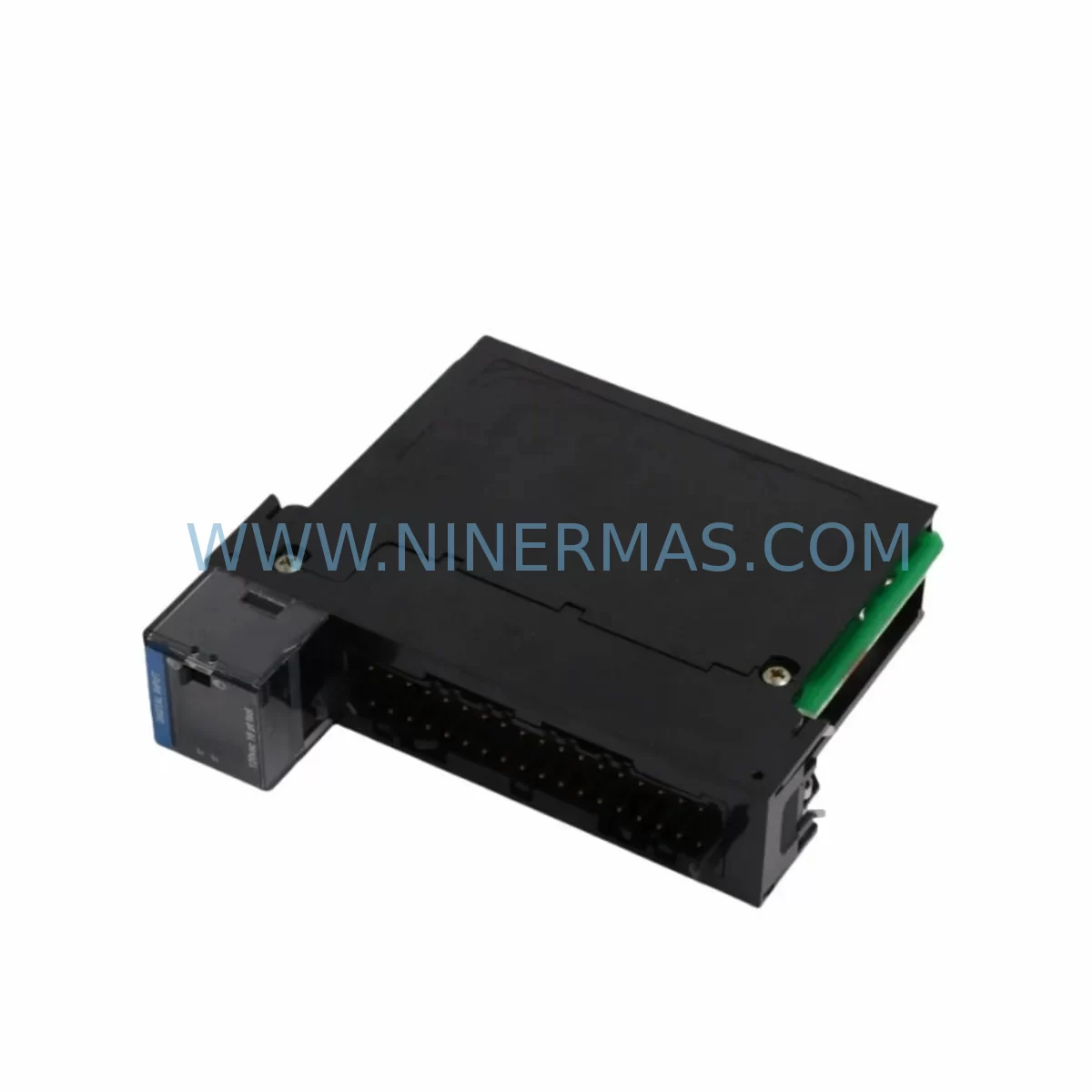

The Honeywell TC-IOLI01 is an original I/O Link Module designed for the Experion PKS C300 Controller Series, one of Honeywell’s most widely deployed distributed control system (DCS) platforms in process industries including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing. As a critical communication bridge between the C300 controller and field I/O subsystems, the TC-IOLI01 plays a central role in maintaining real-time data exchange across the control architecture. When this module fails or degrades, the consequences can range from partial I/O loss to complete process shutdown — making a verified, service-ready spare an essential component of any responsible maintenance strategy.

At NINERMAS, every TC-IOLI01 unit is sourced from authorized supply channels, individually inspected, and tested prior to shipment. Each unit ships with a 12-month warranty, providing procurement engineers and maintenance teams with the confidence needed for both emergency replacement and planned inventory replenishment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing Honeywell Experion PKS installations, the TC-IOLI01 rarely fails in isolation. When diagnosing an I/O link communication fault or planning a scheduled cabinet inspection, a structured approach to component review significantly reduces the risk of repeat failures and unplanned downtime.

During routine control cabinet inspections, the TC-IOLI01 should be evaluated alongside the C300 Controller Module (TC-CCR013), which governs overall process execution and communicates upstream to the Experion server. A degraded C300 controller can produce symptoms that mimic I/O link failures, making it important to verify both modules before committing to a replacement decision.

The TC-IOLI01 connects to remote I/O cabinets via the I/O Link network, where Series C I/O modules — including analog input modules such as the TC-IAH161 and analog output modules such as the TC-OAH163 — terminate field signals. If the I/O link is disrupted, all downstream I/O on that segment becomes unavailable. Maintenance teams should verify the integrity of I/O Link cables and connectors as part of any TC-IOLI01 replacement workflow, as cable degradation or connector corrosion is a common root cause of intermittent link faults.

Power integrity is another critical factor. The C300 backplane is powered by dedicated Experion power supply modules (such as the TC-PRS021 or equivalent redundant power supply units). Voltage fluctuations or power supply aging can stress communication modules and accelerate failure. During any TC-IOLI01 replacement, it is advisable to measure backplane supply voltage and inspect the power supply module for signs of wear or thermal stress.

For plants operating with redundant C300 controller pairs, the TC-IOLI01 on the standby controller should also be inspected. A failed standby I/O link module can go undetected until a primary controller switchover is triggered — at which point the redundancy benefit is lost entirely. Proactive spare management for both primary and secondary controller slots is strongly recommended.

In aging DCS installations, Experion FTE (Fault Tolerant Ethernet) switches and associated network infrastructure should be reviewed when I/O communication anomalies are observed. Network-layer issues can produce fault signatures that appear at the I/O link level. Similarly, Experion HMI workstations and Application Stations should be checked for alarm floods or communication timeouts that correlate with TC-IOLI01 fault events.

For procurement engineers, maintaining a minimum of one TC-IOLI01 per C300 controller cluster in local spare inventory is considered best practice in high-availability process environments. Pairing this with spares for the TC-CCR013 controller module, relevant Series C I/O cards, and I/O Link termination assemblies creates a comprehensive emergency response kit capable of restoring most C300-related failures within a single maintenance shift.

Site Replacement Workflow

Step 1 — Fault Isolation: Confirm the TC-IOLI01 as the fault source using Experion PKS diagnostic screens. Check for I/O Link communication alarms, module status LEDs (fault/offline indicators), and controller event logs before proceeding with physical replacement.

Step 2 — Safety Preparation: Follow site-specific lockout/tagout (LOTO) procedures. Identify whether the affected C300 controller is operating in simplex or redundant mode. If redundant, initiate a controlled switchover to the standby controller before removing the faulty module.

Step 3 — Module Removal: Power down the affected controller slot if required by site procedure. Carefully disconnect I/O Link cables, noting cable labeling and routing. Remove the TC-IOLI01 from the backplane, observing ESD precautions.

Step 4 — Replacement Installation: Insert the new TC-IOLI01 into the correct backplane slot. Reconnect I/O Link cables in the correct sequence. Power up the slot and observe LED status indicators for normal operation confirmation.

Step 5 — System Verification: From the Experion PKS console, verify that all I/O points on the restored link return to normal scan status. Confirm that no residual alarms remain and that process values are reading correctly across all connected field instruments.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS), including the failed module serial number, replacement unit details, and post-replacement test results. Return the faulty module for failure analysis if required by site quality procedures.

This workflow is applicable to both emergency replacements during unplanned outages and planned replacements during scheduled turnarounds. The TC-IOLI01’s plug-and-play compatibility with the C300 backplane means that — when the correct spare is on hand — restoration time is typically under two hours, including system verification.

Spare Parts Support FAQ

Q1: Is the TC-IOLI01 compatible with all versions of the Honeywell Experion PKS C300 platform?
The TC-IOLI01 is designed for use within the Honeywell Experion PKS C300 controller family. Compatibility with specific firmware revisions or hardware generations should be confirmed against your site’s Experion system version. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q2: How is the TC-IOLI01 tested before shipment?
Every unit undergoes functional verification testing prior to dispatch. This includes power-on testing, communication interface checks, and visual inspection for physical integrity. Units that do not meet performance criteria are not shipped. A 12-month warranty is provided from the date of shipment as standard.

Q3: What is the recommended spare inventory strategy for the TC-IOLI01?
For process plants with multiple C300 controller clusters, maintaining one TC-IOLI01 per cluster in local inventory is recommended. For single-cluster installations, a minimum of one unit should be held on-site. Given the lead times associated with OEM procurement channels, holding a pre-verified spare from NINERMAS eliminates the risk of extended downtime while awaiting factory supply.

Q4: Can NINERMAS support long-term supply of the TC-IOLI01 for multi-year maintenance contracts?
Yes. NINERMAS maintains ongoing sourcing relationships to support long-term spare parts supply programs. Framework agreements and scheduled delivery arrangements are available for customers requiring guaranteed availability of the TC-IOLI01 and associated Experion C300 components over multi-year maintenance cycles. Contact our sales team to discuss your requirements.
