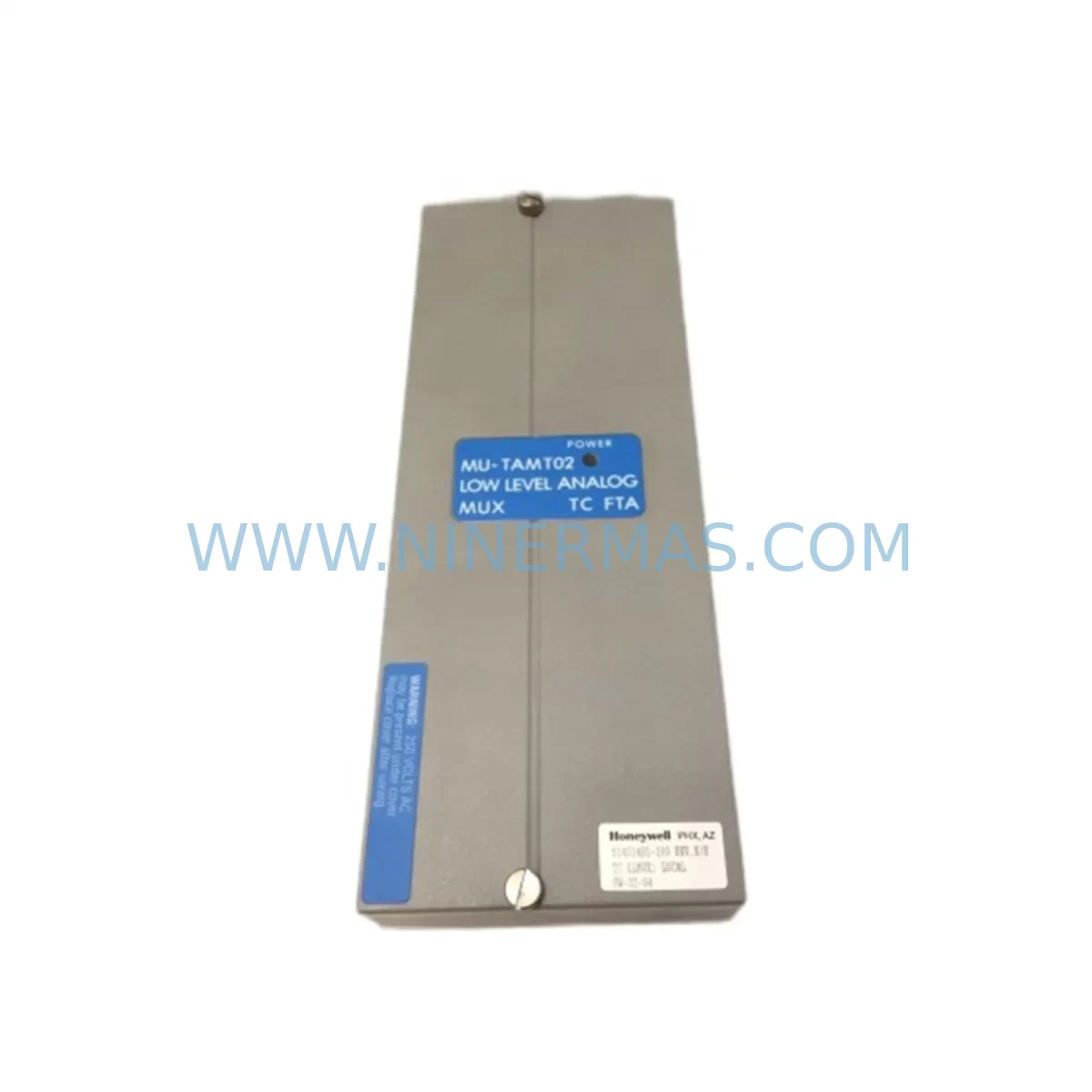

The Honeywell MU-TAMT02 (P/N 51401491-100) is a critical analog input module designed for the TDC 3000 Distributed Control System platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As aging TDC 3000 systems approach end-of-support milestones, maintaining a verified, service-ready spare of the MU-TAMT02 is no longer optional — it is a core element of any responsible maintenance strategy.

At NINERMAS, every MU-TAMT02 51401491-100 unit is sourced, inspected, and dispatched with full traceability documentation. Our inventory supports both emergency breakdown recovery and planned annual overhaul programs, ensuring your control system remains operational without extended lead-time exposure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies the MU-TAMT02 51401491-100 as a fault candidate during routine diagnostics or an unplanned shutdown, the replacement scope rarely ends at the module itself. The TDC 3000 architecture integrates tightly across its card cage and communication infrastructure, meaning a thorough site assessment should accompany every module swap.

Begin by verifying the integrity of the 51401491-100 backplane slot and the associated card cage bus connectors. Corrosion, bent pins, or intermittent contact at the backplane are common root causes of recurring module faults that go undetected when only the module is replaced. Inspect the MU-TAIH02 or MU-TAIH52 analog input highway interface modules in the same cabinet — these components share the signal conditioning chain with the MU-TAMT02 and can mask or amplify thermocouple input errors.

Review the field termination assembly (FTA) wiring connected to the MU-TAMT02 channel inputs. Loose or oxidized thermocouple extension wire connections at the terminal block introduce cold-junction compensation errors that mimic module failure. If the FTA is a MC-TAIH02 or MC-TAIH52 type, inspect the ribbon cable and connector integrity before commissioning the replacement module.

For systems running the Honeywell HPM (High-Performance Process Manager) or APM (Advanced Process Manager), confirm that the firmware revision of the replacement MU-TAMT02 is compatible with the installed PM software version. Mismatched firmware can cause configuration download failures or channel initialization errors during restart. Cross-reference the PM/APM configuration database to validate channel tag assignments before going live.

Procurement engineers sourcing the MU-TAMT02 should simultaneously evaluate stock levels for the MU-TAOM02 analog output module and the MU-TDID12 digital input module — both are commonly co-located in the same HPM I/O subsystem and share similar obsolescence risk profiles. Maintaining a minimum of one spare per critical module type reduces mean-time-to-repair (MTTR) from days to hours during unplanned outages.

Power supply integrity is equally important. Verify that the MC-PDOX02 or equivalent TDC 3000 power supply module supplying the affected card cage is within its rated output tolerance. Voltage sag or ripple on the 24 VDC bus can cause analog input modules to report erratic readings or fail self-diagnostics, leading to unnecessary module replacements. A calibrated power quality check should be part of every MU-TAMT02 replacement workflow.

Finally, if the plant operates a Honeywell Universal Control Network (UCN) or Local Control Network (LCN), confirm that the network communication status is stable before and after module replacement. UCN coaxial cable termination, NIM (Network Interface Module) health, and node address conflicts can all surface as module-level alarms in the TDC 3000 operator console, complicating fault isolation.

Site Replacement Workflow

Replacing the Honeywell MU-TAMT02 51401491-100 in a live TDC 3000 environment requires a structured approach to minimize process disruption and ensure a clean handover back to automatic control.

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the MU-TAMT02 by reviewing the TDC 3000 system status display and PM diagnostic logs. Document all active channel tags, engineering unit ranges, and alarm setpoints assigned to the module before removal.

Step 2 — Safe Isolation: Place all affected control loops in manual mode at the operator console. Notify the control room supervisor and follow site-specific LOTO (Lockout/Tagout) procedures for the card cage power zone. For hot-swap capable configurations, verify that the HPM supports online module replacement before proceeding without a full cabinet power-down.

Step 3 — Physical Replacement: Remove the faulty MU-TAMT02 by releasing the card ejector levers and sliding the module out of the backplane slot. Inspect the slot connector for damage. Insert the replacement 51401491-100 module firmly until the ejectors lock. Verify the module LED status indicators show normal initialization sequence.

Step 4 — Configuration Restore: Download the saved PM configuration to the replacement module using the TDC 3000 engineering console. Verify all channel tags, input types, and range parameters are correctly restored. Perform a channel-by-channel signal verification using a thermocouple simulator or calibrated mV source before returning loops to automatic.

Step 5 — Return to Service: Transfer control loops back to automatic mode sequentially, monitoring process variable trends for stability. Log the replacement in the plant CMMS (Computerized Maintenance Management System) and update the spare parts inventory record. Submit the removed module for failure analysis if root cause has not been confirmed.

This workflow applies equally to planned annual maintenance shutdowns and emergency breakdown scenarios. NINERMAS ships all MU-TAMT02 units with a pre-shipment functional test report, reducing on-site commissioning time and supporting faster return-to-service.
