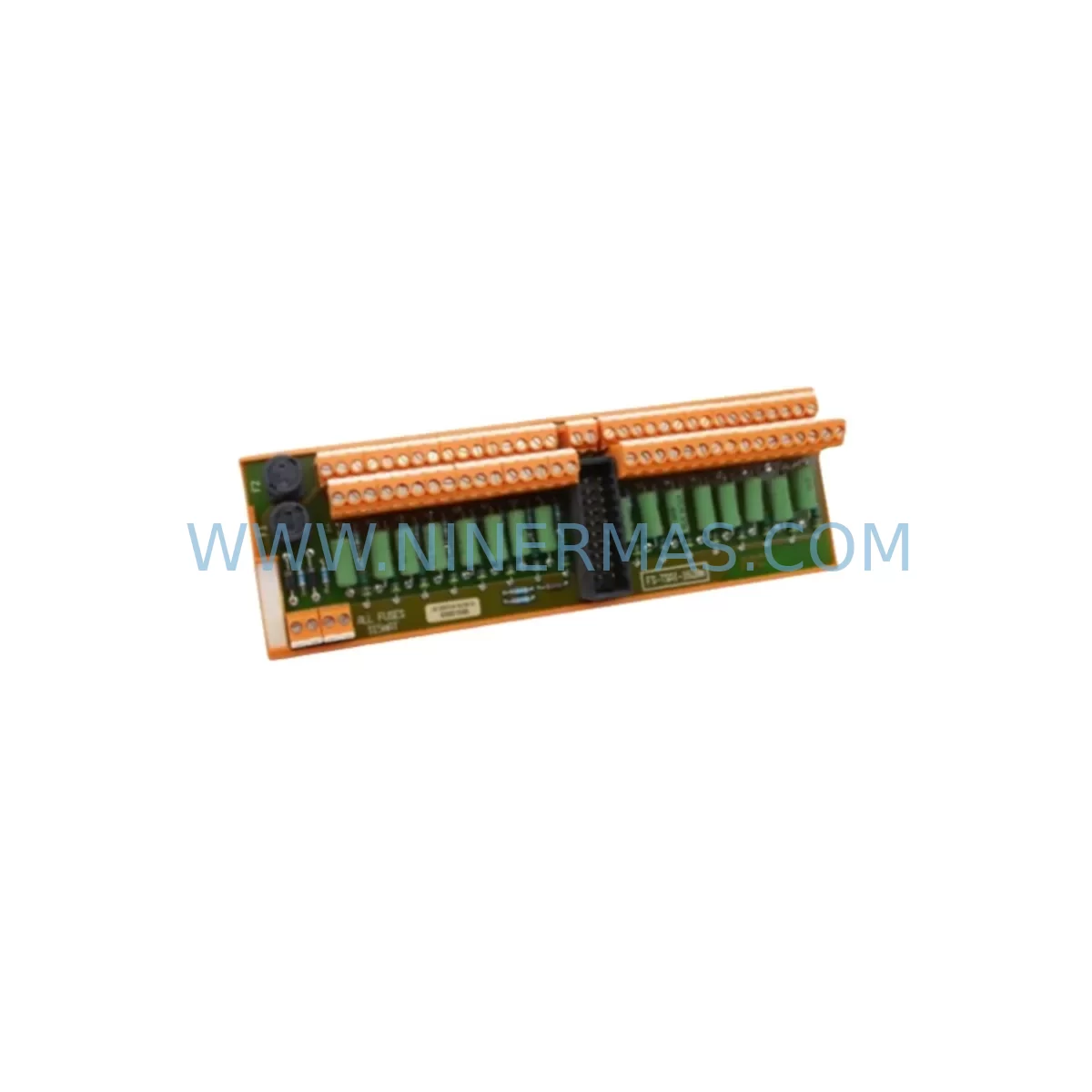

Honeywell FC-TSHART-1620m Service-Ready Spare Part

Honeywell FC-TSHART-1620m Service-Ready Spare Part for Industrial Maintenance

The Honeywell FC-TSHART-1620m is a critical spare part module designed for the Safety Manager SC series — Honeywell’s high-integrity safety instrumented system (SIS) platform widely deployed in oil & gas, petrochemical, power generation, and continuous process industries. Maintaining an available stock of the FC-TSHART-1620m is a fundamental requirement for any maintenance team responsible for SIL 2/SIL 3 safety loops, emergency shutdown (ESD) systems, and fire & gas (F&G) detection architectures built on the Safety Manager SC platform.

Unplanned downtime caused by a failed or degraded safety controller module can trigger costly production halts, regulatory non-compliance events, and extended maintenance windows. The FC-TSHART-1620m, when held as a pre-tested, shelf-ready spare, enables maintenance engineers to execute rapid module swap-outs — restoring system integrity and returning the safety loop to its designed SIL rating within the shortest possible timeframe. This is not a refurbished or grey-market component: every unit shipped by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A disciplined spare parts strategy for the Safety Manager SC platform extends well beyond holding a single FC-TSHART-1620m. Maintenance engineers conducting annual turnarounds, control cabinet inspections, or post-incident reviews should simultaneously assess the condition and availability of the following associated components to ensure full system readiness:

The FC-SDIL-1620 digital input module and FC-SDOL-1620 digital output module share the same Safety Manager SC chassis slot architecture as the FC-TSHART-1620m. A fault in any one of these modules during a safety demand event can compromise the entire ESD loop response. Holding at least one spare of each I/O module type is standard practice in high-availability SIS environments.

The Safety Manager SC backplane assembly and its associated chassis power supply module (typically a redundant 24 VDC rail configuration) must be inspected during every scheduled maintenance window. Backplane connector wear, oxidation on gold-plated contacts, and power supply capacitor aging are leading causes of intermittent module faults that are frequently misdiagnosed as module failures. Replacing the FC-TSHART-1620m without verifying backplane and power supply integrity risks repeat failures within the same maintenance cycle.

For HART-enabled field loops connected through the FC-TSHART-1620m, maintenance teams should verify the condition of HART multiplexers, signal isolators, and field junction boxes. Degraded signal isolation between the HART loop and the safety controller can introduce noise that triggers nuisance trips or masks genuine field device faults. Inline signal conditioners and galvanic isolators rated for SIL applications should be part of the same inspection checklist.

The Honeywell Safety Manager SC communication module (Modbus/TCP or PROFIBUS interface variant, depending on site configuration) handles supervisory data exchange between the safety controller and the DCS or SCADA layer. A communication module fault does not directly impair the safety function but will blind the control room to safety system diagnostics — a significant operational risk during extended production runs. Stocking a communication module spare alongside the FC-TSHART-1620m is strongly recommended for critical installations.

Finally, terminal blocks, field wiring connectors, and fuse holders within the safety cabinet should be inspected and torque-verified whenever a module swap is performed. Loose terminations are a disproportionate source of field-side faults in aging SIS installations and are frequently overlooked during module-level maintenance activities.

Site Replacement Workflow

Replacing the FC-TSHART-1620m on a live Safety Manager SC system requires adherence to the site’s Management of Change (MOC) procedure and the relevant Honeywell Safety Manager SC hardware replacement guidelines. The following workflow reflects best practice for minimizing downtime and maintaining SIL integrity throughout the replacement process:

Step 1 — Pre-Replacement Verification: Confirm the replacement FC-TSHART-1620m carries the correct firmware revision compatible with the installed Safety Manager SC system version. Firmware mismatches between the replacement module and the existing chassis configuration are a known source of post-replacement faults. Cross-reference the module label against the system’s hardware configuration report before proceeding.

Step 2 — Safety Bypass Authorization: Initiate the appropriate safety bypass or inhibit for the affected I/O channels per site procedures. Document the bypass activation time and notify the control room. Ensure the bypass is limited to the minimum duration required for the swap.

Step 3 — Module Removal and Inspection: Remove the faulty FC-TSHART-1620m using the module extraction tool. Inspect the backplane connector for bent pins, corrosion, or debris before inserting the replacement unit. Clean the connector with approved contact cleaner if required.

Step 4 — Replacement Module Installation: Insert the pre-tested FC-TSHART-1620m into the designated chassis slot. Confirm the module seating indicator (LED or system diagnostic) shows correct initialization. Allow the Safety Manager SC system to complete its self-test sequence before removing the bypass.

Step 5 — Post-Replacement Functional Test: Execute a channel-level proof test for all I/O points associated with the replaced module. Verify HART communication is re-established with all connected field devices. Confirm the safety loop diagnostic coverage returns to the designed SIL level before closing the work order.

Step 6 — Documentation and Spare Replenishment: Update the site’s maintenance management system (CMMS) with the replacement record, including the removed module’s serial number and fault description. Immediately initiate a purchase order to replenish the consumed FC-TSHART-1620m spare to maintain the site’s minimum stock level.

Spare Parts Support FAQ

Q1: Is the FC-TSHART-1620m supplied by NINERMAS an original Honeywell component?
Yes. All FC-TSHART-1620m units supplied by NINERMAS COMPANY LIMITED are original Honeywell components sourced through authorized industrial distribution channels. Each unit is individually inspected and functionally tested prior to shipment. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility between the FC-TSHART-1620m and my installed Safety Manager SC system version?
Compatibility is determined by the Safety Manager SC system firmware version and the chassis hardware revision installed at your site. NINERMAS technical support can assist with compatibility verification based on your system’s hardware configuration report or the existing module label data. We recommend providing the full system version string and chassis part number when placing an inquiry to ensure the correct module revision is supplied.

Q3: What is the recommended minimum stock level for the FC-TSHART-1620m in a continuous process plant?
For plants operating Safety Manager SC systems in SIL 2 or SIL 3 ESD applications, a minimum of one FC-TSHART-1620m spare per installed chassis is the standard recommendation. High-criticality installations — such as offshore platforms or single-train process units where extended lead times cannot be tolerated — should maintain two units per chassis. NINERMAS offers long-term supply agreements and ex-stock reservation programs to support multi-year spare parts planning without capital commitment risk.

Q4: Can NINERMAS support long-term supply of the FC-TSHART-1620m for lifecycle extension programs?
Yes. NINERMAS specializes in long-lifecycle spare parts supply for industrial automation platforms, including legacy and end-of-life Honeywell Safety Manager components. We maintain strategic stock of the FC-TSHART-1620m and related Safety Manager SC modules to support customers operating beyond the original product lifecycle. Contact our team to discuss annual supply agreements, consignment stock arrangements, or multi-year procurement programs tailored to your plant’s maintenance schedule.
