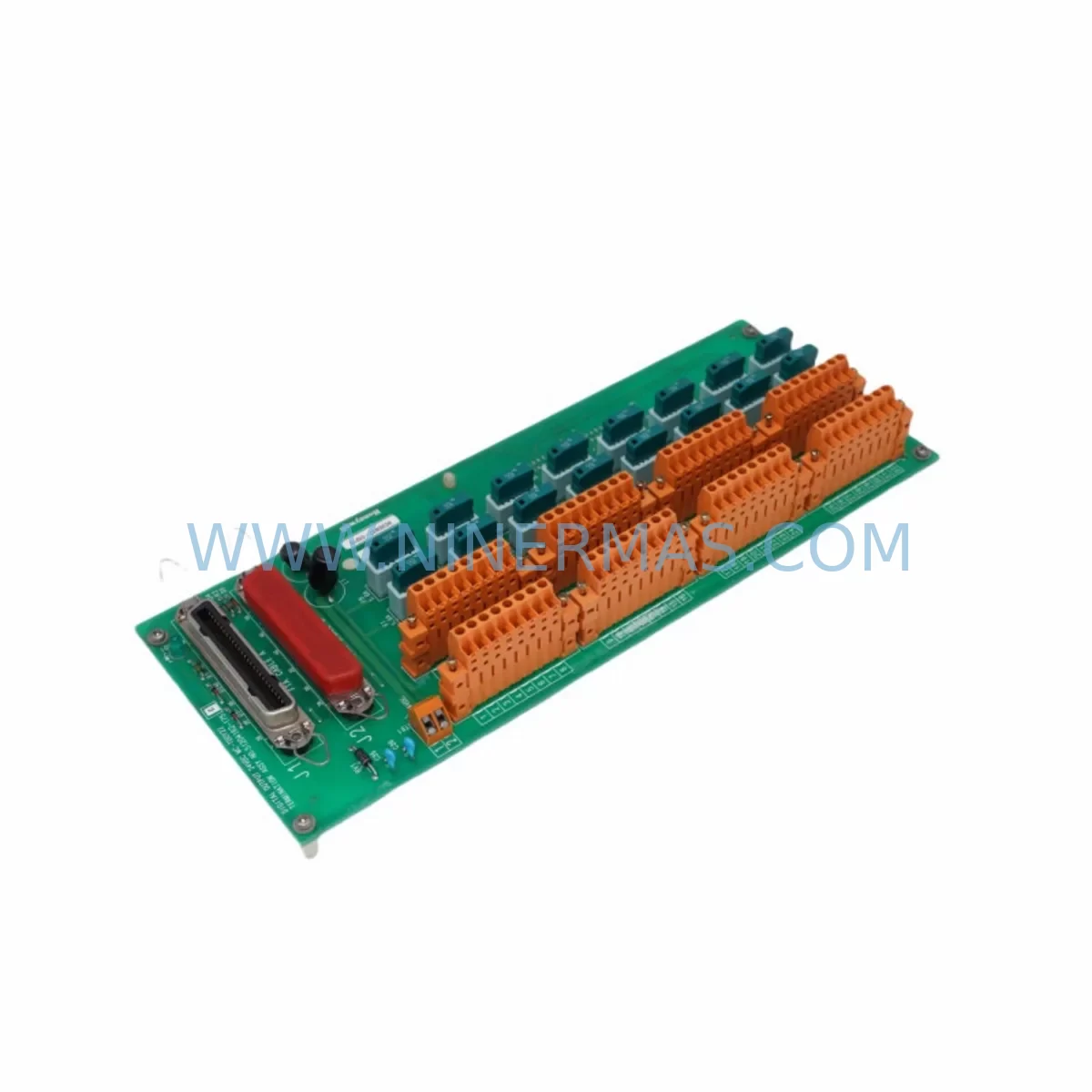

Honeywell MC-TD1D12 Retrofit-Compatible Digital Input Module

Honeywell MC-TD1D12 Retrofit-Compatible Digital Input Module: Legacy System Compatibility & Smooth Upgrade

The Honeywell MC-TD1D12 is a ruggedized 24-channel digital input module engineered for demanding industrial environments and purpose-built for seamless integration into existing Honeywell Experion PKS, TDC 3000, and PlantScape control architectures. As legacy automation systems approach end-of-life and spare parts become increasingly scarce, the MC-TD1D12 has become a critical component in retrofit projects, discontinued model replacements, and control cabinet modernization programs across process industries worldwide.

Whether you are managing a phased migration from an aging TDC 3000 node to a current-generation C300 controller platform, or simply extending the operational life of an existing Experion PKS cabinet, the MC-TD1D12 delivers the electrical compatibility, mechanical form factor, and firmware-level recognition required to minimize engineering rework and reduce commissioning time on the plant floor.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the first module is removed from the rack. When planning a replacement of the MC-TD1D12 or an equivalent legacy digital input module, engineers must conduct a thorough audit of the existing control cabinet to confirm power budget, terminal wiring integrity, and backplane slot assignments.

Start by reviewing the power supply capacity of the installed MC-PDIY22 or equivalent 24 VDC I/O power supply module. The MC-TD1D12 draws a defined load per channel under worst-case all-inputs-energized conditions, and adding replacement modules to an aging power rail without recalculating the total load budget is a common source of field failures during commissioning. If the existing power module is already operating near its rated output, consider upgrading to a higher-capacity unit in the same form factor before proceeding with the I/O module swap.

Terminal wiring is the next critical checkpoint. The MC-TD1D12 interfaces with field devices through the MC-TAIH04 or MC-TAIH02 I/O termination assembly. Before disconnecting any wiring, photograph and document every terminal connection, cross-referencing against the as-built loop drawings. In older installations, terminal labels may have faded or been relabeled during previous maintenance cycles, making photographic documentation essential for accurate reconnection.

Backplane slot assignment must be confirmed in the Experion PKS Control Builder configuration database. Each MC-TD1D12 module occupies a defined slot address within the C300 controller’s I/O tree. When replacing a module, the slot address is preserved automatically if the physical slot position is maintained — but if the retrofit involves reorganizing the rack layout to accommodate a new MC-PAIH03 carrier assembly or an additional I/O expansion chassis, the slot addresses must be reassigned and the Control Builder project must be rebuilt and downloaded to the controller.

Program compatibility is a frequent concern during legacy system upgrades. The C300 Controller running Experion R500 or later firmware will recognize the MC-TD1D12 without requiring changes to the control strategy, provided the module type definition in the Control Builder library matches the installed firmware revision. For sites still operating on earlier Experion releases, a firmware compatibility check against the Honeywell Product Lifecycle Management (PLM) database is strongly recommended before ordering replacement modules.

HMI display continuity is another area that requires attention. If the plant’s Experion Station or third-party SCADA system is configured to display individual digital input status points sourced from the MC-TD1D12, verify that the point names and data types remain consistent after the module swap. In most cases, no HMI reconfiguration is required, but sites using custom faceplates or derived calculations based on raw I/O point values should validate display behavior in a simulation environment before going live.

Communication link integrity between the C300 controller and the FTE network switch should be verified after any module replacement. While the MC-TD1D12 itself does not directly participate in FTE communication — that function is handled at the controller level — physical disturbance of the rack during module removal and insertion can occasionally dislodge FTE cable connections at the rear of the chassis. A brief network health check using the Experion Station’s system status display will confirm that all controller nodes remain online after the swap.

For sites managing a broader migration from TDC 3000 to Experion PKS, the MC-TD1D12 is frequently deployed as part of a phased I/O migration strategy alongside the MC-TAIH04 termination assembly, MC-PDIY22 power distribution module, and C300 Process Controller. In these projects, the existing field wiring is typically preserved and reterminated to new Experion-compatible carrier assemblies, avoiding the cost and risk of full field rewiring. A programming cable compatible with the C300 USB or Ethernet port is required for on-site firmware verification and Control Builder project downloads during commissioning.

Installation space confirmation is essential in retrofit projects where the existing control cabinet was designed around older, larger module form factors. The MC-TD1D12 follows the standard Experion Series C module dimensions, but verify that the replacement module and its associated termination assembly fit within the available panel depth, particularly in cabinets where cable management trays or conduit entries have been added over the years.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern in any live plant retrofit. For the MC-TD1D12, the replacement procedure is designed to be executed during a planned maintenance window, with the target of completing the physical swap, wiring verification, and functional test within a single shift.

Before initiating the replacement, place the affected control loop in manual mode at the Experion Station operator console. This ensures that any transient signal interruption during module removal does not trigger an automatic control response or process alarm cascade. Document the current process values and controller output states so that the operator can maintain manual control continuity throughout the replacement window.

The original control strategy logic stored in the C300 controller is not affected by a module swap at the I/O level. The program resides in the controller’s non-volatile memory and will resume normal execution as soon as the replacement MC-TD1D12 is recognized on the backplane. This is a critical advantage of the Experion PKS architecture: field-level I/O replacement does not require a controller restart or program reload in most cases, preserving the integrity of the running control strategy and reducing the risk of process upsets during the maintenance window.

To further reduce commissioning time, request a pre-shipment functional test report with your MC-TD1D12 order. Each module supplied by NINERMAS is tested against Honeywell factory acceptance criteria before dispatch, and the test report provides documented evidence of channel-by-channel input response, isolation integrity, and power consumption — data that accelerates the site acceptance test and supports regulatory compliance documentation in industries such as oil & gas, pharmaceuticals, and power generation.

Field commissioning should follow a structured channel-by-channel verification sequence: energize each field device connected to the MC-TD1D12 input channels in turn, confirm the corresponding status indication at the Experion Station, and record the result in the site commissioning checklist. This systematic approach ensures that no wiring errors are carried forward into normal operation and provides a complete audit trail for the plant’s maintenance management system.

Once all channels are verified, return the affected control loops from manual to automatic mode, monitor the process response for a defined stabilization period, and obtain operator sign-off before closing the maintenance work order. Total planned downtime for a single MC-TD1D12 replacement in a well-prepared retrofit is typically two to four hours, including documentation.

Retrofit Support FAQ

Q1: Is the MC-TD1D12 a direct drop-in replacement for the same SKU installed in my existing Experion PKS cabinet?
Yes. The MC-TD1D12 is designed as a direct replacement for the same model number within the Experion PKS Series C I/O family. The module uses the same backplane connector, occupies the same rack slot, and is recognized by the C300 controller without requiring changes to the Control Builder configuration, provided the firmware revision is compatible. NINERMAS recommends confirming the Experion software release version before ordering to ensure full compatibility.

Q2: What wiring changes are required when replacing the MC-TD1D12 in a legacy installation?
In most cases, no field wiring changes are required. The MC-TD1D12 interfaces with field devices through the existing MC-TAIH04 or MC-TAIH02 termination assembly, which remains in place during the module swap. Terminal connections at the carrier assembly are not disturbed. If the termination assembly itself is being replaced as part of a broader retrofit, all field wiring must be documented, disconnected, and reconnected to the new carrier following the as-built loop drawings.

Q3: Does NINERMAS provide pre-shipment testing and a warranty for the MC-TD1D12?
Yes. Every MC-TD1D12 unit supplied by NINERMAS undergoes a functional acceptance test prior to shipment, verifying channel response, isolation, and power consumption against Honeywell specifications. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Test documentation is available upon request to support site acceptance testing and regulatory compliance requirements.

Q4: What is the typical lead time and stock availability for the MC-TD1D12?
NINERMAS maintains inventory of the MC-TD1D12 to support urgent retrofit and breakdown replacement requirements. Standard orders are processed and dispatched within 3–5 business days. For large-quantity retrofit projects or scheduled maintenance programs requiring guaranteed stock reservation, contact our sales team in advance to arrange a dedicated inventory allocation. Expedited shipping options are available for emergency breakdown situations.
