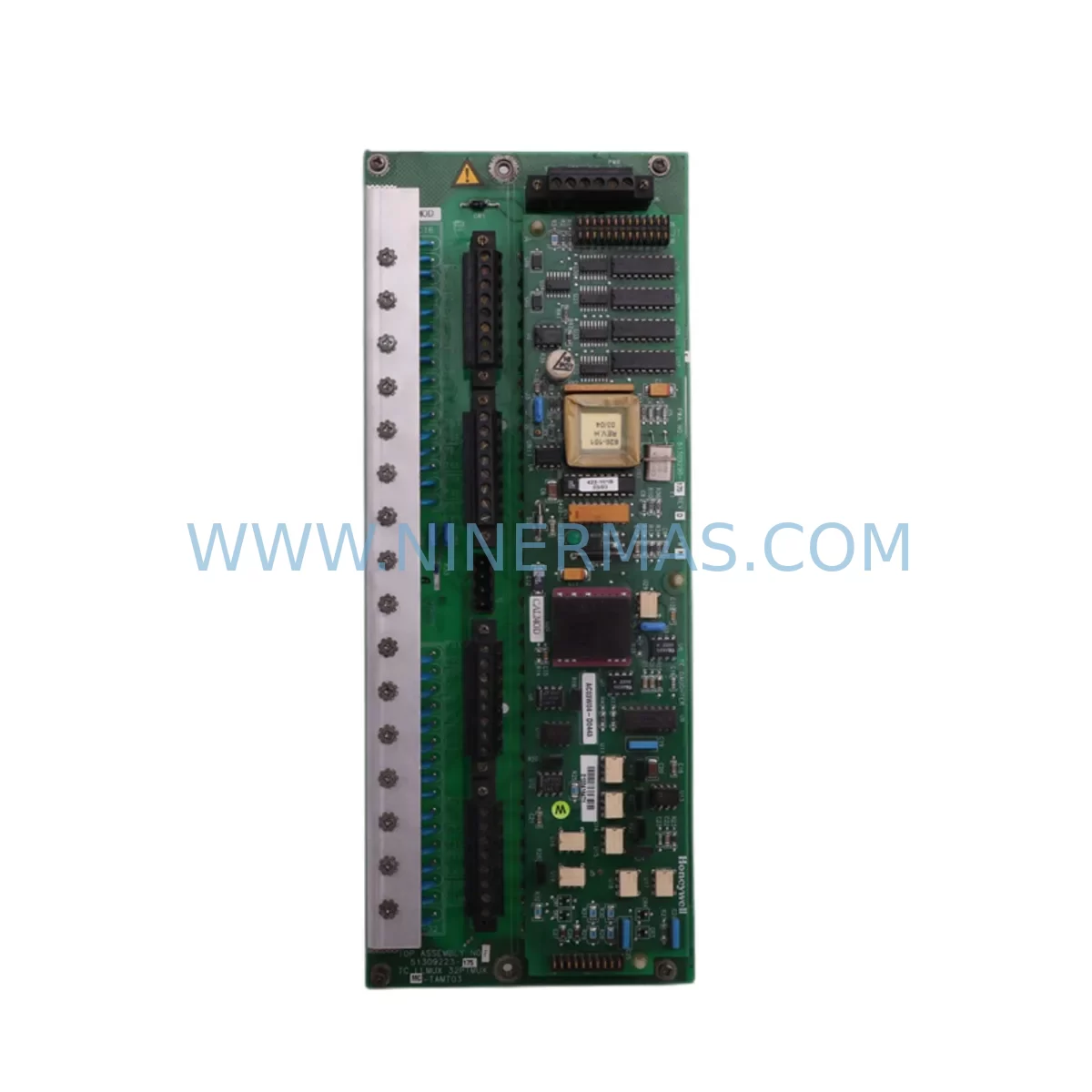

The Honeywell MC-TAMT03 (part number 51309223-175) is a ruggedized thermocouple input module designed for continuous operation in demanding industrial environments. As a critical spare part within the Honeywell Experion PKS and legacy TDC 3000 distributed control system platforms, this module plays an essential role in temperature measurement loops across refining, petrochemical, power generation, and pharmaceutical process plants. Maintenance engineers and procurement teams managing aging DCS infrastructure rely on verified, service-ready stock of the MC-TAMT03 to minimize unplanned downtime and protect production continuity.

The MC-TAMT03 accepts multiple thermocouple input types and provides cold junction compensation, signal conditioning, and direct interface to the Honeywell C200 or C300 controller backplane. Its 51309223-175 variant designation confirms the ruggedized build specification, making it suitable for high-vibration or thermally stressed cabinet environments. When sourcing this module as a replacement spare, procurement engineers should confirm the exact part suffix to ensure full compatibility with the installed backplane revision and firmware baseline.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a DCS-based temperature measurement system requires more than simply stocking the MC-TAMT03 module itself. Maintenance engineers conducting annual cabinet inspections or responding to thermocouple channel faults should simultaneously evaluate the condition of the associated field termination assembly (FTA), which connects field wiring to the module’s backplane interface. A degraded or corroded FTA can cause intermittent signal errors that are often misdiagnosed as module failure, leading to unnecessary module replacements and extended troubleshooting time.

The MC-TAMT03 operates within a broader I/O subsystem that typically includes analog input modules such as the MC-TAIH02 for high-level analog inputs and the MC-PAIH03 for process analog inputs, all sharing the same C200 or C300 controller backplane. When performing a scheduled inspection, engineers should verify that the backplane power distribution rail is delivering stable 24 VDC to all installed modules, as power fluctuations can cause false fault indications on thermocouple channels. The Honeywell MC-PDIY22 digital input module and MC-PDOY22 digital output module installed in adjacent slots should also be checked for secure seating and clean connector contacts.

Communication integrity between the I/O modules and the controller is maintained through the Honeywell Control Firewall or FTE (Fault Tolerant Ethernet) network switch. Any degradation in the FTE switch or its fiber patch cables can cause intermittent loss of module communication, which may appear as a thermocouple module fault in the Experion Station HMI. Maintenance teams should include FTE switch port status checks as part of the MC-TAMT03 replacement workflow.

For plants running legacy TDC 3000 infrastructure, the MC-TAMT03 may interface through an older HLAI (High-Level Analog Input) card cage using a dedicated cable assembly. In these installations, the cable harness between the field junction box and the card cage terminal board should be inspected for insulation breakdown, especially in high-temperature areas near furnaces or heat exchangers. Signal isolators installed in the thermocouple loop — such as those used to break ground loops between field instruments and the DCS — should be tested for drift and replaced on a five-year cycle as part of the spare parts lifecycle plan.

Procurement engineers building a comprehensive spare parts inventory for a Honeywell Experion PKS system should consider stocking the MC-TAMT03 alongside the MC-TAIH02 analog input module, the MC-PDIY22 digital input module, the Honeywell CC-PAIH01 process analog input module, and the CC-PDOB01 digital output module. A complete cabinet-level spare kit should also include the appropriate IOTA terminal assembly, spare backplane fuses, and at least one replacement FTE network switch port module to cover all single-point failure scenarios within the I/O cabinet.

Site Replacement Workflow

When a thermocouple channel fault is confirmed and the MC-TAMT03 is identified as the failed component, the replacement workflow should begin with a full backup of the controller configuration using Experion Control Builder or the legacy LCN Engineering Console for TDC 3000 systems. This ensures that module address assignments, channel scaling parameters, thermocouple type configurations, and alarm setpoints are preserved before any hardware is disturbed.

Before removing the faulty module, the maintenance engineer should verify whether the system supports hot-swap replacement for the MC-TAMT03 in the current backplane slot. In most Experion PKS C300 configurations, I/O modules can be replaced without shutting down the controller, provided the replacement module is of the same type and revision. However, in older C200 configurations or TDC 3000 card cages, a controlled shutdown of the affected I/O group may be required to prevent spurious outputs or alarm floods during the swap.

After installing the replacement MC-TAMT03, the engineer should allow the module to complete its self-diagnostic cycle — typically 30 to 60 seconds — before verifying channel status in the Experion Station or Universal Station HMI. Each thermocouple channel should be confirmed as reading within the expected process range, and the cold junction compensation value should be cross-checked against a calibrated reference thermometer placed at the module’s terminal assembly. Any channel showing an out-of-range or open-circuit indication after module replacement should be traced back to the field wiring or thermocouple element itself, not assumed to be a module defect.

Documentation of the replacement — including the removed module’s serial number, the replacement module’s part number and serial number, the date and technician name, and the post-replacement channel verification results — should be recorded in the plant’s CMMS (Computerized Maintenance Management System) to support future spare parts planning and warranty claims.

Spare Parts Support FAQ

Q: Is the MC-TAMT03 51309223-175 compatible with both Experion PKS and TDC 3000 systems?
A: The MC-TAMT03 is primarily designed for the Honeywell Experion PKS platform using C200 or C300 controllers. Compatibility with TDC 3000 depends on the specific card cage and backplane revision installed at your site. We recommend providing your system’s backplane part number and firmware version when placing an order so our technical team can confirm full compatibility before shipment.

Q: What pre-shipment testing is performed on the MC-TAMT03?
A: Every MC-TAMT03 unit is powered on and subjected to a functional verification test prior to shipment. This includes channel continuity checks, cold junction compensation verification, and communication interface testing against a reference backplane. A test report is available upon request and accompanies each shipment.

Q: Can you supply the MC-TAMT03 on a long-term or blanket order basis?
A: Yes. We maintain standing inventory of the MC-TAMT03 and can support scheduled releases against a blanket purchase order for plants requiring annual or semi-annual spare parts replenishment. Long-term supply agreements help protect against market shortages for discontinued or end-of-life Honeywell modules.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification, with no requirement to return the unit before the replacement is dispatched in urgent cases.
