Honeywell MC-TAMR04 Service-Ready Spare Part for Industrial Maintenance

Honeywell MC-TAMR04 Service-Ready Spare Part for Industrial Maintenance

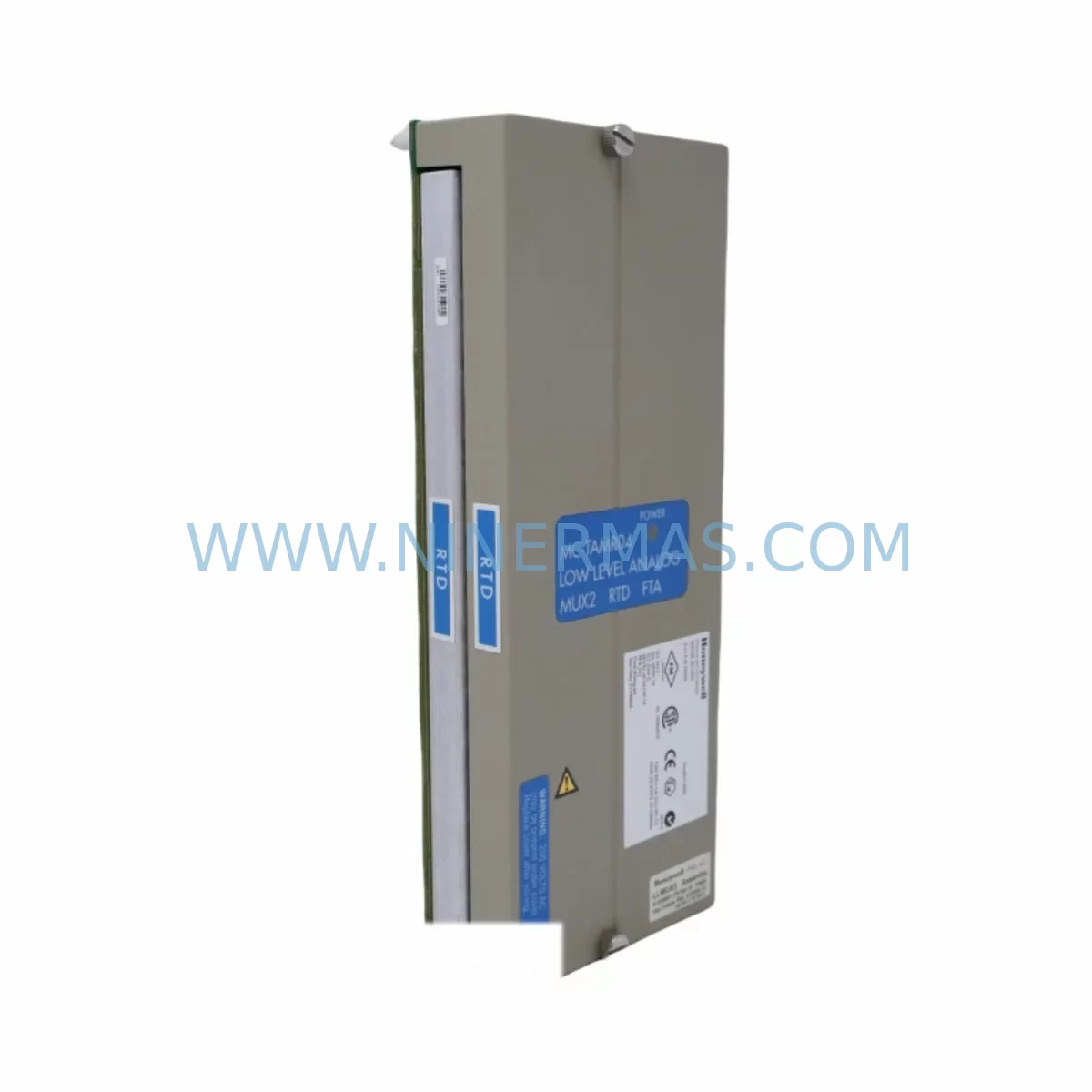

The Honeywell MC-TAMR04 is an original analog input module engineered for the Honeywell TotalPlant Solution (TPS) and TDC 3000 distributed control systems. As a critical field I/O component, the MC-TAMR04 handles real-time analog signal acquisition from field transmitters, thermocouples, and process sensors — making it indispensable for continuous process industries including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing.

For maintenance engineers managing aging DCS infrastructure, sourcing a verified, service-ready MC-TAMR04 spare is the fastest path to restoring full system functionality after an unplanned module failure. Unplanned downtime caused by a failed analog input module can cascade across entire process loops, triggering safety shutdowns and production losses that far exceed the cost of maintaining a proactive spare parts inventory. NINERMAS supplies the MC-TAMR04 as a tested, original spare with a 12-month warranty, ready for immediate deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the MC-TAMR04 analog input module, the replacement event should be treated as a broader control cabinet inspection opportunity. The MC-TAMR04 resides on the TPS I/O backplane, sharing power distribution and communication infrastructure with several interdependent components that should be evaluated simultaneously to prevent repeat failures and maximize the value of each planned maintenance window.

Begin by inspecting the MC-TAIH02 I/O Link Interface Module and the MC-TAIH04 High-Performance I/O Link, which manage communication between the field I/O cards and the process manager. A degraded link interface can cause intermittent signal loss that mimics analog input module failure, leading to misdiagnosis. Simultaneously, verify the condition of the MC-PDOX08 Power Distribution Module and associated MC-PWRJ01 power supply junction — voltage irregularities on the backplane are a leading cause of premature analog module failure.

Inspect all MC-TAIX08 analog input expansion modules in the same card cage, as they share the same backplane bus and are subject to identical environmental stresses. For signal integrity, check the MC-TSIM02 signal isolator modules installed upstream of the analog inputs; degraded isolation can introduce ground loops that corrupt 4–20 mA readings and accelerate module wear. Review the MC-TLPA02 terminal block assemblies and field wiring connections for corrosion, loose terminations, or insulation breakdown — these are frequent root causes of analog input drift that are often misattributed to module failure.

For systems with thermocouple inputs, inspect the MC-TAMR02 thermocouple input modules in adjacent slots and verify cold junction compensation integrity. If the control system includes a MC-TDID12 digital input module or MC-TDOD08 digital output module in the same cabinet, include them in the inspection checklist — digital I/O modules sharing the same backplane power rail can be affected by the same power quality issues that damage analog input cards. Finally, confirm that the MC-ENIM96 Ethernet Network Interface Module or equivalent communication module is operating within normal parameters, as communication faults can mask analog input alarms and delay fault detection.

Procurement engineers should consider stocking a minimum of one MC-TAMR04 per active TPS node as a critical spare, alongside matched spares for the power distribution and I/O link modules listed above. NINERMAS maintains long-term supply capability for the full Honeywell TPS and TDC 3000 spare parts ecosystem, supporting both emergency replacement and planned annual maintenance programs.

Site Replacement Workflow

Replacing the MC-TAMR04 in a live TPS system requires careful sequencing to minimize process disruption and ensure seamless signal restoration. Before beginning, confirm the replacement module’s firmware revision matches the installed system baseline — Honeywell TPS systems are revision-sensitive, and mismatched firmware can cause configuration load failures or unexpected I/O behavior.

Step one: isolate the affected analog input channels at the field junction box and notify the control room operator to place the associated process loops in manual mode. Step two: power down the specific I/O card cage slot using the backplane slot isolation procedure (do not power down the entire cabinet unless required by site safety procedures). Step three: remove the failed MC-TAMR04 by releasing the card ejector levers and sliding the module clear of the backplane connector — inspect the backplane connector pins for damage or contamination before inserting the replacement. Step four: insert the new MC-TAMR04, confirm the module status LED sequence indicates successful initialization, and restore slot power. Step five: reload the channel configuration from the system database, verify all four analog input channels are reading correctly against known field reference values, and return the process loops to automatic control.

This workflow is compatible with hot-standby TPS configurations where redundant process managers are active — in redundant systems, the replacement can typically be completed without a full process shutdown, significantly reducing downtime exposure. NINERMAS ships all MC-TAMR04 units with pre-shipment functional test documentation, allowing site engineers to verify module health before installation and reducing the risk of installing a second defective unit into a critical slot.

Spare Parts Support FAQ

Q1: Is the MC-TAMR04 compatible with both TPS and TDC 3000 systems?
Yes. The MC-TAMR04 is designed for the Honeywell TotalPlant Solution (TPS) platform, which is the successor architecture to the TDC 3000. The module is backward-compatible with TDC 3000 I/O card cages that use the standard TPS backplane interface. Always verify the backplane revision and firmware baseline with your system documentation before installation to confirm full compatibility.

Q2: How does NINERMAS verify the MC-TAMR04 before shipment?
Every MC-TAMR04 unit supplied by NINERMAS undergoes functional testing prior to shipment, including analog channel signal verification, backplane communication integrity checks, and visual inspection for physical damage. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts inventory strategy for MC-TAMR04?
For facilities operating Honeywell TPS systems with multiple process nodes, industry best practice recommends maintaining at least one MC-TAMR04 per active node as a critical on-site spare. For large installations with 10 or more TPS nodes, a pooled spare of 2–3 units is advisable to cover simultaneous failures during peak production periods. NINERMAS supports long-term supply agreements for customers requiring guaranteed stock availability and priority shipment for emergency replacement scenarios.

Q4: Can the MC-TAMR04 be repaired, or should it always be replaced?
While board-level repair is technically possible for some failure modes, Honeywell TPS analog input modules are precision-calibrated assemblies where repair introduces recalibration risk and may not restore full specification performance. For critical process applications, direct replacement with a tested original spare is strongly recommended over repair to ensure signal accuracy, system stability, and warranty coverage. NINERMAS recommends replacement as the primary strategy for MC-TAMR04 failures in production environments.
