Honeywell CC-TDOD51 51307087-175 Retrofit DO Module

Honeywell CC-TDOD51 51307087-175 Retrofit-Compatible Digital Output Module for Legacy C200/C300 Systems

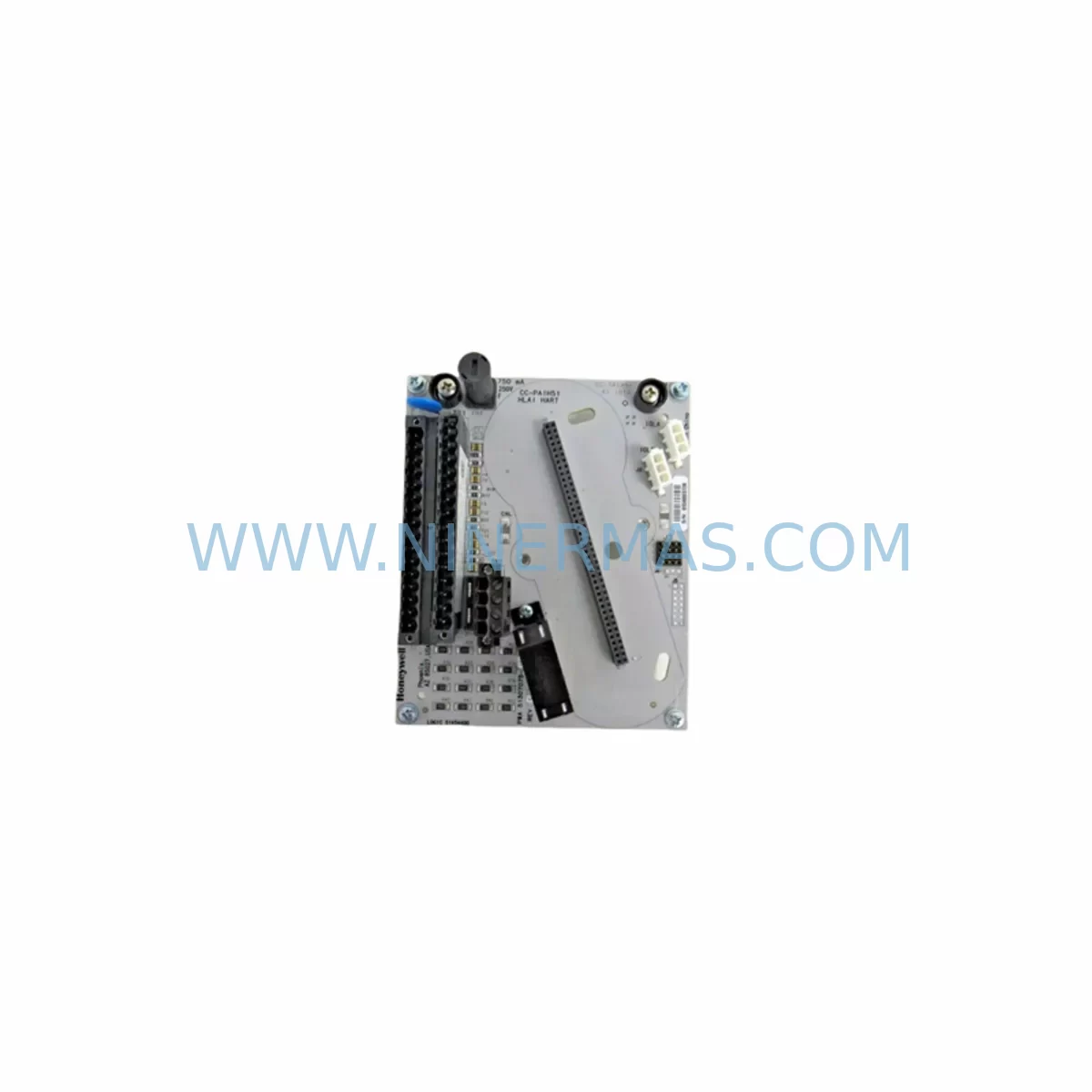

The Honeywell CC-TDOD51 (part number 51307087-175) is a 24 VDC digital output termination module designed for use within the Experion PKS C200 and C300 controller platforms. As legacy DCS installations age and original spare parts become increasingly difficult to source, the CC-TDOD51 has emerged as a critical component in retrofit and modernization projects across process industries including oil & gas, chemical, power generation, and pulp & paper. NINERMAS maintains verified stock of this module, fully tested and backed by a 12-month warranty, ready for immediate dispatch to support planned turnarounds and emergency replacements alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a CC-TDOD51 in an operating plant requires careful pre-engineering to avoid unplanned downtime and protect the integrity of the existing control strategy. The first step is a thorough review of the power supply budget. The CC-PDOB01 or equivalent C-series power supply module must have sufficient headroom to support the replacement DO module alongside all other I/O modules sharing the same chassis. Engineers should calculate the total current draw per chassis rail before ordering replacement hardware.

Terminal wiring is the next critical checkpoint. The CC-TDOD51 uses a dedicated field termination assembly, and the existing field cable harness should be photographed and labeled before disconnection. Each channel’s wiring polarity, cable shielding, and ground reference must be verified against the original loop drawings. In many retrofit scenarios, the field wiring itself is decades old, and this is an opportune moment to inspect for insulation degradation or corroded terminals.

Backplane slot addressing is managed through the Experion Control Builder configuration database. When the replacement CC-TDOD51 is installed, the module address must match the original slot assignment exactly. Any mismatch will cause the C300 controller — or in older installations, the C200 controller — to flag a hardware fault and inhibit output channels. The configuration download must be performed with the module in the correct physical slot, and engineers should confirm that the CC-SCMB01 system cabinet module bus is intact before powering up.

For sites running redundant I/O, the partner module — typically a second CC-TDOD51 in a redundant pair — must also be checked for firmware version alignment. Mismatched firmware between primary and secondary modules can cause synchronization faults on the C-Link network. The CC-TCNT01 communication interface module and associated FTE infrastructure should be verified for active link status before and after the swap.

HMI screen validation is often overlooked during DO module replacements. After the new CC-TDOD51 is commissioned, operators should walk through all Experion Station displays that reference the affected I/O channels, confirming that digital output status indicators, interlock permissive displays, and alarm annunciation panels reflect the correct field state. Any discrepancy between the HMI display and the physical field device state must be resolved before returning the loop to automatic control.

For installations that include signal isolators between the CC-TDOD51 output channels and field devices — such as relay output cards or galvanic isolators — the isolator input voltage range and output contact rating must be re-confirmed against the replacement module’s output specifications. This is particularly important in hazardous area installations where the isolator serves as the safety barrier between the safe-area control system and the Ex-zone field device.

Programming cable access is required if the site’s Control Builder workstation is not networked to the controller. In such cases, a CC-USB programming cable or equivalent Ethernet-connected engineering workstation must be available on-site during commissioning. The engineer should have a current backup of the controller database, including all CC-TDOD51 channel configurations, interlock logic, and alarm setpoints, before beginning any hardware swap.

Finally, installation space confirmation is essential in congested control cabinets. The CC-TDOD51 occupies a standard C-series I/O chassis slot, but adjacent modules — including CC-TAIX01 analog input termination assemblies, CC-TAOX01 analog output termination assemblies, and CC-TDID51 digital input termination modules — must not be disturbed during extraction and insertion. Use the correct module extraction tool and follow Honeywell’s ESD handling procedures to protect adjacent modules from electrostatic discharge.

Downtime Control During System Migration

Minimizing production impact during a CC-TDOD51 replacement begins with a detailed shutdown plan agreed upon by operations, maintenance, and process safety teams. Where the plant’s safety instrumented system permits, individual output channels can be forced to their safe state in Experion before the module is removed, preserving the field device in a known position throughout the swap. This approach eliminates the risk of uncontrolled actuator movement during the hardware exchange.

For non-redundant I/O configurations, the replacement window should be scheduled during a planned maintenance outage or a low-production period. The target replacement time for a single CC-TDOD51 — including module removal, installation, configuration download, and channel verification — is typically 45 to 90 minutes for an experienced DCS engineer. Having the replacement module pre-tested, the configuration backup verified, and the field wiring documentation on hand before the outage begins is the single most effective way to compress this window.

In redundant I/O architectures, the faulty module can often be replaced online by switching control to the healthy partner module, performing the swap, and then re-synchronizing the redundant pair. This approach requires confirmation that the partner module is fully healthy and that the C300 controller’s redundancy management is functioning correctly before initiating the switchover.

After the new CC-TDOD51 is installed and the configuration download is complete, a systematic channel-by-channel output verification should be performed before returning the loop to automatic. Each digital output channel should be individually forced on and off from the Experion engineering workstation, with a field technician confirming the corresponding actuator response at the field device. This step catches wiring errors, channel address mismatches, and isolator faults before they can cause a process upset.

Retrofit Support FAQ

Q: Is the CC-TDOD51 51307087-175 a direct drop-in replacement for older C200 digital output termination modules?
A: The CC-TDOD51 is designed for the Honeywell C-series I/O platform used in both C200 and C300 Experion PKS systems. In most cases it is a direct slot-for-slot replacement, but customers should verify the backplane model, slot address, and firmware version of the host controller before installation. NINERMAS can provide technical cross-reference support prior to order confirmation.

Q: What pre-shipment testing does NINERMAS perform on the CC-TDOD51?
A: Every CC-TDOD51 unit dispatched by NINERMAS undergoes functional output channel verification, visual inspection for physical damage, and firmware version confirmation. Units are shipped with anti-static packaging and are covered by a 12-month warranty from the date of dispatch.

Q: How quickly can NINERMAS supply the CC-TDOD51 51307087-175 for an emergency shutdown situation?
A: NINERMAS maintains ready stock of the CC-TDOD51 and can arrange same-day or next-day international dispatch for emergency orders. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory and arrange expedited shipping.

Q: What information should I provide when ordering to ensure compatibility?
A: Please provide the full part number (CC-TDOD51 / 51307087-175), the host controller model (C200 or C300), the Experion PKS software version, and the chassis or backplane model number. If you are replacing a failed module, the serial number of the original unit is also helpful for cross-reference purposes.
