Honeywell CC-PAIH51 51410069-276 Safety-Reliable Analog Input Module for Critical Control Sites

Honeywell CC-PAIH51 51410069-276 Safety-Reliable Analog Input Module for Critical Control Sites

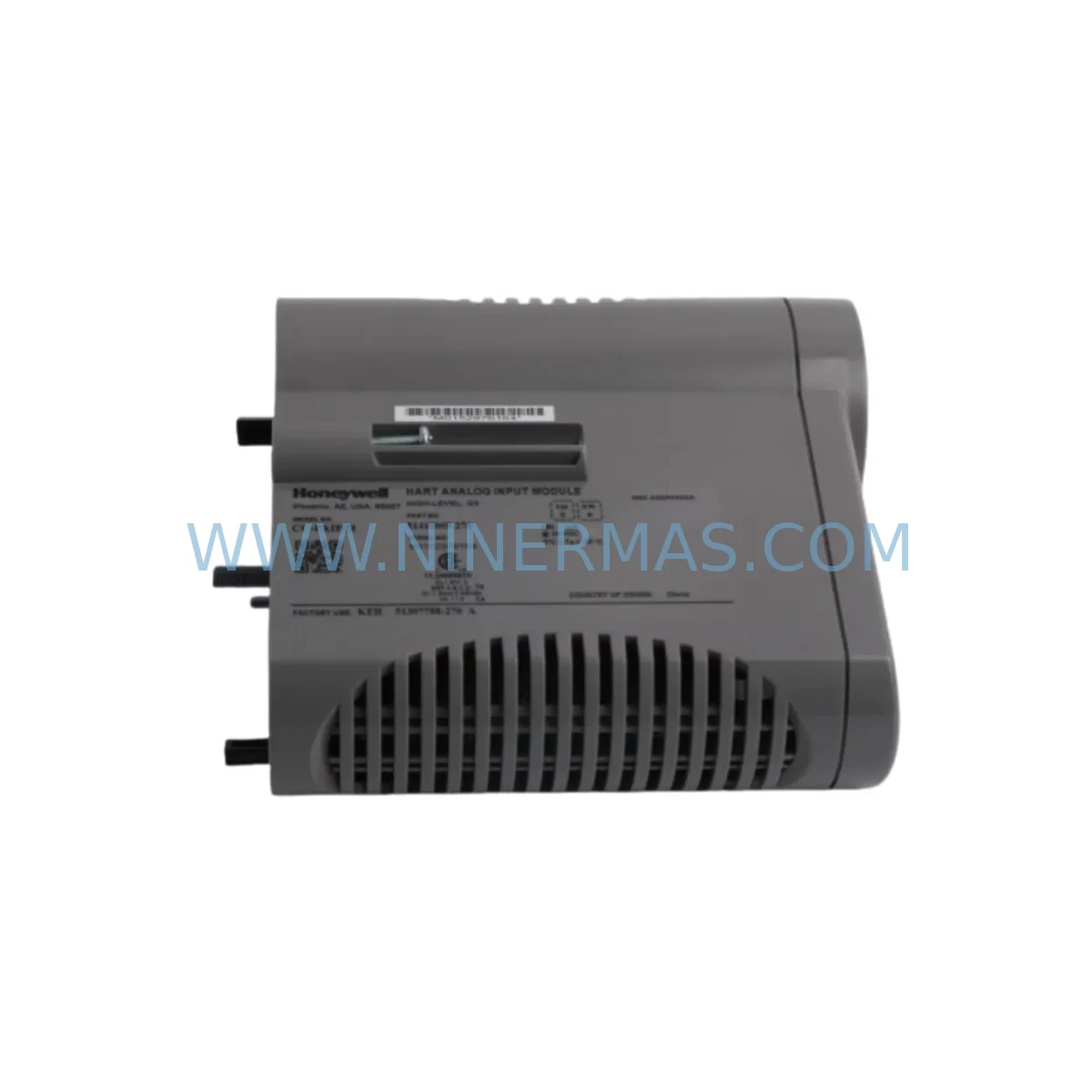

The Honeywell CC-PAIH51 (Part No. 51410069-276) is a high-density process analog input module engineered for the Experion PKS Series C distributed control system platform. Designed to meet the demanding requirements of continuous production environments, critical interlock loops, and high-consequence industrial control cabinets, this module delivers stable, accurate signal acquisition under conditions of high electromagnetic interference, dust, humidity, elevated temperature, and mechanical vibration. Its robust architecture directly reduces the risk of control interruption, signal drift, spurious trips, and unplanned downtime across safety-critical field installations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered Experion PKS Series C control cabinet, the CC-PAIH51 analog input module operates as the primary field signal acquisition layer, converting process transmitter outputs into reliable digital values for the controller. To maintain signal integrity across the full control loop, it is typically paired with the CC-PAON01 analog output module, which drives final control elements such as control valves and variable-speed drives. The CC-TCNT01 terminal block assembly provides secure field wiring termination, minimizing loose-connection faults that can cause intermittent signal loss in high-vibration environments.

Power stability is foundational to analog signal accuracy. The CC-PWR01 Series C power supply module provides regulated 24 VDC bus power to the I/O chassis, while a dedicated UPS or DC power conditioner upstream protects against voltage sags, surges, and momentary outages that would otherwise introduce measurement errors or trigger nuisance alarms. In installations where power redundancy is required, dual CC-PWR01 modules in parallel configuration eliminate single-point power failure risk.

Communication reliability between the I/O subsystem and the Experion PKS controller is maintained through the Series C I/O Link interface, which provides deterministic, fault-tolerant data exchange. Where network segmentation is required for safety loop isolation, the CC-LINK01 communication interface module enables independent I/O network segments, preventing a communication fault in one zone from propagating to adjacent safety-critical loops. For installations requiring SIL-rated safety instrumented system integration, the Honeywell Safety Manager platform can be interfaced to the Experion PKS backbone, with the CC-PAIH51 providing process variable inputs to the safety logic solver.

In environments with heavy electrical noise — such as motor control centers, variable frequency drive panels, or arc furnace control rooms — the CC-PAIH51‘s channel isolation architecture prevents ground loops and common-mode interference from corrupting analog readings. Supplementary signal isolators or loop-powered barriers installed between field transmitters and the module input terminals provide an additional layer of protection in ATEX or IECEx classified hazardous areas. The CC-DIOL01 digital I/O module handles discrete interlock signals within the same chassis, enabling a compact, integrated safety and control I/O assembly without cross-wiring between separate panels.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The CC-PAIH51 is widely deployed in crude distillation units, hydrocracker control systems, and compressor anti-surge control loops, where analog signal accuracy directly affects process safety and product yield. Its tolerance for high-temperature control room environments and resistance to hydrocarbon-laden atmospheres makes it a preferred choice for DCS upgrade and replacement projects in refinery automation.

Power Generation and Substation Control: In thermal power plants and combined-cycle facilities, the module acquires temperature, pressure, and flow signals from boiler instrumentation, turbine control loops, and feedwater systems. Its EMI immunity is critical in environments where high-voltage switchgear and large rotating machinery generate significant electromagnetic interference that can corrupt sensitive analog measurements.

Mining and Mineral Processing: Continuous mining operations — including conveyor control, crusher automation, and flotation cell management — rely on stable analog input acquisition to maintain throughput and prevent equipment damage. The CC-PAIH51’s vibration tolerance and wide operating temperature range support reliable operation in underground and open-cut mining control rooms subject to dust ingress and mechanical shock.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the module to monitor flow rates, pH, dissolved oxygen, turbidity, and chemical dosing parameters. Its long-term signal stability ensures accurate process control without drift-induced dosing errors that could compromise treated water quality or regulatory compliance.

Metallurgy and Steel Production: Electric arc furnace control, continuous casting automation, and rolling mill process control demand analog input modules capable of withstanding extreme thermal gradients and intense electromagnetic fields. The CC-PAIH51’s robust isolation design maintains measurement accuracy in these high-consequence production environments.

Port, Marine, and Offshore Applications: Cargo handling automation, ballast control systems, and offshore platform process control require I/O modules rated for high-humidity, salt-air, and vibration-intensive environments. The CC-PAIH51’s industrial-grade environmental ratings support reliable operation in marine and port automation cabinets.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the CC-PAIH51 51410069-276?
All CC-PAIH51 modules supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement dispatch to minimize control system downtime.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Every CC-PAIH51 module undergoes a full functional verification test prior to dispatch, confirming analog input channel accuracy, communication interface integrity, and power supply compatibility. Test records are available upon request for quality assurance documentation purposes.

Q3: Is the CC-PAIH51 compatible with existing Experion PKS Series C installations without controller firmware upgrades?
The CC-PAIH51 (51410069-276) is a direct-fit replacement for compatible Series C I/O carrier positions. In most cases, hot-swap replacement is supported without requiring controller reconfiguration or firmware changes, subject to the existing system revision level. Compatibility verification against your specific Experion PKS system revision is recommended prior to installation.

Q4: Can long-term spare parts supply be guaranteed for critical plant maintenance programs?
NINERMAS maintains dedicated in-stock inventory of the CC-PAIH51 and related Experion PKS Series C I/O modules to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. Supply continuity planning for end-of-life or discontinued Honeywell DCS components is a core service offering.
