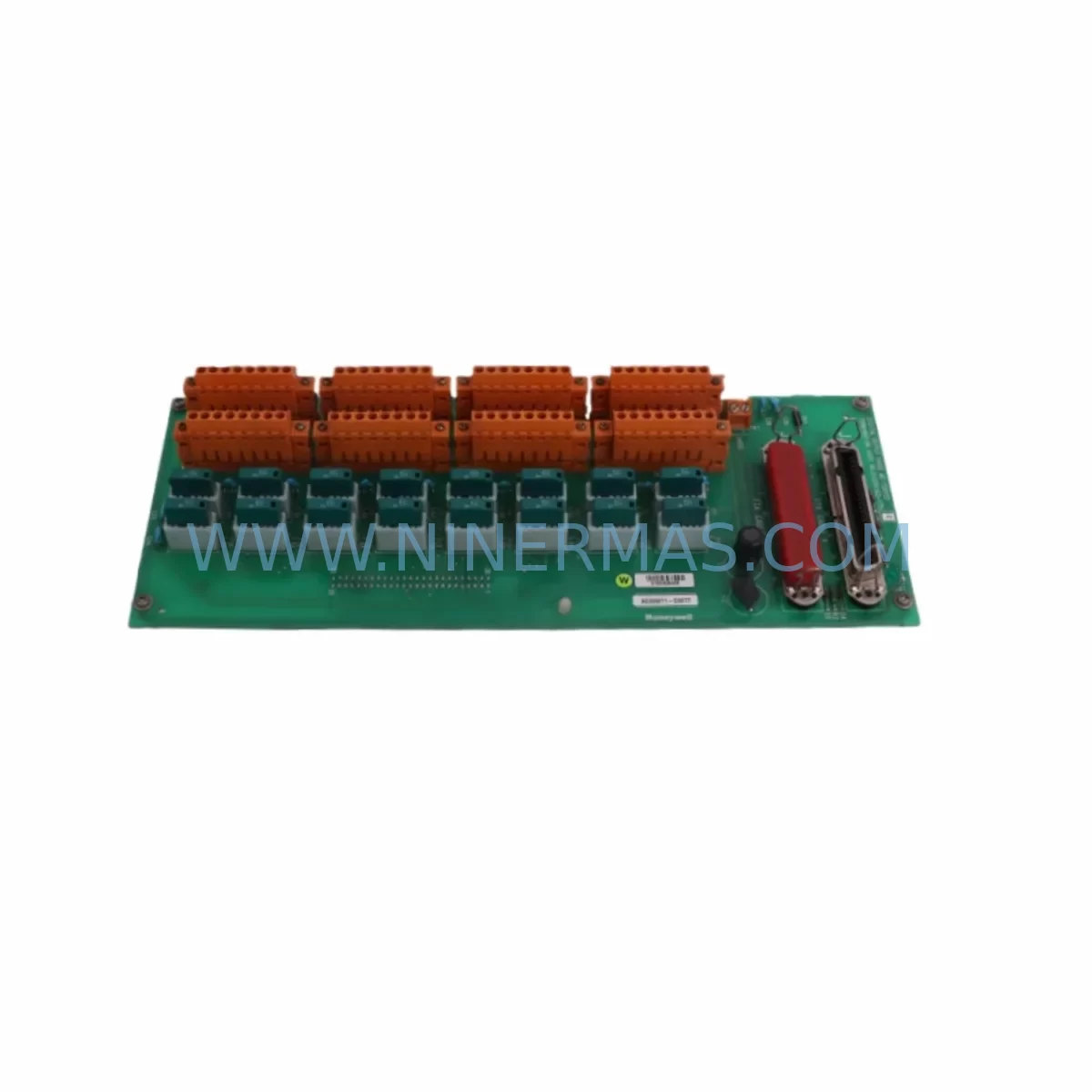

The Honeywell 51309150-175 is a ruggedized Analog Output (AO) module engineered for the TDC 3000 Process Manager (PM) I/O platform — one of the most widely deployed distributed control systems in refining, petrochemical, and power generation facilities worldwide. As Honeywell progressively phases out legacy TDC 3000 hardware, maintenance engineers and system integrators face mounting pressure to source verified replacement modules that can be installed without reprogramming the control strategy, rewiring field terminations, or modifying the existing backplane configuration. The 51309150-175 addresses this challenge directly: it is a form-fit-function replacement for the original PM Analog Output FTA assembly, supporting 4–20 mA output signals across multiple channels and maintaining full compatibility with the PM I/O link architecture.

Whether your facility is executing a phased modernization toward Experion PKS or simply extending the operational life of an existing TDC 3000 cabinet, the 51309150-175 provides a reliable, tested, and immediately deployable solution. Each unit shipped by NINERMAS undergoes pre-shipment functional testing under simulated load conditions, and is covered by a 12-month warranty from the date of delivery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 51309150-175 into an operating TDC 3000 system requires a structured pre-installation review. Before removing the failed or end-of-life module, engineers should document the existing DIP-switch address settings, verify that the PM I/O link segment has sufficient bandwidth to accommodate the replacement module, and confirm that the 51304453-150 Power Supply Module supplying the affected I/O cabinet is operating within its rated output capacity. Overloaded power supplies are a common root cause of premature module failure in aging TDC 3000 installations, and replacing the AO module without addressing PSU degradation will result in repeat failures.

Field termination wiring should be photographed and labeled before disconnection. The 51309150-175 uses the same screw-terminal FTA layout as the original PM Analog Output assembly, so no rewiring is required in most installations. However, technicians should inspect terminal blocks for corrosion, loose conductors, and insulation degradation — particularly in installations that have been in service for more than ten years.

If the retrofit is part of a broader I/O expansion or cabinet upgrade, consider the role of the 51305348-100 Communication Module and the 51304516-200 I/O Link Module in the existing architecture. These components manage the data highway between the PM controller and the I/O subsystem; any degradation in their performance will affect the newly installed AO module’s response time and diagnostic reporting. Similarly, the 51304485-100 HPM Communication Link should be verified for firmware compatibility if the site is running a mixed TDC 3000 and Experion PKS environment.

For facilities planning a phased migration to Experion PKS, the 51309150-175 can serve as a bridge solution while the 51304362-100 HPM Processor and associated 51304337-100 PM Controller are upgraded in parallel. This approach allows production to continue on the legacy I/O infrastructure while the new control platform is commissioned and validated in a shadow mode. During this period, the 51309276-150 Analog Input Module and 51309204-175 Digital Output Module should also be audited for remaining service life, as these modules share the same backplane and power distribution as the AO assembly.

HMI screen configurations referencing the replaced AO module’s tag addresses should be verified in the Honeywell GUS or Station display environment. In most cases, tag addresses are preserved when the module is replaced at the same slot position, but any slot reassignment will require corresponding updates to the control database and HMI faceplates. The 51305865-275 Backplane Carrier should be inspected for bent connector pins and oxidized contacts before the new module is seated, as backplane damage is a frequent but overlooked cause of intermittent AO faults in legacy PM I/O systems.

Downtime Control During System Migration

Minimizing unplanned downtime during an AO module replacement in a live TDC 3000 system requires careful coordination between the control room operator, the field technician, and the process safety team. The recommended approach is to place the affected control loops in manual mode at the DCS operator station before initiating any hardware work. This preserves the last known output value at the field device — typically a control valve or variable speed drive — and prevents process upsets caused by the module going offline mid-scan.

Once the loops are in manual, the PM I/O link segment carrying the 51309150-175 can be taken offline without affecting other segments on the same PM controller. The replacement module should be pre-configured with the correct DIP-switch address settings before it is brought to the cabinet, reducing the time the slot remains empty. After seating the new module, the PM controller will automatically detect the replacement and resume scanning within one to three scan cycles, depending on the I/O link configuration.

Loop calibration should be performed immediately after the module is back online. Each output channel should be verified at 4 mA (0%), 12 mA (50%), and 20 mA (100%) against a calibrated reference instrument. Any offset greater than ±0.1 mA should be corrected before the loops are returned to automatic mode. This calibration step is critical for processes with tight control tolerances, such as reactor feed control or distillation column reflux management.

Original program logic stored in the PM controller is not affected by the module replacement. The control strategy, tuning parameters, alarm limits, and interlock configurations remain intact in the controller memory. This is one of the key advantages of a form-fit-function replacement: the engineering effort is limited to physical installation and loop verification, not reprogramming.

Retrofit Support FAQ

Q1: Is the 51309150-175 a direct replacement for all variants of the Honeywell PM Analog Output module?
A: The 51309150-175 is compatible with the standard 8-channel PM AO FTA assembly used in TDC 3000 PM I/O cabinets. Before ordering, confirm the slot position, DIP-switch address range, and FTA wiring configuration against your as-built documentation. NINERMAS can assist with cross-referencing if you provide the original module part number and revision level.

Q2: Does the replacement module require any firmware update or database modification?
A: No firmware update is required. The 51309150-175 communicates over the standard PM I/O Link protocol and is recognized by the PM controller as a native AO module. No database modifications are needed provided the module is installed in the same slot position as the original. If the slot position changes, the control database tag assignments must be updated accordingly.

Q3: What pre-shipment testing does NINERMAS perform on the 51309150-175?
A: Each unit undergoes functional output verification across all 8 channels at 4 mA, 12 mA, and 20 mA reference points, insulation resistance testing, and visual inspection for connector integrity and component condition. A test report is available upon request. All units are shipped with ESD-protective packaging and are covered by a 12-month warranty from the date of delivery.

Q4: What is the typical lead time and inventory availability?
A: NINERMAS maintains service-ready stock of the 51309150-175 for immediate dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact our team to confirm current inventory levels and reserve units for planned maintenance windows.
