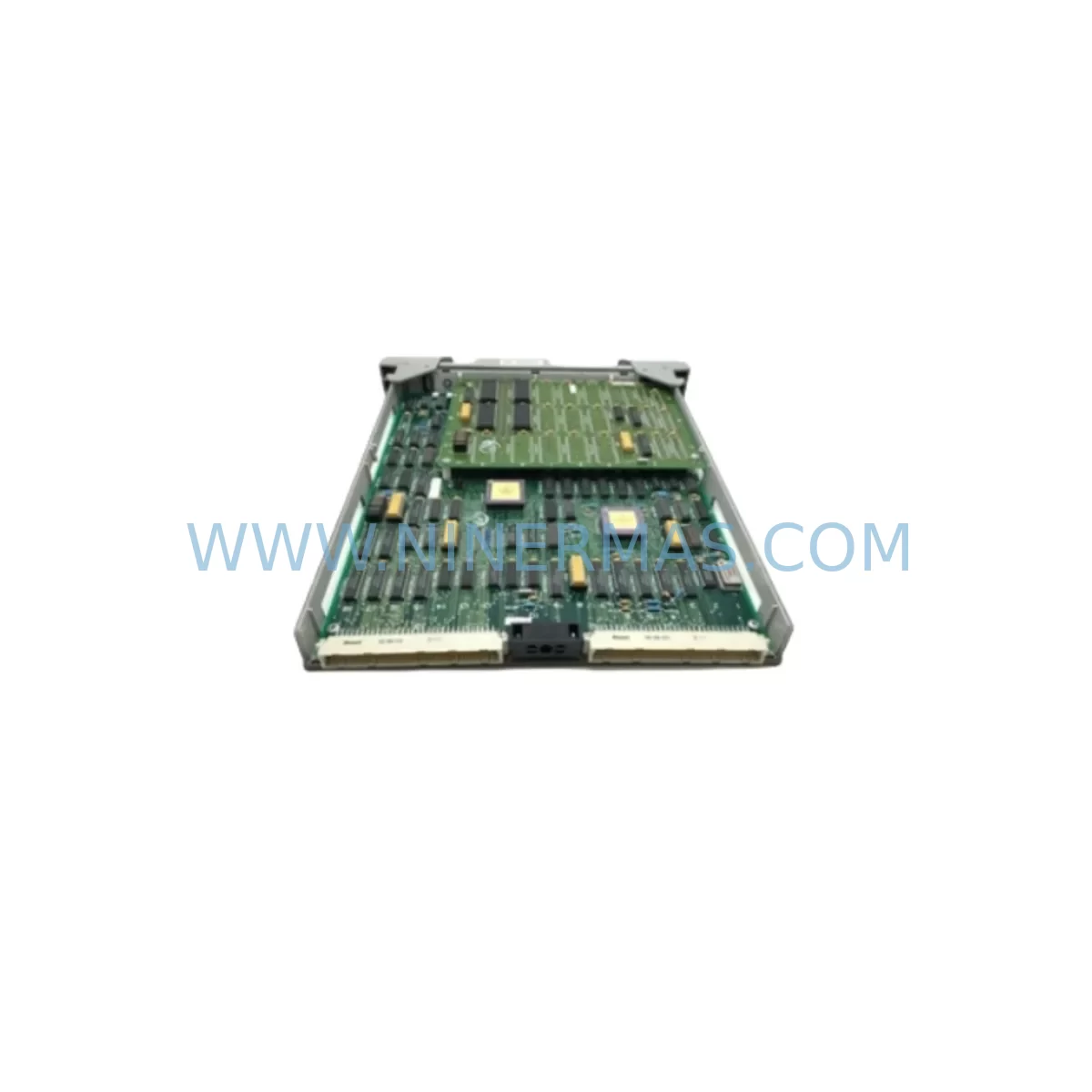

Honeywell FA-SDIL-1608 Service-Ready Industrial Spare Part

Honeywell FA-SDIL-1608 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

The Honeywell FA-SDIL-1608 is a Safety Digital Input Logic module designed for use within Honeywell’s Safety Manager platform — a SIL 2/3-capable safety instrumented system widely deployed across oil and gas, petrochemical, power generation, and chemical processing facilities. As a critical field interface component, the FA-SDIL-1608 handles discrete safety input signals from field devices such as pressure switches, emergency shutdown (ESD) pushbuttons, valve position feedback sensors, and gas detection systems. When this module fails or degrades, the entire safety loop it serves may be compromised, triggering unplanned shutdowns or forcing manual bypass — both of which carry significant operational and regulatory risk.

At NINERMAS, we maintain service-ready stock of the FA-SDIL-1608 to support maintenance engineers and procurement teams who cannot afford extended lead times on safety-critical spares. Every unit is pre-shipment tested, ships with a 12-month warranty, and is sourced to meet the original Honeywell specification. Our global logistics network ensures fast dispatch to refineries, LNG terminals, offshore platforms, and process plants worldwide.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FA-SDIL-1608 in a live Safety Manager system is rarely an isolated task. Experienced maintenance engineers know that a digital input module fault often signals broader stress on the safety loop — and a thorough site inspection during the replacement window is essential to prevent repeat failures and unplanned shutdowns.

When servicing the FA-SDIL-1608, the following associated components should be inspected or held as co-located spares in your cabinet inventory:

• FC-SDO-0824 (Safety Digital Output Module): Paired output module in the same I/O chassis. If input diagnostics are failing, output modules in the same loop should be proof-tested simultaneously.
• FC-SAI-1620M (Safety Analog Input Module): Analog input channels feeding the same Safety Manager controller should be verified for signal integrity and calibration drift during any planned maintenance window.
• FC-TSDI-16UNI (Terminal Strip for Digital Input): The field-side terminal strip connecting field wiring to the FA-SDIL-1608. Inspect for loose terminations, corrosion, and insulation breakdown — a common root cause of spurious input faults.
• FC-PSU-UNI2450 (Safety Manager Power Supply Unit): Verify 24 VDC rail stability. Voltage sag or ripple on the field power supply is a frequent contributor to digital input misread events and should be measured during the replacement procedure.
• FC-BKM-0001 (Backplane / Chassis Module): Inspect backplane connector pins for oxidation or mechanical damage. A degraded backplane connection can cause intermittent module communication faults that mimic I/O module failure.
• FC-DCOM-0824 (Digital Communication Output Module): If the Safety Manager communicates with a DCS or SCADA via Modbus or PROFIBUS, verify communication module health and cable integrity during the maintenance window.
• FC-USI-0002 (Universal Safety Interface): Used for inter-system communication in larger safety architectures. Confirm firmware version compatibility after any module replacement.
• SM Controller (Safety Manager CPU): Review controller diagnostic logs for any pre-existing fault codes associated with the FA-SDIL-1608 slot. Clear fault history after verified replacement and perform a functional proof-test.
• Field Fuses and Surge Protectors: Inspect field-side fuse holders and transient voltage suppression (TVS) devices on input wiring. Blown fuses or degraded surge protectors are often overlooked during module swaps and can cause repeat failures.
• Signal Isolators (e.g., MTL or P+F series): Where galvanic isolation is used between field devices and the FA-SDIL-1608 input channels, verify isolator output voltage and response time remain within specification.

Maintaining a co-located spare kit — including the FA-SDIL-1608, its associated terminal strip, and at least one power supply module — reduces mean time to repair (MTTR) from hours to minutes and is strongly recommended for any facility operating under a SIL maintenance plan.

Site Replacement Workflow

The FA-SDIL-1608 is designed to replace legacy or end-of-life Honeywell Safety Manager digital input modules within the same chassis footprint. The following workflow minimizes downtime and ensures system compatibility is maintained throughout the replacement process:

1. Pre-Replacement Verification: Confirm the replacement FA-SDIL-1608 part number matches the installed module exactly. Verify firmware revision compatibility with the Safety Manager controller version currently running on site. Obtain a copy of the current I/O configuration from the Safety Manager engineering workstation.
2. Bypass and Isolation: Follow your site’s Management of Change (MOC) and Safety Instrumented System (SIS) bypass procedures. Place the affected safety loop in manual bypass per IEC 61511 requirements before removing the module. Notify the control room and document the bypass start time.
3. Module Removal: Power down the chassis slot if hot-swap is not supported in your configuration. Disconnect field wiring at the terminal strip (FC-TSDI-16UNI) before extracting the module. Label all field cables before disconnection to prevent rewiring errors.
4. Installation and Wiring: Insert the replacement FA-SDIL-1608 into the correct chassis slot. Reconnect field wiring per the original termination schedule. Torque terminal screws to specification to ensure reliable contact.
5. Functional Proof-Test: After installation, perform a channel-by-channel proof-test by stimulating each field input and verifying correct response in the Safety Manager diagnostic display. Confirm no diagnostic faults are present before removing the bypass.
6. Bypass Removal and Documentation: Remove the safety loop bypass per site procedure. Document the replacement in the SIS maintenance log, including part number, serial number, installation date, and proof-test results. Update the spare parts inventory record.

This structured approach ensures that the FA-SDIL-1608 replacement is fully traceable, compliant with IEC 61511 maintenance requirements, and does not introduce new failure modes into the safety system.

Spare Parts Support FAQ

Q1: Is the FA-SDIL-1608 available for long-term supply, and what is the warranty coverage?
Yes. NINERMAS maintains reserved inventory of the FA-SDIL-1608 to support long-term supply agreements for facilities with multi-year maintenance contracts. Every unit ships with a 12-month warranty covering manufacturing defects and functional performance. Units are pre-shipment tested prior to dispatch to ensure they meet original Honeywell specifications.

Q2: How do I verify compatibility between the FA-SDIL-1608 and my existing Safety Manager system?
Compatibility depends on your Safety Manager chassis generation and controller firmware version. Provide your SM Controller part number and firmware revision when placing your order, and our technical team will confirm compatibility before shipment. We also recommend cross-referencing the Honeywell Safety Manager I/O compatibility matrix available from your Honeywell service representative.

Q3: Can the FA-SDIL-1608 be used as a direct replacement for older or discontinued Honeywell Safety Manager input modules?
In many cases, yes — the FA-SDIL-1608 is designed to fit within the standard Safety Manager chassis and is backward-compatible with earlier SM system configurations. However, firmware and configuration file updates may be required. Our team can advise on any known compatibility constraints based on your installed system version.

Q4: What is the typical lead time, and do you support emergency procurement?
The FA-SDIL-1608 is held in stock for same-day or next-business-day dispatch. For emergency shutdown recovery situations, contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to arrange priority shipment. We support air freight and courier delivery to minimize plant downtime.
