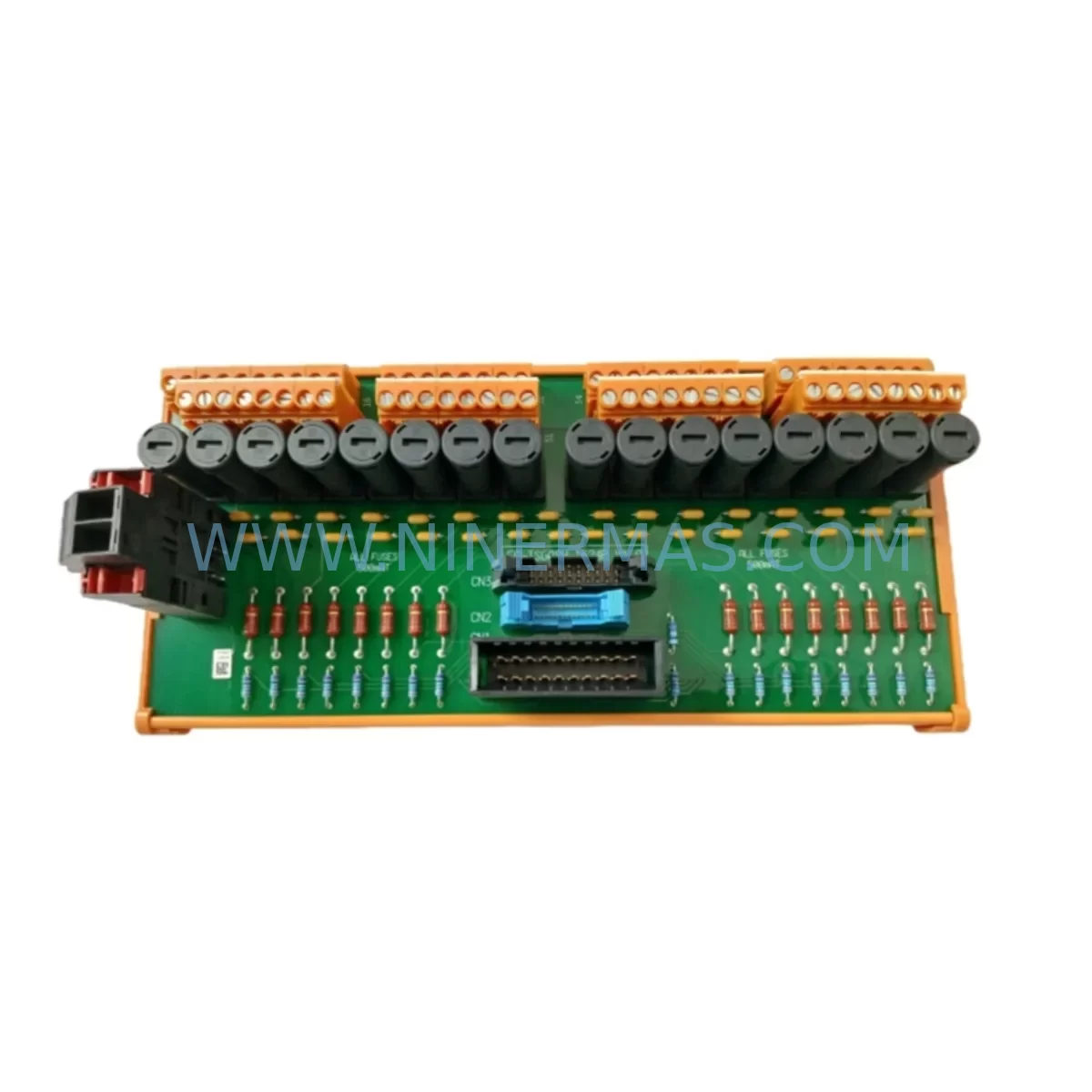

Honeywell FC-TSGASH-1624P Retrofit Safety Gateway

Honeywell FC-TSGASH-1624P Retrofit Safety Gateway: Legacy System Compatible Upgrade

The Honeywell FC-TSGASH-1624P is a safety gateway module designed for integration within the Experion PKS C300 control architecture. As legacy distributed control systems (DCS) age beyond their supported lifecycle, the FC-TSGASH-1624P serves as a critical retrofit-compatible replacement for facilities managing Safety Instrumented Systems (SIS) that were originally commissioned with first-generation Experion PKS hardware. Whether your plant is executing a phased modernization, recovering from an unplanned failure of a discontinued module, or extending the operational life of an existing control cabinet, the FC-TSGASH-1624P provides a verified drop-in upgrade path with minimal disruption to your existing safety logic and field wiring.

This module is engineered to interface with the Honeywell Safety Manager platform and is commonly deployed alongside the C300 Controller in hybrid DCS-SIS architectures. Its gateway function bridges the safety network layer with the process control network, enabling coordinated shutdown logic, alarm rationalization, and SIL-rated interlock execution without requiring a full system replacement. For facilities still operating on legacy FOUNDATION Fieldbus or FTE (Fault Tolerant Ethernet) backbones, the FC-TSGASH-1624P maintains protocol compatibility, reducing the scope of communication infrastructure changes during migration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FC-TSGASH-1624P into an existing control environment requires a structured pre-installation assessment. Engineers should begin by auditing the current C300 Controller firmware version to confirm gateway handshake compatibility, as older firmware revisions may require a patch update before the new module is recognized on the UCN backplane. The existing C300 IOTA (I/O Termination Assembly) wiring should be documented and verified against the FC-TSGASH-1624P terminal block layout — in most legacy installations, field signal wiring can be retained without modification, but terminal numbering differences between early and late production variants of the FC-TSGA series must be cross-checked.

Power budget analysis is essential before installation. The 24 VDC rail supplying the control cabinet must have sufficient headroom to support the FC-TSGASH-1624P alongside co-located modules such as the FC-SDO-0824 digital output module, FC-SDI-1624 digital input module, and any FC-PSHM1 power supply health monitoring units already installed in the rack. If the existing Honeywell PS-0024 power supply is operating near capacity, a supplemental power module should be added to the cabinet before the retrofit proceeds.

For facilities using the Honeywell Safety Builder engineering tool, the existing SIS project file should be exported and backed up before any hardware changes are made. The FC-TSGASH-1624P will require a new hardware configuration entry in Safety Builder, with the gateway node address assigned to match the FTE network topology. If the plant is also migrating from an older Honeywell TDC 3000 or PlantScape platform to Experion PKS, the FC-TSGASH-1624P can serve as the SIS interface layer in the new architecture, with the legacy HPM (High-Performance Process Manager) modules being retired in parallel.

HMI screen updates are typically required following gateway replacement. Operators using Experion Station or HMIWeb Display Builder should verify that all safety-related faceplates, alarm banners, and interlock status displays are correctly mapped to the new gateway’s data points. Signal isolators such as the MTL5000 series or P+F KFD2 barriers installed between field devices and the FC-TSGASH-1624P input channels should be tested for loop continuity after reconnection. Programming cables such as the Honeywell MC-KFTA03 are recommended for on-site configuration verification during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a safety gateway retrofit requires a phased approach that preserves the integrity of the existing safety interlock logic throughout the changeover. The recommended practice is to perform a controlled bypass of the affected SIS loop under a formal Management of Change (MOC) procedure, with the process unit placed in a safe state before the FC-TSGASH-1624P is physically installed. This approach allows the replacement module to be powered up, addressed on the FTE network, and verified for communication with the C300 Controller before any safety logic is transferred to the new gateway.

Once the FC-TSGASH-1624P is online and recognized by the Experion PKS server, the safety logic download can be executed from Safety Builder with the process in bypass. Engineers should perform a point-by-point I/O verification against the original loop drawings before releasing the bypass and returning the SIS to active service. The entire hot-swap sequence — from module removal to verified SIS restoration — can typically be completed within a four-hour maintenance window when pre-commissioning preparation has been completed thoroughly.

Original program logic files, FTE node configuration exports, and HMI display backups should be stored on a dedicated engineering workstation and on removable media before the retrofit begins. This ensures that if an unexpected compatibility issue is encountered during commissioning, the system can be restored to its previous state without loss of safety function. The FC-TSGASH-1624P is shipped with a full functional test report, confirming that communication, I/O response, and self-diagnostic routines have been verified prior to dispatch, reducing the risk of field commissioning failures.

Retrofit Support FAQ

Q: Is the FC-TSGASH-1624P a direct drop-in replacement for earlier FC-TSGA series safety gateway modules?
A: In most C300 rack configurations, yes. The FC-TSGASH-1624P is designed to occupy the same backplane slot as earlier FC-TSGA variants. However, engineers should verify the terminal block wiring layout and FTE node address assignment before installation, as minor differences exist between production revisions.

Q: What commissioning steps are required after installing the FC-TSGASH-1624P?
A: After physical installation, the module must be assigned an FTE network node address, a safety logic download must be performed from Honeywell Safety Builder, and all I/O points must be verified against the original loop drawings. HMI faceplate mappings should also be confirmed before the SIS bypass is released.

Q: Does the FC-TSGASH-1624P support legacy FOUNDATION Fieldbus field devices?
A: Yes. The FC-TSGASH-1624P maintains compatibility with FOUNDATION Fieldbus field instruments connected through existing H1 segment wiring, provided the fieldbus power conditioner and segment loading are within specification. No fieldbus infrastructure changes are required in standard retrofit scenarios.

Q: What warranty and pre-shipment testing does NINERMAS provide for the FC-TSGASH-1624P?
A: Every FC-TSGASH-1624P unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment and is dispatched with a full functional test report confirming communication, I/O, and self-diagnostic verification. In-stock units are available for immediate shipment to minimize procurement lead time.
