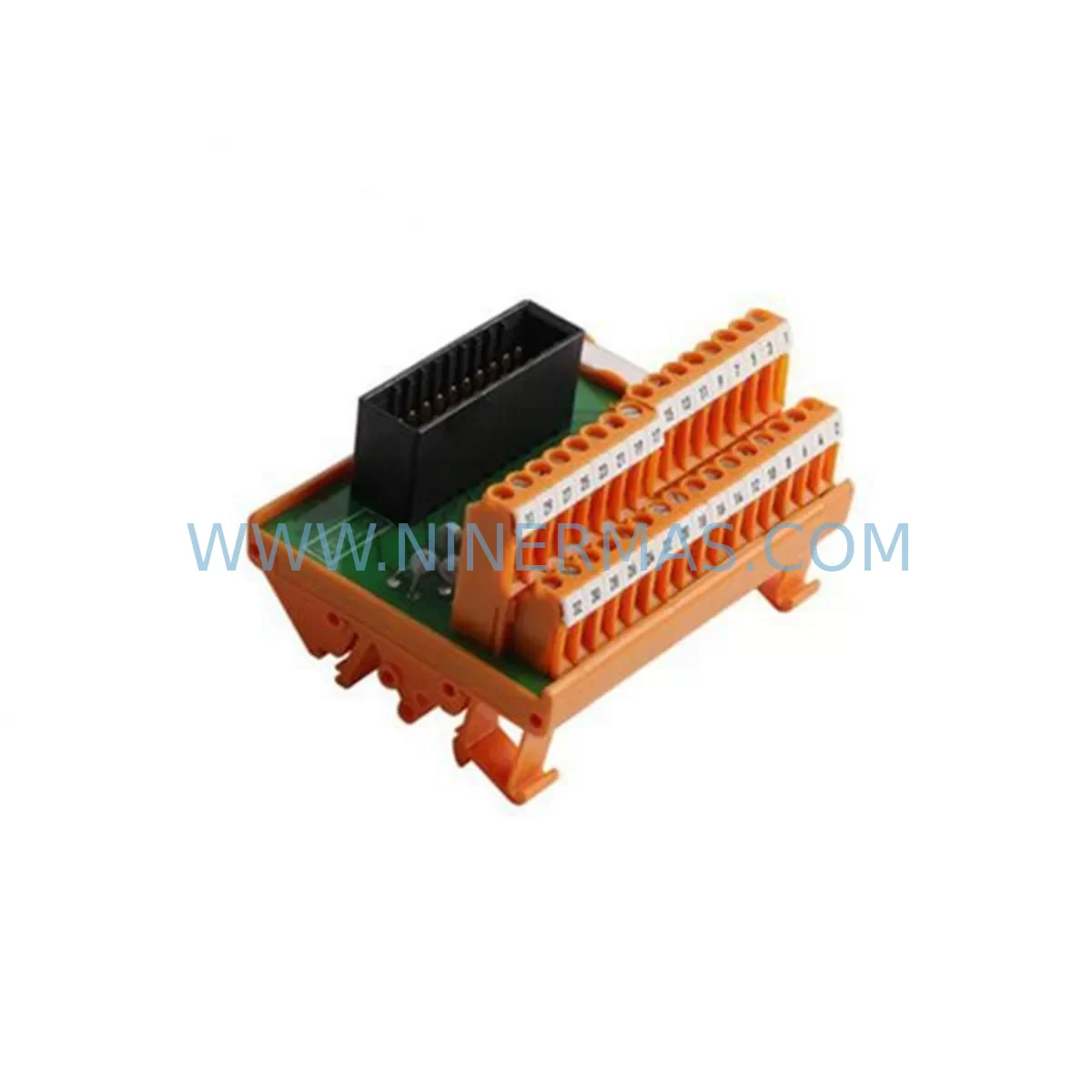

Honeywell 8C-PAIMA1 51454473-175 Retrofit Analog Input Module

Honeywell 8C-PAIMA1 51454473-175 Retrofit-Compatible Analog Input Module for Legacy System Modernization

The Honeywell 8C-PAIMA1 (Part No. 51454473-175) is a ruggedized analog input module engineered for demanding industrial environments. As part of Honeywell’s Process Automation platform, this module delivers reliable signal acquisition for legacy distributed control systems (DCS) and remains a critical component in retrofit, upgrade, and system continuity projects across oil & gas, chemical processing, power generation, and manufacturing facilities.

When aging control infrastructure reaches end-of-life or spare parts become scarce, the 8C-PAIMA1 provides a direct-fit replacement path that preserves existing wiring, terminal layouts, and program logic — minimizing engineering rework and unplanned downtime. NINERMAS maintains verified stock of this module with full functional testing and a 12-month warranty, supporting customers through planned turnarounds and emergency restoration scenarios alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 8C-PAIMA1 51454473-175 into an existing control architecture requires a structured pre-retrofit assessment. Engineers should begin by auditing the current backplane configuration — the module seats into the C300 Series chassis alongside components such as the Honeywell C300 Controller (51309288-175) and the CC-PAIX01 analog input IOTA, which provides the physical terminal block interface for field wiring. Confirming that the IOTA model matches the 8C-PAIMA1’s pinout is essential before any physical swap is attempted.

Power budget verification is a frequently overlooked step. The C300 chassis power supply — typically a Honeywell CC-PWR01 or CC-PWR02 — must have sufficient headroom to support the additional module load, particularly in high-density I/O cabinets where multiple analog and digital modules share the same rail. If the existing power supply is already near capacity, a parallel power module or cabinet reconfiguration may be required prior to installation.

For facilities running mixed I/O architectures, the 8C-PAIMA1 often coexists with digital input modules such as the 8C-PDIDA1 (51454470-175) and digital output modules like the 8C-PDODA1 on the same backplane. Verifying module slot assignments and ensuring no address conflicts exist in the Experion PKS configuration database is a mandatory pre-commissioning step. The Honeywell Control Builder engineering tool is used to assign module addresses, configure channel parameters, and download updated logic to the C300 controller.

Communication link integrity must also be confirmed. The Experion PKS platform relies on FTE (Fault Tolerant Ethernet) for controller-to-server communication. Before replacing the analog input module, engineers should verify that the FTE switch infrastructure — including redundant network paths — is operational and that the replacement module’s firmware is compatible with the running Experion server version. In some legacy installations, a firmware upgrade on the C300 controller itself may be necessary to support newer module revisions.

Where field signal isolation is a concern — particularly in environments with high electrical noise, long cable runs, or mixed voltage levels — the addition of a signal isolator or signal conditioner between the field transmitter and the IOTA terminal may be recommended. This is especially relevant when migrating from older Honeywell TDC 3000 or PlantScape systems where grounding schemes differ from current Experion PKS standards.

HMI screen validation is another critical phase. After the module replacement and logic download, operators should verify that all associated Experion Station displays correctly reflect live process values, alarm limits, and engineering unit conversions. Any discrepancies in tag mapping between the old and new module configuration must be resolved before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing production impact during an analog input module replacement requires careful pre-staging and a clearly defined cutover sequence. Where process conditions allow, the preferred approach is a hot-standby swap — pre-configuring the replacement 8C-PAIMA1 in the Experion PKS database, staging the module offline, and executing the physical swap during a scheduled maintenance window or low-production period.

Before removing the existing module, engineers should capture a full snapshot of the current channel configuration, including input range, filter settings, HART device assignments, and alarm thresholds. This data serves as the baseline for post-swap verification and reduces the risk of misconfiguration during recommissioning.

For critical control loops that cannot tolerate interruption, a temporary manual control strategy should be established prior to the swap — placing affected controllers in manual mode, notifying the operations team, and ensuring field operators are positioned to monitor process variables locally. Once the replacement module is seated and the configuration download is confirmed, a systematic loop check — verifying each channel’s live reading against a calibrated reference — should be completed before returning loops to automatic.

NINERMAS ships all modules with pre-delivery functional testing documentation, reducing on-site verification time and supporting compressed maintenance windows. Combined with available stock and rapid dispatch, this approach helps customers achieve same-week restoration even in emergency breakdown scenarios.

Retrofit Support FAQ

Q: Is the 8C-PAIMA1 51454473-175 a direct replacement for my existing module?
A: In most C300 Series installations, yes — the 8C-PAIMA1 is a slot-compatible replacement. However, you should confirm the IOTA terminal assembly model (typically CC-PAIX01) and the Experion PKS firmware version to ensure full compatibility. NINERMAS can assist with compatibility verification prior to order.

Q: Does NINERMAS test modules before shipment?
A: Yes. All Honeywell modules supplied by NINERMAS undergo functional testing prior to dispatch. A test report is available upon request, and every unit is covered by a 12-month warranty from the date of shipment.

Q: What wiring changes are required when replacing the 8C-PAIMA1?
A: Because the 8C-PAIMA1 interfaces with the field through the IOTA terminal assembly rather than directly, field wiring typically does not need to be disturbed. The IOTA remains in place; only the module itself is swapped. This significantly reduces installation time and eliminates the risk of wiring errors during the replacement.

Q: How quickly can NINERMAS supply the 8C-PAIMA1 51454473-175?
A: NINERMAS maintains ready stock of the 8C-PAIMA1. Standard orders are dispatched within 1–3 business days. For urgent breakdown situations, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and lead time.
