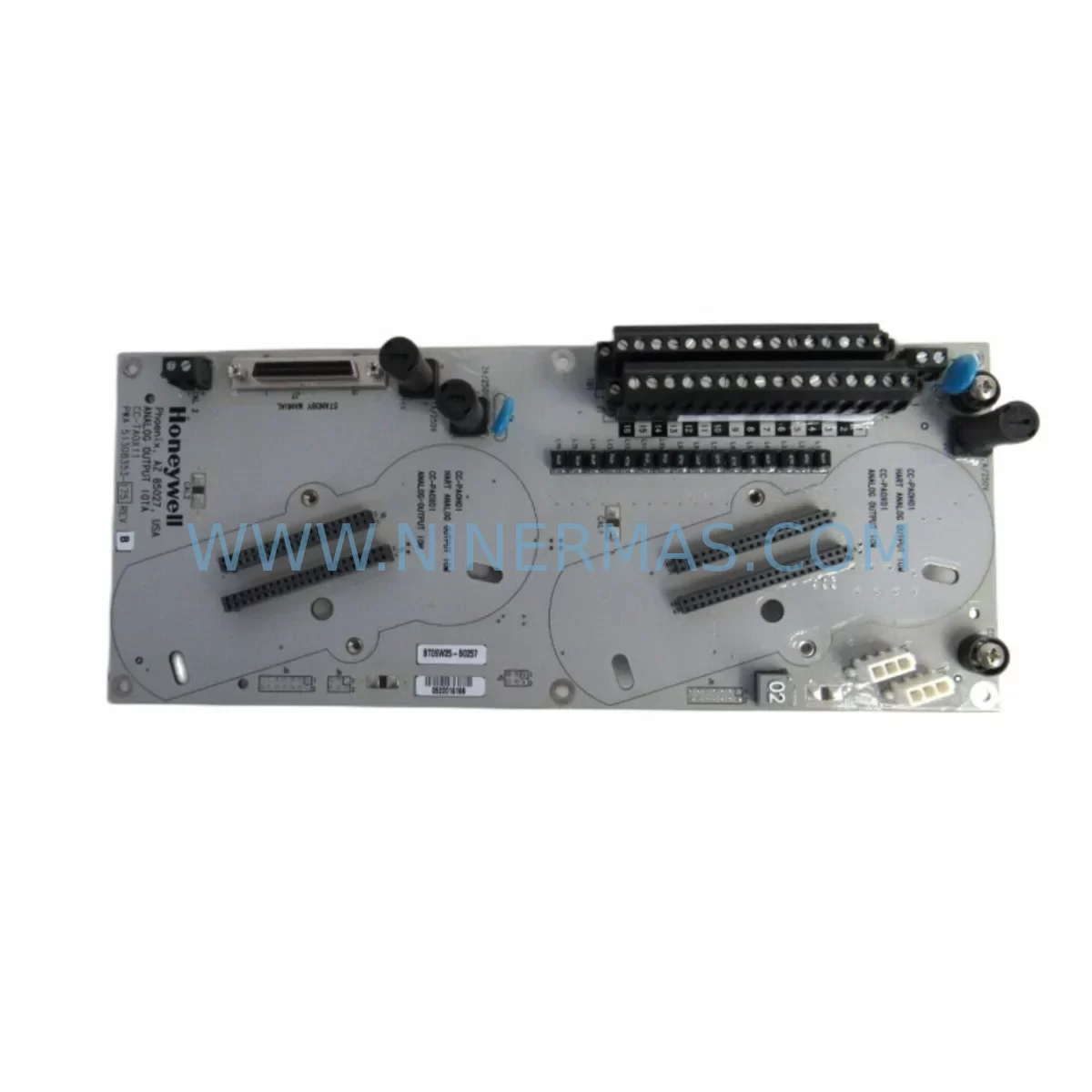

Honeywell 51308373-175 CC-TD0B11 Retrofit-Compatible Analog Output

Honeywell 51308373-175 CC-TD0B11 Retrofit-Compatible Analog Output for Legacy Systems

The Honeywell 51308373-175 CC-TD0B11 is a high-reliability analog output module engineered for the Experion PKS Series-C distributed control system platform. As legacy automation infrastructure ages and original equipment manufacturers discontinue support for older I/O modules, facilities across oil & gas, petrochemical, power generation, and advanced manufacturing are increasingly turning to retrofit-compatible replacements to extend the operational life of their control systems without committing to a full platform migration. The CC-TD0B11 addresses this need directly — offering a functionally equivalent, drop-in replacement solution that preserves existing wiring, backplane addressing, and controller logic while restoring full analog output capability to the control loop.

When planning a retrofit around the 51308373-175 CC-TD0B11, engineers must carefully evaluate several critical compatibility parameters before committing to installation. Power supply capacity is a primary concern: the Series-C I/O chassis draws regulated 24 VDC from the system power supply, and adding or replacing output modules requires confirming that the existing CC-PWRR01 or CC-PWRR02 power supply unit has sufficient headroom to support the module’s current draw without triggering under-voltage faults. Terminal block wiring must also be verified — the CC-TD0B11 uses a standard 16-point marshalling terminal assembly, and field wiring from the legacy module should be mapped and labeled before removal to ensure accurate reconnection to the replacement unit.

Backplane interface compatibility is another key checkpoint. The CC-TD0B11 is designed for the Series-C I/O Link architecture, and its slot assignment within the CC-CIOM13 or CC-CIOM14 I/O chassis must be confirmed against the existing hardware configuration database in Experion PKS Control Builder. Module address assignments are stored in the controller’s hardware tree, and any mismatch between the physical slot and the configured address will result in a module fault condition that prevents output activation. Before powering up the replacement module, the configuration should be exported, reviewed, and re-downloaded to the C300 or C200E controller to ensure the hardware tree reflects the correct module type and revision.

Program compatibility is generally preserved when replacing a like-for-like module such as the CC-TD0B11, since the function block parameters — including output range (4–20 mA), fault state behavior, and engineering unit scaling — are stored in the controller database rather than the module firmware. However, engineers should verify that the replacement module’s hardware revision is compatible with the installed version of Experion PKS R400 or later, as certain firmware revisions introduced changes to the module’s diagnostic reporting behavior that may affect alarm management in the HMI display. Operators should also confirm that HMI faceplates linked to the affected analog output channels are displaying correctly after module replacement, particularly for custom-built displays that reference hardware-specific diagnostic tags.

Communication link integrity must be maintained throughout the retrofit process. The CC-TD0B11 communicates over the Series-C I/O Link, which is a deterministic, fault-tolerant serial bus connecting the I/O chassis to the C300 controller via the CC-LINK01 or CC-LINK02 interface module. During module hot-swap procedures — where the system architecture supports it — the I/O Link should be monitored in the Experion Station to confirm that the replacement module achieves a healthy communication state within the expected initialization window. If the system does not support hot-swap at the affected chassis slot, a controlled shutdown of the affected control loop should be planned, with manual override or bypass strategies in place to maintain process continuity during the changeover window.

Installation space confirmation is straightforward for like-for-like replacements: the CC-TD0B11 occupies a single slot in the Series-C I/O chassis and does not require additional mounting hardware. However, if the retrofit is part of a broader control cabinet upgrade that also involves replacing the CC-CIOM13 chassis with a newer CC-CIOM14 or adding a CC-SCMB01 system cabinet module bus extender to accommodate additional I/O capacity, the physical layout of the cabinet must be re-evaluated to ensure adequate clearance for cable management and module extraction.

Field commissioning of the replacement CC-TD0B11 should follow a structured verification sequence: confirm module health status in Experion Station, verify output channel calibration against a known reference instrument, check loop current at the field device terminal, and validate that the control loop is responding correctly to setpoint changes from the C300 controller. Any deviations in output accuracy should be investigated at the signal conditioning level before assuming a module fault — field wiring resistance, terminal block corrosion, and loop power supply voltage all contribute to output accuracy and should be measured as part of the commissioning checklist.

NINERMAS maintains verified inventory of the Honeywell 51308373-175 CC-TD0B11 and related Series-C components, including the CC-PWRR01 power supply, CC-CIOM13 I/O chassis, CC-LINK01 I/O Link interface, CC-SCMB01 system cabinet module bus, and CC-TAIX11 analog input modules commonly replaced alongside output modules during I/O subsystem overhauls. All units are subject to pre-shipment functional testing and are covered by a 12-month warranty from the date of delivery. Expedited shipping is available for critical maintenance situations where minimizing downtime is the primary operational priority.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the CC-TD0B11 analog output module typically occurs within a broader I/O subsystem modernization effort. In many facilities, the decision to replace a single failed or end-of-life output module triggers a comprehensive audit of adjacent modules in the same chassis. It is common to find that neighboring CC-TAIX11 analog input modules, CC-TDIL01 digital input modules, or CC-TDOL01 digital output modules are also approaching end-of-life, and replacing them concurrently during a planned maintenance window is significantly more cost-effective than scheduling multiple separate outages.

Power distribution within the control cabinet should be re-evaluated as part of the retrofit plan. If the existing CC-PWRR01 power supply is operating near its rated capacity, adding replacement modules with updated firmware — which may have slightly different inrush current profiles — can cause nuisance tripping during system startup. In such cases, upgrading to a CC-PWRR02 or adding a redundant power supply configuration is advisable. The CC-SCMB01 system cabinet module bus extender may also be required if the retrofit involves expanding the I/O chassis count beyond the current cabinet layout.

Communication protocol migration is a consideration for facilities that are simultaneously upgrading from older Honeywell TDC 3000 or PlantScape systems to Experion PKS. In these scenarios, the CC-TD0B11 may be introduced as part of a phased migration where legacy I/O is progressively replaced with Series-C modules while the C300 controller takes over supervisory control from the older LCN or UCN network nodes. The CC-LINK01 I/O Link interface plays a central role in this migration, providing the deterministic communication backbone that connects the new Series-C I/O to the Experion PKS controller without requiring changes to the field wiring infrastructure.

Signal isolation requirements should also be assessed during retrofit planning. In applications where field devices are located in electrically noisy environments — such as motor control centers or variable frequency drive panels — signal isolators or barriers may be required between the CC-TD0B11 output terminals and the field device to prevent ground loop interference from corrupting the 4–20 mA output signal. This is particularly relevant in retrofit scenarios where the original installation did not include isolation, and the replacement module’s improved diagnostic sensitivity may begin reporting loop integrity faults that were previously masked by the older module’s less sensitive hardware.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any industrial control system retrofit. For the CC-TD0B11 replacement, the most effective downtime reduction strategy is to pre-stage the replacement module, pre-configure the hardware tree in a test environment using Experion PKS Control Builder offline mode, and validate the configuration against a backup of the production controller database before the maintenance window begins. This approach allows the physical swap and controller download to be completed within a single shift, reducing exposure to process interruption.

Where the process cannot tolerate any interruption to the analog output signal — for example, in continuous flow control applications where the output drives a modulating control valve — a manual bypass strategy should be implemented before module removal. This typically involves placing the affected control loop in manual mode from the Experion Station operator display, setting the output to a safe hold value, and confirming with field operators that the downstream process is stable before proceeding with the module swap. The original program logic, including PID tuning parameters, setpoint limits, and alarm thresholds, is preserved in the C300 controller database and does not need to be re-entered after the replacement module is installed and the hardware tree is re-downloaded.

Post-swap verification should be completed before returning the loop to automatic control. This includes confirming module health status in Experion Station, verifying the output current at the field device terminal using a calibrated loop calibrator, and performing a bump test to confirm that the control loop responds correctly to a small setpoint change. Once the loop is verified, the operator can return it to automatic mode and monitor the process variable for stability over the first 15–30 minutes of operation. Any residual issues — such as unexpected alarm activations or output drift — should be investigated and resolved before the maintenance team leaves the site.

Retrofit Support FAQ

Q: Is the Honeywell 51308373-175 CC-TD0B11 a direct drop-in replacement for the original CC-TD0B11 installed in my Experion PKS Series-C system?
A: Yes. The 51308373-175 is the Honeywell part number for the CC-TD0B11 analog output module and is a direct replacement for existing installations. The module occupies the same single chassis slot, uses the same 16-point terminal wiring, and communicates over the same Series-C I/O Link. A hardware tree re-download to the C300 or C200E controller is required after installation to confirm the module address assignment.

Q: What pre-shipment testing is performed on the CC-TD0B11 before delivery?
A: All units supplied by NINERMAS undergo functional output verification testing prior to shipment. This includes confirmation of 4–20 mA output accuracy across the full output range and communication interface integrity checks. Each unit is covered by a 12-month warranty from the date of delivery.

Q: Can the CC-TD0B11 be installed while the Experion PKS system is running (hot-swap)?
A: Hot-swap capability depends on the specific chassis slot configuration and the Experion PKS software revision installed. In systems where hot-swap is supported, the module can be replaced without shutting down the controller, though the affected output channel will be in a fault state during the swap. In systems where hot-swap is not supported, a controlled shutdown of the affected control loop is required. NINERMAS technical support can advise on the specific requirements for your system configuration.

Q: What is the lead time and inventory availability for the 51308373-175 CC-TD0B11?
A: NINERMAS maintains verified stock of the CC-TD0B11 and related Series-C components. Standard orders are processed and shipped within 1–3 business days. Expedited shipping is available for critical maintenance situations. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current inventory and lead time for your specific requirement.
