Honeywell 51305406-100 Service-Ready Spare Part

Honeywell 51305406-100 Service-Ready Spare Part for Industrial Maintenance

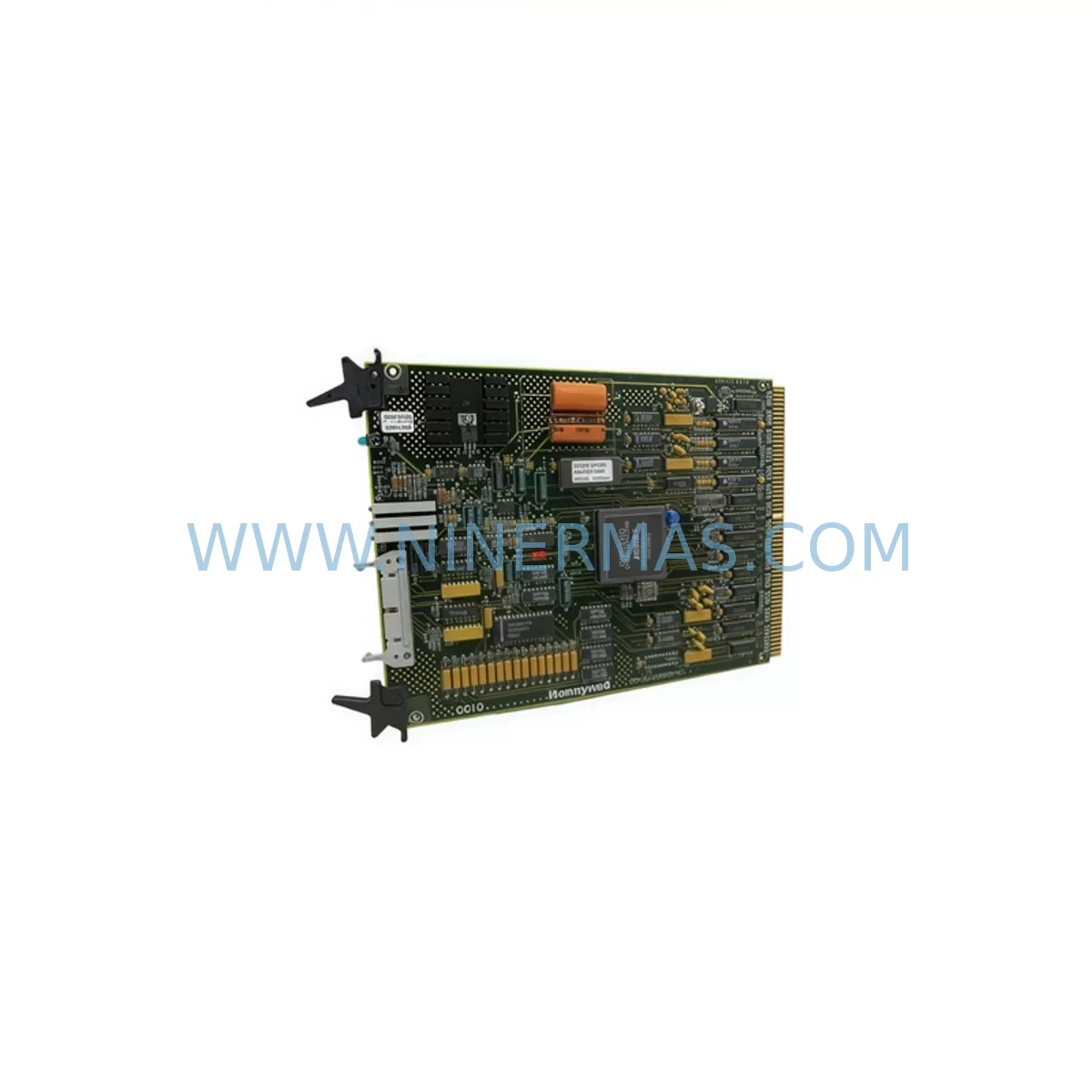

The Honeywell 51305406-100 is a ruggedized circuit board engineered for continuous operation in demanding industrial environments. As a critical spare part within the Honeywell TDC 3000 Distributed Control System (DCS) architecture, this module plays a central role in maintaining process control integrity across refineries, chemical plants, power generation facilities, and heavy manufacturing lines. When unplanned downtime strikes, having a verified, service-ready 51305406-100 on the shelf is the difference between a two-hour recovery and a two-day production loss.

Maintenance engineers working with legacy Honeywell TDC 3000 and Experion PKS platforms understand that sourcing original spare parts for aging control infrastructure is one of the most persistent procurement challenges in industrial operations. The 51305406-100 board interfaces directly with the system backplane, supporting signal routing, I/O processing, and inter-module communication within the control cabinet. Its ruggedized design accommodates wide operating temperature ranges, vibration, and electrical noise — conditions typical of process industry environments.

From a maintenance planning perspective, the 51305406-100 should be treated as a Tier-1 critical spare. Any fault or degradation in this board can cascade into loss of loop control, alarm suppression failures, or complete node dropout. Proactive replacement during scheduled annual turnarounds — rather than reactive replacement during emergency shutdowns — significantly reduces mean time to repair (MTTR) and protects production continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the Honeywell 51305406-100, the surrounding control cabinet ecosystem must be evaluated simultaneously to prevent repeat failures and ensure full system restoration. A board-level fault in a TDC 3000 node is rarely an isolated event — it often signals stress across adjacent components that share the same power rail, backplane bus, or communication path.

During the same maintenance window, engineers should inspect and consider stocking the following associated components: the Honeywell 51304485-100 Power Supply Module, which feeds the board’s operating voltage and is a common co-failure item; the 51401544-100 I/O Link Interface Module, which manages data exchange between the circuit board and field devices; and the 51304516-100 Communication Module, responsible for node-to-node messaging across the DCS highway. Terminal blocks and field wiring termination assemblies connected to the I/O channels should be inspected for corrosion, loose crimps, or insulation degradation.

Relay output modules such as the 51309276-150 Digital Output Module that share the same control loop should be tested for contact wear, especially in high-cycle applications. The 51198685-100 Analog Input Module feeding process variable signals into the same control strategy should be verified for calibration drift. If the control cabinet houses an operator interface, the associated Honeywell HMI panel or operator station should be checked for communication timeout errors that may have been masked by the board fault.

Signal isolators and barriers protecting 4–20 mA loops connected to the 51305406-100’s I/O channels are often overlooked during board replacements — a failed isolator can damage a new board within hours of commissioning. Fuse holders and fuse cartridges on the 24 VDC distribution rail should be replaced as a matter of course. Finally, the backplane connector and card guide rails should be cleaned and inspected for bent pins or oxidation before the new board is seated.

Building a structured spare parts kit around the 51305406-100 — including at minimum one power supply module, one I/O interface module, and one communication module — is the foundation of a resilient maintenance strategy for any facility running Honeywell TDC 3000 or compatible DCS infrastructure.

Site Replacement Workflow

Replacing the Honeywell 51305406-100 in the field follows a structured sequence designed to minimize downtime and eliminate configuration errors. Begin by documenting the current system state: capture all active loop configurations, alarm setpoints, and I/O assignments associated with the node hosting the board. This documentation is critical if the replacement board requires re-initialization or if the DCS historian needs to be reconciled after the swap.

Before removing the faulty board, place the affected control loops in manual mode at the operator station to prevent process upsets during the transition. Power down the specific card slot following the site’s lockout/tagout (LOTO) procedure — do not power down the entire cabinet unless required, as this will affect other running processes. Remove the 51305406-100 by releasing the card ejector levers and sliding it cleanly from the backplane slot. Inspect the backplane connector for damage before inserting the replacement unit.

Seat the new 51305406-100 firmly, ensuring full backplane engagement. Restore power to the slot and observe the board’s status LEDs for normal initialization sequence. From the engineering workstation, verify that the node comes online, I/O channels report correctly, and all loop configurations are intact. Return loops to automatic mode only after confirming stable process variable readings. Log the replacement in the site’s maintenance management system (CMMS) with the board serial number, date, and technician ID.

This workflow applies equally to planned turnaround replacements and emergency fault recovery scenarios. For facilities managing multiple TDC 3000 nodes, maintaining a pre-configured hot spare — a 51305406-100 that has been bench-tested and pre-loaded with the standard node configuration — can reduce emergency replacement time from hours to under thirty minutes.

Spare Parts Support FAQ

Q1: Is the Honeywell 51305406-100 compatible with both TDC 3000 and Experion PKS systems?
The 51305406-100 is designed for the Honeywell TDC 3000 platform. Compatibility with Experion PKS depends on the specific cabinet configuration and backplane revision. We recommend providing your system’s node type and cabinet model when ordering so our technical team can confirm fit before shipment.

Q2: What testing is performed before the board is shipped?
Every 51305406-100 unit undergoes functional testing prior to dispatch, including power-on verification, I/O channel continuity checks, and communication interface validation. A test report is available upon request. All units are shipped with ESD-protective packaging to prevent transit damage.

Q3: What is the warranty coverage and what does it include?
All Honeywell 51305406-100 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your downtime exposure.

Q4: Can NINERMAS support long-term supply for facilities with multiple TDC 3000 nodes?
Yes. NINERMAS maintains ongoing sourcing relationships for Honeywell TDC 3000 spare parts, including the 51305406-100 and associated modules. For facilities managing large installed bases or planning multi-year maintenance contracts, we offer reserved stock arrangements and scheduled delivery programs. Contact our team to discuss volume pricing and long-term supply agreements.
