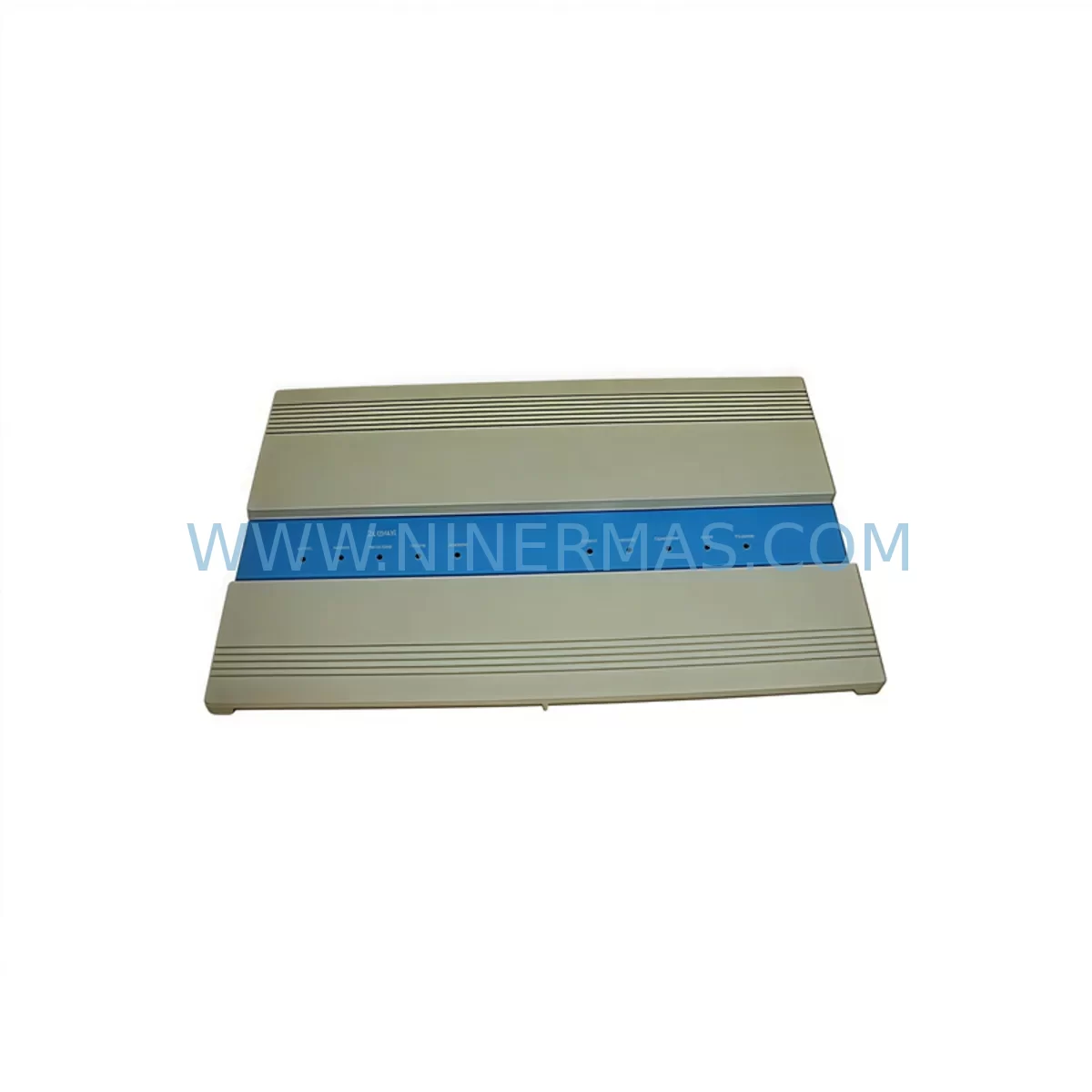

The Honeywell 51304069-100 is a retrofit-compatible process I/O module designed to serve as a direct replacement and upgrade solution within the TDC 3000 distributed control system platform. As legacy automation infrastructure ages and original spare parts reach end-of-life, facilities running TDC 3000 control networks face increasing pressure to source reliable, tested replacements that maintain system continuity without requiring full platform migration. The 51304069-100 addresses this challenge by offering a verified drop-in replacement path for the MU-TDPR01 series, enabling engineers to restore control loop integrity, extend the operational lifespan of existing control cabinets, and defer costly full-system overhauls.

Whether your facility is managing a phased modernization program or responding to an unplanned failure of a discontinued module, the 51304069-100 provides a dependable, in-stock solution backed by a 12-month warranty. Each unit undergoes pre-shipment functional testing to confirm signal integrity, backplane communication, and I/O channel performance before leaving our facility.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 51304069-100 into an existing TDC 3000 installation begins with a thorough pre-retrofit assessment. Engineers should start by auditing the target rack assembly to confirm available slot positions, backplane revision, and current power budget. TDC 3000 racks typically share a common DC power bus, and adding or replacing modules requires verifying that the existing power supply module — such as the MC-PDOY22 or equivalent TDC 3000 power supply unit — can support the additional load without triggering undervoltage conditions during startup.

Terminal wiring is a critical checkpoint. Field cables connected to the legacy module’s termination assembly must be mapped against the 51304069-100 channel assignments before disconnection. In many retrofit scenarios, the existing field termination panel or marshalling cabinet wiring can be reused directly, significantly reducing rewiring time and the risk of signal transposition errors. Where signal conditioning is required — for example, when migrating thermocouple or RTD inputs — inline signal isolators or signal conditioners may be inserted between the field device and the new module to ensure accurate process variable representation.

Communication link integrity is equally important. The TDC 3000 data highway connecting the 51304069-100 to the Local Control Network (LCN) and the Universal Control Network (UCN) must be verified for cable continuity, termination resistance, and node address conflicts. If the retrofit is part of a broader migration toward a newer Experion PKS platform, the 51304069-100 can serve as an interim I/O solution while communication gateways — such as the Honeywell EPLCG Ethernet gateway or a Series C I/O Link Interface Module — are staged for phased integration.

For facilities also upgrading their operator interface layer, the existing TDC 3000 operator stations and GUS (Global User Station) displays will continue to function without modification during a direct module replacement. However, if the retrofit scope includes transitioning to an Experion PKS Station or a modern HMI server, display builders and control database exports should be completed and validated in a staging environment before cutover. The 51304069-100 supports this phased approach by maintaining full backward compatibility with the existing TDC 3000 control database structure.

I/O expansion requirements should also be evaluated during the planning phase. If the retrofit involves adding new measurement points — such as additional analog input channels for flow, pressure, or temperature loops — supplementary I/O modules like the Honeywell 51304485-100 or MC-TAIH02 analog input modules may be required alongside the 51304069-100 to meet the expanded channel count. Rack space, backplane slot availability, and module address assignments must all be confirmed before procurement to avoid installation delays.

Finally, programming cable and configuration tool compatibility should be confirmed. TDC 3000 configuration is typically performed through the Engineering Workstation (EWS) using Honeywell’s Control Builder or equivalent legacy configuration utilities. Ensure that the engineering workstation retains a compatible software version and that the configuration backup for the existing module is archived before the swap is initiated.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a process I/O module in a live production environment. For the 51304069-100 retrofit, a structured hot-swap or controlled cold-swap procedure should be selected based on the criticality of the loops served by the module. In most TDC 3000 installations, the affected control loops should be placed in manual mode at the operator station before the module is physically removed, allowing field devices to hold their last output state and preventing process upsets during the transition.

Before initiating the swap, a full backup of the TDC 3000 control database — including all loop configurations, tuning parameters, alarm setpoints, and module address assignments — should be exported from the Engineering Workstation and stored on an isolated backup medium. This ensures that if the replacement module requires reconfiguration or if an unexpected compatibility issue arises, the original logic can be restored without relying on memory or incomplete documentation.

Physical installation of the 51304069-100 should follow the standard TDC 3000 module insertion procedure: confirm the rack is powered, align the module with the correct backplane slot, and seat it firmly until the ejector levers lock. After insertion, the module’s status LEDs should be observed for normal initialization behavior. The operator station should then confirm that the module has been recognized on the data highway and that I/O channel status returns to normal before control loops are transferred back to automatic mode.

For facilities with redundant control architectures, the retrofit can often be performed with zero process interruption by switching control authority to the redundant controller or I/O path before the primary module is replaced. This approach is particularly effective in TDC 3000 installations where redundant High-Performance Process Manager (HPPM) or Application Module (AM) configurations are in place. Post-installation, a loop performance verification — comparing live process variable readings against historian trends — confirms that signal accuracy and control response have been fully restored before the retrofit is considered complete.

Retrofit Support FAQ

Q1: Is the 51304069-100 a direct drop-in replacement for the MU-TDPR01 in a TDC 3000 rack?
Yes. The 51304069-100 is designed as a retrofit-compatible replacement for the MU-TDPR01 series within the TDC 3000 platform. It uses the same backplane interface and is compatible with existing field wiring terminations. Customers should verify the module slot address and confirm that the rack power supply can support the replacement module before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 51304069-100 unit undergoes a full functional test prior to shipment. This includes verification of backplane communication, I/O channel signal integrity, and power consumption within specification. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the existing field wiring and termination blocks be reused during the retrofit?
In most cases, yes. The 51304069-100 is compatible with standard TDC 3000 field termination assemblies. Engineers should map existing field cable assignments against the replacement module’s channel layout before disconnection to confirm compatibility and avoid rewiring errors. Signal isolators may be required for certain input types.

Q4: What is the typical lead time and do you maintain stock?
The 51304069-100 is maintained in stock for immediate shipment. Standard orders are processed and dispatched within 1–3 business days. For urgent breakdown situations, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory levels and arrange priority dispatch.
