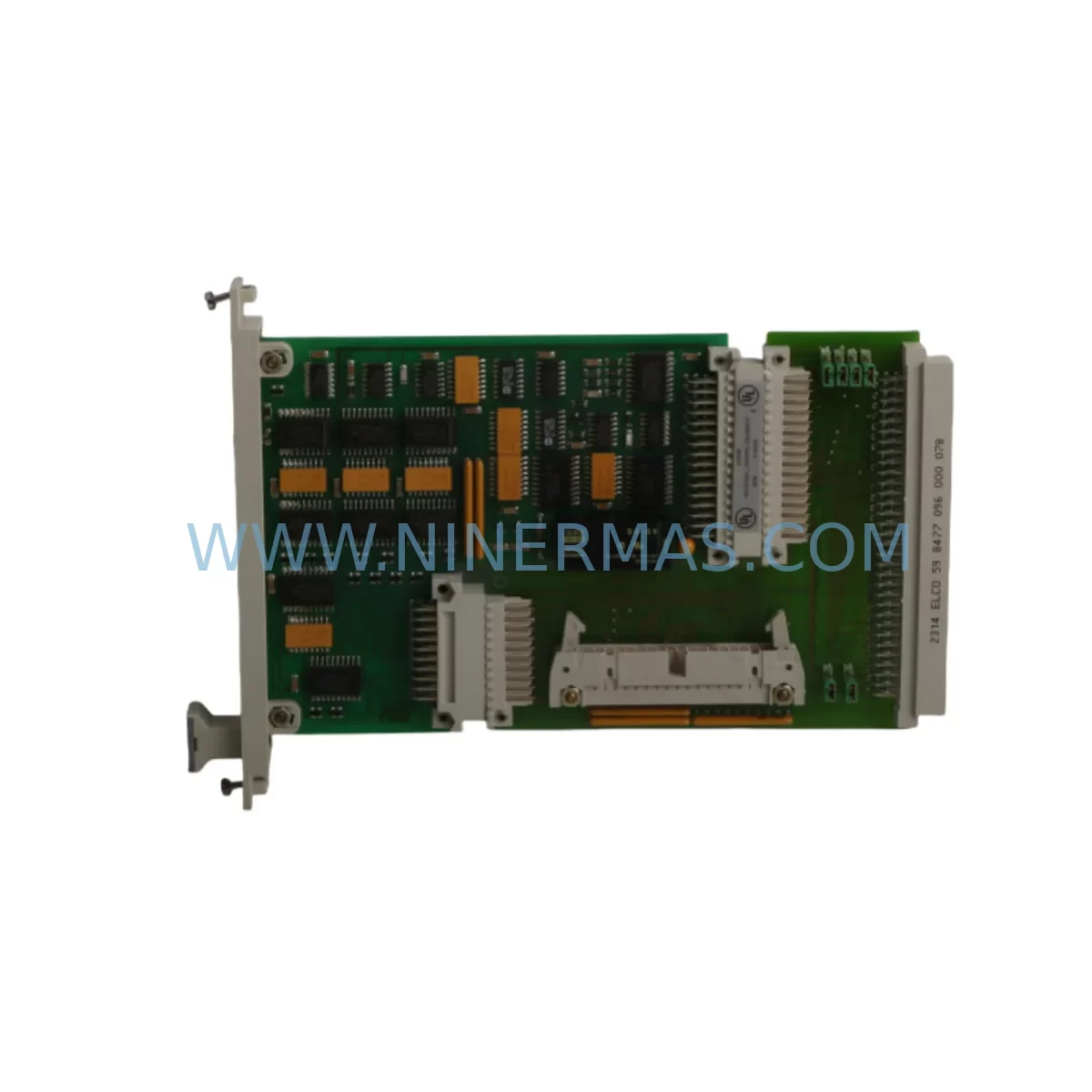

Honeywell 10001/R/I Service-Ready Spare Part for Industrial Maintenance

Honeywell 10001/R/I Service-Ready Spare Part for Industrial Maintenance

The Honeywell 10001/R/I is a critical replacement and upgrade module designed for continuous operation within Honeywell TotalPlant DCS (TDC) and Fail-Safe Controller (FSC) series control architectures. As process industries extend the operational life of legacy distributed control systems, maintaining a verified inventory of service-ready spare parts such as the 10001/R/I becomes essential to minimizing unplanned downtime, protecting production continuity, and reducing the risk of cascading failures across interconnected control loops.

This module is sourced as an original Honeywell component, subject to pre-shipment functional testing, and supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. It is intended for maintenance engineers, reliability teams, and procurement specialists managing spare parts programs for TDC 3000, TDC 2000, and FSC-based safety instrumented systems in refining, petrochemical, power generation, and continuous process manufacturing environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the Honeywell 10001/R/I within a TDC or FSC control cabinet, maintenance engineers should treat this as an opportunity to conduct a broader system health review. The 10001/R/I does not operate in isolation — it interfaces with the backplane, power distribution, and communication infrastructure of the entire control node. A structured inspection at the time of module replacement significantly reduces the probability of secondary failures within the same maintenance window.

Begin with the cabinet power supply modules. Honeywell TDC and FSC systems rely on redundant power supply units to maintain continuous operation; aging or marginal power modules can introduce voltage ripple that degrades module performance and shortens service life. Inspect and, where appropriate, replace power supply modules showing signs of thermal stress or output deviation. Alongside power, review the backplane assembly for signs of connector oxidation, mechanical damage, or intermittent contact — a compromised backplane slot can cause the replacement 10001/R/I to exhibit erratic behavior that is incorrectly attributed to the module itself.

I/O modules connected to the same control loop should be verified for signal integrity. Honeywell analog input and output modules, digital I/O cards, and associated field termination assemblies (FTAs) are common wear items in long-running DCS installations. If the 10001/R/I is being replaced due to a fault condition, inspect upstream and downstream I/O cards for latent damage caused by the same fault event — particularly if the fault involved a field wiring short or ground fault. Signal isolators and barriers installed between field devices and I/O cards should also be checked for drift or failure, as these components protect the control system from field-side transients.

Communication integrity is equally important. Honeywell LCN and UCN network interface modules, coaxial cable segments, and network extenders should be inspected for physical damage and verified for correct termination. A degraded network segment can cause the replacement module to appear non-communicating during commissioning, leading to unnecessary re-work. Relay output modules and interposing relays in the same control cabinet should be tested for contact resistance and coil integrity, particularly in applications involving frequent switching cycles.

For FSC-based safety systems, the replacement workflow must also account for the safety logic solver configuration. Verify that the replacement 10001/R/I is loaded with the correct application program version and that the safety function is validated against the current Safety Requirements Specification (SRS) before returning the loop to service. HMI workstations connected to the TDC system should be checked for alarm configuration consistency following any module replacement, as configuration mismatches can suppress critical process alarms. Terminal blocks and field wiring connections in the marshalling cabinet should be inspected and torqued to specification as part of the same maintenance event.

Site Replacement Workflow

Replacing the Honeywell 10001/R/I in a live TDC or FSC installation requires a structured approach to minimize control loop disruption and ensure a clean return to service. The following workflow is recommended for maintenance teams executing this replacement under a planned or emergency maintenance scenario:

Step 1 — Pre-Replacement Verification: Confirm the exact part number and firmware revision of the installed module against the system bill of materials. Verify that the replacement 10001/R/I matches the required hardware revision for the target backplane slot. Retrieve the current module configuration data from the engineering workstation and archive it before proceeding.

Step 2 — Loop Isolation: Place the affected control loop in manual mode at the operator station. Notify the control room of the planned maintenance activity. For FSC safety loops, follow the site-specific inhibit and bypass procedure in accordance with the functional safety management plan.

Step 3 — Module Removal: Power down the affected module slot if the system design permits hot-swap removal; otherwise, follow the site procedure for controlled shutdown of the affected node. Remove the 10001/R/I using the appropriate extraction tool to avoid backplane connector damage. Inspect the vacated slot for debris, oxidation, or physical damage before installing the replacement.

Step 4 — Replacement Installation and Configuration: Install the replacement 10001/R/I into the backplane slot, ensuring full connector engagement. Restore power to the slot and verify that the module initializes correctly on the system diagnostic display. Download the archived configuration to the replacement module from the engineering workstation and verify parameter consistency.

Step 5 — Functional Verification and Return to Service: Perform a loop check to verify correct signal transmission between the field device and the control system. Confirm alarm setpoints, control parameters, and interlock logic are functioning as designed. Return the loop to automatic control and document the replacement in the site maintenance management system.

This workflow supports rapid downtime recovery while maintaining system integrity and audit traceability — both critical requirements for facilities operating under IEC 61511, ISA-84, or equivalent functional safety standards.

Spare Parts Support FAQ

Q1: Is the Honeywell 10001/R/I compatible with both TDC 3000 and TDC 2000 systems?
The 10001/R/I is designed for use within the Honeywell TDC and FSC control architecture. Compatibility with a specific TDC 2000 or TDC 3000 node depends on the backplane revision, firmware version, and slot assignment in your system configuration. We recommend providing your system’s bill of materials or hardware revision details at the time of inquiry so that compatibility can be confirmed before shipment.

Q2: What pre-shipment testing is performed on the 10001/R/I before delivery?
Each unit undergoes functional verification prior to shipment, including power-on initialization testing and basic communication interface checks where applicable. Units are inspected for physical condition, connector integrity, and correct part number marking. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and operational failures under normal industrial service conditions.

Q3: How should the 10001/R/I be stored if purchased for strategic spare inventory?
For long-term spare parts storage, the module should be kept in its original anti-static packaging in a climate-controlled environment with temperature maintained between 10°C and 40°C and relative humidity below 70% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Periodic inspection of stored modules — at least annually — is recommended to verify physical condition and connector cleanliness before deployment.

Q4: Can you support long-term or repeat supply of the 10001/R/I for multi-site maintenance programs?
Yes. We support long-term supply agreements for maintenance teams managing multiple TDC or FSC installations across different sites. Repeat orders, blanket purchase arrangements, and priority allocation for critical spare parts programs can be discussed directly with our sales team. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your program requirements.
