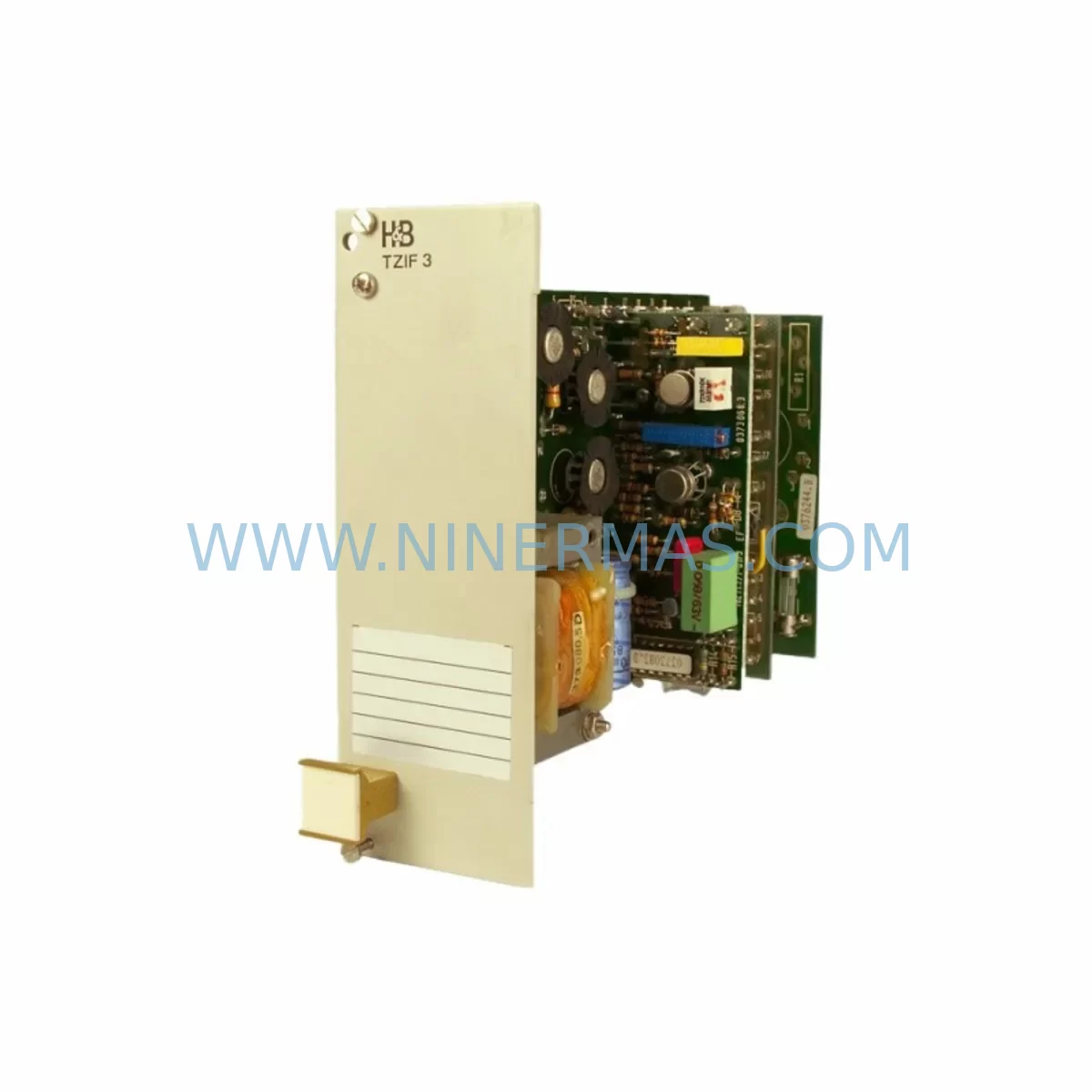

H&B TZIF3 18211-0-1355200 Retrofit-Compatible Control Module

H&B TZIF3 18211-0-1355200 Retrofit-Compatible Control Module for Legacy Contronic Systems

The H&B TZIF3 18211-0-1355200 is a retrofit-compatible control module engineered for seamless integration into legacy H&B Contronic automation platforms. As industrial facilities face increasing pressure to extend the operational life of aging DCS and PLC infrastructure, this module provides a proven, drop-in replacement path that eliminates the need for full system overhauls. Whether you are managing a brownfield upgrade, replacing a discontinued spare, or restoring a critical production line, the TZIF3 18211-0-1355200 delivers the electrical and functional compatibility required for a controlled, low-risk migration.

Designed for engineers and procurement teams working within H&B Contronic control architectures, this module supports the full range of retrofit scenarios encountered in process automation, power generation, chemical processing, and discrete manufacturing environments. Its compatibility with the Contronic backplane and rack infrastructure means that existing terminal wiring, module addressing, and communication links can be preserved during the replacement process — significantly reducing commissioning time and minimising planned downtime windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TZIF3 18211-0-1355200 into an existing Contronic installation begins with a structured pre-replacement audit. Before the module is physically swapped, engineers should document the current rack configuration, including the slot position of the outgoing unit, the power draw from the Contronic power supply module (such as the TZNG or TZNF series), and the total load budget across the active rack. Overloading a shared power rail during a partial retrofit is one of the most common causes of unexpected faults during commissioning.

Terminal block wiring should be photographed and labelled prior to removal. In many legacy Contronic cabinets, the field wiring connects through TZIF-series terminal interface modules or dedicated marshalling panels. Confirming that the replacement module’s I/O channel mapping matches the original is essential — particularly for analogue input channels where signal scaling, range selection (4–20 mA or 0–10 V), and HART pass-through settings may differ between firmware revisions.

For systems that include PROFIBUS-DP communication modules or Contronic gateway cards linking the legacy DCS to modern SCADA platforms, the retrofit plan must account for GSD file compatibility and DP slave address assignments. If the replacement module introduces a new firmware version, re-importing the GSD file into the PROFIBUS master configuration tool may be necessary. Similarly, any signal isolator or barrier modules installed between the field instruments and the Contronic I/O rack should be verified for input impedance compatibility with the new module.

Where the retrofit involves expanding I/O capacity alongside the module replacement — for example, adding additional digital input or digital output modules to an existing Contronic rack — the rack’s available slot count and backplane power capacity must be recalculated. In some installations, a Contronic expansion rack or secondary chassis may be required to accommodate additional modules without compromising the integrity of the primary control rack.

HMI screens built on legacy operator panels or modern SCADA workstations typically reference tag names and module addresses that are defined in the Contronic engineering database. Provided the replacement module is installed in the same rack slot with the same address configuration, existing HMI tag bindings, alarm setpoints, and trend displays will remain valid without modification. This is a significant advantage of like-for-like module replacement over platform migration projects that require full tag re-mapping.

For installations where a programming cable or Contronic engineering workstation is required to verify module parameters post-installation, NINERMAS can advise on compatible interface tools. Customers managing multi-cabinet control rooms should also consider stocking a small buffer of critical spare modules — including Contronic CPU modules, communication interface cards, and power supply units — to support rapid response to unplanned failures without waiting on lead times.

Downtime Control During System Migration

Minimising planned and unplanned downtime is the primary operational concern when replacing a control module in a live production environment. For the TZIF3 18211-0-1355200, the replacement procedure is designed to be executed within a standard maintenance window when the following preparation steps are completed in advance.

First, the replacement module should be bench-tested and powered up in an offline rack or test jig before being brought to site. This confirms that the unit is functional and eliminates the risk of installing a defective spare during a live outage. NINERMAS ships all modules with a pre-dispatch functional test report, and the 12-month warranty covers any latent defects identified after installation.

Second, the existing application program should be backed up from the Contronic CPU before the replacement begins. Even in a like-for-like module swap, retaining a verified program backup ensures that the control logic can be restored rapidly if an unexpected configuration issue arises during commissioning. The backup should be stored on a dedicated engineering workstation and, where possible, on removable media held in the control room.

Third, the field control loop should be placed in manual mode at the DCS operator station before the module is removed. This prevents process upsets caused by loss of the automatic control signal during the swap interval. For critical loops — such as those controlling pressure relief, temperature regulation, or motor protection — a secondary interlock or bypass arrangement may be required to maintain safe process conditions during the replacement window.

Once the replacement module is installed and powered, a structured loop check should be performed: verify each I/O channel against the field instrument, confirm signal scaling, check communication link status on the PROFIBUS or Contronic internal bus, and validate HMI readback values against field measurements. This commissioning sequence typically takes 30–90 minutes per module depending on the number of I/O channels and the complexity of the associated control loops.

Retrofit Support FAQ

Q1: Is the TZIF3 18211-0-1355200 a direct drop-in replacement for the original H&B part?
Yes. The TZIF3 18211-0-1355200 supplied by NINERMAS is functionally equivalent to the original H&B Contronic module. It is compatible with the same rack slot, backplane interface, and wiring configuration. No modifications to the control cabinet or field wiring are required under standard retrofit conditions. Customers are advised to confirm the rack model and firmware version of the host system before installation.

Q2: What commissioning steps are required after installation?
After physical installation, the module should be powered up and its status indicators checked against the Contronic system diagnostics. A channel-by-channel I/O verification is recommended, followed by a communication link check on the Contronic internal bus or PROFIBUS-DP network. If the module includes configurable parameters (address settings, signal range, filter constants), these should be verified against the original engineering documentation before returning the loop to automatic control.

Q3: How is the module tested before shipment, and what does the warranty cover?
All TZIF3 18211-0-1355200 units are functionally tested prior to dispatch. NINERMAS provides a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification. Warranty claims are processed directly through NINERMAS with a target response time of 3 business days.

Q4: Can NINERMAS supply multiple units for a planned spare parts programme?
Yes. NINERMAS maintains stock of the TZIF3 18211-0-1355200 and can fulfil both single-unit emergency orders and bulk procurement requests for planned spare parts programmes. For customers managing long-term lifecycle support for legacy Contronic systems, NINERMAS offers stock-commitment arrangements to guarantee availability of critical modules over a defined support period. Contact our sales team to discuss volume pricing and lead-time commitments.
