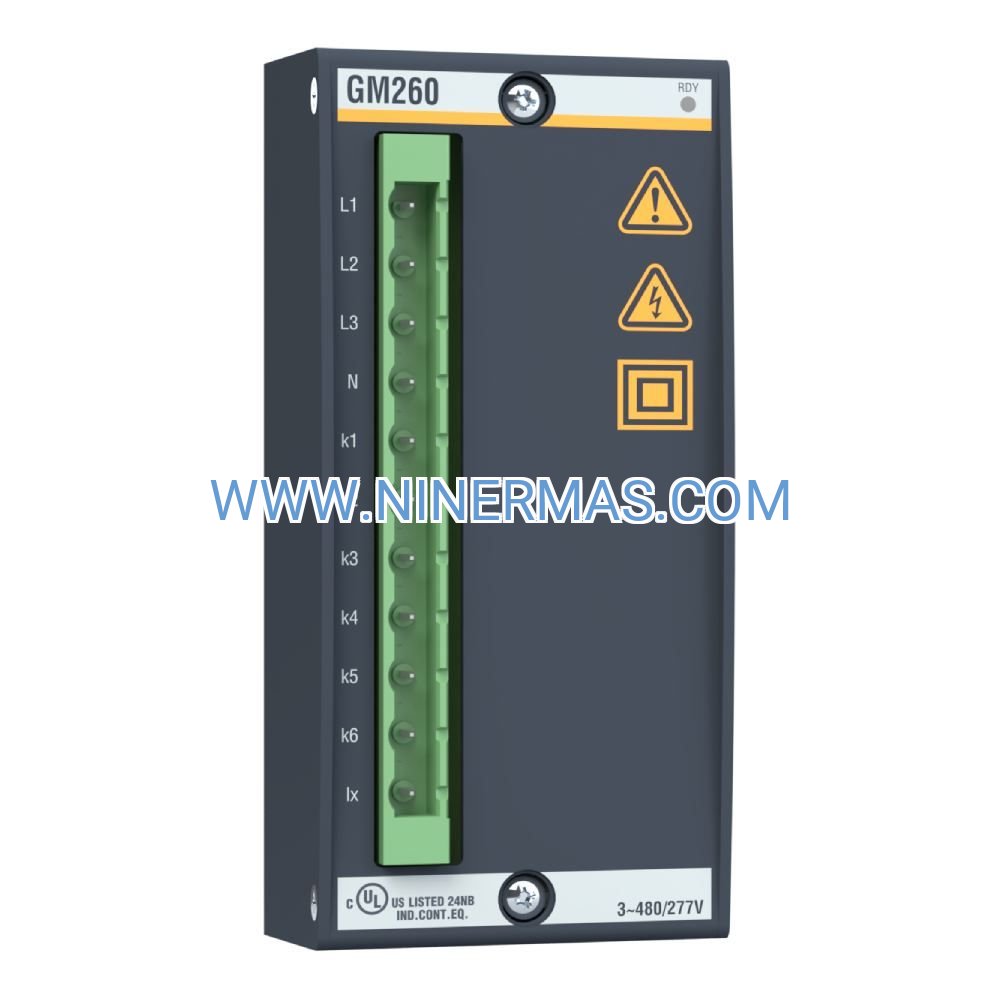

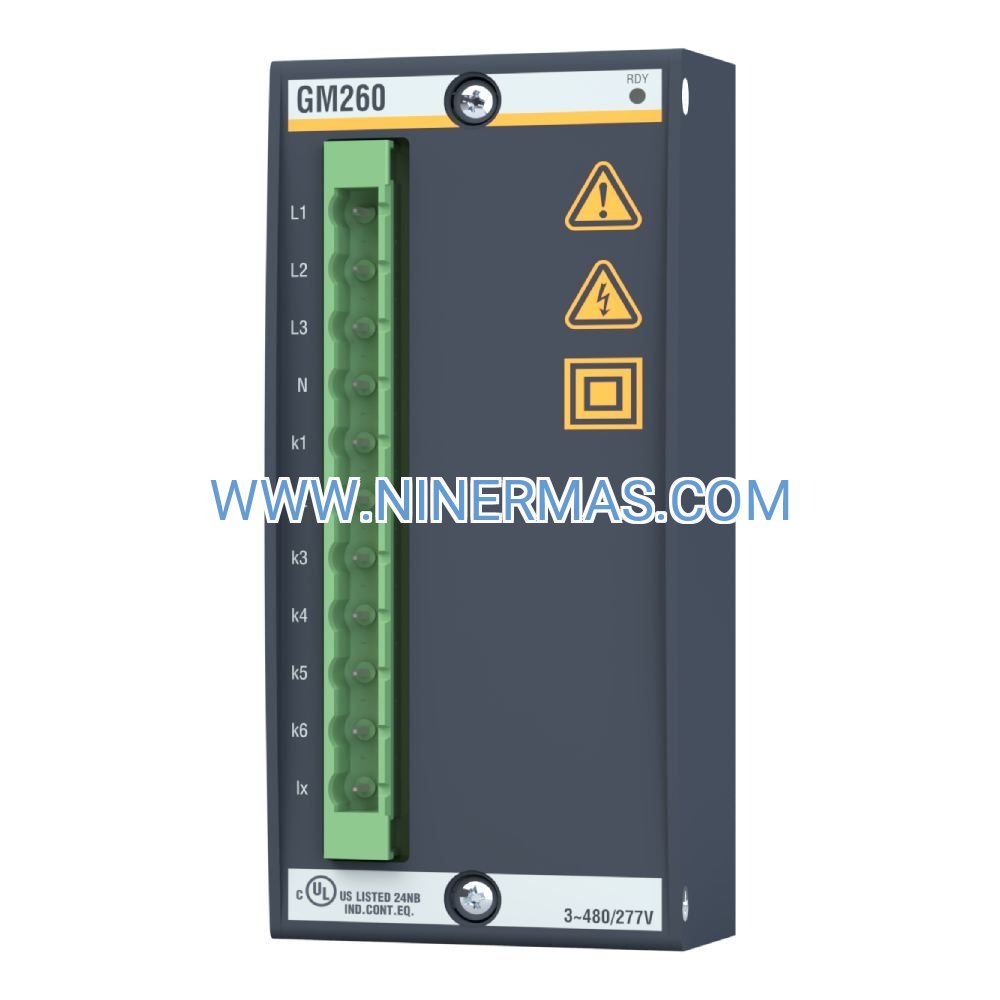

GM260 Grid Measurement Module (Industrial-Grade Power Quality Analyzer)

The GM260 represents a breakthrough in industrial energy metering technology, delivering laboratory-grade ±0.8% measurement precision in a compact DIN rail package. Designed for mission-critical power monitoring in manufacturing, utilities, and process industries, this dual-channel analyzer captures both active and reactive energy flows with 1 Wh granularity—enabling real-time cost allocation, demand response optimization, and predictive maintenance strategies.

Unlike conventional energy meters, the GM260 integrates seamlessly into Bachmann M1 automation ecosystems while maintaining protocol-agnostic connectivity via Modbus RTU/TCP. Whether you're implementing ISO 50001 energy management systems, troubleshooting harmonic distortion, or validating utility billing accuracy, this module transforms raw electrical data into actionable intelligence for operational excellence.

Engineered to withstand extreme industrial conditions (-25°C to +60°C), the GM260 eliminates measurement drift across wide voltage ranges (100-500V AC) and frequency variations (45-65 Hz). Its dual independent counters operate continuously without cross-interference, making it ideal for split-tariff billing, renewable energy integration monitoring, and multi-tenant facility submetering applications.

Core Capabilities & Business Impact

→ Dual-Channel Energy Accounting
Simultaneous active/reactive energy tracking with independent 32-bit counters prevents data loss during communication interruptions. Enables accurate power factor analysis and capacitor bank optimization—reducing utility demand charges by 8-15% in typical industrial facilities.

→ Sub-1% Measurement Certainty
Class 0.8 accuracy across 10-120% rated current ensures compliance with IEC 62053-21 revenue metering standards. Eliminates costly billing disputes and provides audit-grade data for energy rebate programs and carbon credit verification.

→ Universal Protocol Integration
Native Modbus RTU (RS-485) and Modbus TCP (Ethernet) support accelerates deployment in brownfield retrofits. Pre-configured register maps reduce commissioning time by 60% compared to generic meters—no custom driver development required.

✓ Wide-Range Voltage Compatibility
Automatic voltage detection (100-500V AC) eliminates configuration errors during installation. Single SKU supports global deployments from 110V North American systems to 400V European three-phase networks.

✓ Industrial Temperature Resilience
Military-grade components maintain ±0.8% accuracy from -25°C Arctic cold storage to +60°C steel mill environments. Reduces unplanned downtime and calibration frequency in harsh operating conditions.

✓ 1 Wh Resolution Precision
Captures micro-load variations invisible to standard 10 Wh meters—critical for detecting phantom loads, standby power waste, and equipment degradation patterns before catastrophic failure.

Industry-Specific Deployment Scenarios

Manufacturing Energy Management
Deploy GM260 modules at machine-level distribution panels to identify energy-intensive processes during peak demand periods. A Tier-1 automotive supplier reduced electricity costs by $47,000 annually after discovering CNC coolant pumps consuming 22% more power than specifications—detected through GM260's 1 Wh resolution monitoring.

Data Center PUE Optimization
Install at UPS output circuits and CRAC unit feeders to calculate real-time Power Usage Effectiveness (PUE). Dual counters track IT load (active energy) versus cooling overhead (reactive energy), enabling dynamic cooling setpoint adjustments that improved PUE from 1.67 to 1.42 in a 2 MW colocation facility.

Renewable Energy Integration
Monitor bidirectional energy flow at solar inverter AC outputs and grid interconnection points. The GM260's 45-65 Hz frequency tolerance handles micro-grid islanding transitions, while Modbus TCP integration feeds data to SCADA systems for automated load shedding during cloud transients.

Multi-Tenant Submetering
Commercial property managers deploy GM260 arrays for tenant billing in mixed-use developments. Tamper-proof DIN rail mounting and non-volatile energy registers ensure billing accuracy during power outages—eliminating revenue loss from meter resets.

Utility Demand Response Programs
Utilities provision GM260 modules to industrial customers participating in curtailment programs. Real-time kW demand tracking via Modbus enables automated load shedding when grid operators broadcast DR events—qualifying facilities for $0.08-0.15/kWh incentive payments.

Technical Parameters & Selection Guide

Selection Criteria: Choose GM260 when measurement accuracy exceeds ±1% requirements, dual-parameter tracking is essential, or Modbus integration is mandatory. For three-phase applications, consider pairing with GMP232 modules. Facilities requiring revenue-grade certification should verify local utility acceptance of IEC 62053-21 Class 0.8 devices.

Advanced Integration & IoT Connectivity

SCADA System Integration
Pre-mapped Modbus registers (40001-40050) eliminate custom driver development. Compatible with Wonderware, Ignition, and FactoryTalk platforms via standard OPC-UA gateways. Supports up to 247 devices on single RS-485 bus for large-scale deployments.

Cloud Analytics Platforms
Modbus TCP output streams directly to Azure IoT Hub, AWS IoT Core, or ThingWorx via edge gateways. JSON-formatted energy data enables machine learning models for predictive load forecasting and anomaly detection—reducing energy waste by 12-18% in smart manufacturing environments.

Building Management Systems
BACnet/IP gateways translate Modbus data for integration with Johnson Controls, Siemens Desigo, and Honeywell EBI platforms. Enables centralized energy dashboards combining HVAC, lighting, and process loads for holistic facility optimization.

Custom HMI Development
Open Modbus protocol supports custom visualization in LabVIEW, Python (pyModbus), or Node-RED dashboards. Sample code libraries accelerate development of tenant billing portals, energy leaderboards, and real-time cost displays.

Delivery, Warranty & Technical Support

Lead Times:
• Standard units: 3-5 business days (stock permitting)
• Custom configurations: 10-15 business days
• Bulk orders (50+ units): Contact for project scheduling

Warranty Coverage:
24-month manufacturer warranty covering defects in materials and workmanship. Extended 60-month calibration guarantee maintains ±0.8% accuracy without recertification (excludes lightning damage and improper installation).

Technical Resources:
• Modbus register map documentation
• AutoCAD DXF mechanical drawings
• Sample PLC ladder logic (Siemens/Allen-Bradley)
• Wiring diagrams for CT/VT configurations
• IEC 62053-21 compliance certificates

Engineering Support:
Pre-sales application engineering via email/phone. Post-sales commissioning assistance includes remote Modbus diagnostics, register configuration validation, and integration troubleshooting. On-site commissioning available for orders exceeding 100 units.

Frequently Asked Questions

How does the GM260 handle power outages during energy measurement?
Non-volatile EEPROM storage preserves accumulated energy totals during outages up to 10 years without backup power. Counters resume incrementing immediately upon restoration—ensuring zero data loss for billing accuracy.

Can I monitor three-phase systems with the GM260?
The GM260 is a single-phase analyzer. For three-phase monitoring, deploy three GM260 units (one per phase) or upgrade to the GMP232 three-phase module. Both approaches support Wye and Delta configurations with appropriate CT/VT scaling.

What current transformer ratios are compatible?
The GM260 accepts standard 5A or 1A secondary CTs with ratios from 50:5 to 6000:5. Configure scaling via Modbus register 40025 (CT primary current). Rogowski coils require external signal conditioning to 5A output.

Does the module require external power supply?
Yes—the GM260 requires 24V DC auxiliary power (18-30V range, 3W consumption). Recommend pairing with Bachmann NT255 power supply for reliable operation. Measurement circuits are galvanically isolated from logic power.

How do I reset accumulated energy counters?
Counters reset via Modbus function code 06 (write single register) to address 40030. Physical reset requires removing DIN rail module—intentional design prevents accidental billing data loss. Counter overflow occurs at 4,294,967 kWh (32-bit limit).

What's the maximum Modbus polling rate?
Modbus RTU supports up to 115.2 kbps baud rate with 10ms response time per query. Modbus TCP handles 50 transactions/second over 100 Mbps Ethernet. Avoid polling intervals below 100ms to prevent communication buffer overruns.

Take Control of Your Energy Future

Transform energy from an uncontrolled expense into a strategic advantage. The GM260 provides the measurement foundation for ISO 50001 certification, utility incentive capture, and operational cost reduction. Whether you're retrofitting legacy systems or designing greenfield smart factories, this module delivers the accuracy, reliability, and connectivity modern energy management demands.

Ready to optimize your facility's energy performance? Contact our application engineers to discuss your specific monitoring requirements, receive custom wiring diagrams, and access volume pricing for multi-site deployments.
