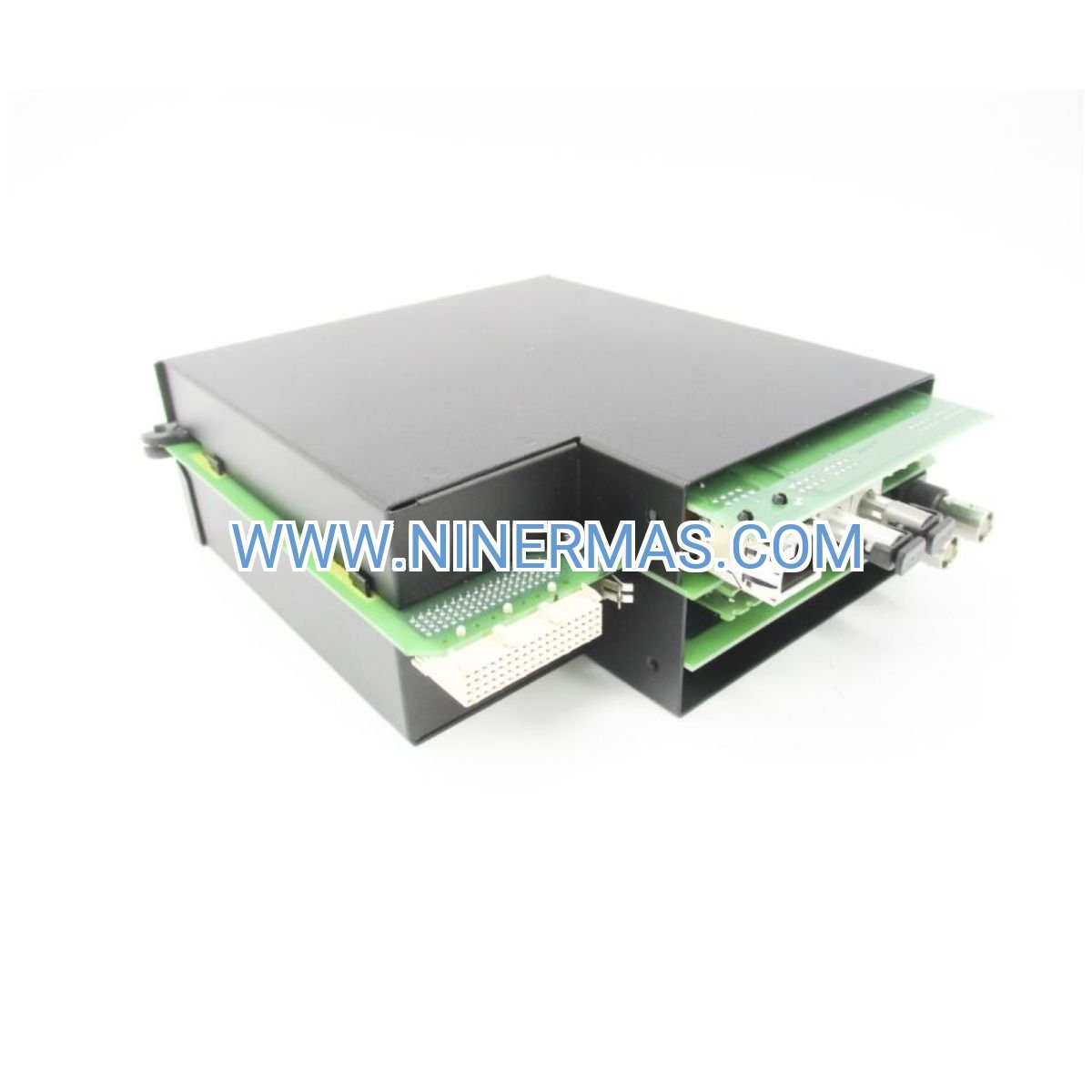

UR9VM Universal Relay CPU Module (Industrial-Grade Central Processor)

The UR9VM represents GE Vernova's flagship central processing unit for Universal Relay protection platforms, delivering mission-critical computational power for electrical infrastructure monitoring and control. This industrial-grade CPU module combines advanced 32-bit RISC architecture with multi-protocol communication capabilities, enabling real-time protection decisions in power generation, transmission, and distribution environments. Designed for utilities, industrial facilities, and critical infrastructure operators requiring uncompromising reliability, the UR9VM processes complex protection algorithms while maintaining seamless connectivity with SCADA systems and substation automation networks.

Built to withstand extreme industrial conditions from -40°C to +85°C, this CPU module eliminates single points of failure in protection schemes through redundant configuration support and hot-swappable operation. Whether you're upgrading legacy relay systems or deploying new protection architectures, the UR9VM delivers the processing horsepower and communication flexibility demanded by modern electrical networks.

Core Capabilities & Business Value

→ High-Speed Protection Processing
32-bit RISC processor executes protection algorithms in microseconds, reducing fault clearing times by up to 40% compared to legacy systems. This translates to minimized equipment damage, reduced downtime costs, and enhanced power quality for critical loads.

✓ Multi-Protocol Communication Hub
Native support for IEC 61850, Modbus RTU/TCP, DNP3, and proprietary GE protocols eliminates gateway requirements. Single module integration saves $2,000-5,000 per installation in hardware costs while simplifying network architecture and reducing configuration complexity.

✓ Expandable Memory Architecture
Flash memory expansion accommodates growing data logging requirements, extended event recording, and firmware updates without hardware replacement. Future-proof design protects capital investment over 15-20 year operational lifecycles.

→ Redundant Configuration Support
Seamless pairing with secondary CPU modules enables N+1 redundancy for mission-critical applications. Automatic failover occurs within 50ms, maintaining continuous protection coverage during module maintenance or unexpected failures.

✓ Wide Operating Range
Dual voltage input (24-48V DC / 110-250V AC) and extended temperature rating (-40°C to +85°C) ensure reliable operation across diverse installation environments from Arctic substations to desert solar farms.

→ Standards-Compliant Design
UL, CE, IEC 61850, and IEEE certifications guarantee interoperability with third-party equipment and compliance with utility specifications, accelerating project approvals and commissioning timelines.

Application Scenarios & Solutions

Utility Substation Modernization
Electric utilities replacing electromechanical relays deploy the UR9VM as the intelligence core for transformer, feeder, and bus protection schemes. The module's IEC 61850 GOOSE messaging enables peer-to-peer communication between protection zones, eliminating hardwired interlocking and reducing panel space requirements by 30-50%. Integration with existing SCADA infrastructure occurs via native DNP3 or Modbus protocols, preserving control room investments while gaining advanced protection features.

Industrial Power Distribution
Manufacturing facilities, data centers, and process industries leverage the UR9VM for coordinated motor protection, generator control, and arc flash mitigation. The CPU module's real-time processing enables adaptive protection schemes that adjust settings based on operational modes, reducing nuisance trips by 60% while maintaining safety margins. Ethernet connectivity supports remote monitoring and diagnostics, minimizing on-site troubleshooting visits.

Renewable Energy Integration
Solar farms and wind installations utilize the UR9VM for inverter protection, grid synchronization, and anti-islanding functions. The module's fast processing handles rapid voltage and frequency variations inherent to renewable sources, ensuring grid code compliance across international markets. Expandable memory accommodates power quality data logging required for utility interconnection agreements.

Generator Protection & Control
Power generation facilities implement the UR9VM for comprehensive generator protection including differential, loss-of-field, reverse power, and volts-per-hertz functions. The CPU module coordinates with excitation systems and turbine controls via multiple serial ports, centralizing protection logic and reducing panel complexity. Event recording capabilities support post-fault analysis and regulatory reporting requirements.

Critical Infrastructure Resilience
Hospitals, airports, and emergency services deploy redundant UR9VM configurations to eliminate protection system vulnerabilities. Hot-swappable operation enables module replacement during scheduled maintenance windows without de-energizing protected equipment, maintaining 99.99% availability targets for life-safety systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the UR9VM when your application requires advanced communication protocols (IEC 61850, DNP3), redundant CPU configurations, or integration with modern SCADA systems. For basic protection functions with limited communication needs, consider entry-level CPU variants. Consult factory specifications to verify compatibility with existing I/O modules, CT/VT modules, and power supply configurations in your Universal Relay chassis.

Extended Functions & Integration

IoT & Cloud Connectivity: The UR9VM supports secure VPN tunneling and encrypted communication protocols, enabling remote access for diagnostics and firmware updates. Integration with cloud-based asset management platforms allows predictive maintenance analytics based on operational data trends, reducing unplanned outages by 25-35%.

Advanced Protection Algorithms: Firmware updates unlock additional protection functions including adaptive overcurrent, synchrophasor measurement (PMU), and power swing detection. These features transform the CPU module from basic protection to comprehensive grid monitoring without hardware changes.

Customization Options: Factory configuration services pre-load site-specific settings, protection logic, and communication parameters, reducing commissioning time from days to hours. Custom firmware builds accommodate unique utility requirements or proprietary communication protocols for specialized applications.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock UR9VM modules ship within 2-3 business days via express courier. Typical transit time to major industrial centers ranges 5-7 days globally, with expedited options available for emergency replacements.

Custom Configuration: Factory-programmed modules with pre-loaded settings require 10-15 business days for configuration, testing, and quality verification before shipment.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware issues. Warranty includes advance replacement service for critical applications, minimizing downtime during failure events.

Technical Support: Lifetime access to application engineering support for configuration assistance, troubleshooting guidance, and protection scheme design review. Phone and email support available during business hours, with emergency hotline for critical outages.

Documentation Package: Each module includes installation manual, quick-start guide, communication protocol reference, and sample protection settings. Downloadable firmware updates and technical bulletins available through customer portal.

Frequently Asked Questions

How does the UR9VM CPU module integrate with existing substation automation systems?
The UR9VM provides native IEC 61850 MMS and GOOSE messaging for modern substation automation, while maintaining backward compatibility with DNP3 and Modbus protocols for legacy SCADA integration. Multiple Ethernet ports allow simultaneous connection to station bus and process bus networks without external gateways.

What is the maximum number of I/O points the UR9VM can manage in a single chassis?
The CPU module supports up to 64 digital inputs, 32 digital outputs, and 16 analog inputs when fully populated with expansion modules. This capacity handles complex protection schemes including transformer differential, bus protection, and breaker failure applications in a single relay platform.

Can the UR9VM operate in redundant configurations for critical protection applications?
Yes, dual UR9VM modules operate in hot-standby redundancy with automatic failover in under 50ms. The redundant configuration shares I/O modules and communication interfaces, with synchronized settings and event records to ensure seamless transition during primary module failure or maintenance.

What cybersecurity features does the UR9VM include for utility network protection?
The module implements role-based access control, encrypted communication (TLS/SSL), audit logging, and password policies compliant with NERC CIP standards. Firmware is digitally signed to prevent unauthorized modifications, and the CPU supports network segmentation via VLAN tagging for defense-in-depth security architectures.

How do I perform firmware updates on the UR9VM without interrupting protection coverage?
In redundant configurations, firmware updates occur sequentially—update the standby module first, verify operation, then switch roles and update the former primary. For single-module installations, schedule updates during planned maintenance windows using the quick-load procedure that completes in 3-5 minutes.

What training resources are available for commissioning engineers new to GE Universal Relay systems?
GE offers online training modules, hands-on workshops, and certification programs covering UR platform architecture, protection settings, and communication configuration. Technical documentation includes step-by-step commissioning guides, and our support team provides remote assistance during initial startup.

Get Started with UR9VM CPU Module

Ready to upgrade your protection infrastructure with proven GE Multilin technology? Contact our application engineers to discuss your specific requirements, receive customized protection scheme recommendations, and obtain project-specific pricing. For immediate technical questions or to request detailed datasheets, reach out via email or phone—our team responds to inquiries within 4 business hours.
