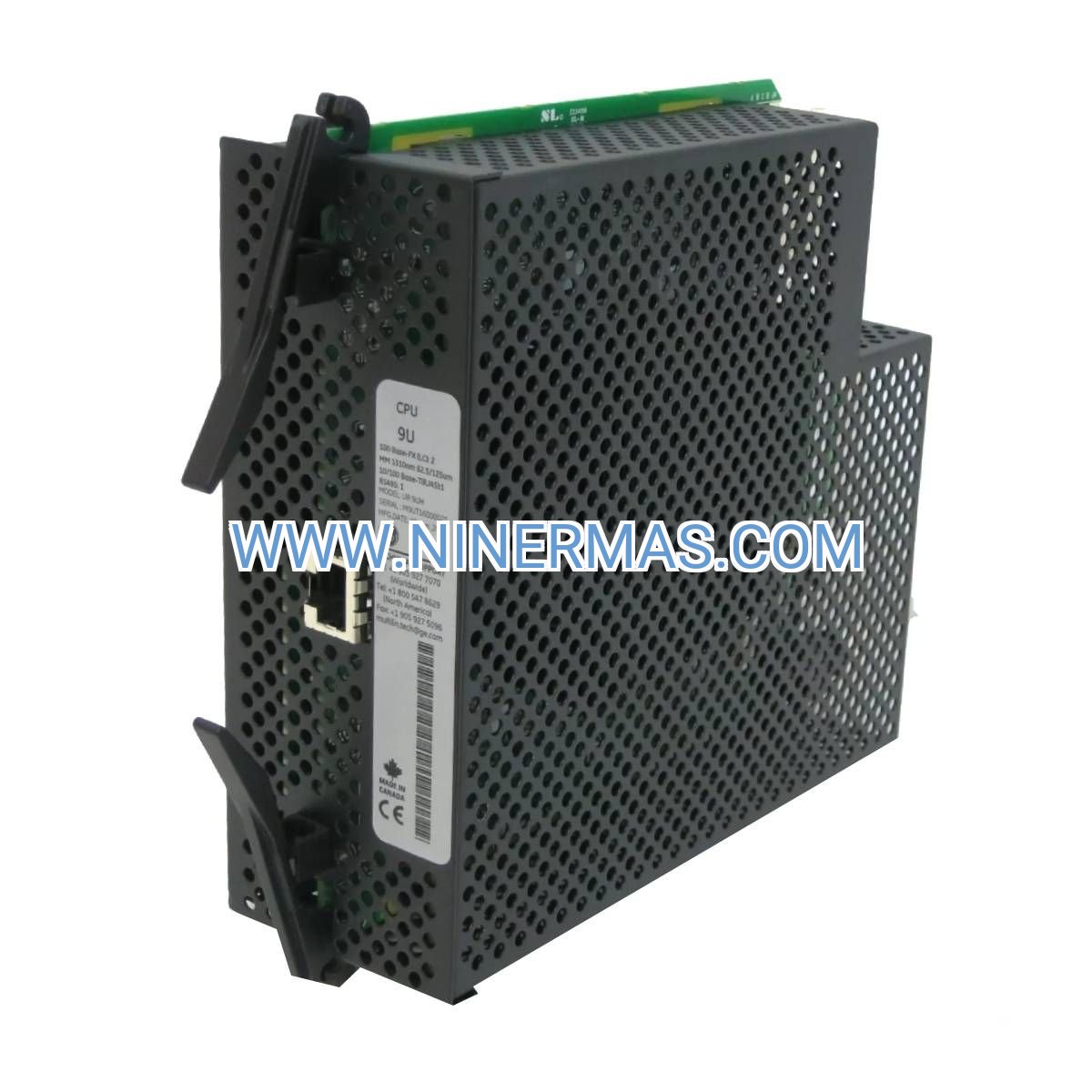

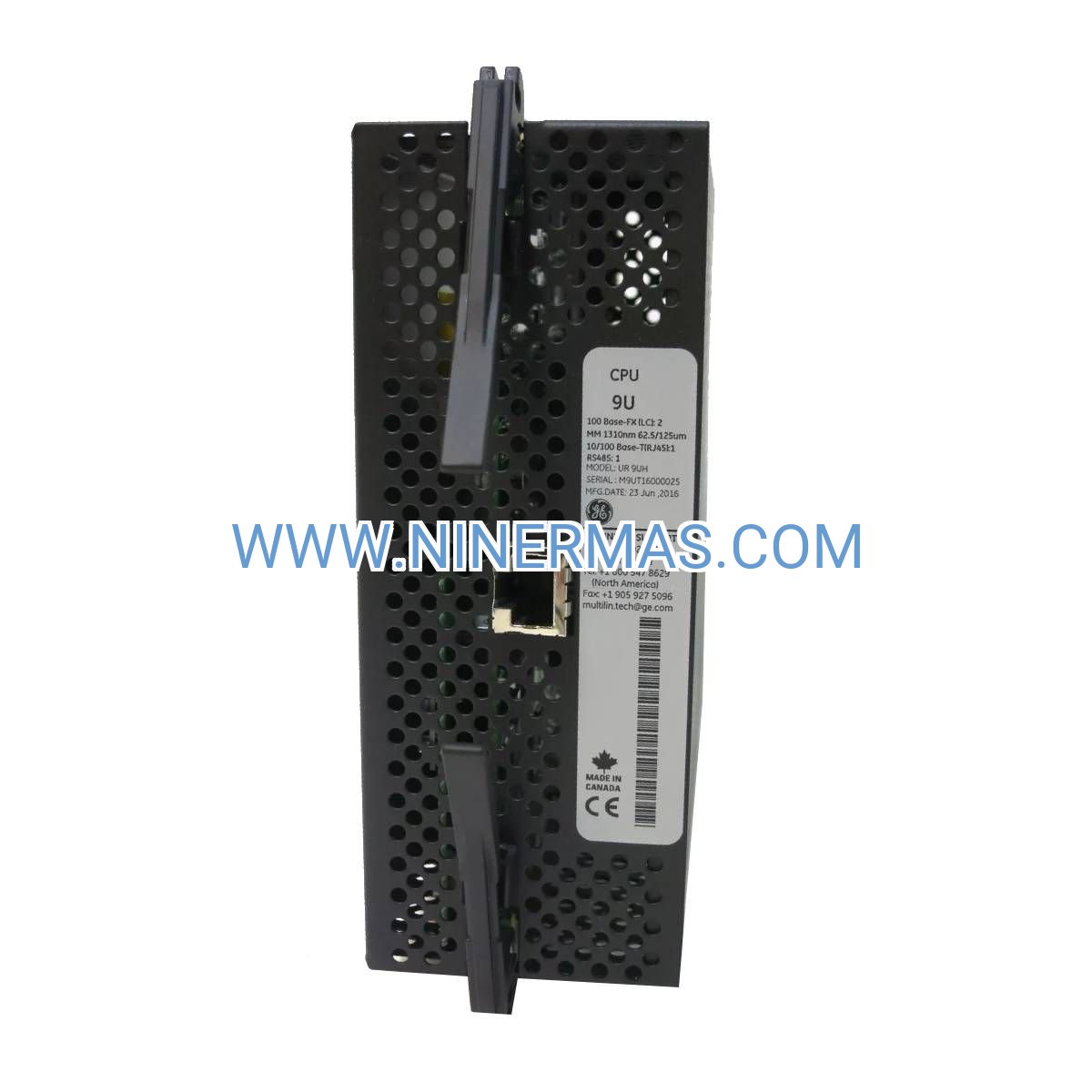

UR9UH Central Processing Unit (Industrial-Grade Protection Controller)

The UR9UH CPU module serves as the computational backbone for GE Multilin's Universal Relay architecture, engineered to execute mission-critical protection algorithms in electric power systems. This processor delivers deterministic performance for transformer differential schemes, motor protection logic, and feeder management applications where sub-cycle response times directly impact equipment safety and grid stability.

Designed for utilities, industrial facilities, and renewable energy installations, the UR9UH addresses the challenge of coordinating multiple protection functions within a single hardware platform. By consolidating overcurrent, distance, frequency, and voltage protection into one processing unit, it eliminates the complexity and cost of deploying separate relay devices while maintaining the reliability standards demanded by IEEE and IEC compliance frameworks.

Key advantages include native support for IEC 61850 GOOSE messaging, hot-swappable redundancy configurations, and extended temperature tolerance that ensures continuous operation in uncontrolled substation environments from Arctic installations to desert power plants.

Core Capabilities & Technical Advantages

→ Deterministic Protection Execution: Processes complex differential and distance algorithms with guaranteed sub-cycle latency, critical for preventing transformer damage during internal faults or motor stalling events.

→ Multi-Protocol Communication Stack: Simultaneous operation of Modbus RTU/TCP, DNP3 Level 2/3, and IEC 61850 Edition 2 protocols enables seamless integration with legacy SCADA systems and modern substation automation networks.

→ Environmental Hardening: Operates across -40°C to +85°C ambient range with conformal coating protection against humidity, dust, and corrosive gases—validated through IEC 61010 environmental testing.

→ Modular Expansion Architecture: Supports up to 12 I/O modules per chassis, allowing field customization from basic feeder protection (8 digital inputs) to complex busbar schemes (64+ I/O points) without CPU replacement.

✓ Redundancy & Availability: Dual-CPU configurations with automatic failover provide 99.99% uptime for critical infrastructure applications, with bumpless transfer during maintenance or fault conditions.

✓ Cybersecurity Framework: Role-based access control, encrypted Ethernet communication, and audit logging comply with NERC CIP standards for bulk electric system protection.

Industrial Application Scenarios

Utility Substation Protection
In 115kV-500kV transmission substations, the UR9UH coordinates transformer differential protection, breaker failure schemes, and synchrophasor measurement. A Midwest utility deployed 47 units across their network, reducing protection relay count by 60% while improving fault clearing times from 3.2 cycles to 1.8 cycles—preventing $2.3M in transformer replacement costs during a 2024 fault event.

Industrial Cogeneration Facilities
Manufacturing plants with on-site generation require precise islanding detection and load shedding. The UR9UH's frequency and voltage protection functions enable automatic transition to island mode within 200ms, maintaining production continuity during utility disturbances. A pharmaceutical facility in New Jersey uses this capability to protect $18M in temperature-sensitive inventory.

Renewable Energy Integration
Wind farms and solar installations face rapid voltage fluctuations and harmonic distortion. The UR9UH's power quality monitoring and adaptive protection settings accommodate 40% voltage swings during cloud transients while preventing nuisance trips—a California solar farm achieved 99.7% availability after UR9UH deployment versus 94.2% with previous relay technology.

Mining & Heavy Industry
Mine hoists, grinding mills, and conveyor systems demand motor protection with thermal modeling and locked rotor detection. The UR9UH's RTD input processing and stator resistance calculation prevent motor burnout, with one copper mine reporting 78% reduction in unplanned motor failures after system upgrade.

Data Center Critical Power
Tier III/IV data centers require N+1 redundancy for UPS and generator protection. The UR9UH's dual-CPU architecture and IEC 61850 GOOSE messaging enable 8ms protection coordination across paralleled generators, meeting uptime requirements for financial trading and cloud service providers.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose UR9UH for applications requiring 12+ protection functions, IEC 61850 communication, or redundant CPU operation. For simpler feeder protection (≤6 functions), consider the UR9HH variant. Verify chassis slot availability—the UR9UH occupies one slot and requires adjacent power supply module placement.

Advanced Integration Features

IEC 61850 Substation Automation: The UR9UH functions as an Intelligent Electronic Device (IED) with pre-configured Logical Nodes for circuit breaker control (XCBR), transformer protection (PDIF), and measurement (MMXU). GOOSE messaging enables peer-to-peer interlocking without RTU intermediaries, reducing protection scheme wiring by 70%.

Programmable Logic Engine: FlexLogic™ provides 512 configurable logic gates for custom protection schemes, automatic transfer switching, and load management sequences. A water treatment facility used this capability to implement 23-step pump sequencing logic, eliminating a separate PLC and reducing panel space by 40%.

Disturbance Recording: Captures 64 analog and digital channels at 64 samples/cycle for 10 seconds pre/post-fault, with automatic FTP upload to centralized analysis servers. Waveform data aids root cause analysis and protective relay coordination studies.

Remote Access & Diagnostics: EnerVista UR Setup software enables secure VPN connections for real-time monitoring, setting changes, and firmware updates without site visits—reducing maintenance costs by $1,200-$3,500 per intervention for remote installations.

Delivery, Warranty & Technical Support

Lead Times: Stock units ship within 2-3 business days via DHL/FedEx. Custom configurations with specific firmware versions or factory testing require 4-6 weeks. Expedited processing available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranties (24/36 months) available for critical infrastructure applications. Warranty includes firmware updates and technical support access.

Technical Assistance: Our application engineers provide pre-sales consultation for protection scheme design, relay coordination studies, and IEC 61850 system configuration. Post-installation support includes commissioning assistance, settings file review, and troubleshooting via phone/email/remote desktop.

Documentation Package: Each unit includes instruction manual, quick start guide, settings calculation worksheets, and AutoCAD panel cutout drawings. IEC 61850 ICD files and Modbus register maps provided in digital format.

Frequently Asked Questions

How does the UR9UH interface with existing GE Multilin relays in my substation?
The UR9UH communicates via Modbus RTU/TCP or DNP3 with legacy devices like the SR750, SR760, and D60 relays. For IEC 61850 networks, it publishes GOOSE messages that older relays can subscribe to through protocol gateways. Mixed-protocol installations are common during phased modernization projects.

What is the maximum I/O capacity when using the UR9UH CPU?
A single UR9UH supports up to 12 expansion modules in a 19-slot chassis. Typical configurations include 32-64 digital inputs, 16-32 digital outputs, 12-24 RTD inputs, and 8-16 analog inputs. Exact capacity depends on module selection—consult the UR Series Planning Guide for detailed slot allocation rules.

Can I upgrade firmware without removing the module from service?
Firmware updates require a brief outage (2-5 minutes) for single-CPU systems. Redundant CPU configurations allow online updates with automatic failover, maintaining protection continuity. Always test firmware in a lab environment before field deployment, and verify compatibility with existing I/O modules.

What cybersecurity measures are built into the UR9UH platform?
The UR9UH implements IEEE 1686 security features including password-protected access (3 privilege levels), encrypted HTTPS communication, SSH for CLI access, and syslog event forwarding. Disable unused protocols (Telnet, FTP) and implement VLAN segmentation per NERC CIP-005 requirements for utility applications.

How do I calculate the required power supply capacity for my UR chassis?
The UR9UH draws 12W typical. Add power consumption for each I/O module (4-8W each), communication modules (3-5W), and apply a 25% safety margin. For example: UR9UH (12W) + 4× I/O modules (24W) + 2× comm modules (8W) = 44W × 1.25 = 55W minimum. Select UR1HH (60W) or URRHH (120W) power supply accordingly.

What training resources are available for UR9UH configuration and maintenance?
GE offers instructor-led courses (GER-3965: UR Series Fundamentals, 3 days) and online modules through the Grid Automation University portal. We provide application-specific training for transformer differential, motor protection, and IEC 61850 configuration as part of project commissioning services.
