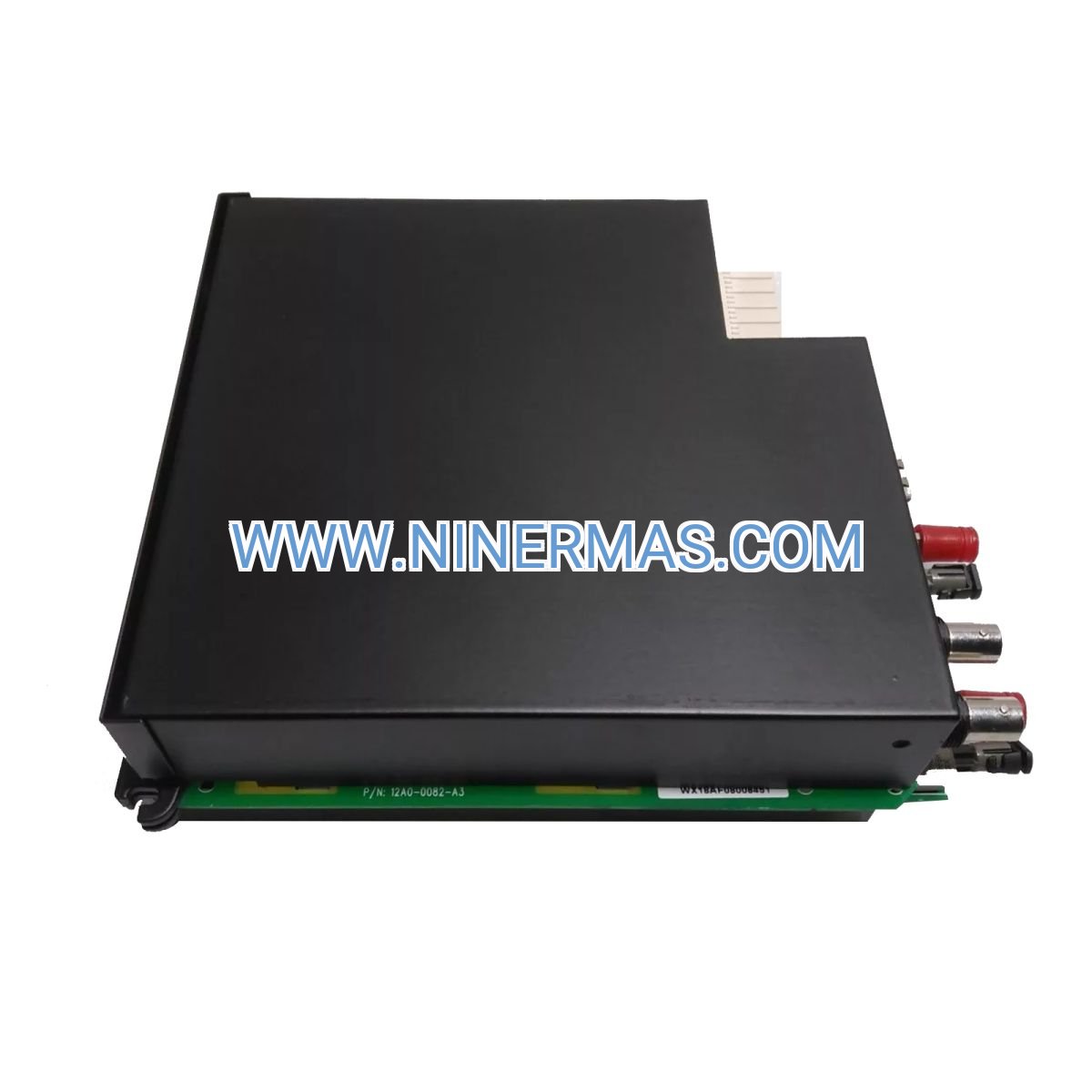

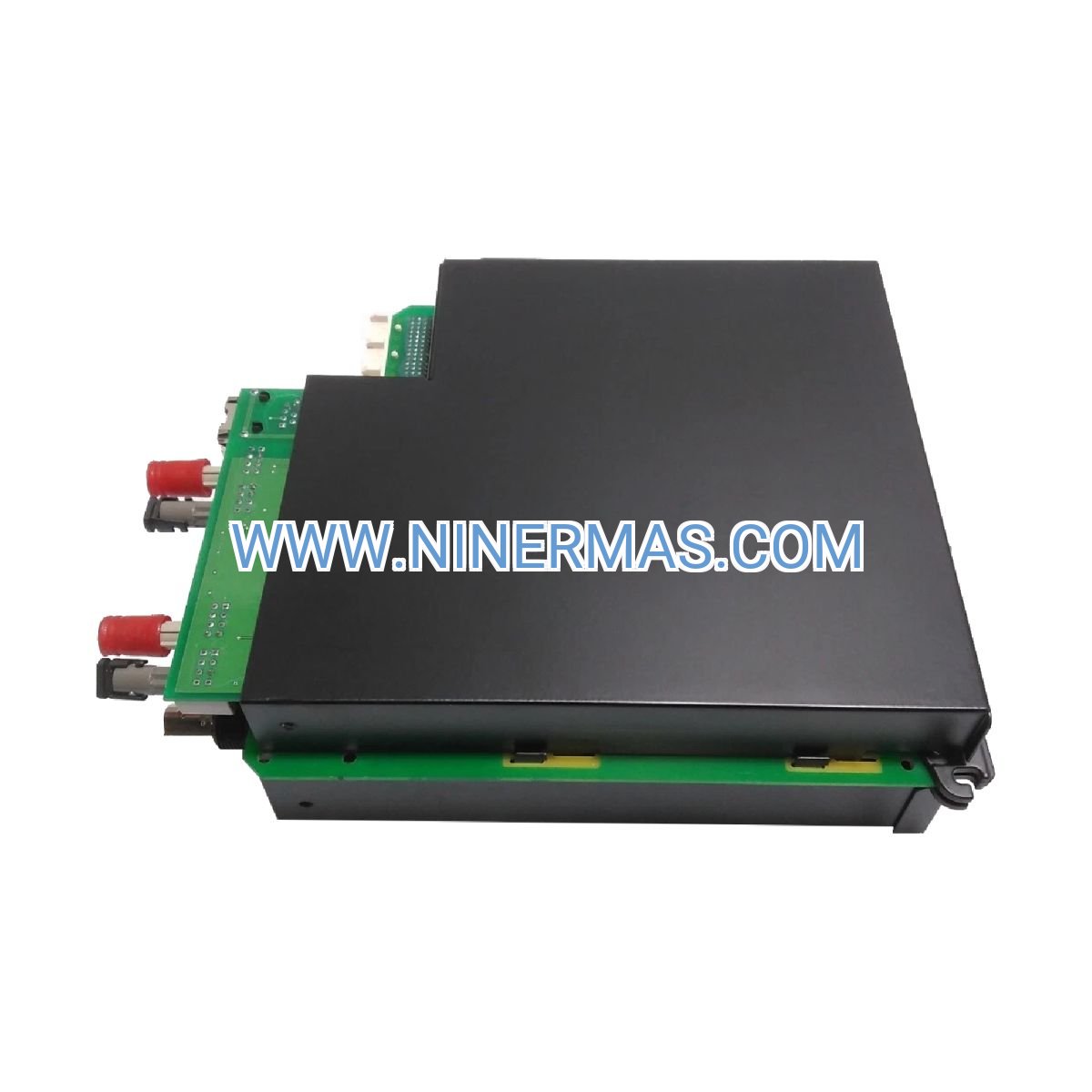

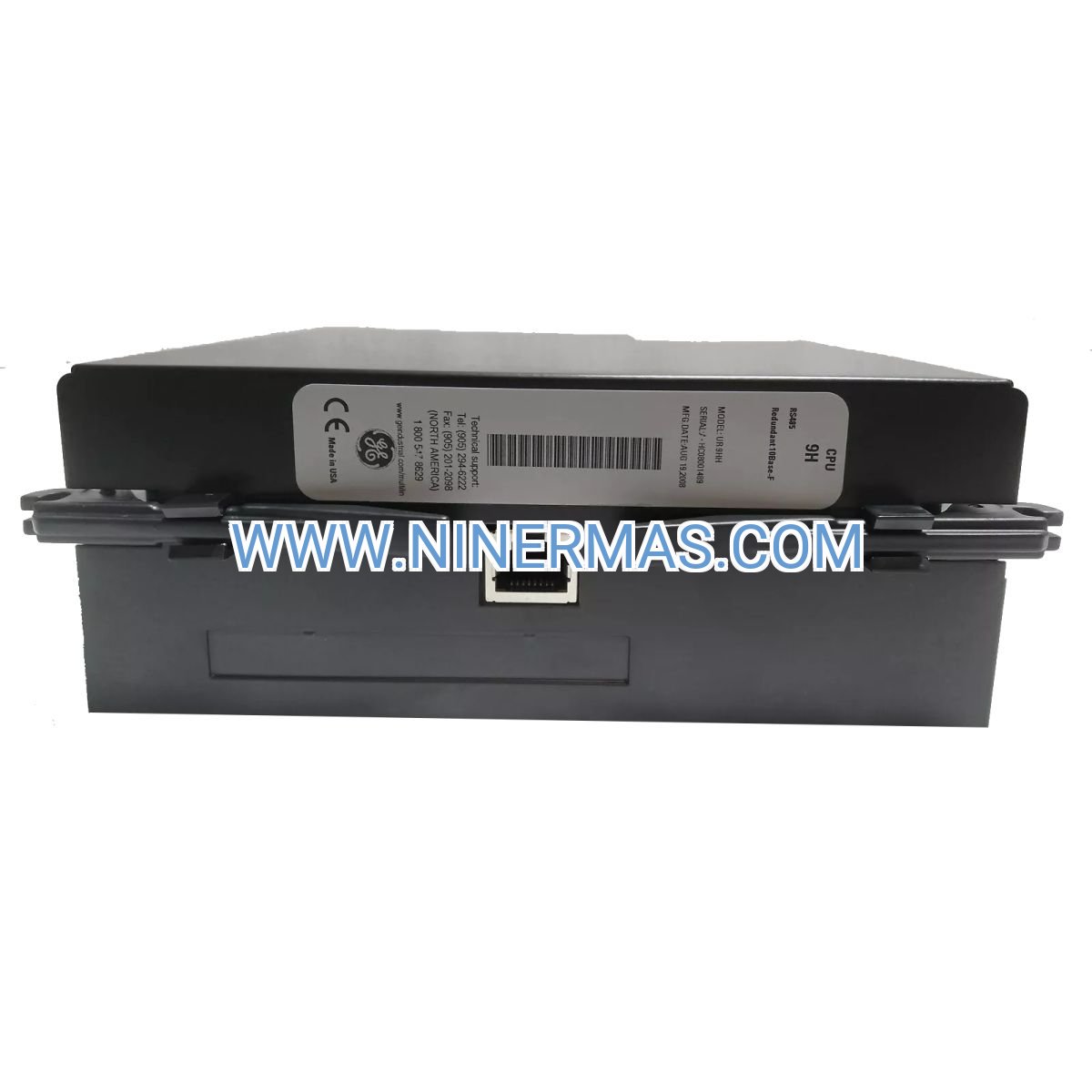

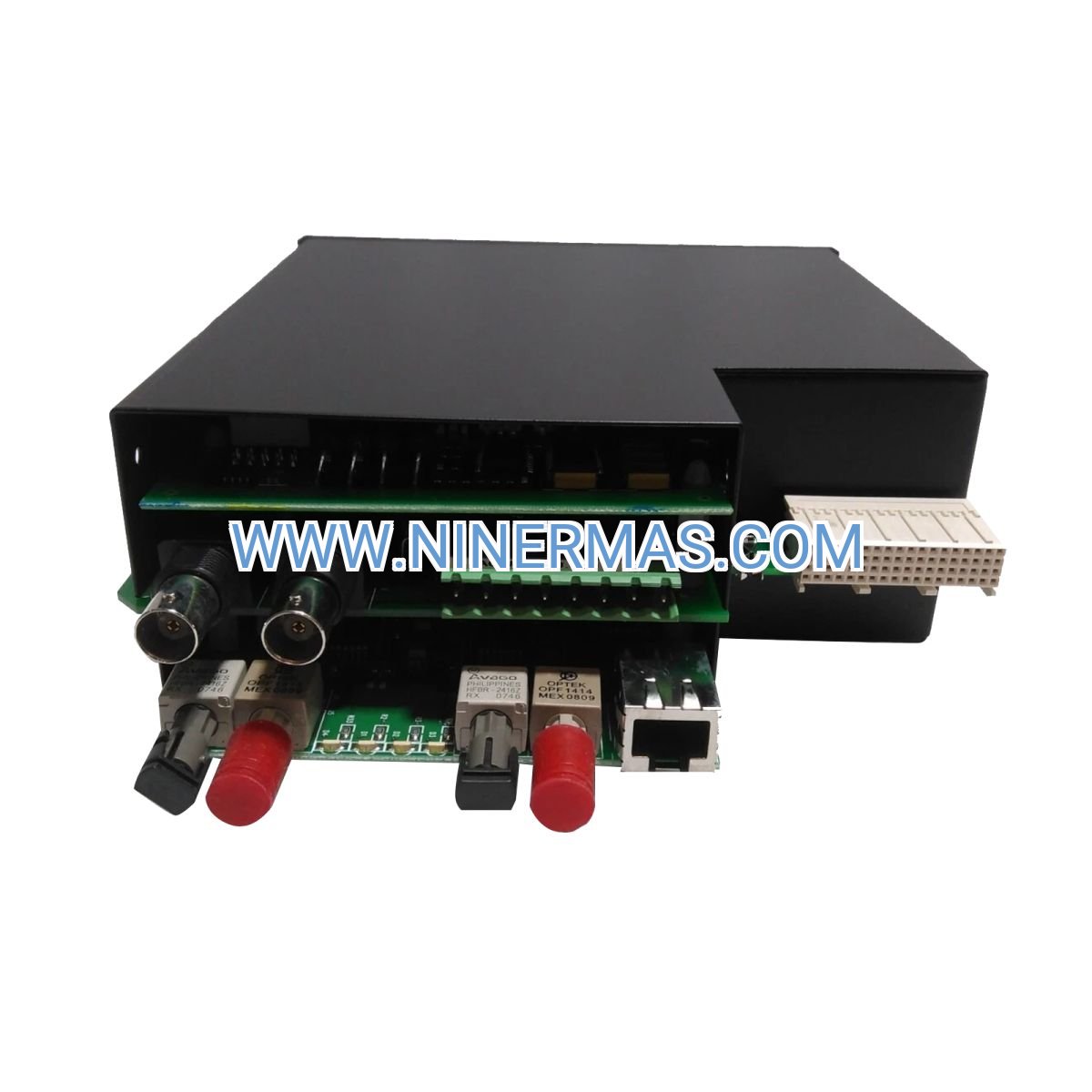

UR9HH CPU Module (Industrial-Grade Protection Relay Processor)

The UR9HH represents the computational core of GE Multilin's Universal Relay platform, delivering mission-critical processing power for electrical protection and substation automation applications. Engineered for T60, L90, D60, and F60 relay systems, this CPU module executes complex protection algorithms, manages real-time data acquisition, and coordinates multi-protocol communication across industrial networks. Designed for utilities, industrial facilities, and critical infrastructure operators requiring uncompromising reliability in power system protection.

When substation equipment failures can cascade into grid-wide disruptions, the UR9HH provides the processing intelligence to detect faults in milliseconds, isolate affected zones, and maintain system stability. Its ruggedized architecture withstands harsh electrical environments while maintaining precision timing for synchronized protection schemes. Whether you're upgrading legacy relay systems or deploying new protection infrastructure, this CPU module delivers the performance foundation your operation demands.

Backed by GE's proven Multilin technology heritage, the UR9HH integrates seamlessly with existing SCADA systems, supports IEC 61850 substation automation standards, and provides extensive diagnostic capabilities for proactive maintenance. From transmission substations to industrial power distribution, this module ensures your protection relays operate at peak efficiency.

Core Capabilities & Technical Advantages

→ High-Performance Microprocessor Architecture
Executes protection logic, control sequences, and communication protocols simultaneously without performance degradation. Handles complex differential, distance, and overcurrent protection schemes with sub-cycle response times critical for fault isolation.

✓ Multi-Protocol Communication Support
Native compatibility with Modbus TCP/IP, DNP 3.0, and IEC 61850 enables integration with diverse SCADA platforms and substation automation systems. Reduces engineering time and eliminates protocol conversion hardware costs.

→ Redundancy-Ready Design
Supports hot-standby configurations in critical applications where continuous protection coverage is non-negotiable. Automatic failover mechanisms ensure uninterrupted operation during maintenance or component replacement.

✓ Advanced Diagnostic Framework
Real-time event logging, fault recording, and LED status indicators provide immediate visibility into system health. Predictive maintenance capabilities reduce unplanned downtime by identifying degradation patterns before failures occur.

→ Extended Environmental Tolerance
Operates reliably across -40°C to +60°C temperature ranges and 5-95% humidity conditions. Proven performance in desert heat, arctic cold, and coastal salt-air environments where standard electronics fail.

✓ Backplane Power Integration
Draws power directly from the UR relay chassis, eliminating external power supply requirements and simplifying installation. Typical 10W consumption minimizes heat generation in densely populated relay panels.

Application Scenarios Across Industries

Transmission & Distribution Substations
Utilities deploy the UR9HH in transformer protection relays (T60), line protection systems (L90), and feeder management applications (F60). Solves the challenge of coordinating protection across multiple voltage levels while maintaining selectivity and speed. Delivers sub-20ms fault detection that prevents equipment damage and reduces outage duration by 40-60% compared to electromechanical relays.

Industrial Power Distribution
Manufacturing facilities, data centers, and process plants use this CPU module to protect critical motor control centers, switchgear, and generator tie-ins. Addresses the pain point of nuisance tripping in facilities with variable frequency drives and non-linear loads. Adaptive protection settings maintain coordination as load profiles change throughout production cycles.

Renewable Energy Integration
Wind farms and solar installations leverage UR9HH processing power for collector system protection and grid interconnection compliance. Resolves the complexity of bidirectional power flow protection and anti-islanding detection required by IEEE 1547 standards. Enables 30% faster fault clearing to meet stringent grid code requirements.

Mining & Heavy Industry
Operations in remote locations depend on UR9HH reliability for protecting high-voltage motors, conveyors, and processing equipment. Eliminates the downtime costs associated with protection system failures in 24/7 operations. Withstands vibration, dust, and temperature extremes that destroy commercial-grade electronics.

Marine & Offshore Platforms
Shipboard power systems and offshore oil/gas platforms require the UR9HH's salt-fog resistance and shock tolerance. Solves the unique challenge of protecting generators operating in parallel with shore power or other vessels. Meets classification society requirements for redundant protection in critical propulsion and safety systems.

Technical Parameters & Selection Guide

Selection Criteria: Verify your existing relay model compatibility before ordering. The UR9HH is designed for UR-series platforms manufactured after 2005. For legacy SR or SR+ series relays, consult factory documentation for upgrade paths. When specifying for new installations, consider future expansion requirements—the UR9HH supports firmware updates that enable additional protection functions without hardware replacement. For redundant protection schemes, order in pairs to enable hot-standby configurations.

Extended Functionality & Integration Options

IEC 61850 Substation Automation
Full GOOSE messaging and MMS client/server capabilities enable peer-to-peer communication between protection devices. Reduces hardwiring costs by 50-70% in new substation projects while improving protection speed through direct relay-to-relay signaling.

Synchrophasor Measurement (PMU)
When paired with compatible I/O modules, the UR9HH can execute phasor measurement unit functions for wide-area monitoring systems. Provides grid operators with real-time visibility into system stability and power flow dynamics.

Cybersecurity Features
Role-based access control, encrypted communication channels, and audit logging meet NERC CIP compliance requirements for critical infrastructure protection. Firmware authentication prevents unauthorized code execution.

Custom Logic Programming
FlexLogic™ equation editor allows engineers to implement site-specific protection schemes and control sequences without external PLCs. Reduces panel space requirements and simplifies troubleshooting.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units to major industrial centers. Express shipping available for critical outage situations requiring same-day or next-day delivery.

Custom Configuration: Factory-programmed modules with pre-loaded settings ship within 7-10 business days. Includes documentation package with as-built drawings and test reports.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 3-5 year coverage.

Technical Support: Direct access to application engineers with substation protection expertise. Phone and email support during business hours, with emergency hotline for critical system failures.

Documentation Included: Installation manual, configuration guide, communication protocol reference, and sample protection settings. CAD drawings and 3D models available for panel design integration.

Frequently Asked Questions

How does the UR9HH CPU module integrate with existing SCADA systems?
The module supports multiple industrial protocols including Modbus TCP/IP and DNP 3.0, which are standard in most SCADA platforms. Configuration is performed through GE's EnerVista software suite, which provides protocol mapping tools and pre-built templates for common SCADA systems. Most integrations are completed within 2-4 hours by technicians familiar with relay programming.

What processing capacity does the UR9HH provide for complex protection schemes?
The CPU handles up to 64 protection elements simultaneously, including differential, distance, directional overcurrent, and frequency protection functions. Scan times remain under 1ms even with maximum element loading, ensuring deterministic response for time-critical fault detection. This capacity exceeds requirements for 95% of substation applications.

Can the UR9HH reduce energy costs through improved protection coordination?
While the CPU module itself doesn't directly reduce energy consumption, its advanced protection algorithms minimize unnecessary load shedding during fault conditions. Facilities report 15-25% reduction in production downtime costs by preventing cascading outages. Faster fault isolation also reduces equipment stress, extending transformer and switchgear service life by 10-15%.

What installation requirements must be met for proper UR9HH operation?
The module installs into the UR relay chassis backplane via plug-in connection—no external wiring required. Ensure chassis firmware is compatible (version 5.0 or later recommended). Ambient temperature must remain within -40°C to +60°C range, and adequate ventilation should maintain internal chassis temperature below 55°C under full load. Installation typically takes 15-30 minutes including configuration upload.

Does the UR9HH support remote monitoring and diagnostics?
Yes, when connected to Ethernet networks, the module enables remote access through GE's EnerVista software or third-party SCADA systems. Real-time monitoring includes relay status, alarm conditions, event logs, and oscillography data. Secure VPN connections allow authorized personnel to perform diagnostics, setting changes, and firmware updates without site visits—reducing maintenance costs by 30-40% for geographically distributed assets.

How does the CPU module perform in high-vibration industrial environments?
The UR9HH meets IEC 60255-21-1 vibration and shock standards for protection relays, withstanding 2g acceleration at 10-150 Hz frequency range. Conformal coating on circuit boards provides additional protection against dust, moisture, and chemical exposure common in mining, cement, and petrochemical facilities. Field installations demonstrate 99.7% uptime in environments that destroy standard industrial computers within months.

Take the Next Step

Secure your substation protection infrastructure with the UR9HH CPU module. Contact our application engineers to discuss your specific relay configuration, verify compatibility with existing systems, and receive a detailed quotation including delivery timeline. For urgent replacement needs, inquire about our expedited shipping options and emergency support services.
