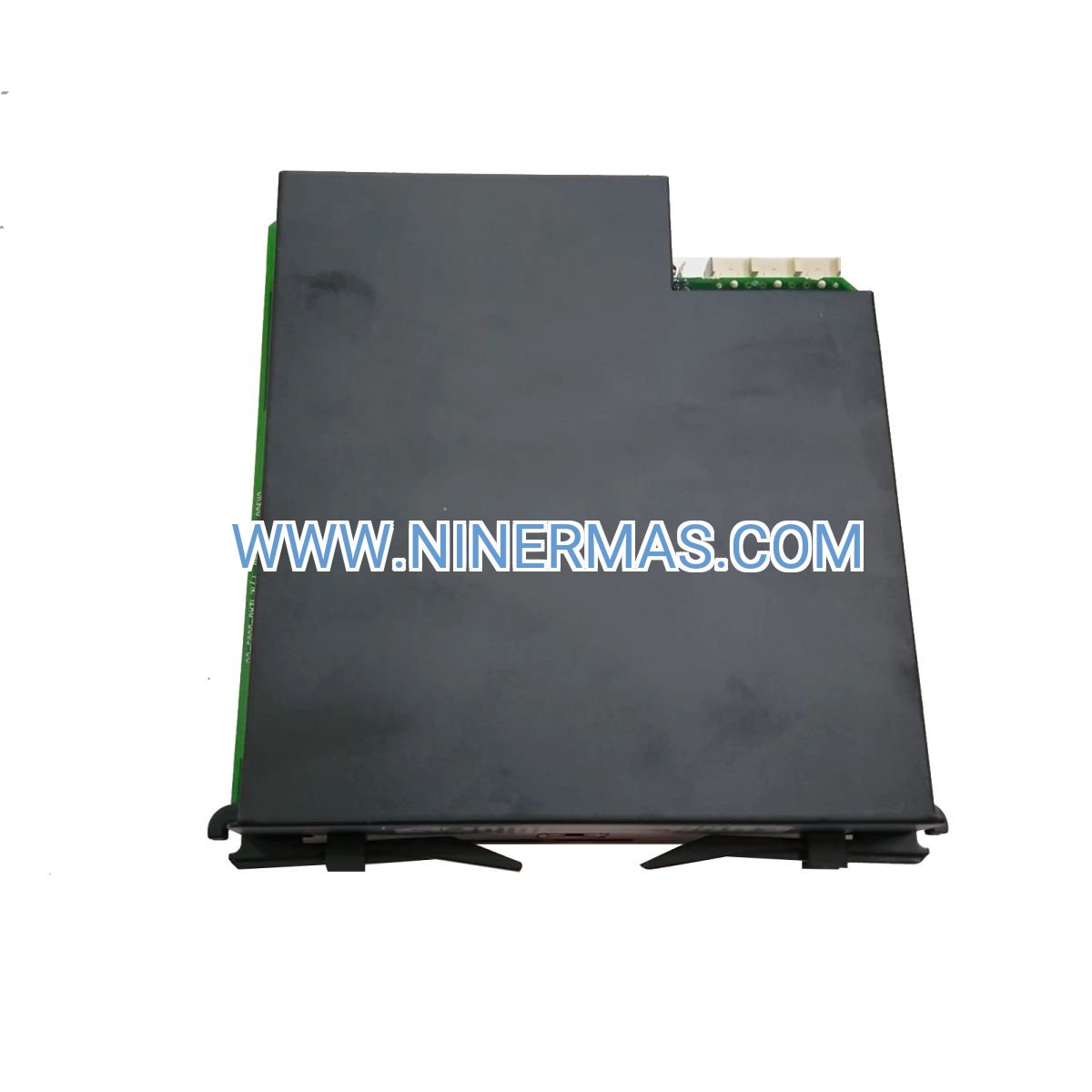

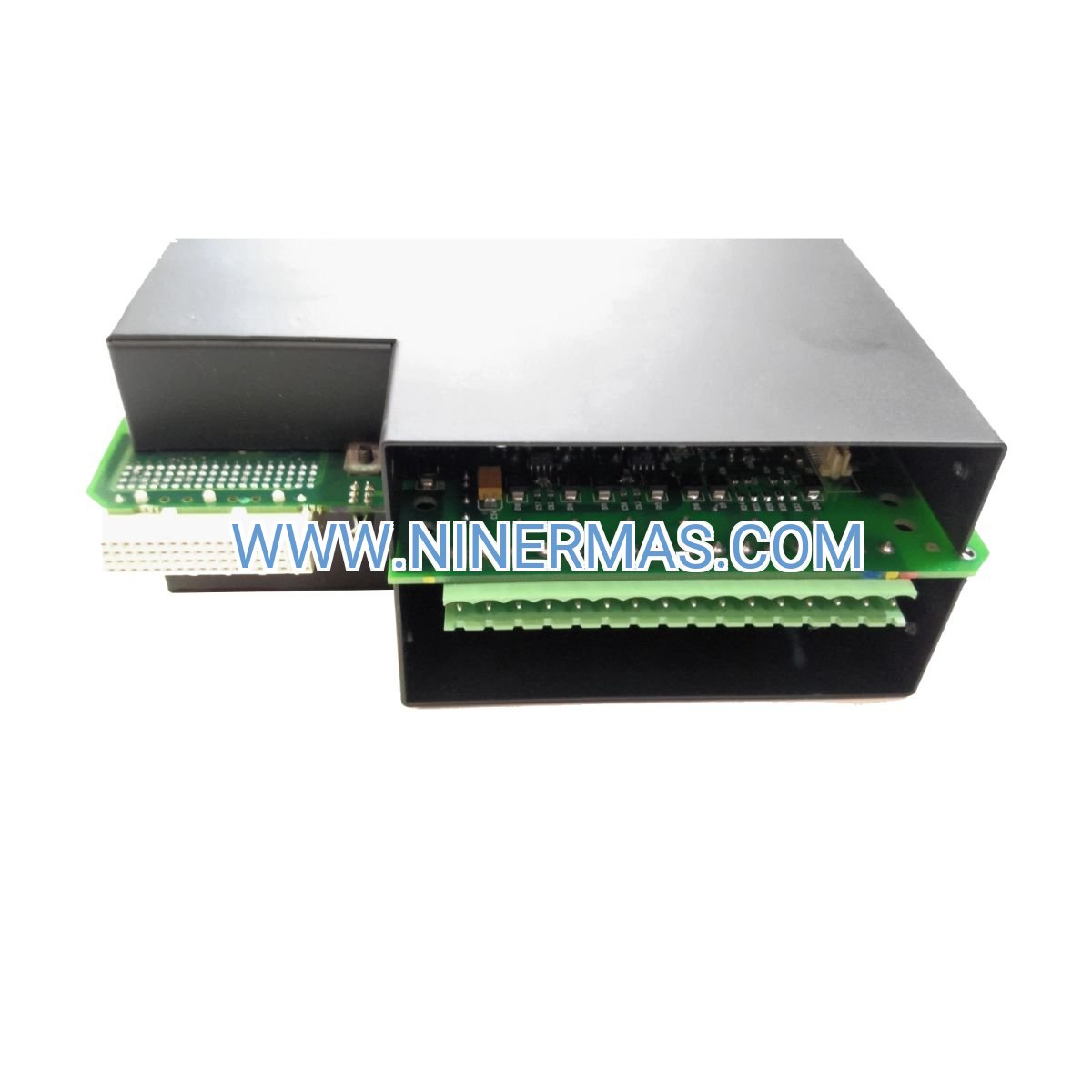

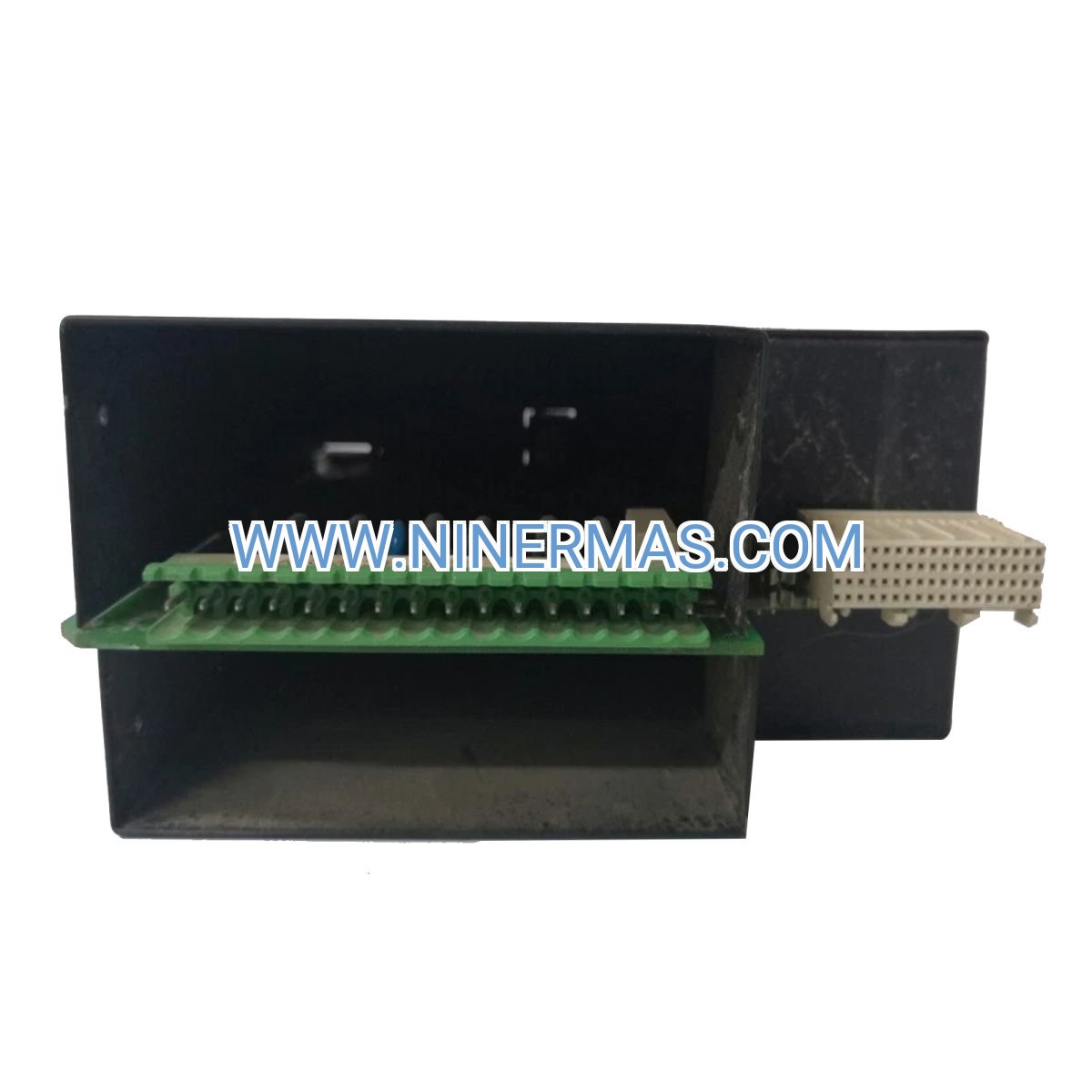

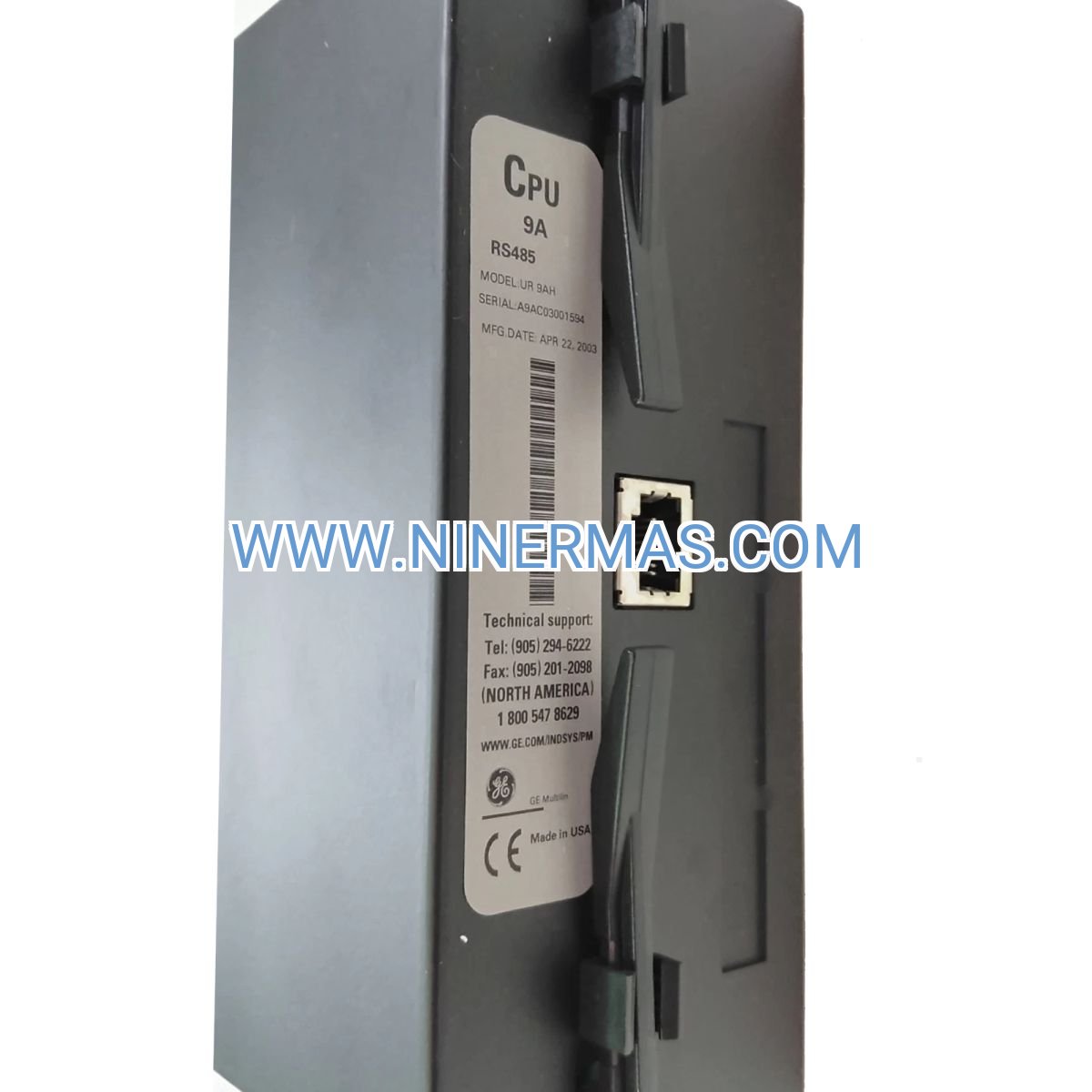

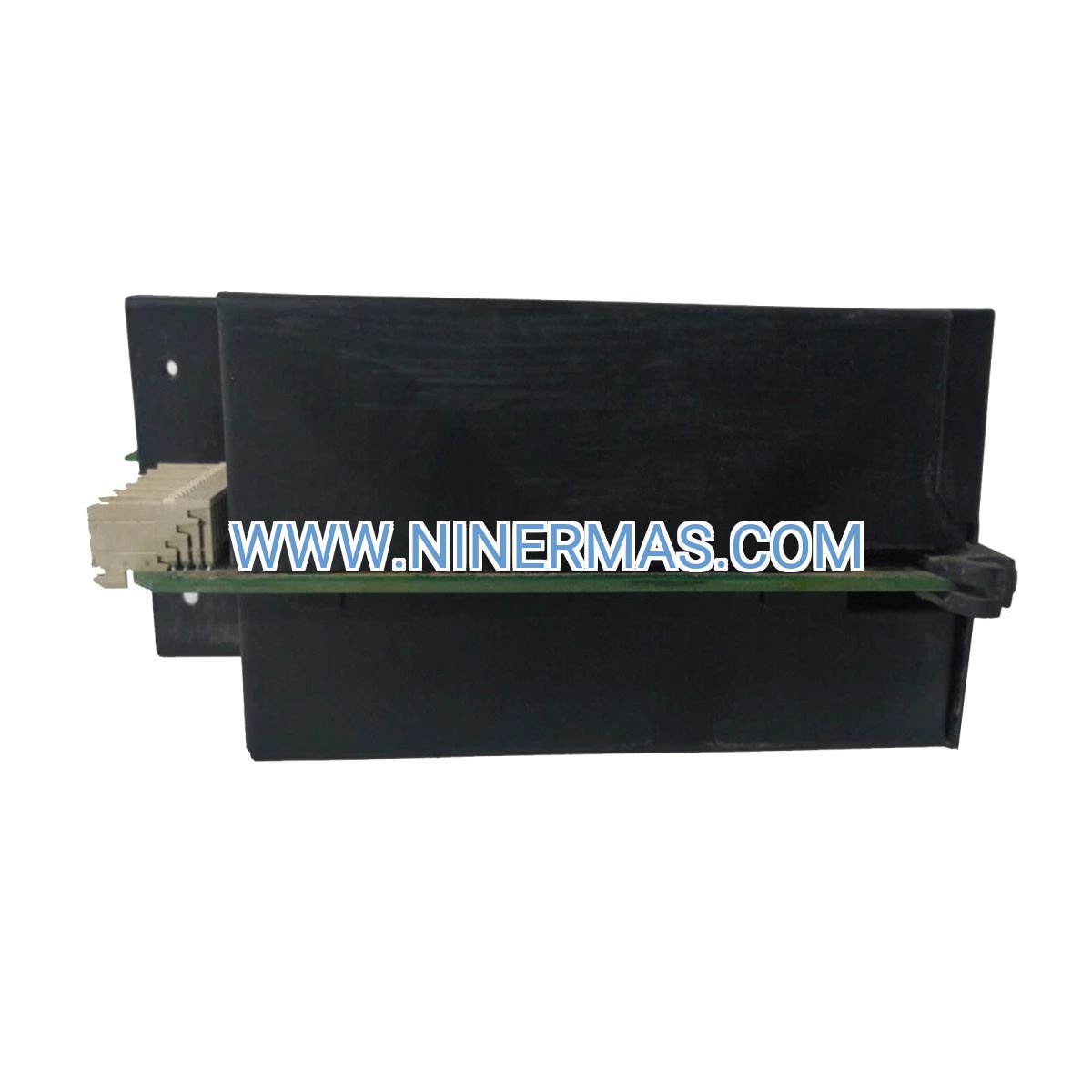

UR9AH Universal Relay CPU Module (Industrial-Grade Processing Core)

The UR9AH represents GE Vernova's flagship central processing unit for mission-critical power protection infrastructure. This industrial-grade CPU module functions as the computational brain within Universal Relay ecosystems, executing real-time protection algorithms with sub-millisecond response times. Designed for utilities, industrial plants, and commercial facilities requiring uncompromising reliability, the UR9AH processes complex fault detection logic while maintaining continuous communication with SCADA networks and distributed I/O systems.

Power system operators face escalating challenges: aging grid infrastructure, renewable energy integration complexity, and cybersecurity threats. The UR9AH addresses these pain points through advanced processing architecture that supports adaptive protection schemes, encrypted communication protocols, and predictive maintenance analytics. Whether safeguarding transmission substations, industrial distribution networks, or critical generation assets, this CPU module delivers the computational performance demanded by modern electrical systems.

Key advantages include hot-swappable redundancy support for zero-downtime maintenance, multi-protocol communication flexibility (IEC 61850, DNP3, Modbus), and field-upgradable firmware that extends asset lifespan. The UR9AH's rugged design withstands extreme temperatures (-40°C to +85°C) and electromagnetic interference, ensuring consistent operation in harsh substation environments. With proven deployment across thousands of installations worldwide, this module represents the industry standard for relay-based protection systems.

Core Features & Benefits

→ High-Speed 32-bit RISC Architecture
Executes protection algorithms in under 1 millisecond, enabling rapid fault isolation that minimizes equipment damage and reduces arc flash hazards. Business value: Lower insurance premiums and reduced downtime costs.

→ Multi-Protocol Communication Gateway
Native support for IEC 61850, DNP3.0, and Modbus RTU/TCP eliminates protocol converters and simplifies SCADA integration. Technical advantage: Single-device connectivity to legacy and modern automation systems.

✓ Expandable Memory Architecture
Flash and RAM expansion capabilities accommodate growing data logging requirements and advanced protection functions without hardware replacement. Operational benefit: Future-proof investment protection.

✓ Wide Operating Voltage Range
Accepts 24-48V DC or 110-250V AC power inputs, reducing spare parts inventory and enabling deployment across diverse electrical environments. Cost advantage: Standardized module procurement.

✓ Cybersecurity-Hardened Design
Role-based access control, encrypted communications, and audit logging meet NERC CIP compliance requirements. Risk mitigation: Protection against unauthorized access and cyber threats.

✓ Hot-Swappable Redundancy Support
Seamless failover to backup CPU modules during maintenance or failure events ensures continuous protection coverage. Reliability metric: 99.99% system availability.

Typical Application Scenarios

Transmission Substation Protection
Utilities deploy the UR9AH as the primary processor in 69kV-500kV substations, coordinating differential, distance, and overcurrent protection across multiple transmission lines. The module's high-speed processing resolves fault locations within 2-3 cycles, enabling selective tripping that maintains grid stability during disturbances. Value delivered: Reduced customer outage minutes and improved regulatory compliance.

Industrial Power Distribution Networks
Manufacturing facilities and data centers utilize the UR9AH to protect critical 480V-13.8kV distribution systems. Integration with motor protection relays and transformer monitors creates coordinated protection schemes that prevent cascading failures. Pain point addressed: Elimination of nuisance trips that halt production lines.

Renewable Energy Integration
Wind farms and solar installations leverage the UR9AH's adaptive protection capabilities to manage bidirectional power flows and voltage fluctuations. The module's programmable logic accommodates dynamic grid conditions that traditional relays cannot handle. Benefit realized: Maximized renewable energy penetration without compromising grid stability.

Generator Protection & Synchronization
Power generation facilities employ the UR9AH for comprehensive generator protection including differential, loss-of-field, and reverse power detection. Synchronization logic ensures safe paralleling with the utility grid. Operational advantage: Extended generator lifespan through precise fault detection.

Feeder Automation Systems
Distribution utilities implement the UR9AH in automated feeder switching schemes that restore service to unfaulted sections within seconds. Communication with remote terminal units (RTUs) enables centralized control and real-time system monitoring. Customer impact: Reduced SAIDI/SAIFI reliability indices.

Technical Parameters & Selection Guide

Selection Criteria: Choose the UR9AH when your application requires high-speed processing (sub-millisecond response), multi-protocol communication, or integration with existing GE Multilin relay platforms. For applications demanding enhanced cybersecurity features or advanced synchrophasor capabilities, consult with our application engineers to evaluate upgraded CPU options. Systems requiring redundant processing should specify dual UR9AH modules with automatic failover configuration.

Extended Functions

IoT & Cloud Connectivity: The UR9AH supports secure cloud data streaming for predictive analytics and remote diagnostics. Integration with GE's Grid IQ platform enables machine learning-based fault prediction and asset health monitoring.

Advanced Metering & Power Quality: Optional firmware modules add revenue-grade metering, harmonic analysis, and transient recording capabilities. These functions eliminate the need for separate power quality analyzers in many applications.

Customization Options: Factory configuration services include pre-loaded protection settings, custom logic programming, and application-specific I/O mapping. OEM partners can request private-label firmware and specialized communication protocols.

Delivery & Service

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited shipping available for critical outage situations.

Warranty: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement and on-site support options.

Technical Support: Lifetime access to our application engineering team for configuration assistance, troubleshooting, and firmware updates. 24/7 emergency support hotline for critical infrastructure customers.

Documentation: Each module includes installation manual, quick-start guide, and configuration templates. Downloadable resources include CAD drawings, communication protocol specifications, and sample logic programs.

Frequently Asked Questions

How does the UR9AH integrate with existing SCADA systems?
The module's multi-protocol support (IEC 61850, DNP3, Modbus) enables direct connection to virtually all SCADA platforms without protocol converters. Ethernet and serial interfaces provide redundant communication paths. Configuration wizards in the EnerVista software simplify SCADA point mapping.

What is the maximum I/O capacity supported by this CPU module?
A single UR9AH can manage up to 64 digital inputs, 32 digital outputs, 16 analog inputs, and 8 analog outputs when paired with appropriate expansion modules. Distributed I/O architectures support even larger configurations through networked communication.

Can the UR9AH reduce energy costs in my facility?
While primarily a protection device, the UR9AH's power quality monitoring and demand management functions help identify inefficiencies. Harmonic analysis detects equipment causing power factor penalties, while load profiling optimizes demand charges. Typical users report 3-8% energy cost reductions.

What are the physical installation requirements?
The module mounts in standard Universal Relay chassis using DIN rail or panel-mount brackets. Minimum clearances: 50mm top/bottom for ventilation, 25mm sides for wiring access. Operating environment should maintain temperatures between -40°C and +85°C with less than 95% humidity.

Does this CPU support remote firmware updates?
Yes, the UR9AH accepts firmware updates via Ethernet or serial connections using the EnerVista UR Setup software. Updates can be scheduled during maintenance windows and include rollback capabilities if issues arise. Cybersecurity policies may require on-site updates for critical infrastructure applications.

How does the UR9AH compare to microprocessor-based relay alternatives?
The UR9AH offers superior processing speed (sub-millisecond vs. 2-4 millisecond response), greater I/O scalability, and more flexible communication options compared to integrated relay designs. Modular architecture allows component-level replacement rather than entire relay replacement, reducing lifecycle costs by 40-60%.

Contact Our Team

Ready to enhance your power protection infrastructure? Our application engineers will help you configure the optimal UR9AH-based solution for your specific requirements. Request a technical consultation, pricing quote, or product demonstration today.
