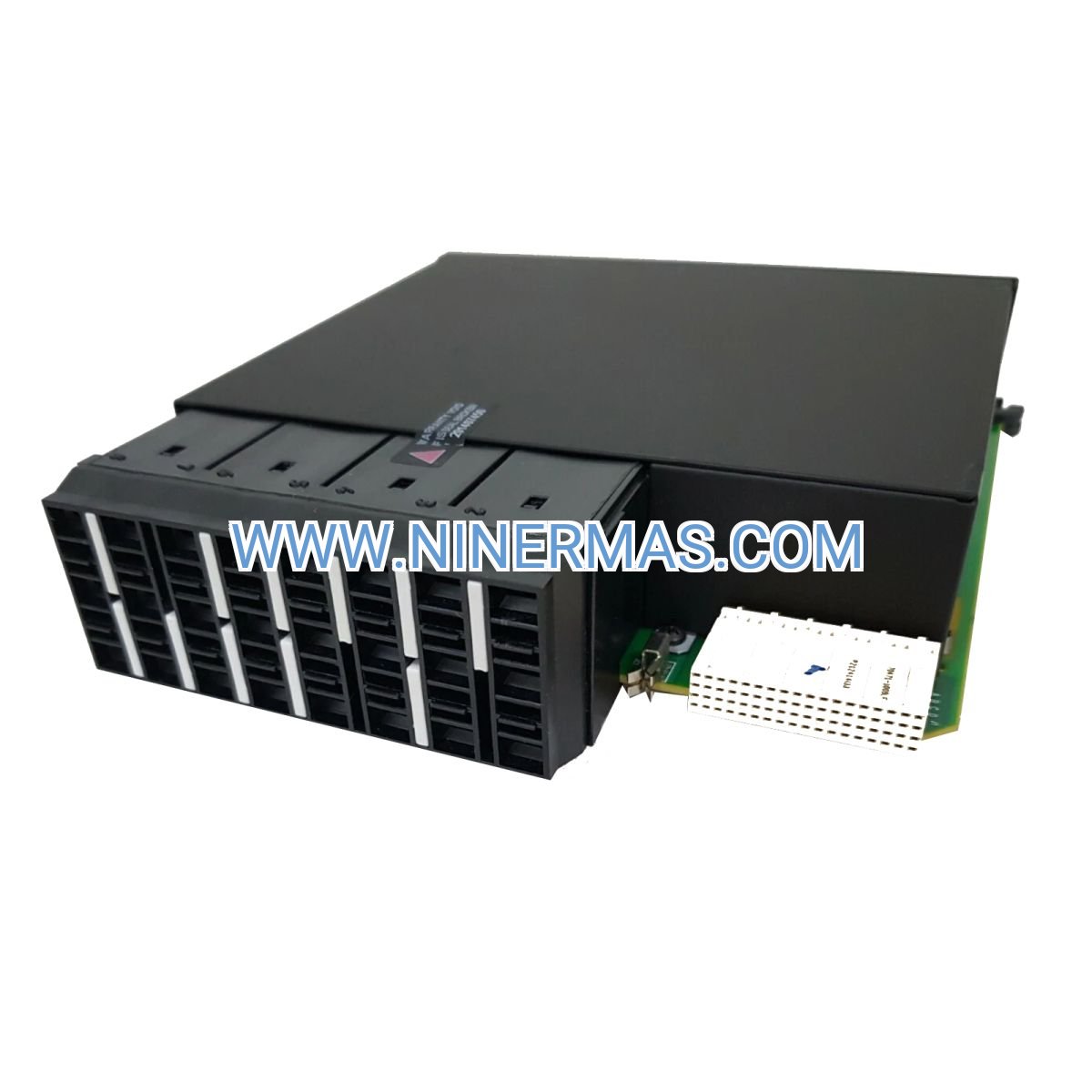

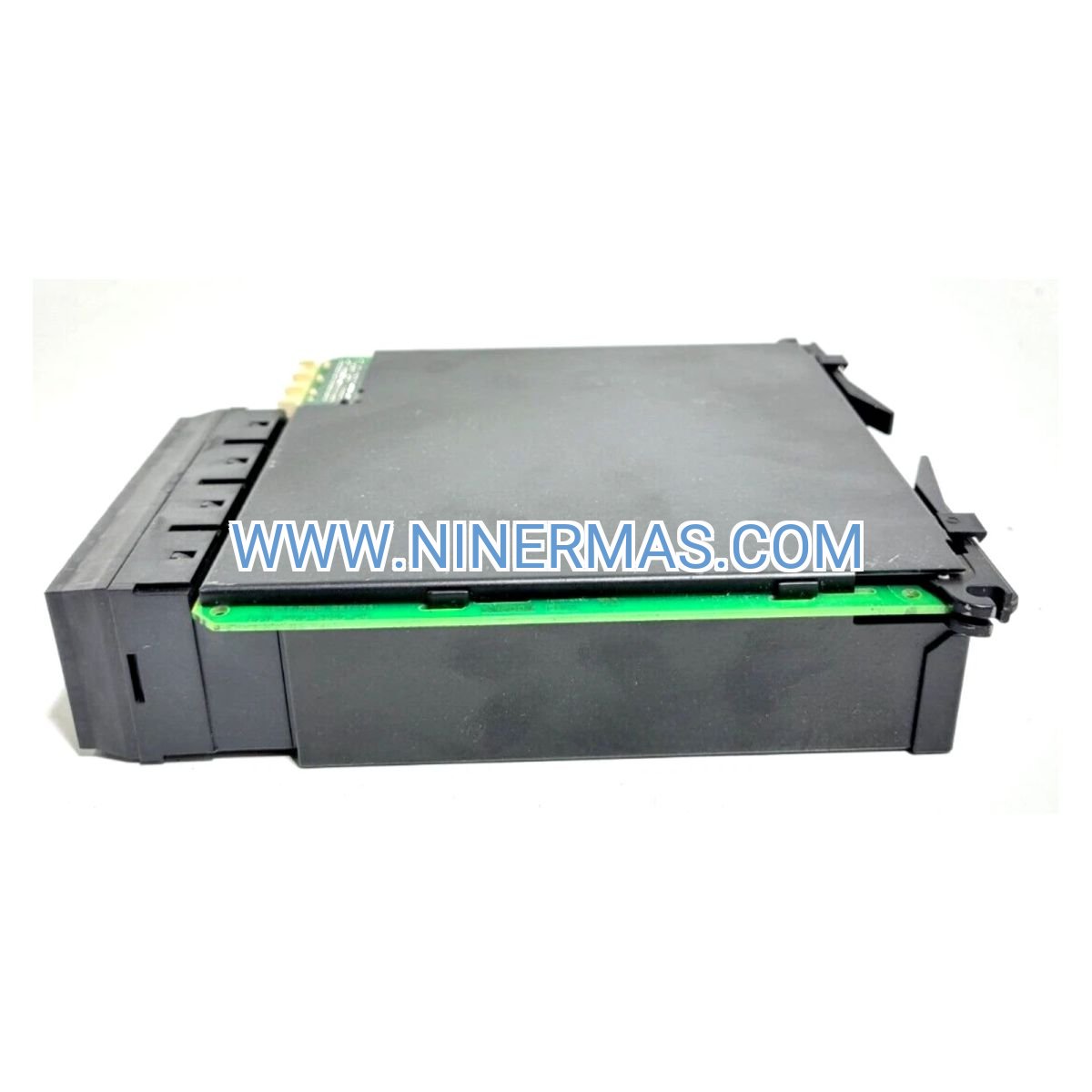

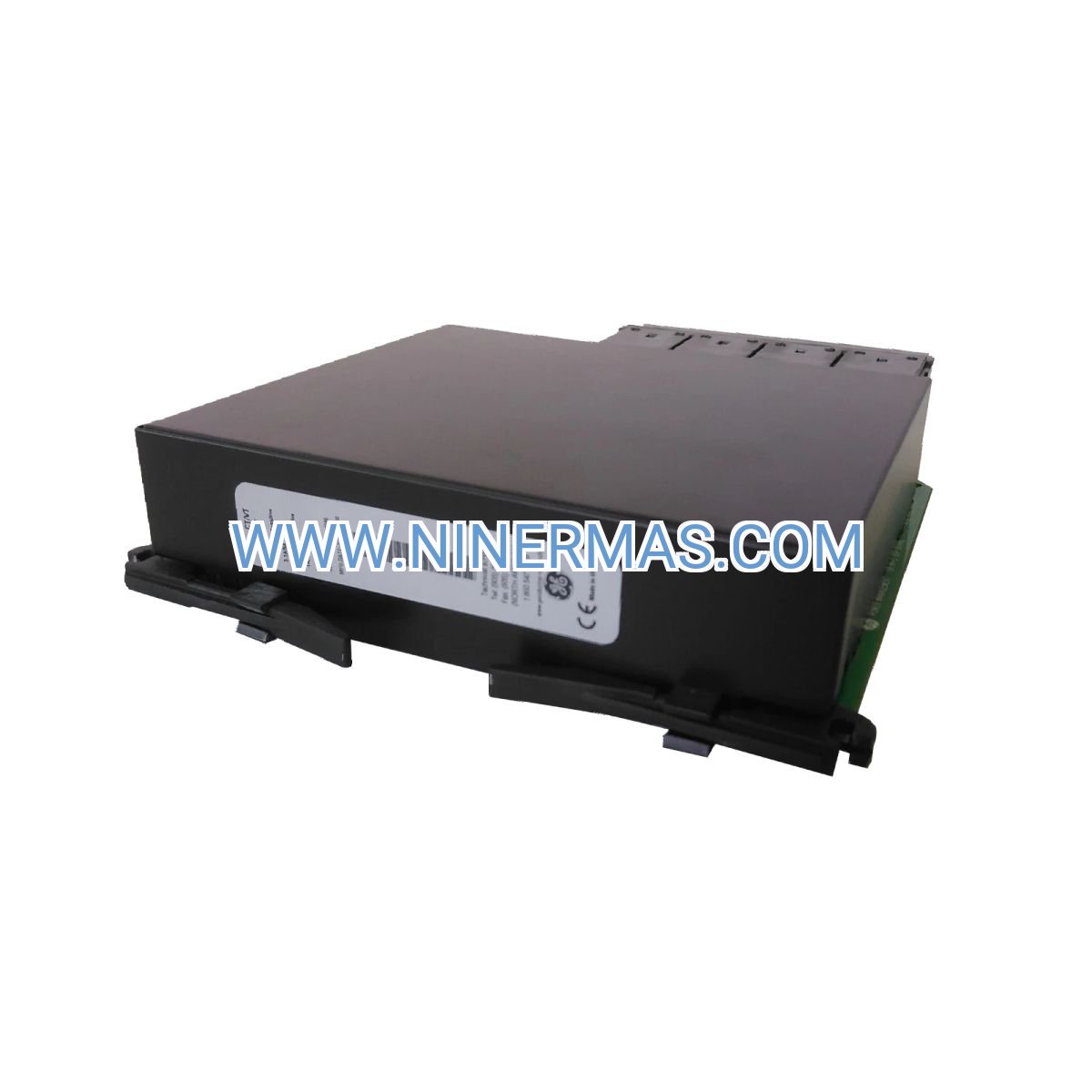

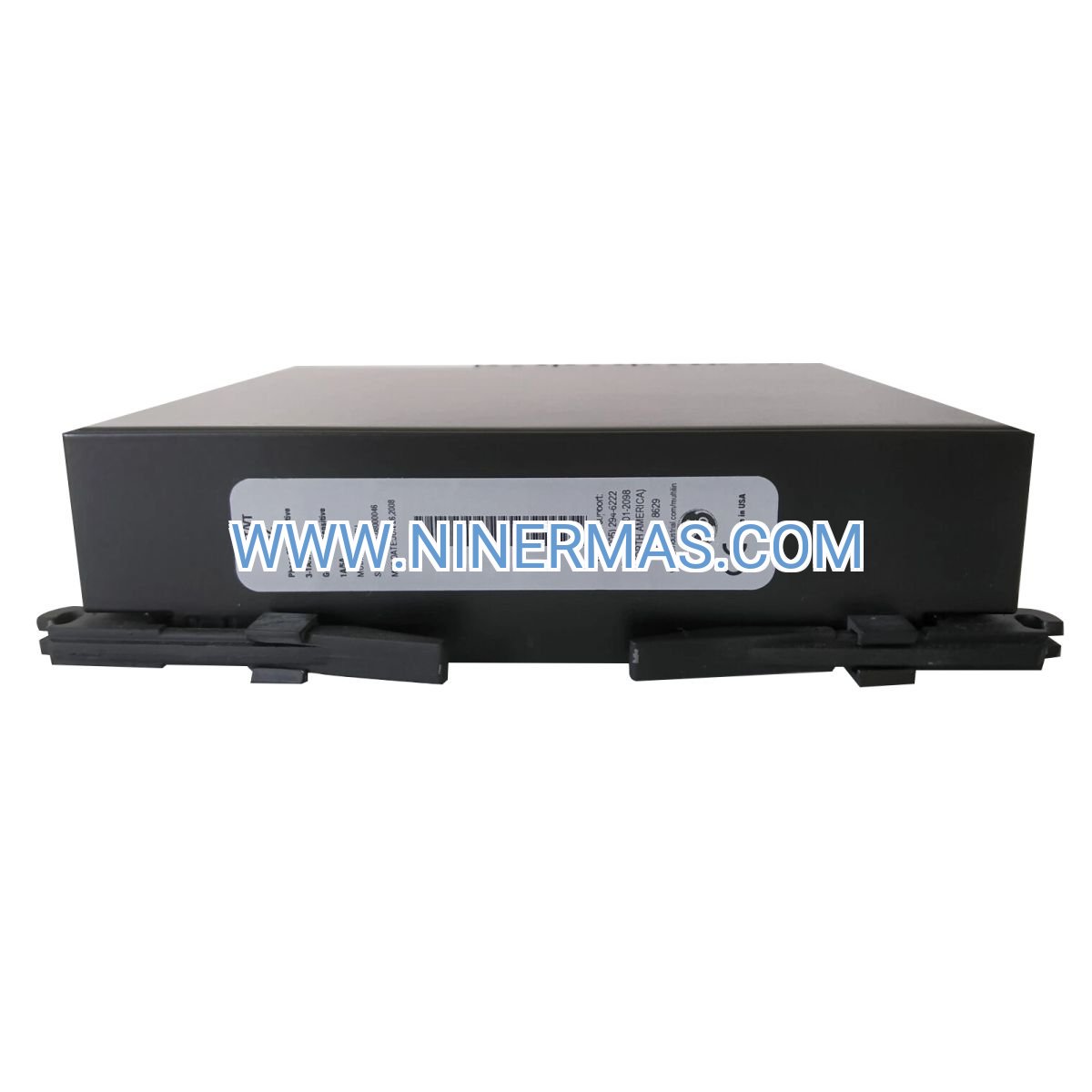

GE UR8ZH 8-Channel Digital Input Module (Industrial-Grade Relay Expansion)

The GE UR8ZH is a precision-engineered digital input expansion module that extends monitoring capabilities for GE Multilin UR series protection relays. Built for mission-critical power systems, this 8-channel module delivers optically isolated signal acquisition with sub-5ms response times, making it essential for substation automation, motor protection, and generator control applications where real-time status monitoring determines system reliability.

Designed for seamless integration with UR platform architectures, the UR8ZH accepts universal 24-250V DC/AC inputs and communicates via Modbus RTU, DNP3, and IEC 61850 protocols. Whether you're retrofitting legacy protection systems or building next-generation smart grid infrastructure, this module provides the scalability and performance your critical operations demand.

Every unit ships factory-sealed with comprehensive technical documentation and is backed by our 12-month warranty. Contact our application engineers to configure the optimal I/O architecture for your specific protection requirements.

Core Capabilities & Technical Advantages

✓ 8 Optically Isolated Digital Inputs
Monitor circuit breaker status, alarm contacts, auxiliary relay signals, and external device feedback with complete electrical isolation. Each channel features independent optical coupling to eliminate ground loops and protect relay circuitry from voltage transients up to 2.5kV.

✓ Universal Voltage Compatibility (24-250V DC/AC)
Adapt to diverse field wiring standards without external signal conditioning. The wide input range accommodates control voltages from battery-backed DC systems (48V/125V) to AC auxiliary supplies (110V/220V), reducing installation complexity and component costs.

✓ High-Speed Signal Processing (<5ms Typical)
Capture fast-changing system events with millisecond-level precision. The module's rapid input detection ensures accurate timestamping for sequence-of-events recording and enables real-time coordination with high-speed protection algorithms.

✓ Multi-Protocol Communication Support
Integrate seamlessly with SCADA systems via Modbus RTU, DNP3, or IEC 61850. When paired with UR series Ethernet modules, digital input states can be transmitted as GOOSE messages for peer-to-peer substation automation with <2ms latency.

✓ Industrial-Grade Environmental Resilience
Operate reliably across -40°C to +85°C temperature extremes with conformal-coated PCBs that resist moisture, dust, and chemical exposure. UL/CSA certification and IEC 61010 compliance ensure safe deployment in hazardous industrial environments.

✓ Plug-and-Play UR Platform Integration
Hot-configurable through UR Setup software with automatic module recognition. The standardized backplane interface allows field technicians to expand I/O capacity without firmware updates or complex programming.

Industry-Specific Application Solutions

→ Electric Utility Substations
Enhance transformer and feeder protection schemes by monitoring disconnect switch positions, SF6 gas pressure alarms, cooling fan status, and tap changer limit contacts. The UR8ZH works in tandem with T60 transformer relays and L90 line differential systems to provide comprehensive equipment supervision for transmission and distribution networks.

→ Industrial Motor Control Centers
Implement predictive maintenance strategies by capturing thermal overload trips, bearing temperature warnings, vibration sensor outputs, and lubrication system faults. When integrated with M60 motor protection relays, the module enables condition-based monitoring that reduces unplanned downtime by up to 40%.

→ Power Generation Facilities
Monitor generator auxiliary systems including excitation faults, cooling water flow switches, hydrogen purity alarms, and synchronization permissives. The UR8ZH's fast response time supports critical interlocking logic for safe generator startup and emergency shutdown sequences.

→ Renewable Energy Installations
Track inverter status signals, anti-islanding relay contacts, grid synchronization indicators, and emergency stop circuits in solar and wind farms. The module's IEC 61850 compatibility facilitates integration with modern renewable energy management systems.

→ Data Center & Critical Infrastructure
Supervise UPS transfer switch positions, generator breaker status, automatic transfer switch (ATS) feedback, and fire suppression system activation signals to ensure continuous power availability for mission-critical IT loads.

Technical Specifications & Selection Criteria

Selection Guidelines: Calculate total digital input requirements by counting all monitored contacts (breakers, switches, alarms, auxiliary relays). For systems requiring >8 inputs, combine multiple UR8ZH modules or use higher-density variants like UR6NH (16 inputs). Ensure your UR series CPU module has available backplane slots—each UR chassis supports up to 8 expansion modules depending on configuration.

Advanced Integration & Customization Options

Scalable I/O Architecture: Build protection systems with up to 64 digital inputs by installing multiple UR8ZH modules in a single UR chassis. The modular design allows incremental capacity expansion as monitoring requirements grow, protecting your initial investment.

IEC 61850 GOOSE Messaging: When equipped with UR series Ethernet communication modules, map digital input states to GOOSE datasets for high-speed peer-to-peer communication between relays. This enables distributed protection schemes like breaker failure backup and bus differential protection without dedicated hardwired I/O.

Programmable Logic Integration: Utilize the UR platform's FlexLogic™ engine to create custom logic equations using digital input states. Implement complex interlocking schemes, sequential control, and conditional alarming without external PLCs.

Cybersecurity Features: Leverage UR series security capabilities including role-based access control, encrypted communication (TLS 1.2), and audit logging to protect digital input data in compliance with NERC CIP standards.

Delivery, Warranty & Technical Support

Lead Time: In-stock units ship within 1-2 business days. Custom configurations or bulk orders (>10 units) typically require 2-3 weeks. Expedited shipping available for critical outage situations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty plans available for long-term projects.

Technical Assistance: Our application engineers provide pre-sales consultation for system design, I/O mapping, and protocol configuration. Post-purchase support includes UR Setup software guidance, troubleshooting assistance, and firmware update recommendations.

Documentation Package: Each module includes installation manual, wiring diagrams, UR Setup configuration guide, and IEC 61850 ICD files. Additional resources available through our online technical library.

Common Questions & Expert Answers

Can the UR8ZH monitor both normally-open and normally-closed contacts?
Yes. The module detects contact state changes regardless of wiring polarity. Configure input logic (normal/inverted) through UR Setup software to match your specific contact arrangement and alarm philosophy.

What is the maximum recommended cable distance for digital inputs?
With shielded twisted-pair cable (18-22 AWG), reliable signal transmission extends to 300 meters. For longer runs, use intermediate relay contacts or install signal repeaters to maintain noise immunity.

Is hot-swapping supported during relay operation?
No. Always de-energize the UR chassis before installing or removing I/O modules. Hot-swapping risks data corruption, module damage, and potential protection misoperation.

How does the UR8ZH integrate with legacy GE Multilin relays?
The UR8ZH is exclusive to the UR series platform. For older systems (SR469, 369, 489 series), contact our retrofit specialists to evaluate upgrade paths or compatible I/O expansion alternatives.

Does the module support time-stamped sequence-of-events recording?
Yes. When integrated with UR series relays, digital input transitions are logged with 1ms resolution timestamps synchronized via IRIG-B or SNTP, enabling precise fault analysis and event reconstruction.

What cybersecurity measures protect digital input data?
The UR platform supports encrypted Modbus/TCP, DNP3 Secure Authentication, and IEC 62351 security extensions. Implement network segmentation and firewall rules per NERC CIP-005 requirements for critical infrastructure protection.

Your Trusted Partner for Industrial Control Solutions

Industrial Control Hub specializes in premium automation components for power systems, process control, and critical infrastructure. Our technical team brings decades of field experience in protection relay applications, ensuring you receive expert guidance from initial specification through commissioning.

Every GE UR8ZH module undergoes rigorous quality verification before shipment, and our logistics network ensures secure packaging with full traceability. Whether you're upgrading a single substation or deploying a fleet-wide protection standard, we provide the reliability and support your mission-critical systems demand.

Ready to enhance your protection relay capabilities? Contact our application engineers today to discuss your specific I/O requirements and receive a customized solution proposal.
