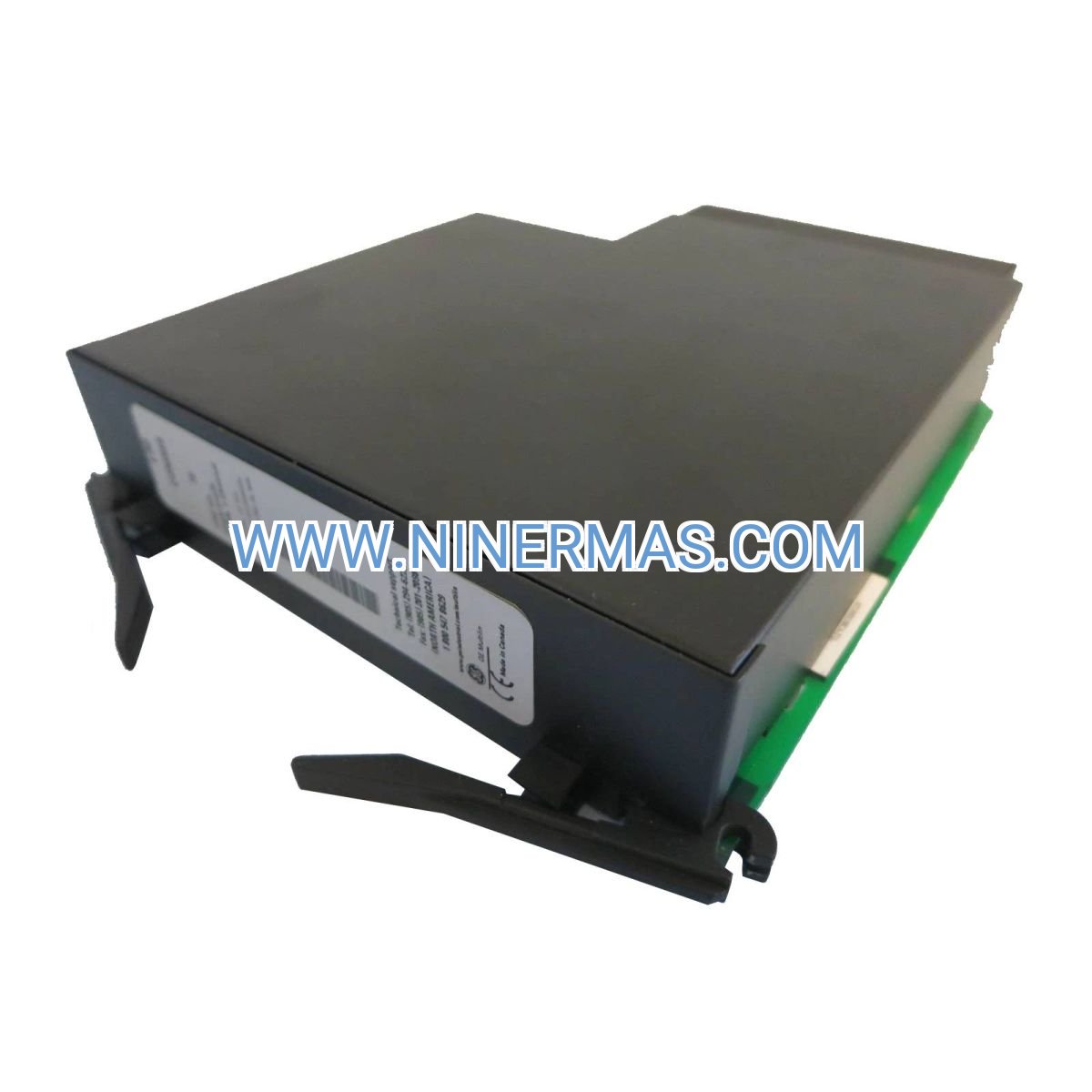

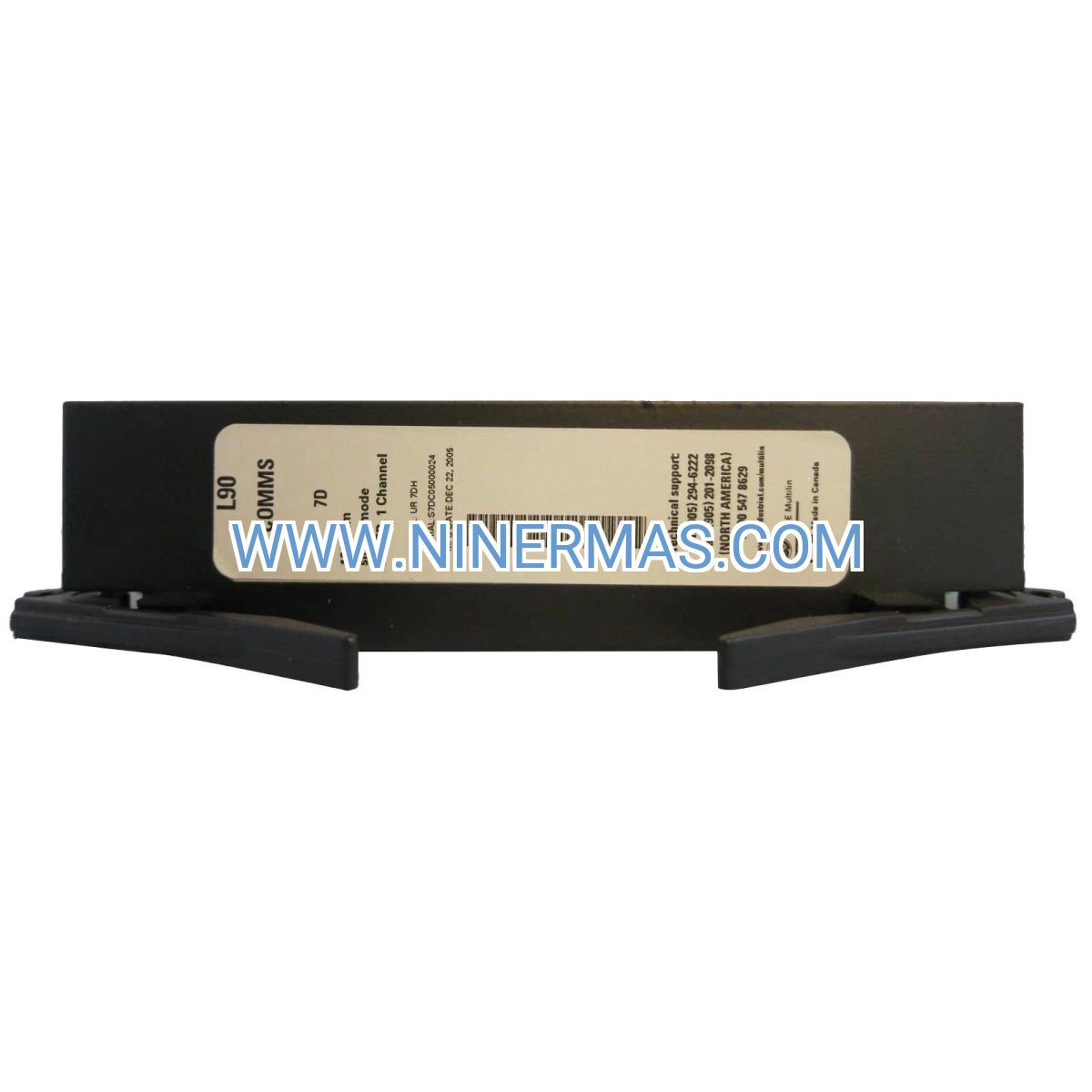

GE UR7DH Communications Module (Industrial-Grade IEC 61850 GOOSE Interface)

The GE UR7DH represents a critical infrastructure component for modern substation automation, delivering deterministic peer-to-peer relay communication through IEC 61850 GOOSE messaging. This plug-in module transforms isolated protection devices into a coordinated network, enabling distributed protection schemes with sub-4-millisecond response times across utility and industrial power systems.

Engineered for mission-critical applications where protection coordination can prevent cascading failures, the UR7DH integrates seamlessly into GE Multilin Universal Relay platforms. Its dual 100Base-FX fiber-optic interfaces provide redundant communication paths, while support for 32 GOOSE subscriptions and 8 publication datasets enables complex multi-relay protection architectures that traditional hardwired schemes cannot achieve.

Whether you're modernizing legacy substations or deploying greenfield automation projects, the UR7DH delivers the interoperability, speed, and reliability demanded by power system engineers. Compatible with the complete UR series ecosystem—from feeder protection to generator control—this module accelerates your migration to fully digital substation infrastructure.

Core Capabilities & Technical Advantages

→ Ultra-Fast GOOSE Messaging Performance
Achieves typical message transmission times under 4 milliseconds, enabling time-critical protection functions like breaker failure schemes, transfer trip, and bus differential protection. This deterministic performance ensures coordinated relay actions during fault conditions when every millisecond counts.

→ Dual Fiber-Optic Network Redundancy
Equipped with two 100Base-FX ports supporting ring, star, or parallel redundant topologies. Automatic failover maintains communication integrity during cable cuts or switch failures, delivering 99.99%+ network availability for critical protection circuits.

→ Extensive GOOSE Capacity
Handles up to 32 subscribed GOOSE messages and publishes 8 independent datasets, providing sufficient capacity for complex schemes involving multiple feeders, transformers, and bus sections. Eliminates the wiring complexity and maintenance burden of conventional hardwired interlocking.

✓ IEC 61850-8-1 Standards Compliance
Full conformance to international substation communication standards ensures multi-vendor interoperability. Seamlessly exchanges data with protection relays, bay controllers, and SCADA systems from different manufacturers within a unified substation automation architecture.

✓ Wide Operating Temperature Range
Rated for -40°C to +85°C operation without derating, the UR7DH withstands extreme substation environments from Arctic installations to desert climates. Industrial-grade components ensure reliable performance across 125°C temperature swings.

✓ Plug-and-Play UR Series Integration
Installs directly into any Multilin UR chassis alongside CT/VT modules, I/O cards, and power supplies. Hot-swappable design minimizes downtime during upgrades or replacements, while EnerVista software provides intuitive graphical configuration of GOOSE datasets and network parameters.

Application Scenarios Across Power Systems

Utility Transmission & Distribution Substations
Implement IEC 61850-compliant protection schemes in 69kV to 500kV substations. The UR7DH enables breaker-and-a-half, ring bus, and double-bus configurations with sophisticated interlocking logic that prevents mis-operation. Utilities achieve faster fault clearing times while reducing copper wiring by 60-80% compared to conventional designs.

Industrial Co-Generation & On-Site Power
Coordinate generator protection, transformer differential, and feeder overcurrent relays in manufacturing plants, refineries, and data centers. The module's high-speed messaging supports load shedding sequences, automatic transfer schemes, and black-start procedures that maintain production continuity during grid disturbances.

Renewable Energy Installations
Deploy distributed protection across solar inverter farms and wind turbine collector systems. GOOSE-based fault detection enables rapid isolation of faulted strings or turbines while maintaining healthy sections online, maximizing energy production and minimizing revenue loss during fault conditions.

Mining & Heavy Industry
Protect high-power motor drives, arc furnaces, and conveyor systems with coordinated relay schemes. The UR7DH's deterministic messaging supports selective coordination between upstream and downstream protection devices, preventing nuisance trips that halt production lines.

Railway Traction Power Systems
Enable zone-selective interlocking in AC and DC traction substations. Fast peer-to-peer communication between feeder relays minimizes arc flash energy and reduces equipment damage during short circuits on catenary systems or third-rail distribution.

Technical Specifications & Selection Guide

Selection Criteria: Choose the UR7DH when your application requires horizontal communication between protection relays for distributed schemes. For vertical SCADA communication, consider Modbus or DNP3 modules instead. Verify that your network switches support IEC 61850 GOOSE multicast and VLAN priority tagging for optimal performance.

Advanced Integration & Customization Options

Multi-Protocol Relay Platforms: The UR chassis architecture supports simultaneous installation of multiple communication modules. Combine the UR7DH with Modbus TCP, DNP3, or Profibus modules to create hybrid systems that interface with legacy SCADA while implementing modern peer-to-peer protection schemes.

Cybersecurity Enhancements: When deployed with managed Ethernet switches supporting IEEE 802.1X authentication and MACsec encryption, the UR7DH participates in defense-in-depth security architectures compliant with NERC CIP standards for critical infrastructure protection.

Remote Monitoring Integration: GOOSE message statistics and network diagnostics are accessible via the relay's front panel, web interface, or SCADA polling. Integrate with condition monitoring systems to track communication health, detect degraded fiber links, and predict maintenance needs before failures occur.

Custom Protection Logic: Leverage the UR platform's FlexLogic™ programmable logic engine to create custom protection schemes using GOOSE inputs. Implement application-specific interlocks, sequential control, and adaptive protection that responds to real-time system conditions communicated via the UR7DH.

Delivery, Warranty & Engineering Support

Lead Time: Standard delivery 3-5 business days for in-stock units. Custom configurations or bulk orders may require 2-3 weeks. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our power systems engineers provide pre-sales application consulting, GOOSE network design review, and post-installation commissioning assistance. Support includes EnerVista software configuration guidance and troubleshooting of multi-vendor IEC 61850 interoperability issues.

Documentation Package: Each module ships with installation instructions, technical specifications, and quick-start guide. Complete user manuals, GOOSE configuration examples, and IEC 61850 SCL files available for download from our technical library.

Frequently Asked Questions

How does GOOSE messaging differ from traditional hardwired relay communication?
GOOSE (Generic Object-Oriented Substation Event) transmits relay status and measurements over Ethernet rather than copper wiring. A single fiber-optic cable replaces dozens of control wires, reducing installation costs by 50-70% while enabling more sophisticated protection logic than hardwired schemes allow. Message transmission occurs in under 4 milliseconds—faster than electromechanical relay contact bounce times.

Can I integrate the UR7DH with non-GE protection equipment?
Yes, IEC 61850 is an open international standard designed for multi-vendor interoperability. The UR7DH exchanges GOOSE messages with compliant relays from ABB, Siemens, Schneider Electric, SEL, and other manufacturers. Proper network configuration and SCL file management ensure seamless data exchange across mixed-vendor installations.

What network infrastructure is required for reliable GOOSE operation?
Deploy managed Ethernet switches with IGMP snooping, VLAN support, and Quality of Service (QoS) prioritization. Switches should support IEC 61850 GOOSE multicast forwarding and provide sub-millisecond forwarding latency. For critical applications, implement redundant ring topologies with rapid spanning tree protocol (RSTP) or PRP for zero-downtime failover.

How many UR7DH modules can I install in a single relay?
The UR chassis accommodates one communications module per available slot. Most UR platforms provide 2-4 expansion slots, allowing installation of multiple protocol modules simultaneously. However, a single UR7DH typically provides sufficient GOOSE capacity (32 subscriptions, 8 publications) for most applications.

What fiber-optic cable specifications are recommended?
Use OM1 (62.5/125 μm) or OM2 (50/125 μm) multimode fiber with LC duplex connectors. For substation environments, specify armored fiber-optic cable rated for outdoor installation with rodent protection. Maintain bend radius >10x cable diameter and avoid routing near high-voltage conductors to prevent electromagnetic interference.

Does the module support time synchronization for sequence-of-events recording?
Yes, when the UR relay is equipped with an IRIG-B or IEEE 1588 PTP time source, all GOOSE messages include microsecond-accurate timestamps. This enables precise sequence-of-events analysis and fault location calculations across multiple relays in the protection scheme.

Ready to Modernize Your Protection System?

The GE UR7DH communications module is your gateway to IEC 61850-compliant substation automation. Whether you're replacing aging electromechanical relays or expanding existing digital protection schemes, our engineering team will help you design a reliable, scalable solution. Contact us today for application-specific recommendations, network architecture review, or technical specifications for your project.

Request a quote now or speak with our power systems specialists to discuss your protection coordination requirements.
