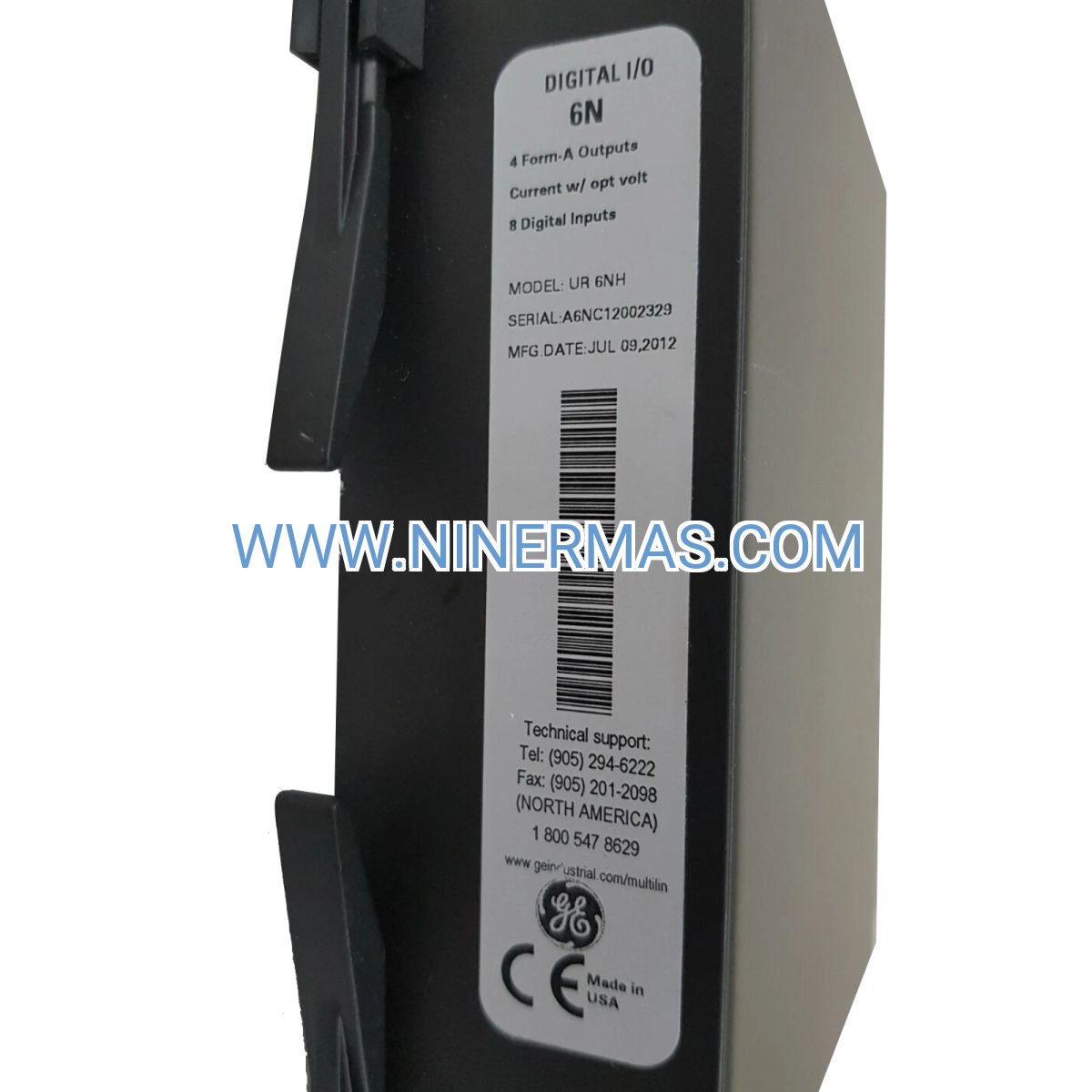

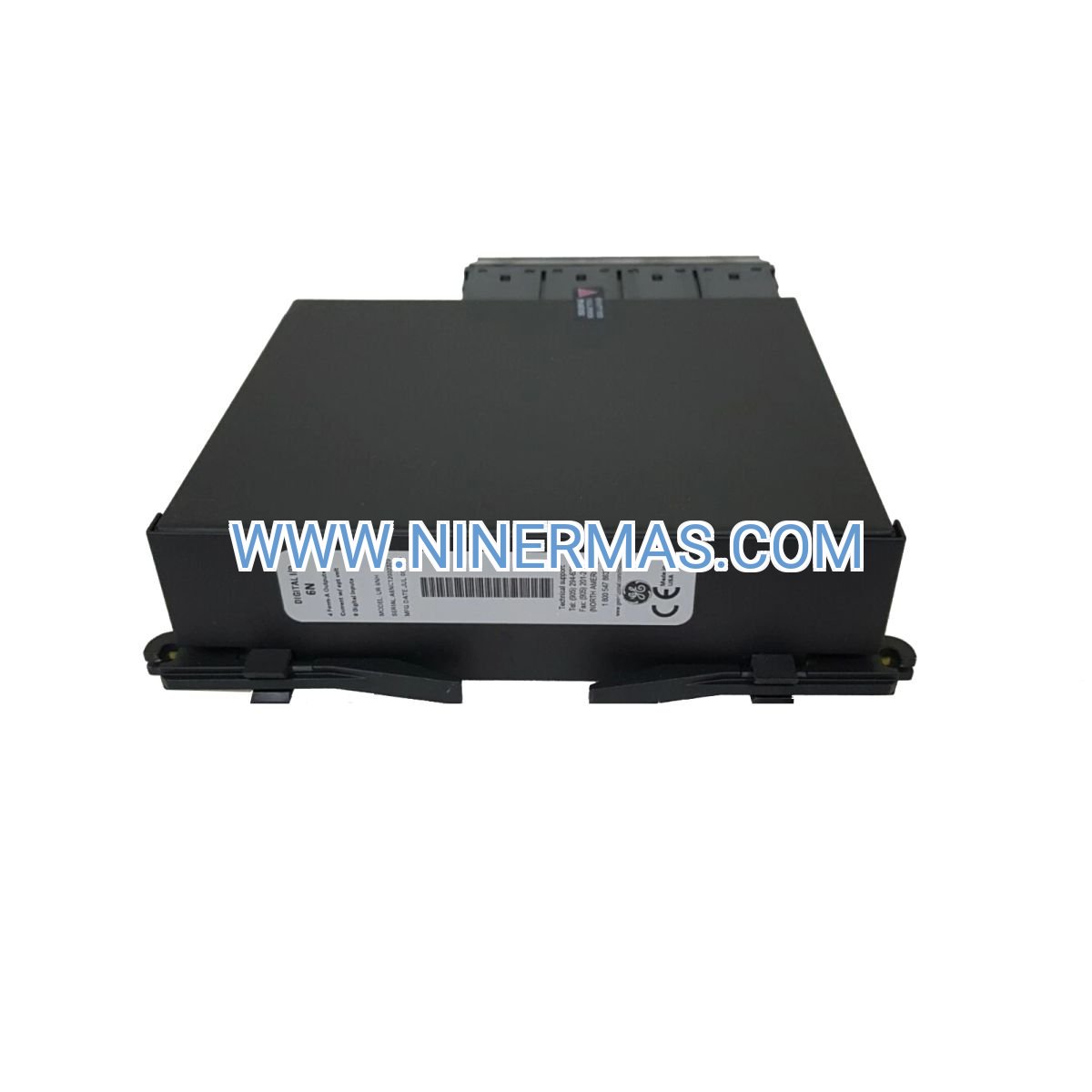

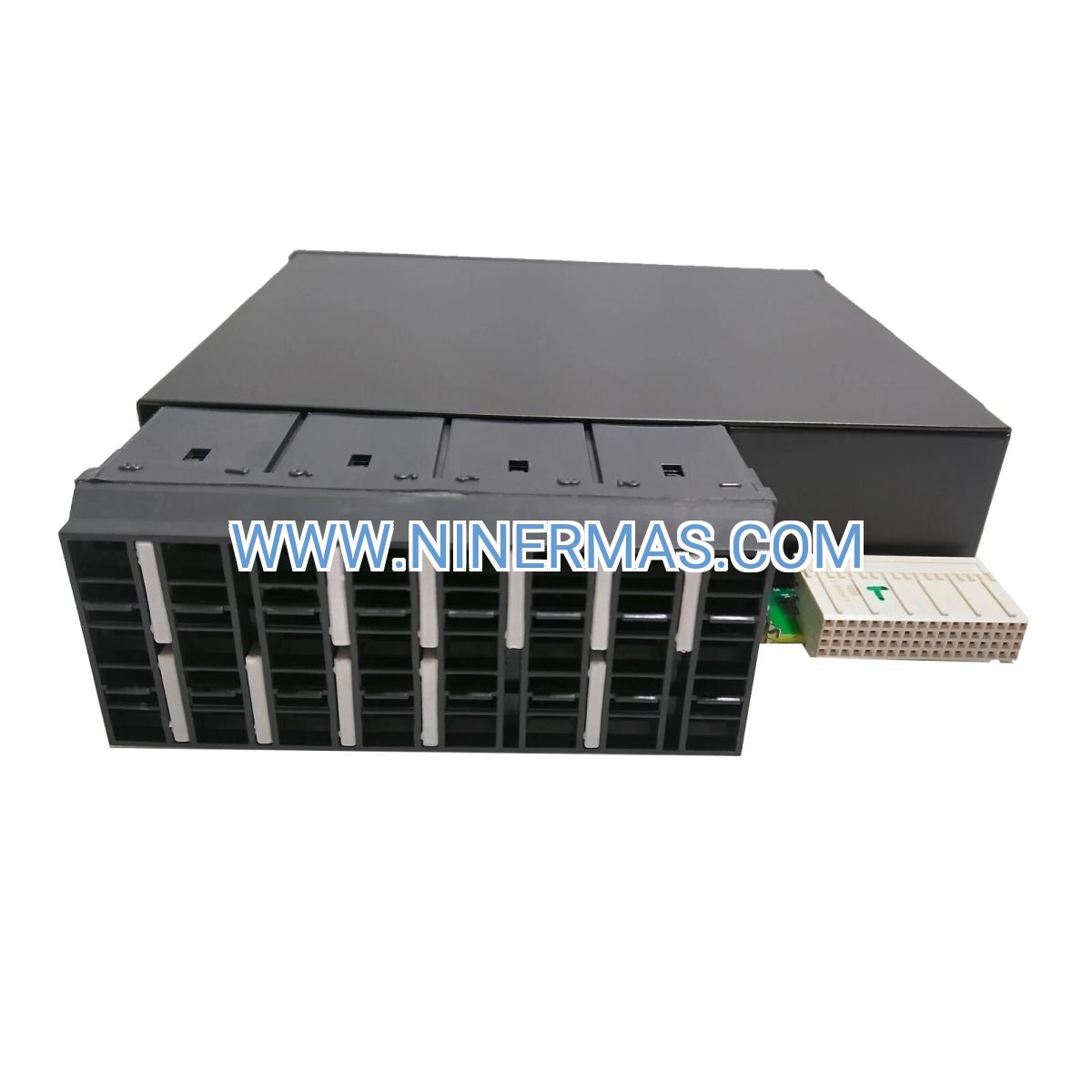

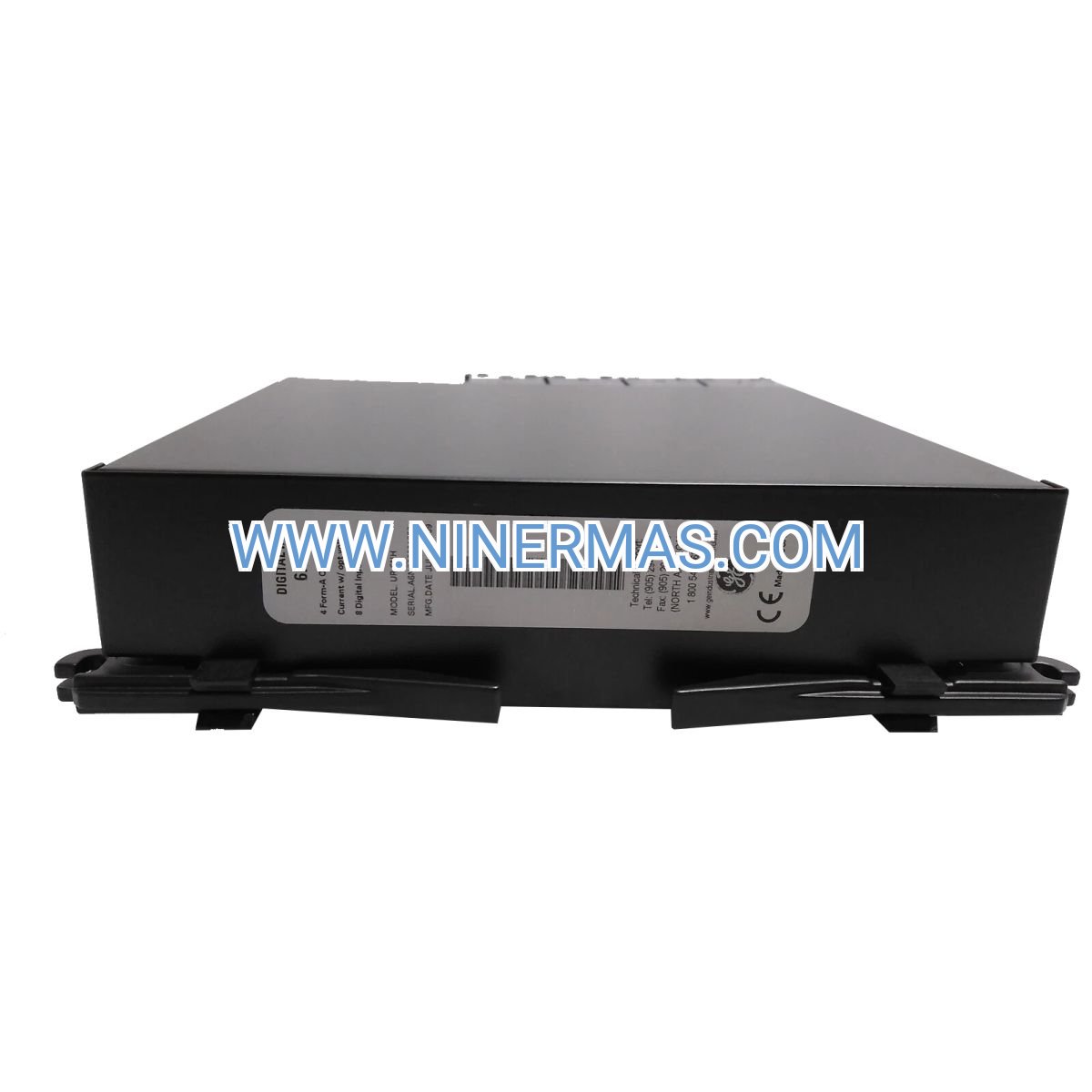

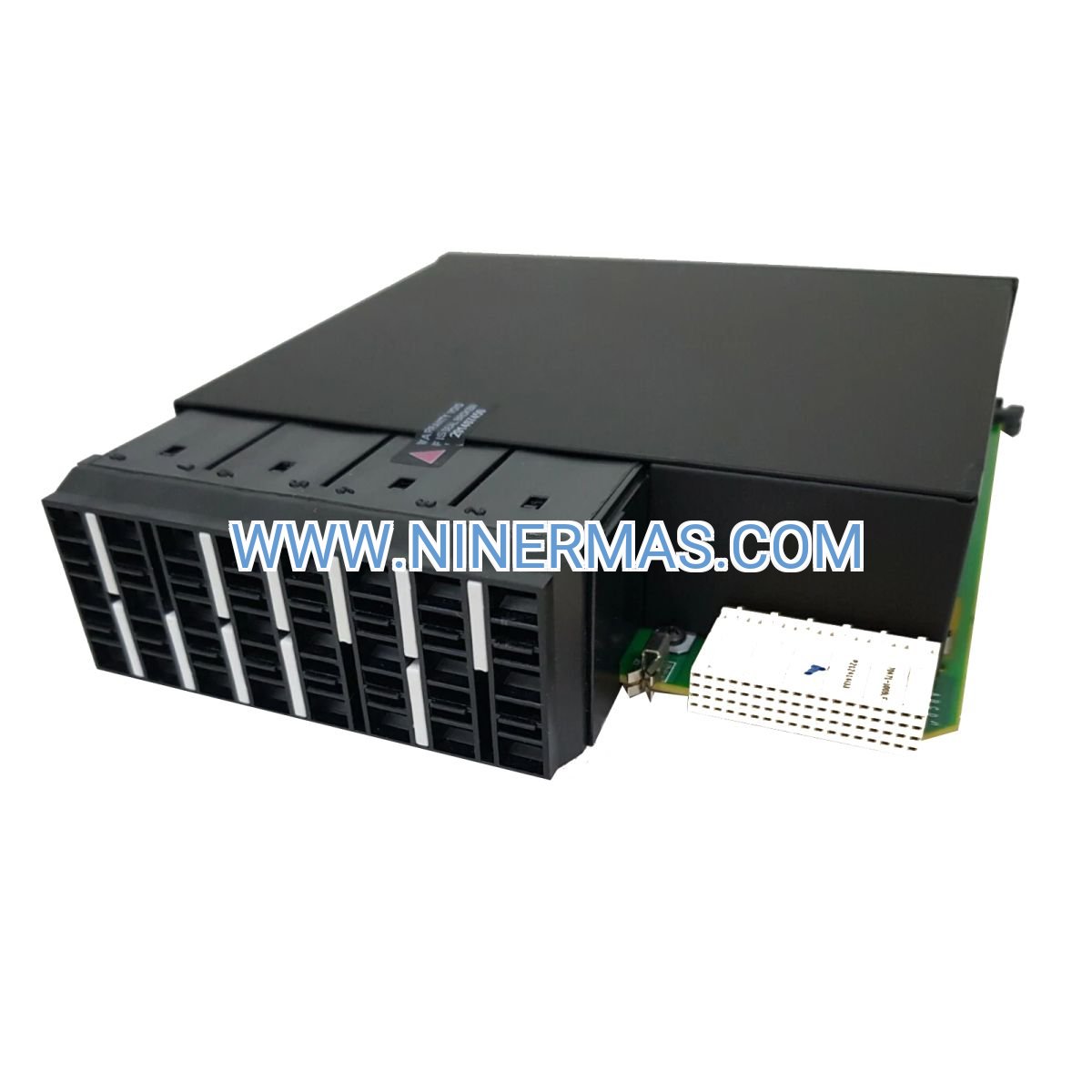

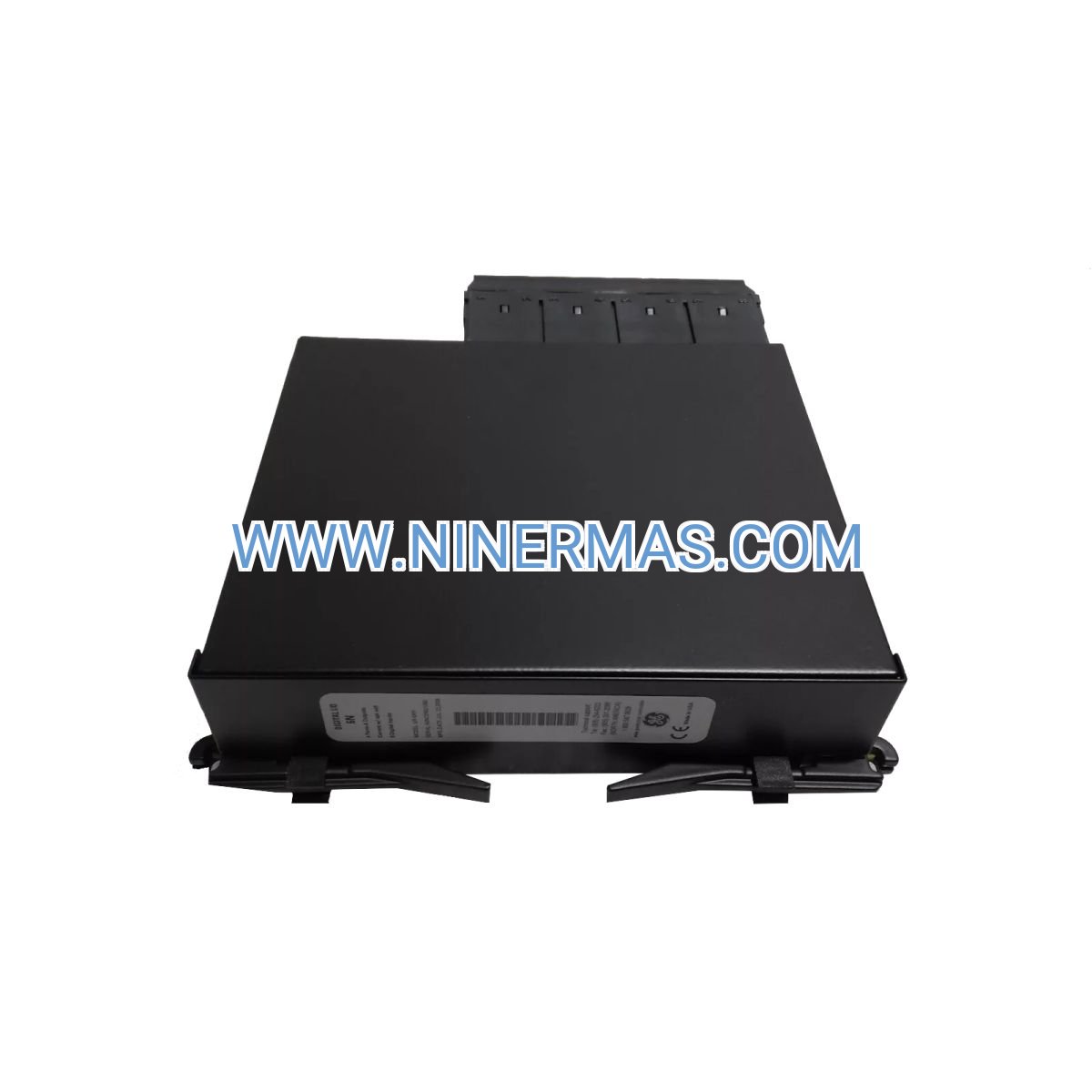

UR6NH Digital I/O Expansion Module (Industrial-Grade Relay Enhancement)

The UR6NH Digital I/O Expansion Module represents a critical infrastructure component for power system protection and industrial automation networks. Engineered by GE Vernova, this module extends the operational capacity of Multilin Universal Relay platforms by delivering additional configurable digital input and output channels. Designed for mission-critical environments—from utility substations to heavy industrial facilities—the UR6NH enables comprehensive real-time monitoring, advanced protection logic execution, and seamless integration with SCADA systems.

Power engineers and automation specialists deploy the UR6NH when standard relay I/O configurations cannot accommodate complex protection schemes or when distributed control architectures demand expanded signal interfacing. This module addresses the challenge of limited I/O availability in retrofit projects, brownfield expansions, and greenfield installations requiring future-proof scalability. By providing hot-swappable modularity and backward compatibility across UR series platforms, the UR6NH minimizes downtime during system upgrades while maintaining operational continuity.

Key advantages include plug-and-play installation via internal backplane communication, wide operating temperature tolerance (-40°C to +85°C) for harsh environments, and factory-calibrated signal conditioning that eliminates field commissioning delays. The module's compact form factor optimizes panel space utilization, while its robust construction ensures reliable performance in high-vibration and electromagnetic interference (EMI) conditions typical of industrial settings.

Core Features & Technical Advantages

✓ Expanded I/O Capacity: Multiple configurable digital input and output channels enable complex protection schemes, interlocking logic, and remote control functions without requiring additional relay hardware investments.

✓ Universal UR Series Compatibility: Seamless integration with GE Multilin UR relay platforms ensures consistent performance across generator protection, transformer differential, motor protection, and feeder management applications.

✓ Industrial Temperature Range: Operates reliably from -40°C to +85°C, making it suitable for outdoor substations, desert installations, arctic facilities, and high-temperature industrial processes without climate control requirements.

✓ Backplane-Powered Architecture: Eliminates external power supply dependencies by drawing power directly from the UR relay chassis, reducing wiring complexity and improving system reliability through centralized power management.

✓ Modular Slot Installation: Tool-free mounting into standard UR relay chassis slots accelerates deployment timelines, simplifies maintenance procedures, and supports rapid field replacements during emergency repairs.

✓ Factory-Tested Quality Assurance: Each module undergoes rigorous environmental stress screening, burn-in testing, and functional validation to meet utility-grade reliability standards and minimize field failure rates.

Industrial Application Scenarios

→ Substation Protection & Automation: Utility operators integrate the UR6NH into transmission and distribution substations to expand relay I/O for breaker control, disconnect switch monitoring, alarm annunciation, and remote terminal unit (RTU) interfacing. The module enables sophisticated protection schemes such as bus differential, distance protection zones, and synchrophasor data acquisition without relay replacement.

→ Power Generation Facilities: Generator protection systems utilize the UR6NH to monitor excitation systems, turbine trip circuits, cooling system status, and auxiliary equipment alarms. The expanded I/O capacity supports comprehensive generator protection including loss-of-field, reverse power, and out-of-step detection while maintaining compliance with NERC reliability standards.

→ Industrial Motor Control Centers: Manufacturing plants deploy the module for medium-voltage motor protection applications requiring extensive I/O for bearing temperature monitoring, vibration sensors, cooling fan status, and emergency shutdown circuits. The UR6NH reduces installation costs by consolidating multiple protection functions into a single relay platform.

→ Renewable Energy Integration: Wind farms and solar installations leverage the UR6NH for grid interconnection protection, inverter monitoring, and SCADA communication. The module's wide temperature range and EMI immunity make it ideal for outdoor equipment enclosures and remote unmanned sites.

→ Water & Wastewater Treatment: Critical infrastructure facilities use the module to expand relay I/O for pump control, valve position feedback, level switch monitoring, and chemical feed system interlocks, ensuring continuous operation of essential public services.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the UR6NH, verify your existing UR relay chassis has available expansion slots and confirm firmware compatibility with your protection application. For systems requiring analog I/O, CT/VT inputs, or communication interfaces, consider complementary modules from the UR accessory portfolio. Consult factory documentation to determine exact I/O channel counts and voltage ratings for your specific relay model and firmware version.

Extended Functionality & System Integration

The UR6NH supports advanced integration scenarios through its compatibility with GE's EnerVista software suite, enabling remote configuration, real-time diagnostics, and event record analysis. The module's digital inputs can be programmed for contact debouncing, pulse counting, and frequency measurement, while outputs support configurable trip/close logic, alarm routing, and sequential control operations.

For IIoT-enabled substations, the UR6NH integrates with IEC 61850 communication architectures when paired with appropriate UR relay communication modules, supporting GOOSE messaging and sampled values for distributed protection schemes. Cybersecurity features include role-based access control and encrypted communication protocols to meet NERC CIP compliance requirements.

Customization options include factory programming for specific I/O configurations, extended temperature testing for extreme environments, and conformal coating for high-humidity or corrosive atmospheres. Contact our engineering team to discuss application-specific requirements and custom validation testing.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock UR6NH modules ship within 1-2 business days via express courier services. Typical transit times range from 3-7 days for domestic shipments and 7-14 days for international destinations, depending on customs clearance and local logistics.

Custom Configuration: Factory-programmed modules or units requiring special testing may require 2-4 weeks lead time. Expedited processing available for emergency outage situations and critical infrastructure projects.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues under normal operating conditions. Warranty includes advance replacement service to minimize downtime during failure investigations.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and integration planning. Support includes firmware update recommendations, protection setting validation, and system commissioning checklists.

Documentation Package: Each module ships with installation instructions, dimensional drawings, wiring diagrams, and firmware compatibility matrices. Digital resources include CAD files, relay setting templates, and commissioning test procedures.

Frequently Asked Questions

Q: How do I determine if the UR6NH Digital I/O Module is compatible with my existing relay configuration?
A: The UR6NH is designed for universal compatibility with GE Multilin UR series relays. Verify your relay model supports expansion modules by checking for available backplane slots and consult your relay's firmware version documentation. Our technical team can perform compatibility verification using your relay serial number and current configuration files.

Q: What is the maximum number of UR6NH modules that can be installed in a single relay chassis?
A: The maximum module count depends on your specific UR relay chassis model and available expansion slots. Most UR relay platforms support 2-6 expansion modules simultaneously. Contact us with your relay model number for exact slot availability and power budget calculations to ensure stable operation.

Q: Can the UR6NH Digital I/O Module improve energy efficiency in my protection system?
A: While the UR6NH itself is a passive expansion module, it enables more sophisticated protection algorithms that can reduce equipment stress, prevent unnecessary trips, and optimize load management. By consolidating multiple protection functions into a single relay platform, you eliminate redundant hardware and reduce overall panel power consumption by 15-25% compared to multi-relay architectures.

Q: What are the installation requirements for mounting the UR6NH module?
A: Installation requires no special tools—simply insert the module into an available chassis slot until it seats firmly against the backplane connector. The relay automatically detects the module upon power-up and makes it available for configuration through EnerVista software. Ensure the relay is de-energized before installation to prevent damage and ensure personnel safety.

Q: Does the UR6NH support remote monitoring and diagnostics capabilities?
A: Yes, when integrated with UR relay communication modules and connected to SCADA systems, the UR6NH's I/O status can be monitored remotely via Modbus, DNP3, or IEC 61850 protocols. Real-time I/O state information, diagnostic alarms, and event records are accessible through EnerVista software or third-party HMI platforms for comprehensive system visibility.

Q: What technical documentation is provided to support commissioning and maintenance activities?
A: Each UR6NH module includes comprehensive documentation covering installation procedures, wiring diagrams, I/O specifications, and troubleshooting guides. Digital resources available for download include relay setting templates, AutoCAD panel layout files, and commissioning test sheets. Our support team provides additional application notes for specific protection schemes and integration scenarios.

Order Your UR6NH Digital I/O Module Today

Enhance your power protection infrastructure with the UR6NH Digital I/O Expansion Module—engineered for reliability, designed for performance, and backed by comprehensive warranty and technical support. Whether you're upgrading existing substations, commissioning new facilities, or expanding industrial automation systems, the UR6NH delivers the I/O capacity and flexibility your critical applications demand.

Ready to expand your relay capabilities? Contact our technical sales team for application consultation, compatibility verification, and competitive pricing. We maintain extensive inventory for immediate shipment and offer volume discounts for multi-unit projects and system integrators.
