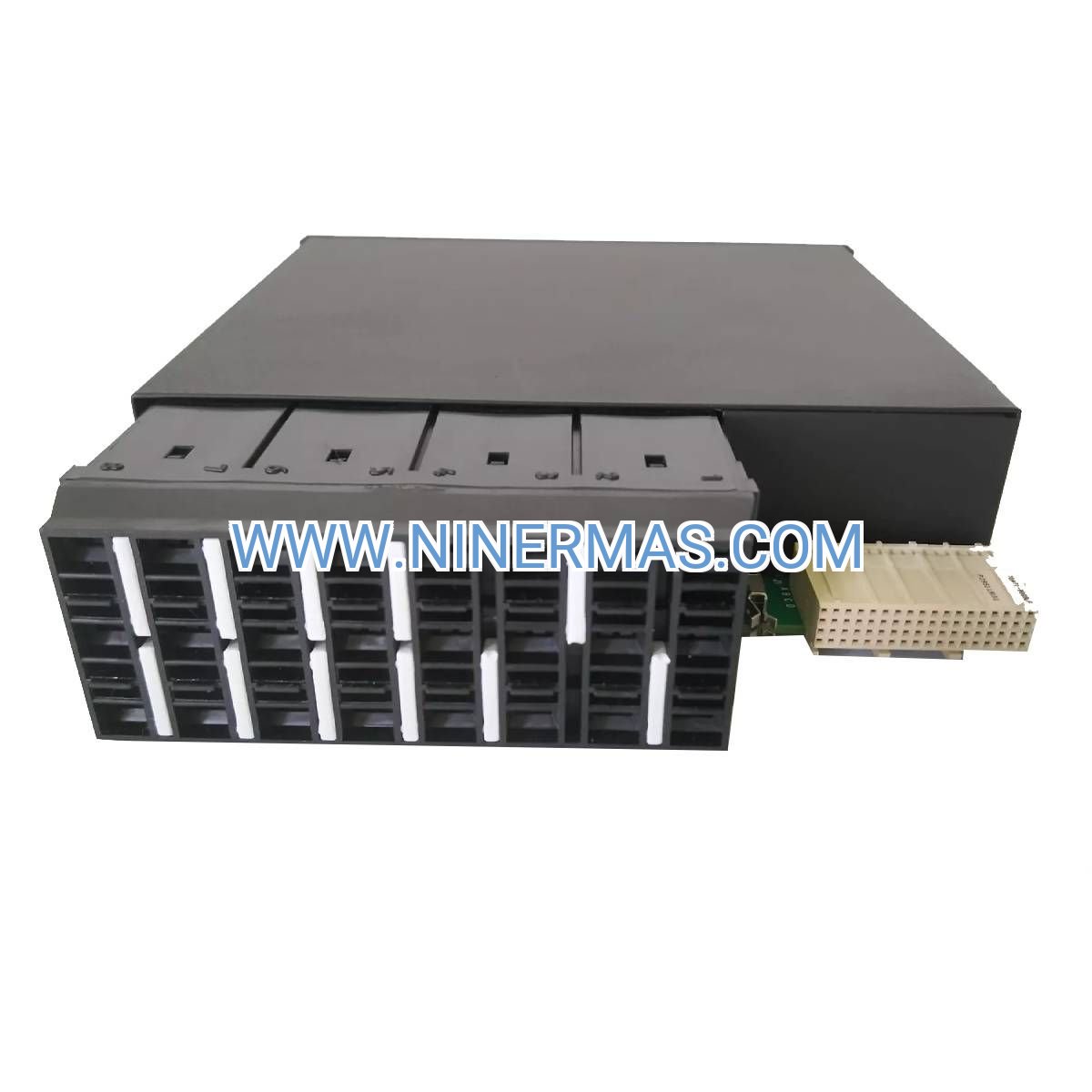

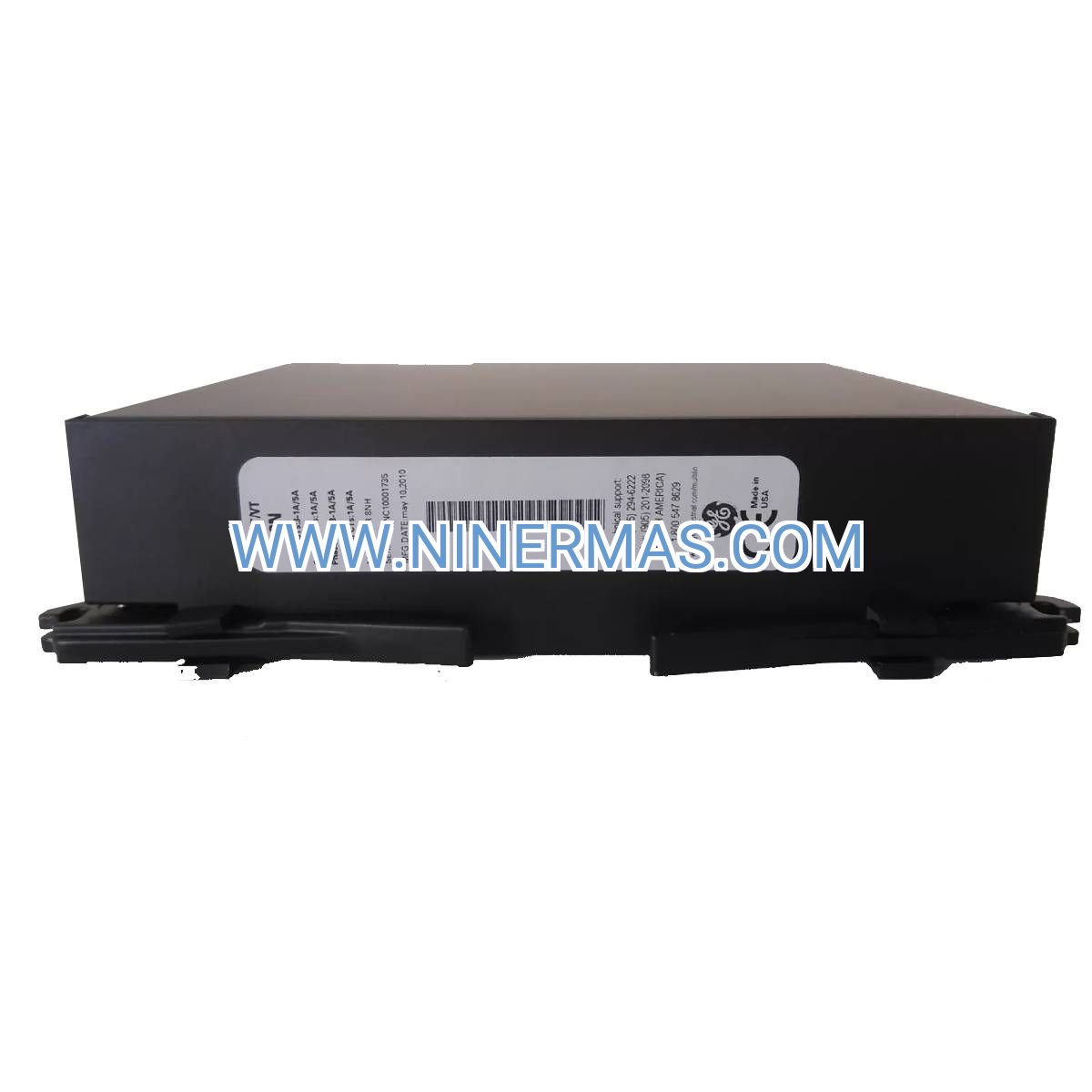

GE UR 8NH CT/VT Module (Industrial-Grade Current Monitoring Solution)

The GE UR 8NH represents a precision-engineered current transformer interface module within the Multilin Universal Relay ecosystem. Delivering eight independent CT input channels, this module serves as the critical sensing layer for power system protection, enabling utilities and industrial operators to monitor three-phase current flows with laboratory-grade accuracy across substations, generation facilities, and mission-critical distribution networks.

Built for environments where protection reliability directly impacts operational continuity, the UR 8NH addresses the fundamental challenge of accurate current measurement under both steady-state and fault conditions. Whether you're protecting a 13.8kV feeder, a 500HP motor, or a 50MVA transformer, this module provides the measurement foundation that protection algorithms depend on.

With field-proven thermal withstand capabilities and seamless integration into the modular UR platform, the 8NH module transforms raw CT secondary currents into actionable protection data—enabling overcurrent, differential, directional, and thermal protection schemes that safeguard your most valuable electrical assets.

Core Features & Business Value

→ Eight Independent CT Channels
Monitor up to eight current signals simultaneously, supporting complex protection schemes including differential, REF, and multi-feeder applications. Eliminates the need for multiple relay panels while reducing wiring complexity and installation costs by up to 40%.

→ ±0.5% Measurement Accuracy
Precision analog-to-digital conversion ensures reliable fault detection and accurate metering. This accuracy level prevents nuisance trips while guaranteeing protection operates within design margins—critical for coordination studies and arc flash analysis.

→ 100x Thermal Withstand (1 Second)
Survives extreme fault currents without damage or calibration drift. In a 5A system, this translates to 500A fault current capability, protecting your investment during short circuits and ensuring continuous operation after fault clearing.

✓ Modular UR Platform Integration
Hot-swappable design allows module replacement without de-energizing the entire relay system. Reduces MTTR (Mean Time To Repair) from hours to minutes, minimizing protection system downtime and improving overall system availability.

✓ -40°C to +85°C Operating Range
Proven performance in outdoor substations, desert installations, and arctic environments. Temperature-compensated circuitry maintains accuracy specifications across the full range, eliminating seasonal calibration requirements.

✓ IEC 61850 & IEEE C37.90 Certified
Full compliance with international protection relay standards ensures interoperability with SCADA systems, substation automation platforms, and third-party devices. Simplifies engineering, commissioning, and long-term system integration.

Application Scenarios

Utility Substation Protection
Electric utilities deploy the UR 8NH for transmission and distribution feeder protection where multiple three-phase circuits require simultaneous monitoring. The module's eight channels support two complete three-phase feeders plus two neutral/ground inputs, enabling comprehensive protection coverage in compact switchgear lineups. When combined with directional overcurrent elements, it provides selective fault isolation that minimizes customer outage duration.

Industrial Motor Control Centers
Manufacturing facilities and process plants utilize the 8NH module for critical motor protection applications. By monitoring stator currents, bearing currents, and neutral currents simultaneously, the module enables advanced protection functions including thermal modeling, phase imbalance detection, and sensitive ground fault protection—preventing catastrophic motor failures that can halt production lines.

Generator & Transformer Differential Protection
Power generation facilities leverage the UR 8NH's multi-channel capability for high-impedance or percentage differential schemes. With six channels dedicated to differential zones (three per winding) and two for REF (Restricted Earth Fault) protection, the module provides the input architecture required for IEC 60255-compliant transformer and generator protection.

Renewable Energy Integration
Solar farms and wind installations use the 8NH module to monitor inverter output currents, collector bus currents, and POI (Point of Interconnection) currents. The module's wide frequency tolerance accommodates harmonic-rich waveforms from power electronics, while its accuracy supports revenue metering and grid code compliance verification.

Arc Flash Mitigation Systems
Facilities implementing arc flash reduction maintenance switching leverage the UR 8NH's high-speed sampling for instantaneous overcurrent protection. With trip times under 50ms when paired with high-speed CPUs, the module enables Zone Selective Interlocking (ZSI) schemes that reduce incident energy levels and improve worker safety during maintenance operations.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the UR 8NH when your application requires more than four CT inputs or when implementing differential protection schemes. For applications with four or fewer CT inputs, consider the UR 8CH module for cost optimization. When selecting CT ratios, specify 1A secondaries for long cable runs (>100m) to minimize burden, or 5A secondaries for standard panel-mount applications. Always verify that your CT thermal rating exceeds the module's 100x withstand specification to prevent CT saturation during fault conditions.

Extended Functions

Advanced Metering Integration: The UR 8NH supports revenue-grade metering when paired with UR 9-series CPU modules, providing kWh, kVARh, and demand measurements compliant with IEC 62053 Class 0.5S accuracy. This dual-use capability eliminates the need for separate metering equipment in many applications.

Harmonic Analysis: High-speed sampling enables harmonic measurement up to the 63rd order, supporting power quality analysis and harmonic filter tuning in industrial facilities with variable frequency drives and non-linear loads.

Sequence Component Calculation: Real-time positive, negative, and zero sequence current calculation supports unbalanced load detection, single-phasing protection, and ground fault directional determination without external processing.

Synchrophasor Capability: When configured with GPS-synchronized CPU modules, the 8NH provides time-aligned current phasor measurements for wide-area monitoring systems (WAMS) and disturbance analysis—critical for grid stability studies and post-fault forensics.

Customization Options: Factory configuration services available for pre-programmed CT ratios, custom calibration certificates, and extended temperature testing for extreme environment deployments. Contact our engineering team for application-specific modifications.

Delivery & Service

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited processing available for critical outage situations—contact our team for emergency support options.

Warranty: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for fleet deployments and critical infrastructure applications.

Technical Support: Lifetime application engineering support included with purchase. Our protection specialists provide configuration assistance, protection coordination studies, and troubleshooting guidance via phone, email, and remote desktop support. Average response time: <4 hours for technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample protection settings. Complete UR platform documentation library available for download, including AutoCAD panel drawings and relay coordination spreadsheets.

Training: On-site and virtual training programs available covering UR platform architecture, protection philosophy, and commissioning procedures. Certification programs offered for protection engineers and maintenance technicians.

FAQ

What CT ratios are compatible with the UR 8NH current transformer module?
The module accepts any standard CT with 1A or 5A secondary output. Primary ratios from 50:5 to 4000:5 are commonly used. Each channel is independently configurable, allowing mixed CT ratios within the same module—ideal for applications monitoring different voltage classes or equipment types.

How does the UR 8NH module integrate with existing SCADA systems?
The module communicates via the UR platform's backplane to CPU modules equipped with Ethernet, serial, or fiber-optic communication interfaces. Supported protocols include DNP3, Modbus, IEC 61850 GOOSE/MMS, and Profibus. Current measurements are mapped to SCADA points through the UR configuration software, enabling real-time monitoring and historical trending.

Can I replace a UR 8NH module without shutting down the protection relay?
Yes, the UR platform supports hot-swapping of I/O modules when the chassis is equipped with redundant power supplies. Protection functions continue operating on remaining modules during replacement. However, circuits monitored by the removed module will lose protection coverage during the swap—plan replacements during scheduled maintenance windows when possible.

What's the difference between UR 8NH and UR 8CH current input modules?
The UR 8NH provides eight CT inputs, while the UR 8CH offers four CT inputs plus four VT (voltage transformer) inputs. Choose 8NH for current-only applications like motor protection or feeder monitoring. Select 8CH when you need combined current and voltage measurement for directional elements, power metering, or impedance-based protection.

Does the module require periodic calibration for accuracy maintenance?
No field calibration is required. The UR 8NH maintains factory accuracy specifications throughout its operational life (typically 15-20 years). Annual verification testing is recommended for revenue metering applications, but protection accuracy remains stable without intervention. All modules undergo 100% factory testing with NIST-traceable calibration before shipment.

How do I configure CT polarity and phase rotation settings?
CT polarity and phase sequence are configured through the UR Setup software using graphical wiring diagrams. The software includes polarity test functions that inject test signals and verify correct wiring before energization. Incorrect polarity is automatically detected during commissioning, preventing protection misoperation due to wiring errors.

Ready to Upgrade Your Protection System?

The GE UR 8NH module delivers the measurement precision and reliability your critical infrastructure demands. Whether you're designing a new substation, retrofitting aging electromechanical relays, or expanding existing UR platform installations, our protection specialists are ready to assist with application engineering, configuration support, and technical consultation.

Contact our team today: Request a detailed quotation, discuss your protection requirements, or schedule a technical consultation with our certified protection engineers. We provide complete system design support—from CT sizing and relay coordination to commissioning assistance and operator training.
