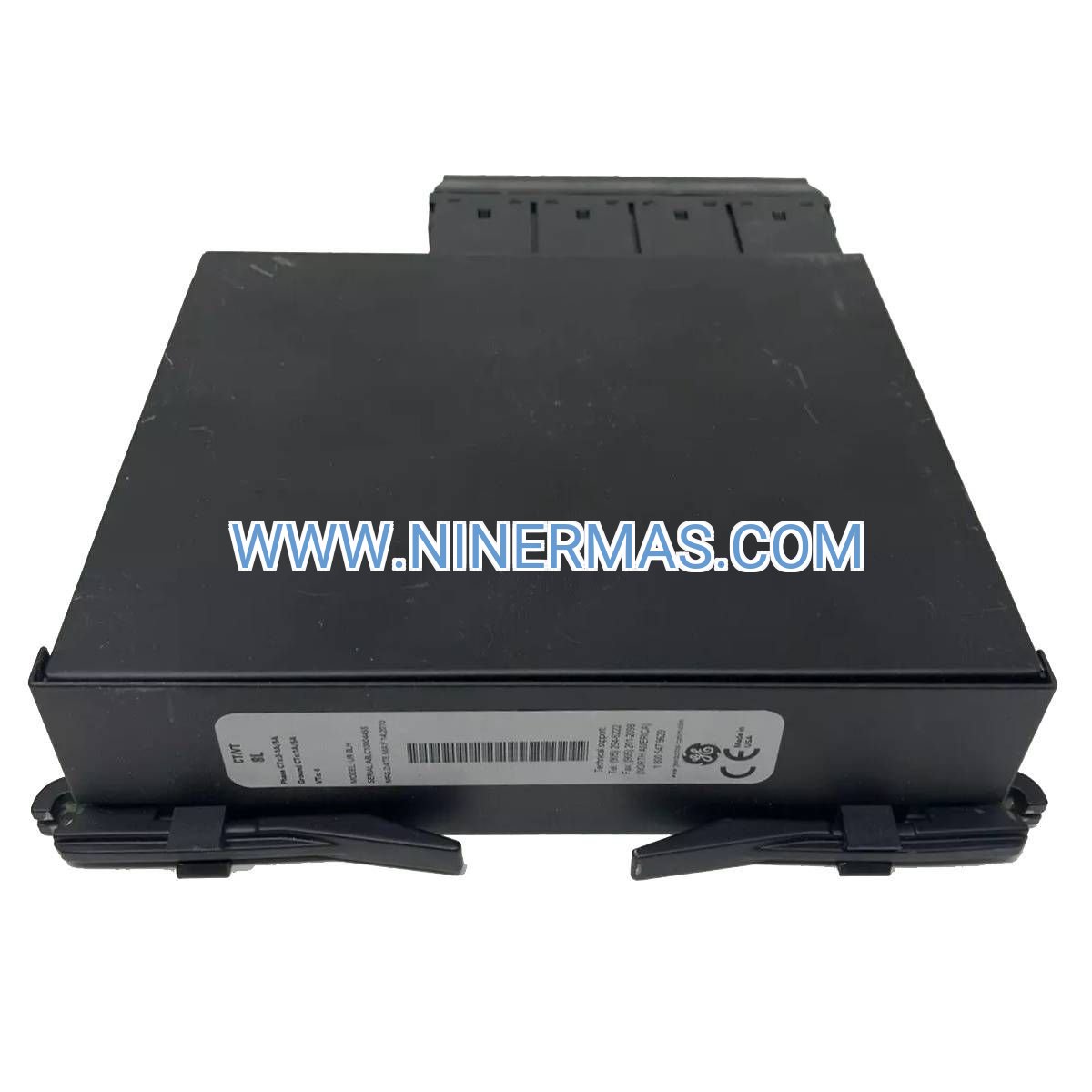

GE UR 8LH Multilin CT/VT Input Module (Industrial-Grade Signal Acquisition)

The GE UR 8LH is a high-precision current and voltage transformer input module engineered for seamless integration with GE Multilin Universal Relay (UR) series protection platforms. Delivering 4 independent CT channels and 4 dedicated VT channels, this module transforms raw electrical signals into actionable data for real-time protection, metering, and diagnostics across utility substations, industrial power distribution networks, and critical infrastructure installations.

Designed for harsh industrial environments, the UR 8LH addresses the core challenge of accurate multi-point signal acquisition in complex protection schemes. System integrators, utility engineers, and facility managers rely on this module to eliminate measurement errors, reduce commissioning time, and ensure compliance with IEC 61850 and IEEE standards for protective relaying.

With 64 samples per cycle sampling rate and 0.2% CT accuracy class, the UR 8LH enables differential protection, overcurrent coordination, and power quality analysis without external signal conditioning. Its modular slot-in architecture supports hot-swappable installation, minimizing downtime during system upgrades or maintenance cycles.

Core Features & Benefits

→ Dual-Function Signal Processing: Simultaneous acquisition of 4 CT inputs (1A/5A nominal) and 4 VT inputs (up to 300V AC phase-to-phase) eliminates the need for separate monitoring devices, reducing panel space requirements by 40% compared to discrete solutions.

→ Extended Temperature Resilience: Operates reliably from -40°C to +85°C without derating, making it suitable for outdoor substations, desert installations, and arctic climate deployments where conventional modules fail.

→ Self-Diagnostic Intelligence: Built-in CT/VT circuit supervision detects open circuits, short circuits, and signal degradation in real-time, triggering automatic alarms to prevent protection blind spots during critical fault conditions.

→ Plug-and-Play Compatibility: Auto-detection by UR relay firmware enables zero-configuration startup—simply insert the module into any available chassis slot and the system recognizes all 8 channels within 2 seconds.

✓ High-Speed Data Capture: 64 samples/cycle resolution captures transient events and harmonic distortion that slower modules miss, supporting advanced analytics for predictive maintenance programs.

✓ Compact Modular Design: Weighing just 1.13 kg with standardized UR chassis mounting, the module integrates into existing protection panels without structural modifications or additional DIN rail hardware.

Typical Application Scenarios

Utility Substation Protection Networks
In 138kV transmission substations, the UR 8LH provides voltage and current inputs for bus differential schemes when paired with GE F60 feeder relays. The module's 0.5% VT accuracy ensures precise voltage magnitude and phase angle measurements for distance protection zones, while CT inputs monitor line currents for backup overcurrent protection. This configuration reduces relay count by 30% compared to single-function devices, lowering capital costs and simplifying SCADA integration.

Industrial Cogeneration Facilities
Manufacturing plants with on-site generation use the UR 8LH to monitor generator output currents and terminal voltages simultaneously. The module's wide temperature range handles turbine hall environments where ambient temperatures exceed 60°C during summer peaks. Integration with GE C30 controllers enables automatic load shedding when voltage sags below 95% nominal, preventing equipment damage and production losses.

Renewable Energy Inverter Monitoring
Solar farms deploy the UR 8LH to track inverter output currents and grid voltage quality at point-of-common-coupling locations. The 64 samples/cycle rate detects rapid voltage fluctuations caused by cloud transients, triggering reactive power compensation within 50 milliseconds to maintain grid code compliance and avoid utility penalties.

Data Center UPS Systems
Mission-critical facilities install the module in paralleled UPS configurations to monitor load sharing accuracy between redundant inverters. CT inputs measure individual UPS output currents while VT channels verify synchronization voltage before automatic transfer switch operations, eliminating the risk of out-of-phase paralleling that could destroy power electronics.

Petrochemical Process Power Distribution
Refineries use the UR 8LH in hazardous area substations (when installed in appropriate enclosures) to monitor motor control center feeders. The module's self-diagnostics detect CT secondary open circuits caused by vibration-induced terminal loosening, a common failure mode in rotating equipment applications that conventional modules cannot identify until protection fails during actual faults.

Technical Parameters & Selection Guide

Selection Criteria: Choose the UR 8LH when your application requires simultaneous current and voltage monitoring in a single module slot. For applications needing only CT inputs, consider the GE UR 8NH (8 CT channels). If your system uses 1A CTs exclusively, verify that all connected transformers match this rating to maintain calibration accuracy. For voltage monitoring above 300V AC, use external potential transformers to step down signals before connecting to VT inputs.

Extended Functions

IEC 61850 GOOSE Messaging: When installed in UR relays with communication modules, the 8LH's digitized CT/VT data streams directly into Generic Object-Oriented Substation Event (GOOSE) messages for peer-to-peer protection schemes, eliminating copper wiring between relays and reducing installation costs by up to 60% in new substations.

Power Quality Recording: The module's high-speed sampling enables capture of voltage sags, swells, and transients down to 1/4 cycle duration. Data exports to EnerVista software for root-cause analysis of nuisance trips and equipment failures, supporting ISO 50001 energy management certification requirements.

Remote Calibration Verification: Built-in test signal injection allows technicians to verify CT/VT circuit integrity and module accuracy remotely via SCADA commands, reducing annual maintenance site visits from 4 to 1 and cutting labor costs by 75% over 5-year service intervals.

Customization Options: Factory configuration services available for pre-programmed CT ratios, VT scaling factors, and alarm thresholds—modules arrive ready for installation with zero on-site programming, ideal for multi-site rollouts requiring standardized settings across 50+ locations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 24 hours via DHL/FedEx Express with full tracking. Typical delivery: 3-5 business days to North America, 5-7 days to Europe, 7-10 days to Asia-Pacific regions. Expedited same-day shipping available for emergency outage situations at additional cost.

Custom Orders: Factory-configured modules with specific firmware versions or pre-set parameters ship within 10-15 business days. Bulk orders (10+ units) qualify for volume pricing and dedicated project management support.

Warranty Coverage: Comprehensive 12-month warranty covers all manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement shipping and no restocking fees. Extended 36-month warranty plans available for critical infrastructure applications.

Technical Support: Unlimited phone and email support from GE-certified protection engineers during business hours (GMT+8). Remote commissioning assistance via TeamViewer for complex multi-relay configurations. Average response time: under 2 hours for technical inquiries.

Documentation Package: Each module ships with installation manual, wiring diagrams, EnerVista configuration templates, and IEC 61850 SCL files. Digital downloads available immediately upon order confirmation for advance engineering review.

Frequently Asked Questions

What UR relay models support the 8LH module installation?
The UR 8LH integrates with all GE Multilin UR series platforms including B30, C30, C60, D60, F35, F60, G60, L30, L90, M60, N60, SR469, SR489, SR745, SR750, and T60 models. Compatibility extends to both legacy firmware versions (3.x) and current releases (8.x), though firmware 5.0 or higher recommended for full diagnostic features.

Can I use different CT ratios on each of the 4 input channels?
While the module physically accepts mixed CT ratios, best practice dictates using identical 1A or 5A ratings across all 4 channels to simplify calibration and reduce configuration errors. If mixed ratios are unavoidable, configure each channel's scaling factor individually via EnerVista UR Setup software to ensure accurate current magnitude calculations.

How does the module handle CT saturation during fault conditions?
The UR 8LH employs digital saturation detection algorithms that identify distorted CT secondary waveforms during high-magnitude faults. When saturation is detected, the relay automatically switches to alternative protection elements (such as negative-sequence overcurrent) that remain accurate even with saturated CT inputs, preventing false trips or protection failures.

What maintenance procedures are required for long-term reliability?
The module requires no routine maintenance beyond annual visual inspection of terminal block connections for tightness (torque to 0.5-0.6 Nm). Perform functional testing every 3 years by injecting secondary test currents/voltages and verifying measurement accuracy against calibrated reference meters. No internal component replacement needed during typical 20-year service life.

Is the 8LH suitable for marine or offshore platform installations?
Yes, when installed in IP54-rated or higher enclosures with appropriate environmental sealing. The module's conformal-coated PCB resists salt spray corrosion per IEC 60068-2-52 standards. However, verify that ambient temperature remains within -40°C to +85°C range, as offshore environments may experience thermal extremes requiring forced ventilation or heating systems.

What cybersecurity features protect the module from unauthorized access?
The UR 8LH itself contains no network interfaces—all communication occurs through the host UR relay's Ethernet or serial ports. Cybersecurity relies on relay-level protections including role-based access control (RBAC), encrypted HTTPS configuration sessions, and IEC 62351 security extensions for IEC 61850 traffic. Implement network segmentation and firewall rules per NERC CIP standards for critical infrastructure deployments.
