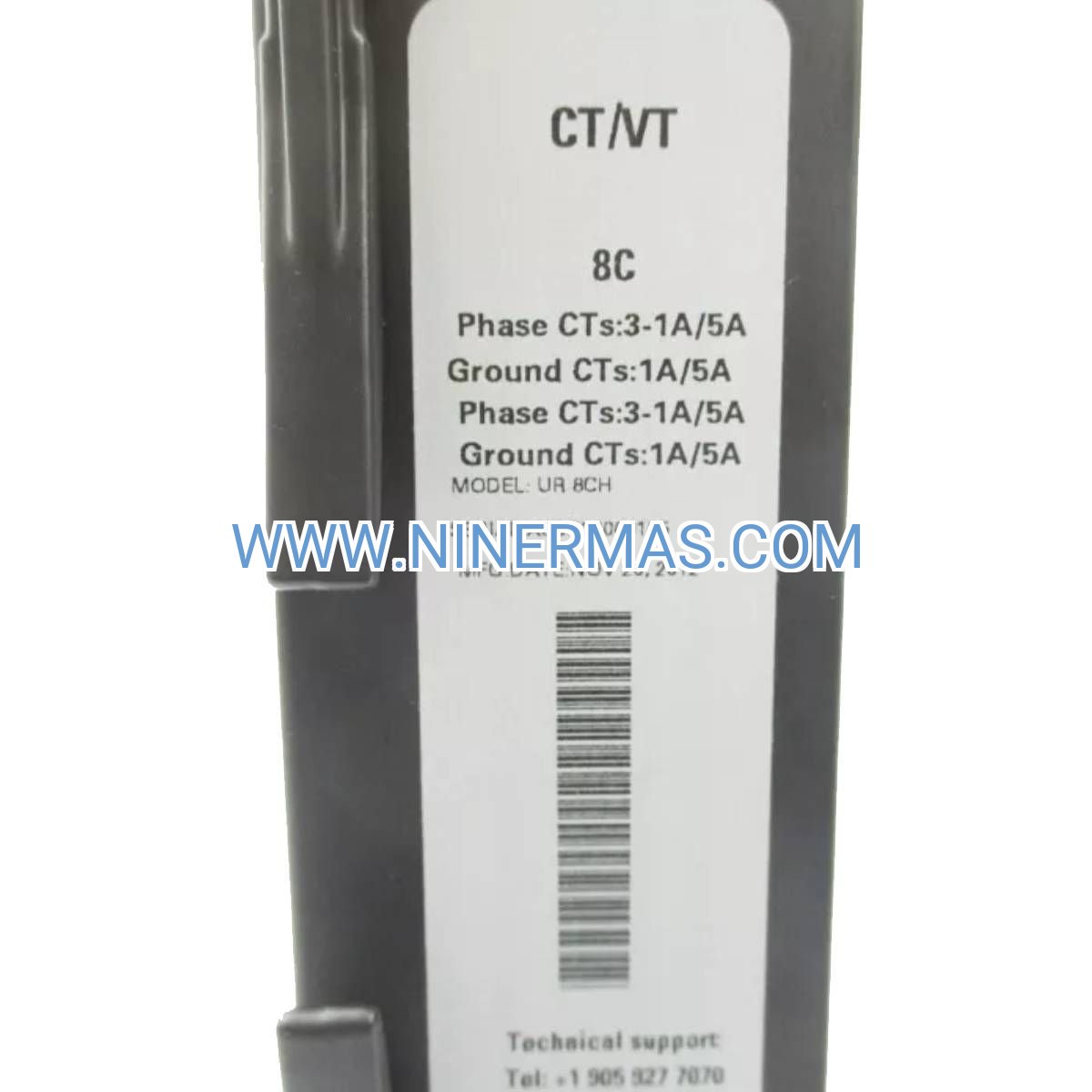

UR 8CH Current & Voltage Transformer Module (Industrial-Grade Substation Protection)

Designed for mission-critical power infrastructure, the UR 8CH CT/VT Module is a precision-engineered input interface for GE Multilin Universal Relay systems. This module captures real-time current and voltage signals from three-phase electrical networks, enabling advanced protection algorithms to detect faults, overloads, and system anomalies before they escalate into costly downtime or equipment damage.

Ideal for utility substations, industrial power distribution centers, and renewable energy installations, the UR 8CH integrates seamlessly into existing UR relay architectures. Its factory-calibrated sensors deliver 0.2% voltage accuracy and 0.5% current accuracy, meeting stringent IEC 61850 and IEEE C37.2 standards for protective relaying applications.

Whether you're upgrading legacy electromechanical relays or expanding a modern digital protection scheme, the UR 8CH provides the measurement foundation for differential protection, directional overcurrent coordination, and synchronized phasor monitoring across your electrical network.

Core Features & Benefits

→ Quad-Channel Current Sensing
Monitors three phase conductors plus one ground/neutral path simultaneously. Supports both 1A and 5A secondary CT standards with programmable ratios up to 50,000:1, eliminating the need for external transducers in high-current applications.

→ Three-Phase Voltage Acquisition
Direct VT inputs accept 50-300V AC phase-to-neutral signals with automatic frequency tracking (50/60 Hz). Built-in surge protection withstands transient overvoltages up to 2 kV, safeguarding sensitive electronics during switching operations.

→ Hot-Swappable Modular Architecture
Replace or upgrade modules without shutting down the entire relay system. Keyed connectors prevent incorrect installation, while onboard diagnostics verify signal integrity within 200 milliseconds of insertion.

→ Extended Environmental Tolerance
Operates reliably from -40°C to +85°C with conformal-coated PCBs that resist humidity, dust, and corrosive atmospheres. Ideal for outdoor switchyards, marine platforms, and harsh industrial environments.

✓ Factory Calibration with Traceable Certification
Each unit ships with NIST-traceable calibration data, eliminating field commissioning delays. Self-test routines continuously validate measurement accuracy against internal references.

✓ Seamless UR Platform Integration
Communicates via the UR series backplane bus, sharing data with CPU modules, I/O cards, and communication interfaces without external wiring. Supports firmware updates through the relay's front panel or Ethernet port.

Typical Application Scenarios

Utility Substation Feeder Protection
In medium-voltage distribution networks (4.16 kV to 34.5 kV), the UR 8CH module feeds current and voltage data to overcurrent relays that isolate faulted feeders in under 50 milliseconds. Utilities deploy this configuration to minimize outage duration and improve SAIDI/SAIFI reliability metrics.

Industrial Motor Control Centers
Manufacturing facilities use the UR 8CH to monitor large induction motors (500 HP+), detecting locked-rotor conditions, phase imbalances, and thermal overloads. Integration with motor management relays enables predictive maintenance alerts based on current signature analysis.

Transformer Differential Protection
Power transformers (5 MVA to 100 MVA) require precise current comparison between primary and secondary windings. The UR 8CH's dual CT inputs support percentage differential schemes that distinguish between internal faults and magnetizing inrush currents.

Renewable Energy Grid Interconnection
Solar farms and wind parks leverage the UR 8CH for anti-islanding protection and voltage ride-through compliance. The module's fast sampling rate (64 samples/cycle) captures sub-cycle transients during grid disturbances, ensuring IEEE 1547 conformance.

Data Center UPS Monitoring
Critical IT infrastructure depends on the UR 8CH to supervise uninterruptible power supplies and automatic transfer switches. Voltage sag detection triggers seamless transitions to backup generators, preventing server crashes during utility outages.

Technical Parameters & Selection Guide

Selection Criteria: Choose the UR 8CH when your application requires simultaneous monitoring of three-phase currents and voltages within a single module slot. For applications needing only current inputs, consider the UR8AH variant. If your system demands additional ground fault sensitivity, pair the UR 8CH with a dedicated zero-sequence CT module.

Extended Functions

Synchrophasor Measurement (PMU Capability)
When paired with compatible UR CPU modules, the UR 8CH supports IEEE C37.118 phasor measurement unit (PMU) functionality. This enables wide-area monitoring systems (WAMS) to track grid stability in real time, detecting oscillations and voltage collapse precursors across interconnected networks.

Harmonic Analysis & Power Quality Monitoring
The module's high-resolution ADCs capture harmonic distortion up to the 63rd order, providing data for power quality assessments. Identify non-linear loads causing voltage notching, flicker, or resonance issues that degrade equipment lifespan.

Customizable Alarm Thresholds
Program independent setpoints for overcurrent, undervoltage, overvoltage, and phase imbalance conditions. Relay outputs trigger SCADA alarms or initiate automated load-shedding sequences during abnormal operating conditions.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days via express courier (DHL/FedEx). Custom-configured modules with specialized firmware require 7-10 business days for factory programming and testing.

Warranty Coverage: 12-month manufacturer's warranty covers defects in materials and workmanship. Extended warranties (up to 5 years) available for critical infrastructure projects requiring long-term asset protection.

Technical Support: Our application engineers provide pre-sales consultation, system design review, and post-installation troubleshooting. Access includes relay programming assistance, protection coordination studies, and firmware upgrade guidance.

Documentation Package: Each module includes installation manual, wiring diagrams, calibration certificate, and configuration templates for common protection schemes. Digital resources available through our online technical library.

Frequently Asked Questions

What CT burden does the UR 8CH module impose on current transformers?
The module presents less than 0.1 VA burden per CT input at rated current, allowing use with low-burden CTs in high-impedance differential schemes. This minimizes CT saturation risks during through-fault conditions.

Can I retrofit this module into older UR relay chassis from 2010-2015?
Yes, the UR 8CH maintains backward compatibility with all UR series chassis manufactured since 2008. Firmware updates may be required on the CPU module to unlock advanced features like PMU functionality.

How does the module handle CT saturation during fault conditions?
Built-in saturation detection algorithms identify distorted current waveforms and flag them to the protection logic. This prevents false tripping during external faults while maintaining sensitivity to internal faults.

What voltage levels can the VT inputs safely monitor?
Direct connection supports 50-300V AC phase-to-neutral (87-520V phase-to-phase in wye configurations). For higher voltages, use external potential transformers to step down to the module's input range.

Is special training required for installation and commissioning?
Basic electrical knowledge and familiarity with protective relaying principles are sufficient. GE offers online training modules and on-site commissioning support for complex multi-relay installations.

Does the module support remote diagnostics and firmware updates?
Yes, when connected to the UR relay's Ethernet port, technicians can access module diagnostics, download event records, and upload firmware updates remotely via the EnerVista software suite.

Ready to Enhance Your Power Protection System?

Contact our technical sales team for application-specific recommendations, volume pricing, or integration support. We maintain extensive inventory of UR series components for immediate deployment in time-sensitive projects.
