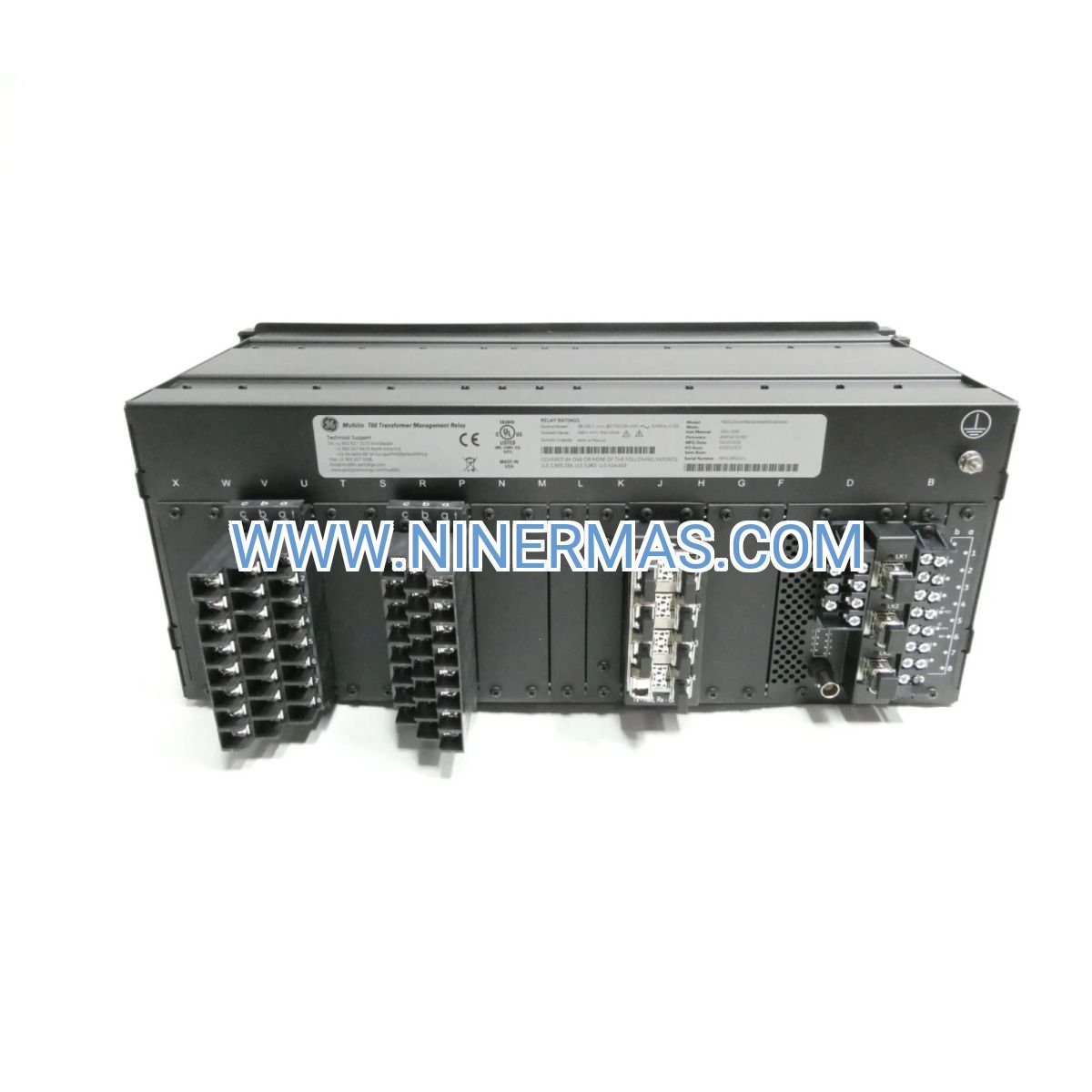

T60 Multilin Relay – Industrial-Grade Transformer Protection Platform

Engineered for mission-critical transformer assets, the T60G01HCHF8HH67M8FP6DU6DW6C combines high-speed percentage differential algorithms with comprehensive backup protection, advanced metering, and multi-protocol communication in a single 19-inch rack-mount platform. Designed for utility substations, industrial power distribution, and renewable energy installations, this relay delivers uncompromising protection for transformers ranging from 10MVA to 500MVA.

Utilities and industrial operators face escalating demands for asset reliability, cybersecurity compliance, and real-time diagnostics. The T60 addresses these challenges through IEEE/IEC-compliant thermal modeling, harmonic restraint logic that eliminates nuisance trips during energization, and native IEC 61850 integration for seamless digital substation deployment.

Whether safeguarding power transformers in transmission networks, distribution transformers in manufacturing facilities, or step-up transformers in wind farms, the T60 provides the intelligence, speed, and flexibility required for modern protection architectures. With 32 digital inputs, 24 relay outputs, and support for up to 8 three-phase CT inputs, this platform scales to the most demanding applications while maintaining intuitive configuration and commissioning workflows.

Core Capabilities & Technical Advantages

→ High-Speed Differential Protection: Percentage differential algorithm with second and fifth harmonic restraint distinguishes internal faults from magnetizing inrush, delivering fault clearance in under 20ms while preventing false trips during transformer energization or through-fault conditions.

→ Comprehensive Backup Protection Suite: Time-overcurrent (51), instantaneous overcurrent (50), ground fault (50N/51N), and directional elements provide multi-layered defense, ensuring selective coordination with upstream and downstream devices across all fault scenarios.

→ Adaptive Thermal Overload Monitoring: Real-time thermal models based on IEEE C57.91 and IEC 60076-7 standards calculate hotspot temperature, predict remaining insulation life, and trigger alarms before thermal limits are exceeded, extending transformer service life by 15-25%.

✓ Multi-Protocol Communication Architecture: Native IEC 61850 (Edition 2), DNP3.0 (Level 3), Modbus RTU/TCP, and IEC 60870-5-103 support enables integration with legacy SCADA systems and next-generation digital substations without protocol converters or gateways.

✓ Cybersecurity-Hardened Design: Role-based access control (RBAC), TLS 1.2 encrypted communications, audit logging, and IEC 62351 compliance protect critical infrastructure from unauthorized access and cyber threats in networked environments.

✓ High-Resolution Oscillography & Event Recording: Captures 64 analog and digital channels at sampling rates up to 128 samples/cycle, providing forensic-quality waveforms for root cause analysis, relay performance validation, and system studies.

Industry Applications & Use Cases

Utility Transmission Substations: Primary protection for 69kV-500kV power transformers in transmission networks. The T60's multi-winding support (two-winding, three-winding, autotransformer) and flexible CT ratio compensation accommodate complex transformer configurations. Integrates with bay controllers and station automation systems via IEC 61850 GOOSE messaging for high-speed interlocking and load shedding schemes. Typical deployment protects 100MVA-500MVA GSU transformers with sub-cycle fault detection, minimizing equipment damage and system disturbances.

Industrial Distribution Systems: Safeguards critical distribution transformers (2.5MVA-25MVA) in petrochemical plants, steel mills, data centers, and manufacturing facilities where unplanned outages result in production losses exceeding $50,000/hour. The relay's thermal monitoring prevents overload-induced failures during peak demand periods, while ground fault protection with directional sensitivity isolates faults without disrupting healthy feeders. Coordination with motor protection relays and feeder management systems creates comprehensive plant-wide protection architectures.

Renewable Energy Installations: Protects step-up transformers (1.5MVA-5MVA) in wind turbine collector systems and solar inverter stations. The T60's wide operating temperature range (-40°C to +70°C) and ruggedized construction withstand harsh environmental conditions in remote locations. IEC 61850 connectivity enables centralized monitoring of distributed transformer assets across wind farms spanning hundreds of square kilometers, reducing O&M costs by 30-40% compared to standalone relay deployments.

Mining & Heavy Industry: Provides reliable protection for rectifier transformers, phase-shifting transformers, and furnace transformers in mining operations and metal processing facilities. The relay's configurable logic engine automates complex protection schemes including breaker failure, transformer lockout, and automatic transfer switching without external PLCs or auxiliary relays.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the T60 for transformer applications requiring differential protection as the primary element. For transformers below 2.5MVA where cost optimization is critical, consider overcurrent-only solutions. For transformers above 100MVA in transmission applications, verify CT accuracy class (5P20 or 10P20 recommended) and burden calculations to ensure differential element stability during maximum through-fault conditions. The T60's eight CT input capability supports three-winding transformers and tertiary winding monitoring without external summation CTs.

Advanced Features & System Expansion

Programmable Logic Engine: Built-in FlexLogic™ with 512 logic nodes enables custom protection schemes, interlocking logic, and automated control sequences without external controllers. Common applications include breaker failure protection, automatic bus transfer, and load shedding based on transformer loading or system frequency.

Synchrophasor Measurement (Optional): IEEE C37.118 compliant phasor measurement unit (PMU) functionality provides synchronized voltage and current phasors at 60 frames/second for wide-area monitoring, state estimation, and post-disturbance analysis in interconnected power systems.

Modular I/O Expansion: Field-upgradable I/O modules add up to 64 additional digital inputs and 48 relay outputs for large substation applications requiring extensive hardwired interlocking or integration with legacy control systems lacking communication capabilities.

Predictive Maintenance Analytics: Trending and statistical analysis of key parameters (load current, voltage unbalance, harmonic distortion, contact wear) enables condition-based maintenance strategies, reducing scheduled maintenance intervals by 40% while improving asset availability.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock configurations; 4-6 weeks for custom I/O configurations or special firmware versions.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and firmware issues. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage.

Technical Support Services: Pre-sales application engineering assistance for protection coordination studies, settings calculations, and system architecture design. Post-sales commissioning support includes remote settings verification, on-site startup assistance, and operator training. Lifetime access to firmware updates, technical bulletins, and application notes.

Documentation Package: Each relay ships with instruction manual, quick start guide, settings calculation worksheets, AutoCAD wiring diagrams, and IEC 61850 ICD/CID files for substation configuration tools (IET600, PCM600, or third-party configurators).

Common Questions & Technical Clarifications

How does the T60 handle transformer inrush currents without false tripping?
The relay employs dual harmonic restraint (second and fifth harmonic) with adaptive thresholds. During energization, inrush currents contain 40-70% second harmonic content, which the algorithm detects and blocks the differential element. Genuine internal faults exhibit minimal harmonic content, allowing instantaneous tripping. This approach achieves 99.9% security against inrush while maintaining <20ms operating time for internal faults.

Can the T60 protect transformers with different winding configurations simultaneously?
Yes. The relay supports two-winding, three-winding, and autotransformer configurations with independent differential zones. CT ratio compensation and phase angle correction accommodate delta-wye, wye-delta, and delta-delta connections. A single T60 can protect a three-winding transformer (HV-MV-LV) with separate differential elements for each winding pair.

What cybersecurity measures protect the relay in networked environments?
The T60 implements defense-in-depth security: role-based access control with password complexity enforcement, TLS 1.2 encryption for all network traffic, MAC address filtering, audit logging of all configuration changes and access attempts, and compliance with NERC CIP and IEC 62351 standards. Firmware is cryptographically signed to prevent unauthorized modifications.

Is the relay compatible with existing GE Multilin infrastructure?
Full compatibility with GE's UR platform, SR series feeder relays, and legacy Multilin products (D60, B30, F60). Settings files can be imported/exported using GE's EnerVista software suite. IEC 61850 interoperability tested with Siemens, ABB, SEL, and Schweitzer relay platforms in multi-vendor substations.

What training is required for commissioning and maintenance personnel?
Basic commissioning requires familiarity with transformer protection principles and relay test equipment (Omicron, Doble, Manta). GE offers 3-day hands-on training courses covering settings calculations, logic programming, and troubleshooting. For routine maintenance, technicians need only verify contact integrity and perform annual functional tests per manufacturer recommendations.

How does thermal monitoring extend transformer life?
The IEEE C57.91 thermal model calculates top-oil and hotspot winding temperatures based on load current, ambient temperature, and transformer thermal characteristics. By preventing operation above rated hotspot temperature (110°C for 65°C rise transformers), the relay reduces insulation aging rate by 50%, potentially extending transformer life from 30 years to 40+ years in typical utility applications.

Get Started with Industrial-Grade Transformer Protection

Protect your critical transformer assets with proven GE Multilin technology trusted by utilities and industrial operators worldwide. Our application engineers are ready to assist with protection coordination studies, settings calculations, and system integration planning.

Contact our technical sales team today: Provide your transformer nameplate data (MVA rating, voltage class, winding configuration, impedance) and application requirements for customized relay configuration recommendations and competitive pricing.
