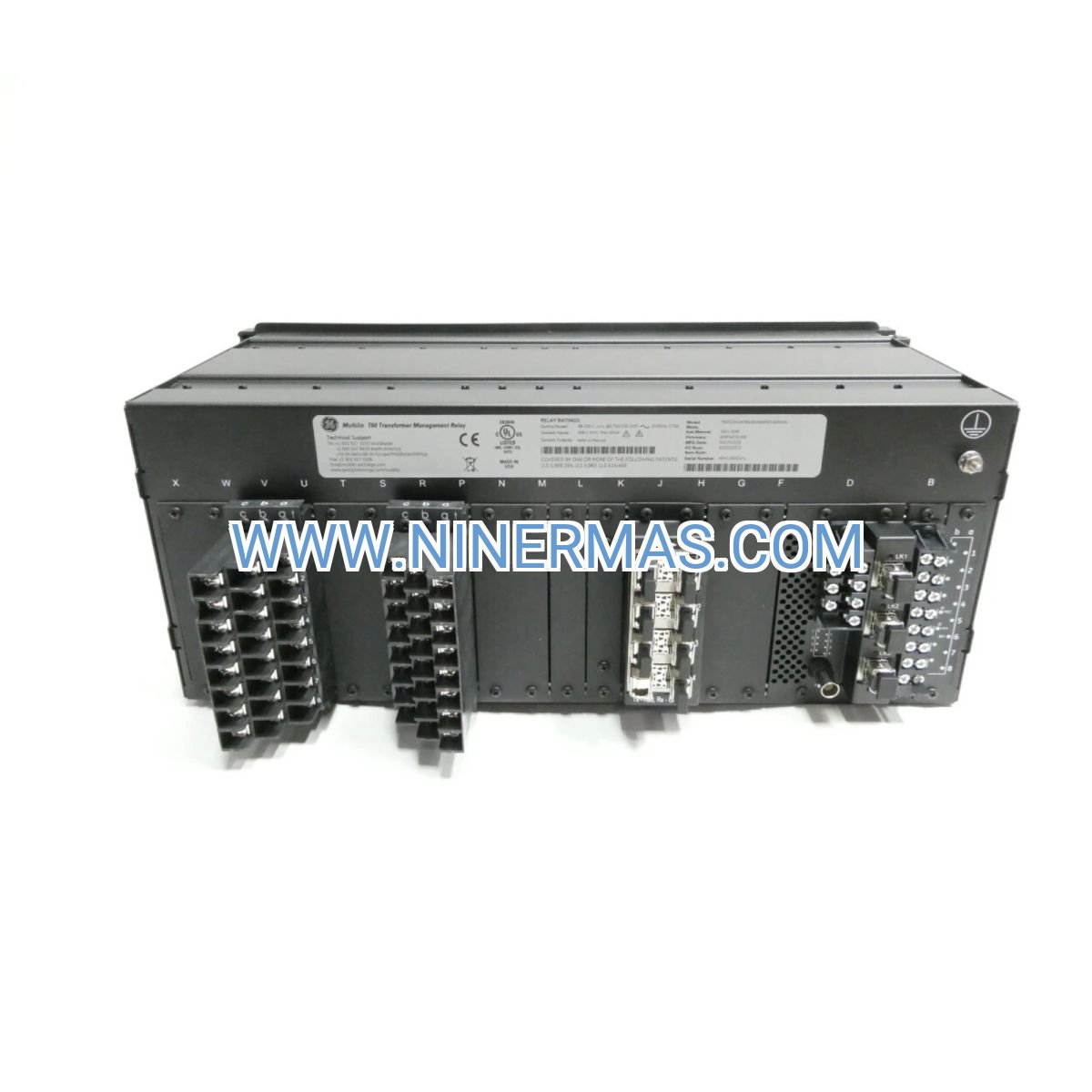

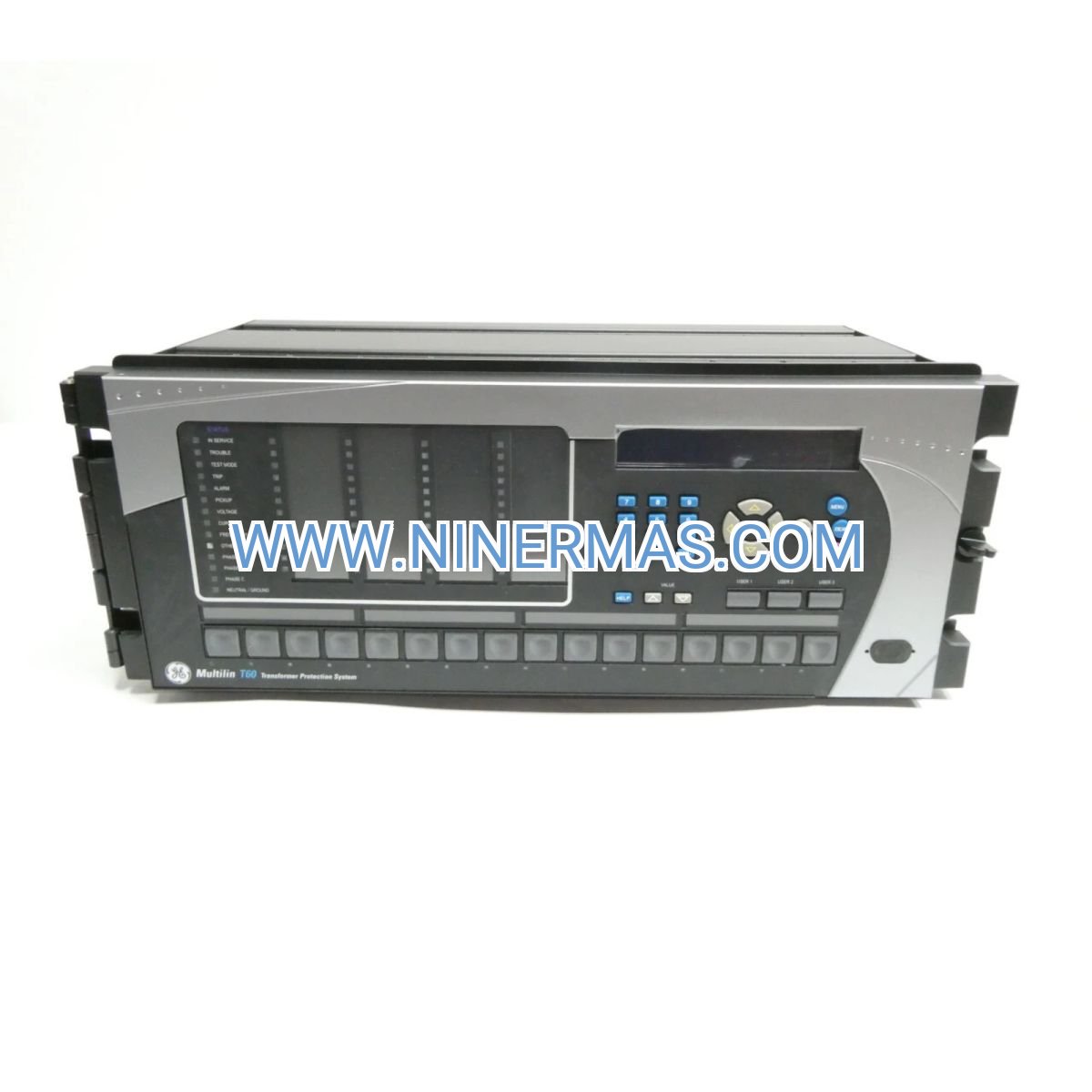

T60 Multilin Transformer Protection Relay (Industrial-Grade Differential Protection)

The T60-N11-AKH-F8L-H6N-M8N-P6P-U6P-W6P represents GE Multilin's proven approach to transformer asset protection, combining percentage differential algorithms with comprehensive overcurrent elements in a single platform. Engineered for utility substations, heavy industrial plants, and renewable energy facilities, this relay delivers continuous monitoring of multi-winding transformer configurations while maintaining compatibility with legacy and modern communication infrastructures.

Power system operators face escalating demands for transformer reliability as grid complexity increases. The T60 addresses these challenges through adaptive protection schemes that distinguish between magnetizing inrush and internal faults within milliseconds, preventing nuisance trips while ensuring rapid isolation of genuine fault conditions. Designed for engineers managing critical infrastructure, this relay integrates seamlessly into existing protection coordination studies and SCADA architectures.

With field-proven performance across thousands of installations globally, the T60 combines robust hardware construction with flexible configuration options. Its modular design supports expansion as system requirements evolve, while comprehensive event recording capabilities provide forensic data for post-fault analysis and regulatory compliance documentation.

Core Protection Capabilities & Technical Advantages

→ Percentage Differential Protection: Dual-slope characteristic with harmonic restraint eliminates false trips during energization while maintaining sensitivity to low-magnitude internal faults. Configurable slope settings accommodate varying CT accuracy classes and system impedance ratios.

→ Multi-Element Overcurrent Coordination: Independent phase and ground overcurrent elements with definite-time, inverse-time, and instantaneous characteristics enable precise coordination with upstream and downstream protective devices across distribution and transmission voltage levels.

✓ Restricted Earth Fault Detection: High-sensitivity ground fault protection for wye-connected windings detects low-current faults near neutral points that conventional overcurrent elements might miss, critical for generator step-up transformer applications.

✓ Thermal Overload Modeling: IEEE and IEC-compliant thermal algorithms calculate hot-spot temperature based on ambient conditions, loading history, and cooling system status, providing early warning before insulation degradation occurs.

✓ Comprehensive Communication Options: Native support for IEC 61850 MMS, DNP3, and Modbus protocols enables integration with diverse SCADA platforms, from legacy RTU-based systems to modern substation automation architectures using GOOSE messaging.

✓ Extensive I/O Configuration: 32 digital inputs and 24 relay outputs provide flexibility for breaker control, alarm annunciation, and auxiliary device coordination without requiring external interface modules in most applications.

Industrial Application Scenarios

Utility Substation Transformer Protection: In transmission and distribution substations, the T60 protects power transformers ranging from 10MVA to 500MVA+ ratings. The relay's multi-winding differential capability handles complex configurations including auto-transformers with tertiary windings, while voltage-based directional elements provide backup protection during CT saturation conditions. Integration with bay-level controllers enables automated switching sequences during maintenance operations.

Manufacturing & Process Industry Facilities: Heavy industrial plants operating medium-voltage distribution systems (4.16kV to 34.5kV) utilize the T60 for main plant transformer protection. The relay's load encroachment logic prevents trips during motor starting transients, while its thermal model accounts for non-standard cooling configurations common in indoor installations. Coordination with motor protection relays ensures selective fault clearing that minimizes production disruptions.

Renewable Energy Generation Sites: Wind farms and solar installations deploy the T60 to protect collector substation transformers and generator step-up units. The relay's dynamic settings capability accommodates variable generation patterns, while its power quality monitoring functions track harmonic distortion from inverter-based resources. IEC 61850 Edition 2 compliance facilitates integration with plant-level SCADA systems for remote monitoring and control.

Data Center & Mission-Critical Infrastructure: Facilities requiring 99.999% uptime implement the T60 in redundant protection schemes for UPS system transformers and utility service entrance equipment. The relay's self-monitoring diagnostics and dual-power supply options enhance overall system reliability, while its fast fault-clearing capability (sub-cycle trip times) minimizes arc flash energy exposure during maintenance activities.

Mining & Resource Extraction Operations: Remote mining sites leverage the T60's wide operating temperature range (-40°C to +85°C) and ruggedized construction for transformer protection in harsh environmental conditions. The relay's extensive event recording captures transient disturbances caused by large motor loads and variable-frequency drives, supporting root-cause analysis of power quality issues that impact production equipment.

Technical Parameters & Selection Criteria

Selection Guidelines: When specifying the T60 for transformer protection applications, verify that CT ratios provide adequate sensitivity for minimum fault current conditions while avoiding saturation during maximum through-fault scenarios. For transformers with delta-connected windings, confirm that zero-sequence filtering is properly configured to prevent false differential operation during external ground faults. In applications requiring redundant protection, consider deploying dual T60 relays with independent CT cores and trip circuits to eliminate single points of failure.

Advanced Integration & Expansion Capabilities

The T60 platform supports modular expansion through GE's UR-series accessory ecosystem. Additional digital I/O modules extend contact capacity for complex interlocking schemes, while fiber-optic communication modules enable long-distance connections in electrically noisy environments. The relay's embedded web server provides browser-based access to real-time metering data, oscillography records, and configuration settings without requiring proprietary software installations.

For facilities implementing condition-based maintenance programs, the T60's continuous monitoring of bushing CT health, tap changer operation counters, and dissolved gas analysis (DGA) interface inputs provides early warning of developing transformer issues. Integration with asset management platforms via OPC UA or IEC 61850 reporting enables predictive maintenance workflows that optimize inspection intervals and extend transformer service life.

Cybersecurity features including role-based access control, encrypted communication channels, and audit logging align with NERC CIP compliance requirements for critical infrastructure protection. The relay supports secure firmware updates and configuration backups through encrypted channels, maintaining system integrity in networked substation environments.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-configured units with specified option codes. Expedited processing available for critical outage replacements (contact technical sales for availability).

Custom Configuration Services: 6-8 weeks for application-specific settings files, custom faceplate labeling, and factory acceptance testing. Includes comprehensive test reports and as-built documentation.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship from shipment date. Extended warranty programs available for multi-year coverage including advance replacement and on-site commissioning support.

Technical Support Access: Lifetime access to GE Multilin technical support team for configuration assistance, protection coordination studies, and troubleshooting guidance. Includes access to firmware updates, application notes, and relay setting calculation tools.

Documentation Package: Complete instruction manual, QuickSet configuration software, sample settings files for common transformer configurations, AutoCAD panel cutout drawings, and IEC 61850 ICD files for SCADA integration.

Frequently Asked Questions

What CT accuracy class is required for reliable differential protection operation?
The T60 requires minimum Class 5P20 CTs for differential elements, though Class 10P20 or higher is recommended for applications with high through-fault current levels (>40x rated current). For restricted earth fault functions, Class 5P10 CTs on the neutral side provide adequate sensitivity. The relay's CT saturation detection algorithms provide additional security against false trips during severe external faults.

Can this relay protect transformers with off-nominal tap positions?
Yes, the T60 automatically compensates for tap changer positions through its adaptive differential characteristic. For load tap changers (LTCs), the relay accepts analog or digital tap position inputs and adjusts differential slope settings in real-time. Manual entry of fixed tap positions is supported for de-energized tap changers (DETCs) during commissioning.

How does the T60 interface with existing SCADA systems using DNP3 protocol?
The relay includes a native DNP3 Level 2 slave implementation supporting both serial (RS485) and Ethernet (TCP/IP) physical layers. Standard DNP3 point mapping includes all protection element status, metering values, and event records. Custom point lists can be configured using the QuickSet software to match existing SCADA database structures, eliminating the need for protocol translation gateways.

What is the typical commissioning time for a T60 installation?
Experienced protection engineers typically complete T60 commissioning in 4-6 hours per relay, including CT polarity verification, settings validation, and end-to-end trip testing. This assumes pre-configured settings files and functional secondary injection test equipment. First-time users should allocate additional time for familiarization with the QuickSet interface and protection logic structure.

Does the relay support remote firmware updates over the network?
Yes, firmware updates can be performed remotely via Ethernet connection using the QuickSet software. The relay maintains dual firmware images, allowing rollback to the previous version if update issues occur. For critical installations, GE recommends performing firmware updates during scheduled maintenance windows with local personnel available to verify relay operation post-update.

How does thermal modeling account for varying ambient temperatures?
The T60's thermal model accepts real-time ambient temperature input from RTD sensors or analog inputs, adjusting the thermal time constant calculations accordingly. For outdoor installations subject to diurnal temperature swings, the relay's thermal memory function maintains accurate hot-spot temperature tracking even during load cycling. Users can select IEEE or IEC thermal curves based on transformer manufacturer specifications.

Request Technical Consultation

Our protection engineering team provides complimentary application review for T60 relay specifications. Contact us with your transformer nameplate data, single-line diagram, and protection coordination requirements to receive customized settings recommendations and panel layout guidance. We support global deployments with multilingual documentation and regional compliance certifications.
