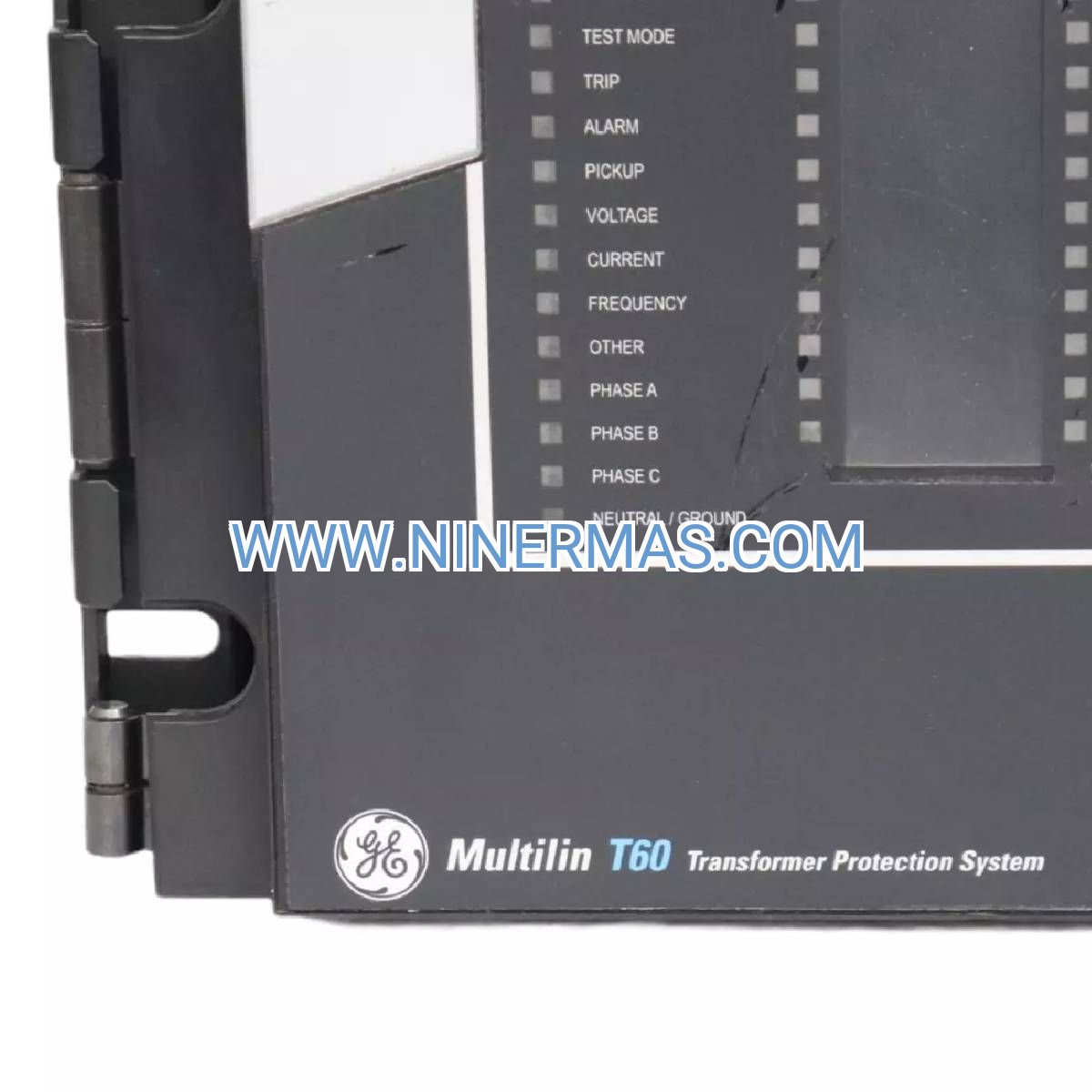

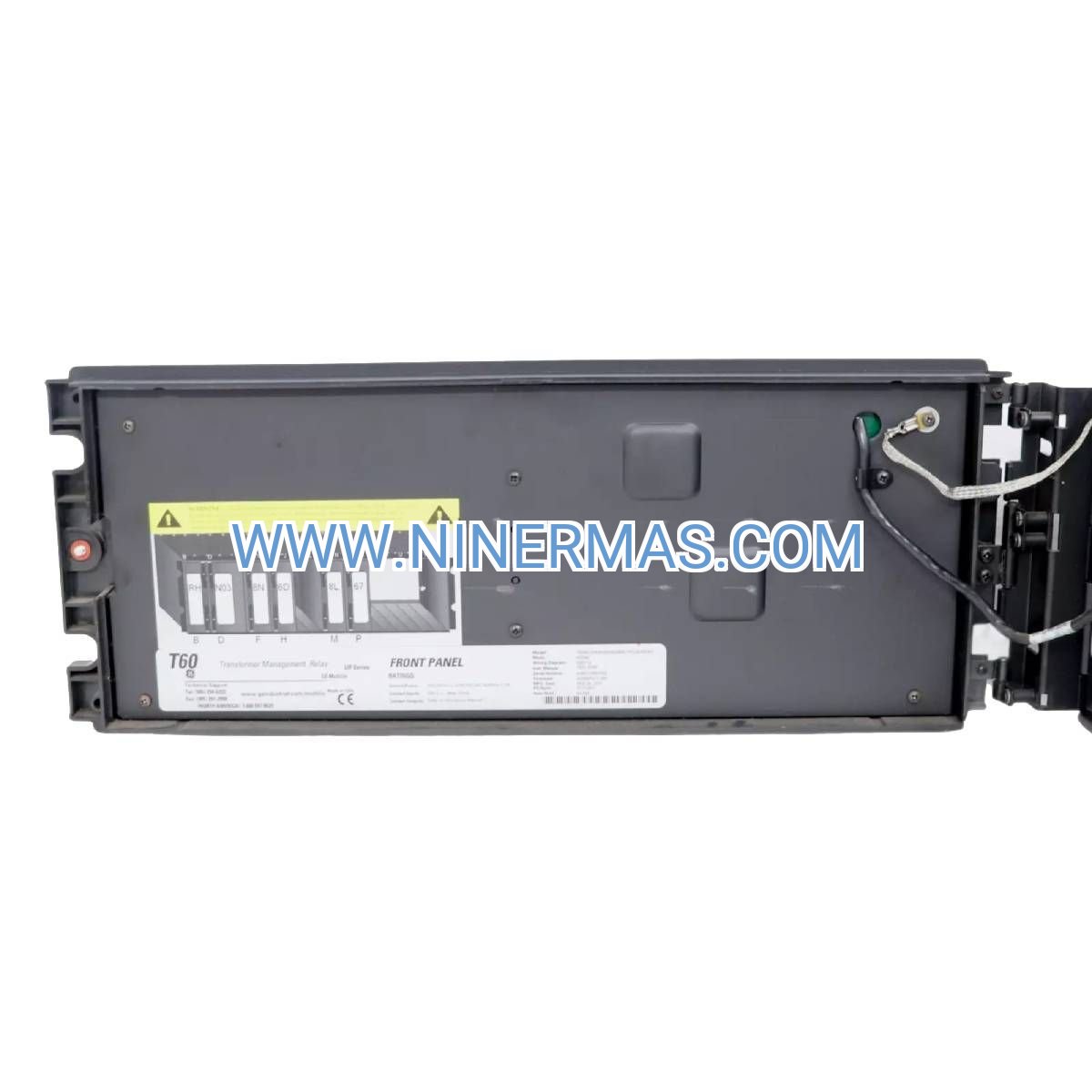

GE T60 Transformer Protection Relay (Industrial-Grade Multi-Winding Guardian)

The GE T60-G01-HCH-F8H-H67-M8F-P6D-U6D-W6C represents a proven solution in transformer asset protection, engineered for utilities and industrial operators managing critical power infrastructure. This microprocessor-based relay from the Multilin UR family delivers comprehensive monitoring and fault isolation for transformers with two to five windings, including specialized interturn fault detection that conventional protection schemes often miss.

Designed for power generation facilities, transmission substations, and heavy industrial plants, the T60 addresses the operational challenge of preventing catastrophic transformer failures that can cost millions in equipment replacement and downtime. Plant engineers and protection specialists rely on this relay to detect overcurrent conditions, differential faults, thermal overloads, and ground faults before they escalate into asset-destroying events.

What sets the T60 apart is its integration of advanced PMU (Phasor Measurement Unit) capabilities with traditional protection functions, large color LCD for on-site diagnostics, and native IEC 61850 protocol support for seamless SCADA integration. Whether you're retrofitting aging protection systems or designing new substations, the T60 delivers the reliability and flexibility modern power systems demand.

Core Protection Functions & Operational Benefits

✓ Multi-Element Differential Protection
Detects internal transformer faults with high sensitivity while remaining stable during external disturbances and inrush conditions, minimizing nuisance trips that disrupt operations.

✓ Comprehensive Overcurrent & Ground Fault Detection
Provides backup protection with configurable time-current curves, ensuring coordinated isolation even when primary protection fails or during system reconfiguration.

✓ Thermal Overload Monitoring with Predictive Algorithms
Tracks winding temperature rise based on load current and ambient conditions, extending transformer lifespan by preventing insulation degradation from sustained overheating.

✓ Interturn Fault Protection for Early Detection
Identifies winding short circuits in their earliest stages—faults that traditional relays miss—preventing minor issues from cascading into complete transformer failure.

✓ Integrated PMU for Wide-Area Monitoring
Captures synchronized phasor measurements for system stability analysis, fault location, and post-event forensics, adding intelligence beyond basic protection.

✓ IEC 61850 Native Communication
Enables plug-and-play integration with modern substation automation systems, reducing commissioning time and supporting GOOSE messaging for high-speed peer-to-peer protection schemes.

Typical Application Scenarios

→ Utility Transmission Substations (69kV - 500kV)
Protects large power transformers feeding regional grids. The T60's differential protection prevents internal faults from propagating, while PMU data supports grid stability analysis during disturbances. Operators gain real-time visibility into transformer health through the color LCD and remote SCADA access.

→ Industrial Cogeneration & On-Site Power Plants
Safeguards step-up transformers in manufacturing facilities with captive generation. Thermal monitoring prevents overload damage during peak production cycles, and multi-winding protection accommodates complex auxiliary winding configurations common in industrial settings.

→ Renewable Energy Substations (Wind/Solar Farms)
Manages protection for collector transformers subject to variable loading and harmonic distortion. IEC 61850 integration simplifies connection to wind farm SCADA systems, while adaptive overcurrent settings handle fluctuating generation patterns.

→ Data Center & Mission-Critical Facility Substations
Provides redundant protection for transformers serving UPS systems and critical loads. Fast fault clearing (sub-cycle tripping) minimizes voltage sag duration, and detailed event records support root cause analysis after power quality incidents.

→ Mining & Heavy Industry (Smelters, Refineries)
Withstands harsh environments (-40°C to +60°C operating range) while protecting transformers exposed to frequent motor starting transients and harmonic-rich loads from variable frequency drives.

Technical Parameters & Selection Guide

Selection Criteria: Choose the T60 when your application requires differential protection for transformers with multiple windings (including tertiary or auxiliary windings), when IEC 61850 integration is mandated by utility standards, or when you need PMU functionality bundled with protection. For single-winding transformers with simpler protection needs, consider the GE D60 line differential relay. For generator-transformer units, evaluate the GE UR G60 generator protection relay instead.

Extended Capabilities & System Integration

SCADA & Automation Integration: Native support for IEC 61850 GOOSE and MMS enables horizontal communication with other IEDs (Intelligent Electronic Devices) and vertical integration with substation gateways. Modbus and DNP3 options provide backward compatibility with legacy systems.

Advanced Metering & Power Quality: Built-in revenue-grade metering tracks energy consumption, power factor, and harmonic distortion (THD), eliminating the need for separate metering devices in many applications.

Cybersecurity Features: Role-based access control, encrypted communications, and audit logging meet NERC CIP compliance requirements for critical infrastructure protection.

Customization Options: Field-configurable logic allows creation of custom protection schemes using FlexLogic™ equations. Additional I/O modules can be added for applications requiring extra contacts or analog inputs.

Delivery Timeline & Service Assurance

Standard Lead Time: 4-6 weeks for factory-configured units with standard options. Expedited processing available for critical outage situations (contact for emergency delivery).

Custom Configuration Lead Time: 6-8 weeks for units requiring non-standard I/O configurations, special communication modules, or factory acceptance testing (FAT).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical installations.

Technical Support: Access to GE Multilin application engineers for protection coordination studies, settings calculation assistance, and commissioning support. Phone and email support included during warranty period.

Documentation Package: Each relay ships with instruction manual, quick start guide, settings worksheet templates, and EnerVista UR Setup software for PC-based configuration and monitoring.

Frequently Asked Questions

Q: How does the T60 interface with existing substation SCADA systems?
A: The relay supports multiple protocols simultaneously—you can use IEC 61850 for modern automation while maintaining Modbus or DNP3 connections to legacy RTUs. Ethernet and serial ports operate concurrently, allowing gradual migration to IEC 61850 without disrupting existing communications.

Q: What transformer winding configurations can the T60 protect?
A: The relay handles two-winding, three-winding (with tertiary), four-winding, and five-winding transformers. It supports wye, delta, and zigzag connections with automatic phase compensation. Autotransformer applications are fully supported with appropriate CT ratio settings.

Q: Can the T60 reduce energy costs through improved transformer monitoring?
A: Yes—thermal monitoring prevents efficiency-robbing overloads, while power quality metering identifies harmonic issues that increase core losses. Operators report 2-5% reduction in transformer losses after implementing optimized loading strategies based on T60 data.

Q: What are the panel cutout dimensions for retrofit installations?
A: The T60 uses a standard 1/4-rack (quarter-rack) panel cutout: 165mm H × 127mm W (6.5" × 5.0"). This matches the footprint of many legacy electromechanical relays, simplifying panel retrofits without major modifications.

Q: Does the relay support remote firmware updates for cybersecurity patches?
A: Firmware can be updated via Ethernet using EnerVista UR Setup software. For high-security installations, updates can be performed locally via front USB port. All firmware is digitally signed to prevent unauthorized modifications.

Q: How quickly does differential protection operate during internal faults?
A: Operating time is typically 1-2 cycles (16-33ms at 60Hz) for solid internal faults. The relay uses percentage differential characteristics with harmonic restraint to avoid misoperation during transformer energization or external faults with CT saturation.

Request Your Technical Consultation

Protect your transformer assets with proven GE Multilin technology. Our protection specialists will review your single-line diagrams, recommend optimal settings, and provide coordination studies to ensure seamless integration with your existing protection scheme.

Contact our team today: Share your transformer nameplate data and protection requirements to receive a detailed technical proposal within 24 hours, including pricing, lead time, and application-specific configuration recommendations.
