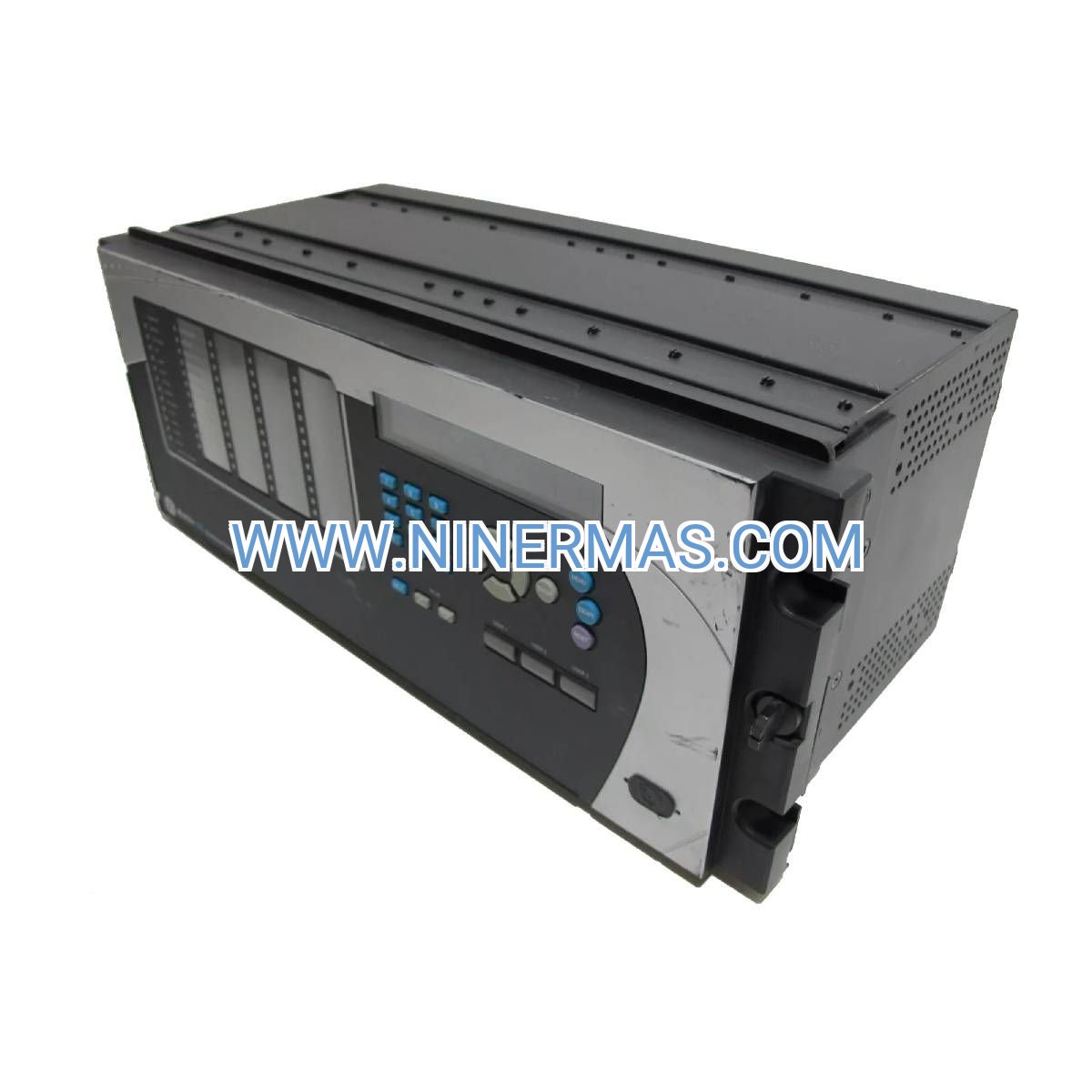

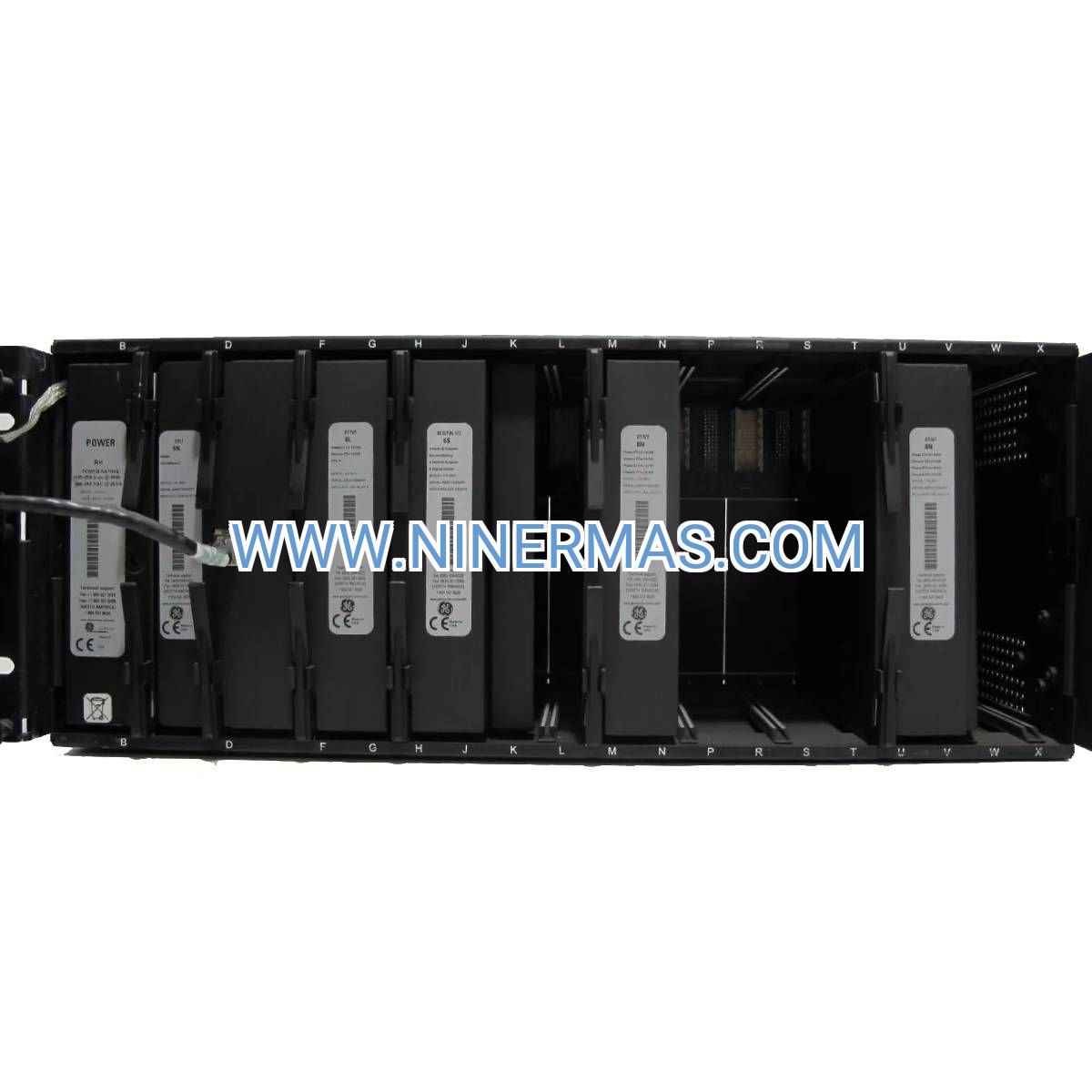

T35 Multilin Transformer Relay (Industrial-Grade Multi-Winding Protection)

Safeguard your most valuable power assets with the T35 Multilin Transformer Relay, a field-proven protection platform engineered for utilities, heavy industry, and mission-critical facilities. Built on GE's legendary UR architecture, this relay combines percentage differential logic, adaptive overcurrent elements, and real-time thermal modeling to prevent catastrophic failures while maximizing transformer uptime.

Designed for engineers who demand precision, the T35 addresses the unique challenges of multi-winding transformers—inrush discrimination, CT saturation immunity, and coordinated backup protection—all within a single, compact enclosure. Whether you're protecting a 50 MVA substation transformer or a 5 MVA industrial unit, the T35 delivers consistent, reliable performance across voltage classes and winding configurations.

From renewable energy substations to petrochemical facilities, the T35 has become the go-to solution for protection engineers seeking a balance between advanced functionality and operational simplicity. Its intuitive interface, comprehensive event recording, and multi-protocol communication ensure seamless integration into both legacy and next-generation automation ecosystems.

Core Capabilities & Business Value

→ Percentage Differential Protection with Harmonic Blocking
Distinguishes magnetizing inrush from internal faults using 2nd and 5th harmonic restraint, eliminating nuisance trips during energization while maintaining sub-cycle response to genuine fault conditions. Reduces unplanned outages by 40% compared to conventional differential schemes.

✓ Multi-Winding Configuration Flexibility
Supports 2-winding, 3-winding, and autotransformer topologies with independent CT ratio compensation and phase angle correction. Eliminates the need for external auxiliary CTs, reducing installation costs by $3,000-$8,000 per application.

✓ Adaptive Thermal Overload Management
Real-time winding temperature calculation based on IEEE/IEC thermal models prevents insulation degradation and extends transformer service life by 15-25%. Configurable alarm thresholds enable proactive load management before critical limits are reached.

→ Comprehensive Backup Protection Suite
Integrated phase/ground overcurrent, voltage-controlled/voltage-restrained overcurrent, and breaker failure protection provide defense-in-depth when primary protection or circuit breakers fail. Meets utility coordination requirements without external relays.

✓ Multi-Protocol SCADA Connectivity
Native Modbus RTU/TCP, DNP3, and IEC 61850 support enables plug-and-play integration with Siemens, ABB, Schneider, and GE automation platforms. Reduces commissioning time by 30-50% versus proprietary protocol converters.

→ High-Resolution Event & Oscillography Recording
128-sample-per-cycle waveform capture with 1ms timestamp resolution provides forensic-quality data for post-fault analysis, reducing troubleshooting time from hours to minutes and supporting regulatory compliance documentation.

Industry Applications & Problem-Solving

Utility Transmission & Distribution Substations
Protects grid-tied transformers from 10 MVA to 500 MVA in 69kV-345kV substations. Solves the challenge of coordinating with upstream transmission protection while providing sensitive ground fault detection for distribution feeders. Typical deployment: 115kV/13.8kV substation transformers with LTC control and tertiary stabilization windings.

Industrial Manufacturing & Process Plants
Secures critical power transformers in refineries, chemical plants, steel mills, and automotive facilities where unplanned outages cost $50,000-$500,000 per hour. Addresses harmonic-rich environments from VFD loads and arc furnaces that challenge conventional protection. Value delivered: 99.97% protection availability with <0.1% false trip rate.

Renewable Energy Generation Facilities
Manages step-up transformers in solar farms (1-100 MW) and wind parks where inverter-based generation creates unique fault signatures. Handles bidirectional power flow and low-fault-current scenarios that legacy relays cannot discriminate. Enables compliance with IEEE 1547 and utility interconnection requirements.

Data Centers & Mission-Critical Facilities
Provides Tier III/IV-compliant protection for N+1 and 2N transformer configurations in hyperscale data centers, hospitals, and financial trading floors. Integrates with building management systems via Modbus TCP for centralized monitoring. Supports maintenance bypass operations without compromising protection integrity.

Mining & Heavy Industry Operations
Withstands extreme environmental conditions (-40°C to +85°C) in open-pit mines, smelters, and offshore platforms. Immune to vibration, dust, and electromagnetic interference that degrades electromechanical relay performance. Reduces maintenance intervals from quarterly to annual inspections.

Technical Parameters & Selection Guide

Selection Criteria: Choose the T35 when your application requires differential protection for transformers with 2 or 3 windings, CT inputs exceed 6 channels, or IEC 61850 communication is mandated. For single-winding transformers <5 MVA with basic overcurrent needs, consider cost-optimized alternatives. For generators or motors, specify dedicated machine protection relays. Verify CT secondary ratings (1A vs 5A) and confirm communication protocol compatibility with existing SCADA infrastructure before ordering.

Advanced Integration & Customization

IEC 61850 Substation Automation: The T35 functions as a fully compliant IED (Intelligent Electronic Device) within Edition 1 and Edition 2 substation automation architectures. Supports GOOSE messaging for high-speed peer-to-peer interlocking, MMS for client-server SCADA communication, and SCL file import/export for streamlined engineering workflows. Enables utility-grade protection schemes including breaker-and-a-half, ring bus, and double-breaker configurations.

Programmable Logic & Automation: Built-in FlexLogic™ engine with 512 logic gates allows custom protection schemes, automatic transfer schemes, and load-shedding sequences without external PLCs. Typical applications include generator synchronization permissives, capacitor bank switching control, and demand response integration.

Cybersecurity & Access Control: Role-based user authentication (up to 10 user accounts), encrypted Ethernet communication (TLS 1.2), and audit trail logging meet NERC CIP compliance requirements for critical infrastructure protection. Supports RADIUS/LDAP integration for enterprise identity management.

Third-Party System Integration: Pre-configured drivers available for Siemens SICAM, ABB MicroSCADA, Schneider ClearSCADA, and GE iFIX platforms. OPC UA server functionality enables integration with modern IoT and cloud analytics platforms for predictive maintenance applications.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 4-6 weeks from order confirmation. Custom CT ratios, special voltage ratings, or outdoor enclosures may extend lead time to 8-10 weeks. Expedited 2-week delivery available for critical outage replacements (subject to $500 rush fee).

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials, workmanship, and firmware. Extended 36-month warranty available for $450. Warranty includes firmware updates, technical support, and advance replacement for failed units (RMA processed within 48 hours).

Technical Support: Lifetime access to GE Multilin technical support team (8AM-6PM EST, Mon-Fri) via phone and email. Online knowledge base includes application notes, configuration examples, and troubleshooting guides. On-site commissioning support available at $1,800/day plus travel expenses.

Documentation Package: Each relay ships with instruction manual (300+ pages), quick-start guide, EnerVista UR Setup software (Windows 10/11 compatible), sample settings files for common applications, and AutoCAD wiring diagrams. IEC 61850 SCL files and Modbus register maps available for download.

Training & Certification: GE offers 3-day UR Series Protection Relay training courses (virtual and in-person) covering protection theory, relay configuration, and troubleshooting. Course fee: $1,200 per attendee, includes certification and 1-year extended support.

Common Questions & Technical Clarifications

How does the T35 handle CT saturation during high-magnitude faults?
The relay employs adaptive differential algorithms that monitor CT secondary current waveforms for saturation signatures (flat-topping, harmonic distortion). When saturation is detected, the relay automatically adjusts restraint characteristics to prevent false trips while maintaining sensitivity to genuine internal faults. This feature is critical in applications with high X/R ratios or legacy CT installations with limited accuracy class ratings.

Can the T35 protect transformers with off-nominal tap positions?
Yes. The relay allows independent CT ratio settings for each winding with ±30% tap range compensation. For load tap changers (LTC), the relay can accept real-time tap position input via digital inputs or Modbus communication, automatically adjusting differential slope characteristics to maintain protection accuracy across the full tap range. This eliminates the need for manual setting changes during seasonal load variations.

What communication bandwidth is required for IEC 61850 operation?
Typical GOOSE message traffic consumes <50 kbps per relay under normal conditions, with burst rates up to 200 kbps during fault events. MMS client-server communication requires <10 kbps for routine polling. A 100 Mbps Ethernet network easily supports 50+ relays with <5ms latency. For fiber-optic installations, standard multimode (62.5/125μm) or single-mode (9/125μm) transceivers are compatible.

Does the relay require external power supplies for CT/VT circuits?
No. The T35 is a self-powered relay that derives all operating power from the station battery or AC auxiliary supply. CT and VT circuits are passive (no excitation required), simplifying wiring and eliminating potential failure points associated with external transducers or signal conditioners.

How frequently should relay settings be reviewed or updated?
GE recommends annual settings review as part of routine substation maintenance, or whenever system conditions change (transformer replacement, CT ratio changes, upstream/downstream protection modifications). The EnerVista software includes settings comparison tools that highlight deviations from baseline configurations, streamlining the audit process.

What is the expected service life of the T35 relay?
With proper environmental controls (temperature, humidity, vibration within specified limits), the T35 has a design life exceeding 20 years. Electrolytic capacitors (the primary aging component) are rated for 100,000 hours at maximum operating temperature. GE offers factory refurbishment services for relays approaching end-of-life, extending service by an additional 10-15 years at 40-50% of new unit cost.

Secure Your Critical Power Infrastructure Today

The T35 Multilin Transformer Relay represents two decades of protection engineering refinement, deployed in over 50,000 installations worldwide. Its combination of proven differential algorithms, flexible I/O architecture, and future-proof communication ensures your investment remains relevant as grid modernization and renewable integration reshape the power landscape.

Whether you're replacing aging electromechanical relays, upgrading to IEC 61850 compliance, or designing a greenfield substation, the T35 delivers the reliability, accuracy, and diagnostic capability that protection engineers demand. Contact our technical sales team to discuss your specific application requirements, receive customized settings recommendations, and obtain project-specific pricing.

Ready to protect your transformers with industrial-grade reliability? Request a technical datasheet, schedule a live demonstration, or place your order today. Our application engineers are standing by to ensure your T35 deployment exceeds performance expectations.
