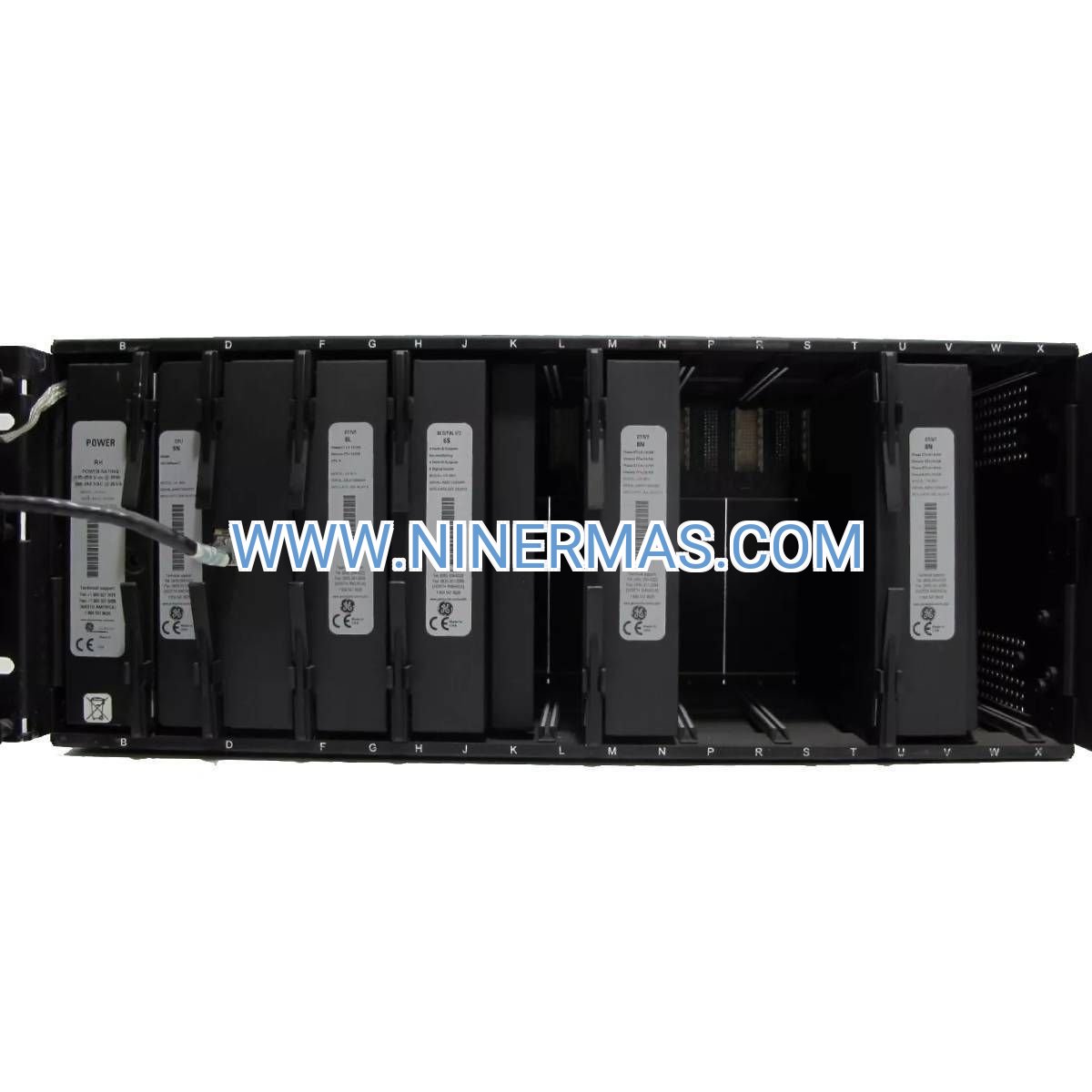

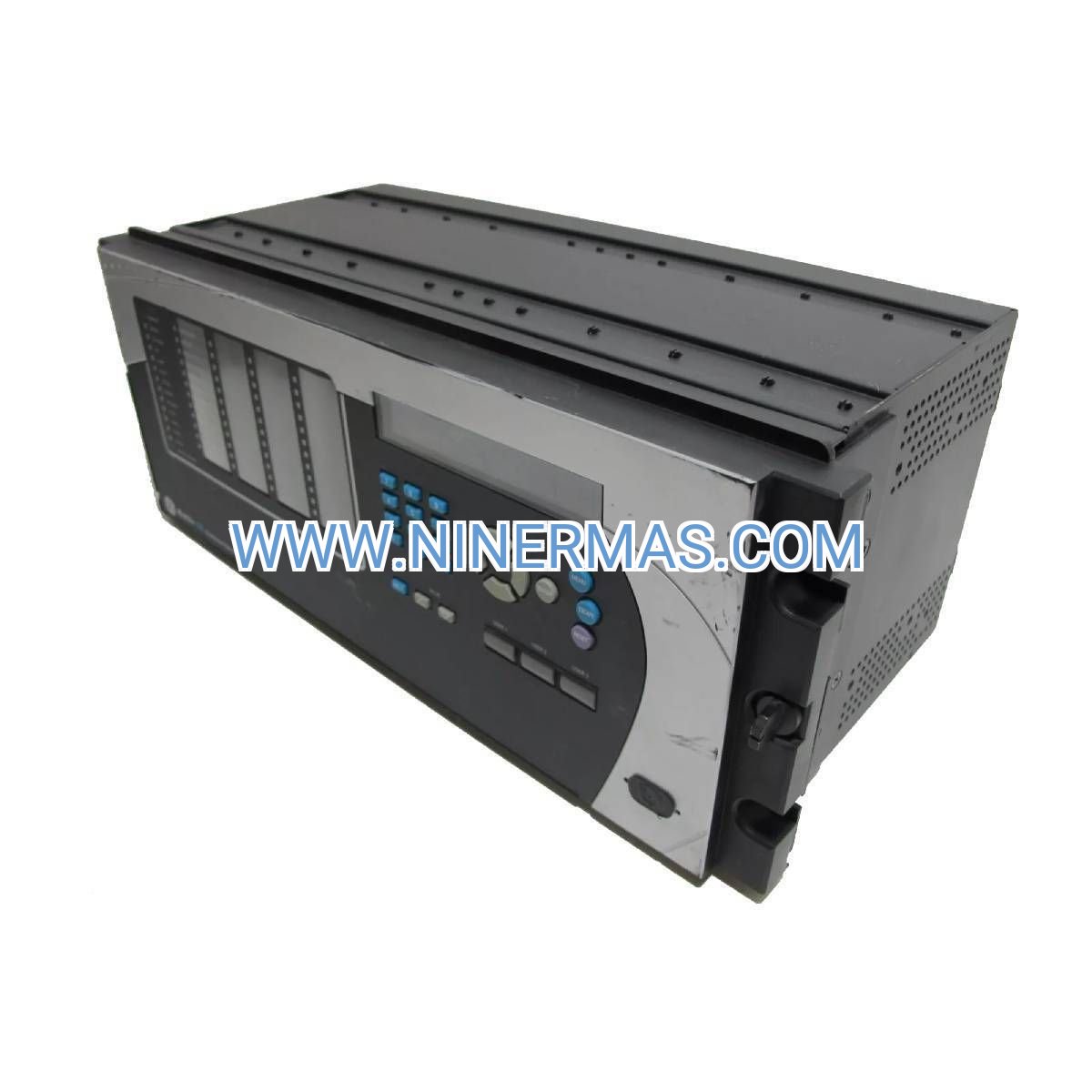

GE T35 Six-Winding Transformer Protection Relay (Industrial-Grade Solution)

The GE T35-E00HKH-F8G-H6V-M8G-P6V-U6V-W6V delivers mission-critical protection for complex power transformers serving utility substations, heavy industry, and renewable energy infrastructure. Built on the proven Multilin UR platform, this relay combines high-speed differential protection with comprehensive monitoring capabilities for transformers handling up to six independent windings.

Designed for engineers managing critical electrical assets, the T35 addresses the challenge of protecting multi-winding transformer configurations where traditional three-winding relays fall short. Whether you're safeguarding a 765kV transmission transformer or a complex industrial auto-transformer, this system provides the precision and reliability demanded by modern power systems.

With integrated IEC 61850 communications, adaptive harmonic blocking, and thermal overload modeling, the T35 represents a complete protection solution that reduces installation complexity while enhancing system reliability. Request technical specifications and application guidance from our protection specialists today.

Core Capabilities & Technical Advantages

→ Multi-Winding Differential Protection: Handles up to six transformer windings with independent CT inputs (24 total channels), enabling protection of complex configurations including phase-shifting transformers and multi-secondary designs. Reduces relay count and simplifies protection schemes compared to multiple three-winding relays.

✓ Adaptive Harmonic Restraint Technology: Second and fifth harmonic blocking algorithms prevent false trips during energization and overexcitation events while maintaining <20ms operating time for genuine internal faults. Eliminates nuisance outages that plague conventional percentage differential schemes.

✓ Comprehensive Overcurrent Elements: Configurable phase, ground, and negative-sequence protection with definite-time and inverse-time characteristics. Provides backup protection for external faults and through-fault monitoring to assess transformer mechanical stress.

✓ Substation Integration Ready: Native support for IEC 61850 (Edition 2), DNP3.0, Modbus TCP/RTU, and IEC 60870-5-103 protocols. GOOSE messaging enables high-speed peer-to-peer communication for interlocking and distributed protection schemes without additional gateways.

✓ Thermal Overload Modeling: Real-time calculation of hot-spot temperature and loss-of-life based on IEEE/IEC thermal models. Prevents insulation degradation while maximizing transformer loading during peak demand periods—critical for avoiding premature asset replacement.

✓ Cybersecurity Hardened: Role-based access control, TLS 1.2 encrypted communications, and IEC 62351 compliance protect against unauthorized access and cyber threats in connected substation environments.

Application Scenarios & Industry Solutions

Utility Transmission Substations
Protects grid-scale transformers (138kV to 765kV) where six-winding configurations accommodate multiple voltage levels and tertiary windings for station service. The T35's high CT input count eliminates the need for auxiliary CTs, reducing panel space and wiring complexity. Utilities report 40% faster commissioning times compared to legacy multi-relay schemes.

Industrial Cogeneration Facilities
Safeguards generator step-up transformers with auxiliary windings for plant loads and grid interconnection. Thermal modeling prevents overloading during peak production while harmonic restraint accommodates non-linear loads from variable frequency drives. Prevents costly unplanned outages in continuous-process industries like petrochemical and pulp/paper.

Renewable Energy Collector Systems
Manages protection for wind farm and solar plant transformers with multiple collection feeders. IEC 61850 integration enables centralized monitoring across distributed assets, while wide operating temperature range (-40°C to +85°C) ensures reliability in extreme climates from desert solar installations to offshore wind platforms.

Data Center & Mission-Critical Infrastructure
Provides redundant protection for N+1 transformer configurations where downtime costs exceed $10,000 per minute. Fast fault clearing (<3 cycles) limits arc flash energy and equipment damage, while comprehensive event recording supports root cause analysis and regulatory compliance.

Mining & Heavy Industry
Withstands harsh electrical environments with high fault currents, voltage transients, and electromagnetic interference. Ruggedized design meets IEC 60255-5 shock and vibration standards for mobile substation applications in open-pit mining and construction sites.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the T35 when your transformer has more than three windings, requires IEC 61850 connectivity, or operates in environments demanding extended temperature ratings. For three-winding applications with simpler requirements, consider the T60 series. Consult our application engineers for CT ratio selection and differential slope settings based on your specific transformer nameplate data.

Advanced Integration & Customization Options

SCADA & Substation Automation: Pre-configured ICD files accelerate IEC 61850 engineering in tools like ABB PCM600, Siemens DIGSI, and SEL AcSELerator. Supports horizontal communication via GOOSE for breaker failure schemes and vertical communication via MMS for centralized HMI integration.

Programmable Logic Engine: FlexLogic™ technology enables custom protection schemes using graphical equation editor. Create interlocking logic, automatic transfer schemes, or load-shedding sequences without external PLCs—reducing panel space and improving reliability.

Oscillography & Event Analysis: Captures 64 samples per cycle waveform data with 15-second pre-fault and 5-second post-fault windows. Integrated sequence-of-events recorder with 1ms resolution supports forensic analysis and compliance with NERC PRC standards.

Remote Access & Diagnostics: Web-based interface enables secure remote configuration, real-time metering, and firmware updates via encrypted HTTPS connection. Reduces site visits and accelerates troubleshooting for geographically distributed assets.

Delivery, Warranty & Technical Support

Standard Lead Time: 4-6 weeks for factory-new units with standard configuration. Expedited 10-day delivery available for critical outage replacements (subject to inventory availability).

Custom Configuration: Factory programming services include CT ratio settings, protection setpoints, and IEC 61850 ICD file generation based on your single-line diagram and transformer test reports. Typical turnaround: 2 weeks after receipt of engineering data.

Warranty Coverage: 18-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 5-year protection plans available for critical infrastructure applications.

Technical Support: Lifetime access to application engineering support via email and phone. Services include protection coordination studies, relay setting calculations, commissioning assistance, and firmware upgrade guidance. On-site commissioning support available in major industrial regions.

Documentation Package: Includes instruction manual, quick-start guide, IEC 61850 ICD file, Modbus register map, CAD panel cutout drawings, and sample test reports. All documentation available in PDF format for immediate download upon shipment.

Common Questions & Technical Clarifications

How does the T35 handle transformers with unequal winding CT ratios?
The relay automatically compensates for different CT ratios across windings through internal scaling algorithms. You simply enter each winding's CT ratio and transformer MVA rating during commissioning—the T35 calculates appropriate differential currents and slope settings. This eliminates the need for external auxiliary CTs or interposing transformers that add cost and failure points.

Can this relay protect both delta-wye and wye-wye transformer connections?
Yes, the T35 supports all standard transformer vector groups (Dyn1, Dyn11, Yy0, Yd1, etc.) through configurable phase compensation matrices. The relay automatically applies the correct 30° or 0° phase shift to differential currents based on your transformer nameplate vector group—ensuring accurate fault detection regardless of winding configuration.

What cybersecurity measures prevent unauthorized relay setting changes?
The T35 implements four-level password protection (view/control/configure/factory), encrypted Ethernet communications using TLS 1.2, and comprehensive event logging that records all setting changes with user ID and timestamp. For NERC CIP compliance, the relay supports role-based access control and can be configured to disable unused communication ports and services.

How does thermal overload protection differ from simple overcurrent monitoring?
While overcurrent elements respond only to instantaneous current magnitude, thermal modeling calculates cumulative heat buildup in transformer windings based on load history, ambient temperature, and cooling system status. This prevents insulation degradation from sustained overloads that don't exceed instantaneous trip thresholds—extending transformer life by 15-25% according to IEEE studies.

Is the T35 compatible with legacy RTUs using DNP3 protocol?
Absolutely. The relay includes a dedicated RS485 serial port supporting DNP3.0 Level 2 (outstation mode) with configurable data mapping. You can simultaneously operate IEC 61850 for modern SCADA integration while maintaining DNP3 connectivity to existing RTUs during migration periods—eliminating the need for protocol converters.

What's the maximum cable distance between CTs and the relay?
With 1A nominal CTs, the T35 supports cable runs up to 2,000 meters using 2.5mm² copper conductors while maintaining accuracy within IEC 60044 Class 5P limits. For 5A CTs, maximum distance reduces to 400 meters. The relay's wide CT input range (0.02-46A) accommodates voltage drop in long cable runs without requiring CT ratio changes.

Ready to Protect Your Critical Transformer Assets?

Our protection system specialists are available to discuss your specific application requirements, provide relay setting calculations, and recommend optimal configurations for your transformer protection scheme. Contact us today for technical consultation, pricing, and delivery timelines.
