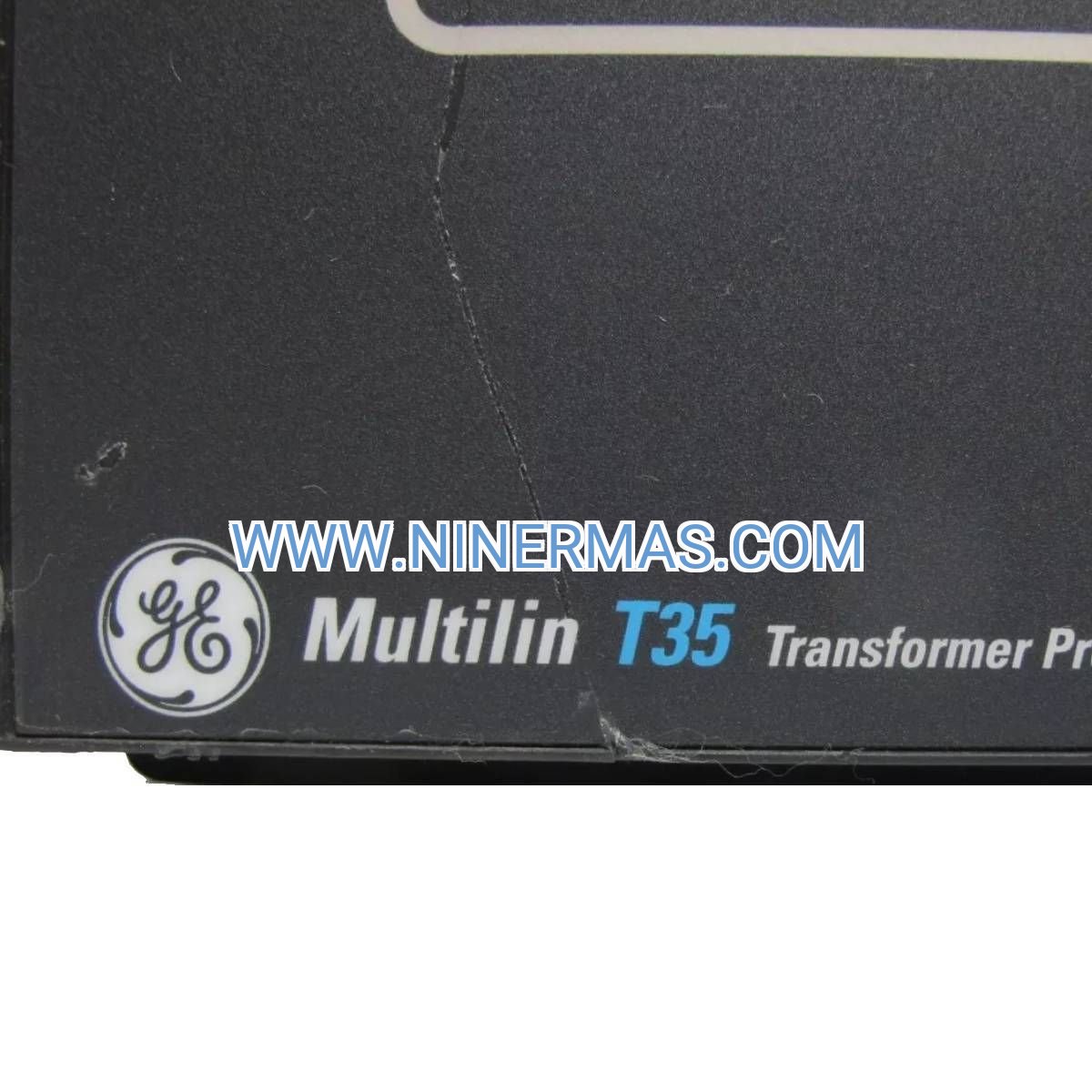

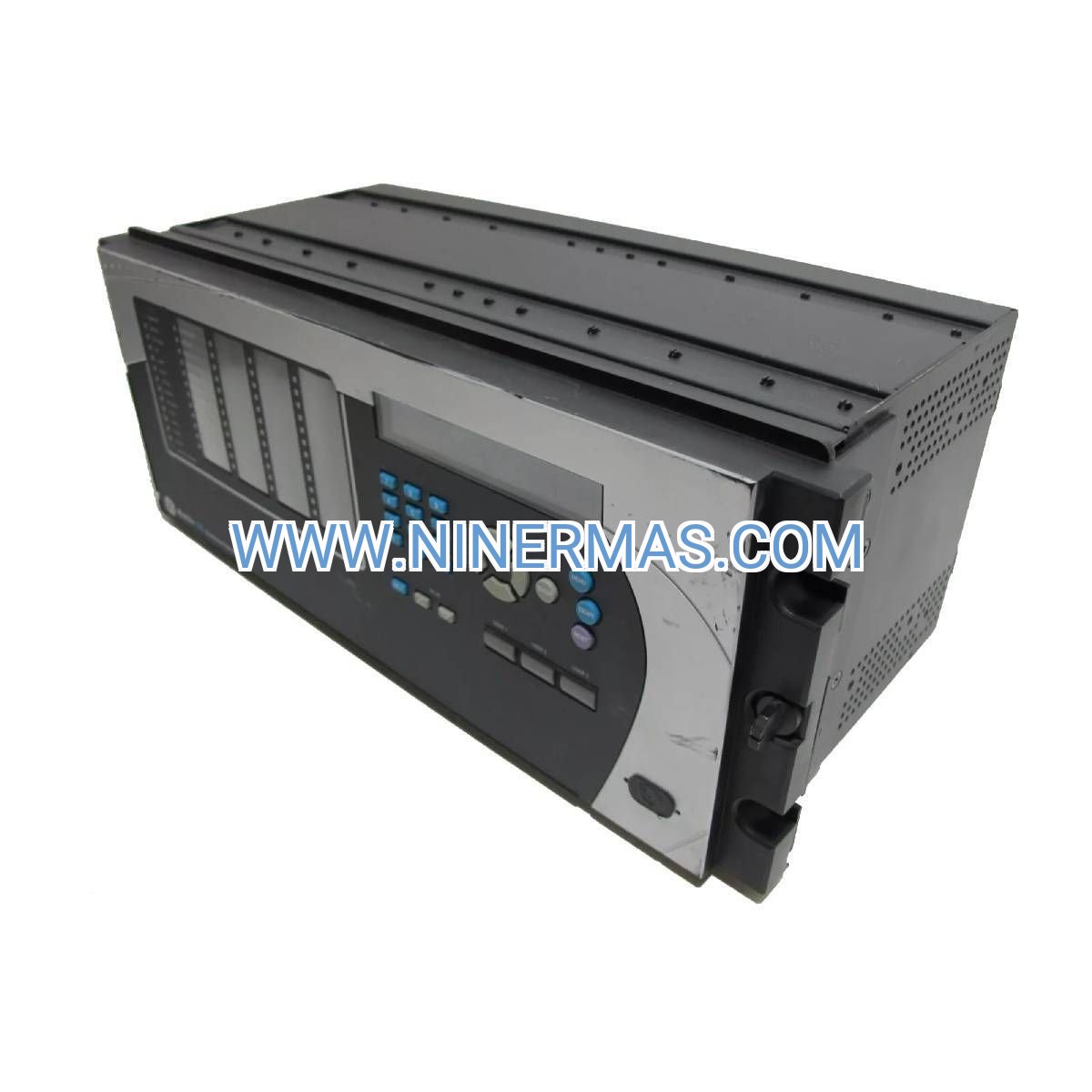

T35-A00HCF Industrial Transformer Protection Relay (GE Multilin UR Platform)

The GE T35-A00HCF delivers enterprise-class transformer protection for utilities, industrial plants, and renewable energy facilities requiring fail-safe differential, overcurrent, and thermal safeguarding. Engineered on the field-proven Multilin UR architecture, this relay combines multi-function protection algorithms with advanced diagnostics to prevent catastrophic transformer failures while minimizing operational downtime.

Designed for power transformers ranging from 5 MVA to 100+ MVA, the T35-A00HCF addresses critical protection challenges in transmission substations, distribution networks, and industrial power systems. Its percentage differential algorithm with harmonic blocking eliminates nuisance trips during energization, while integrated thermal modeling extends transformer service life by preventing insulation degradation.

Whether you're upgrading legacy electromechanical relays or deploying new substation infrastructure, the T35-A00HCF provides comprehensive protection with seamless SCADA integration, high-resolution fault recording, and self-diagnostic capabilities that reduce maintenance costs by up to 40% compared to traditional protection schemes.

Core Protection Functions & Technical Advantages

✓ Percentage Differential Protection (87T) – Advanced restraint characteristics with 2nd and 5th harmonic blocking prevent false trips during transformer inrush and CT saturation events, ensuring reliable operation in challenging grid conditions.

✓ Multi-Stage Overcurrent Elements (50/51) – Configurable phase and ground fault detection with definite-time, inverse-time (IEC/IEEE curves), and instantaneous trip characteristics provide coordinated backup protection across multiple voltage levels.

✓ Thermal Overload Modeling – Real-time thermal replica algorithm tracks hot-spot temperature and accumulated aging, protecting transformer insulation from thermal stress while maximizing load capacity during peak demand periods.

✓ Restricted Earth Fault (REF) – High-sensitivity ground fault detection for wye-connected windings identifies internal faults that conventional overcurrent elements might miss, critical for generator step-up transformers.

✓ Multi-Protocol Communication – Native support for Modbus RTU/TCP, DNP3 Serial/Ethernet, and optional IEC 61850 GOOSE/MMS enables integration with legacy RTUs and modern substation automation platforms without protocol converters.

✓ High-Resolution Event Recording – 64-sample-per-cycle oscillography with 1-millisecond sequence-of-events logging captures transient phenomena for root-cause analysis, reducing fault investigation time from hours to minutes.

Industrial Application Scenarios

→ Utility Transmission Substations
Electric utilities deploy the T35-A00HCF to protect grid transformers in 69kV-345kV substations where reliability directly impacts thousands of customers. The relay's dual-slope differential characteristic accommodates wide CT ratio mismatches common in transmission applications, while its breaker failure protection coordinates with line relays to isolate faults within regulatory clearing times. Typical installations protect 50-150 MVA autotransformers with 0.5-cycle trip times.

→ Manufacturing & Process Industries
Chemical plants, steel mills, and semiconductor fabs rely on the T35-A00HCF to safeguard mission-critical step-down transformers feeding continuous processes. Integration with plant DCS systems via Modbus TCP enables predictive maintenance workflows – thermal overload alarms trigger load shedding before transformer damage occurs. One automotive manufacturer reduced unplanned outages by 73% after replacing aging electromechanical relays with T35 units across 12 substations.

→ Solar & Wind Power Facilities
Renewable energy projects use the T35-A00HCF to protect collector transformers and point-of-interconnection (POI) equipment where grid code compliance mandates IEC 61850 communication. The relay's low-burden CT inputs accommodate revenue-metering-class CTs, while its voltage-restrained differential function prevents misoperation during grid voltage sags. A 200 MW solar farm in California standardized on T35 relays for all 34.5kV collection transformers, achieving 99.7% protection system availability.

→ Data Center & Mission-Critical Facilities
Tier III/IV data centers specify the T35-A00HCF for UPS isolation transformers and utility service transformers where even milliseconds of downtime cost thousands in revenue. Dual Ethernet ports enable redundant SCADA connections, while the relay's self-monitoring diagnostics integrate with building management systems to alert facility teams of potential protection system failures before they impact operations.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the T35-A00HCF for two-winding power transformers up to 100 MVA where differential protection is the primary requirement. For three-winding transformers or applications requiring voltage-based protection (over/under voltage, over/under frequency), consider the T60 series. Verify CT secondary ratings match relay inputs (1A or 5A) and confirm communication protocol requirements before ordering – IEC 61850 must be specified at time of purchase as a factory option.

Advanced Integration & Customization Options

SCADA & Substation Automation: The T35-A00HCF's dual Ethernet ports support redundant network topologies (PRP/HSR) for IEC 62439-3 compliant substations. GOOSE messaging enables peer-to-peer interlocking with breaker relays and bus protection schemes, eliminating hardwired logic and reducing panel space by 30%. DNP3 Secure Authentication (SAv5) protects against cyber threats in critical infrastructure applications.

Predictive Maintenance Analytics: Export oscillography files and thermal aging data to cloud-based analytics platforms for machine learning-driven failure prediction. One utility identified incipient CT failures 6 months before relay misoperation by analyzing differential current imbalance trends captured by T35 relays across their fleet.

Custom Logic Programming: The relay's FlexLogic™ engine supports 512 programmable logic equations for complex control schemes – automatic tap changer blocking, load shedding sequences, or generator synchronization interlocks can be implemented without external PLCs.

Delivery, Warranty & Technical Support

Lead Time: Stock units ship within 3-5 business days. Custom configurations (non-standard CT ratios, special communication options) require 4-6 weeks factory lead time. Expedited production available for emergency replacements.

Warranty Coverage: 12-month comprehensive warranty includes parts, labor, and return shipping. Covers manufacturing defects, firmware bugs, and hardware failures. Extended 3-year and 5-year warranty plans available for critical applications.

Technical Assistance: Our protection engineering team provides complimentary pre-sales support including settings calculations, CT sizing verification, and communication architecture design. Post-installation support includes remote commissioning assistance and firmware updates.

Documentation Package: Each relay ships with instruction manual, settings software (EnerVista UR Setup), quick-start guide, and factory test report. CAD drawings and IEC 61850 ICD files available for download.

Frequently Asked Questions

Q: Can the T35-A00HCF protect transformers with different voltage ratios on primary and secondary sides?
A: Yes, the relay automatically compensates for transformer turns ratio and winding configuration (delta-wye, wye-delta, etc.) through software settings. You simply enter the transformer nameplate data, and the relay calculates appropriate differential slope and pickup values. CT ratio mismatches up to 2000:1 are supported.

Q: How does harmonic blocking prevent false trips during transformer energization?
A: The T35 continuously monitors 2nd and 5th harmonic content in differential current. During energization, inrush current contains 15-70% second harmonic, which the relay recognizes as a non-fault condition and blocks tripping for up to 10 seconds. This eliminates nuisance trips that plague simple percentage differential schemes.

Q: What's the difference between the T35 and T60 transformer protection relays?
A: The T35 focuses on core differential and overcurrent protection for two-winding transformers, while the T60 adds three-winding differential, voltage-based protection (81O/U, 27/59), and breaker failure protection. For most distribution and small transmission transformers, the T35 provides all necessary functions at lower cost. Upgrade to T60 for complex applications like generator step-up transformers or autotransformers with tertiary windings.

Q: Is the relay compatible with existing GE Multilin infrastructure?
A: Absolutely. The T35 uses the same EnerVista UR Setup software as SR, F60, L90, and other UR-series devices, allowing protection engineers to manage mixed relay populations with a single tool. Communication protocols and Modbus register maps are standardized across the UR family for seamless SCADA integration.

Q: Can I retrofit the T35 into panels designed for electromechanical relays?
A: Yes, the 1/2-rack form factor matches industry-standard 19" panel cutouts. Adapter plates are available for mounting in drawout cases originally designed for GE IAC or Westinghouse CO relays. Wiring terminals accept #14-#6 AWG wire, compatible with existing substation cable gauges.

Q: What cybersecurity features protect against unauthorized access?
A: The T35 implements role-based access control with password-protected settings, encrypted Ethernet communication (TLS 1.2), and audit logging of all configuration changes. For DNP3 applications, Secure Authentication (SAv5) prevents command spoofing and replay attacks. Physical security includes front-panel lockout and tamper detection.

Order Your GE T35-A00HCF Transformer Protection Relay Today

Protect your critical power infrastructure with proven GE Multilin technology trusted by utilities and industries worldwide. Our protection specialists are ready to assist with relay selection, settings calculations, and system integration planning. Contact us for volume pricing on multi-unit projects or to discuss custom configurations for specialized applications.

Request a quote now or speak with a protection engineer to ensure optimal relay configuration for your transformer protection requirements.
