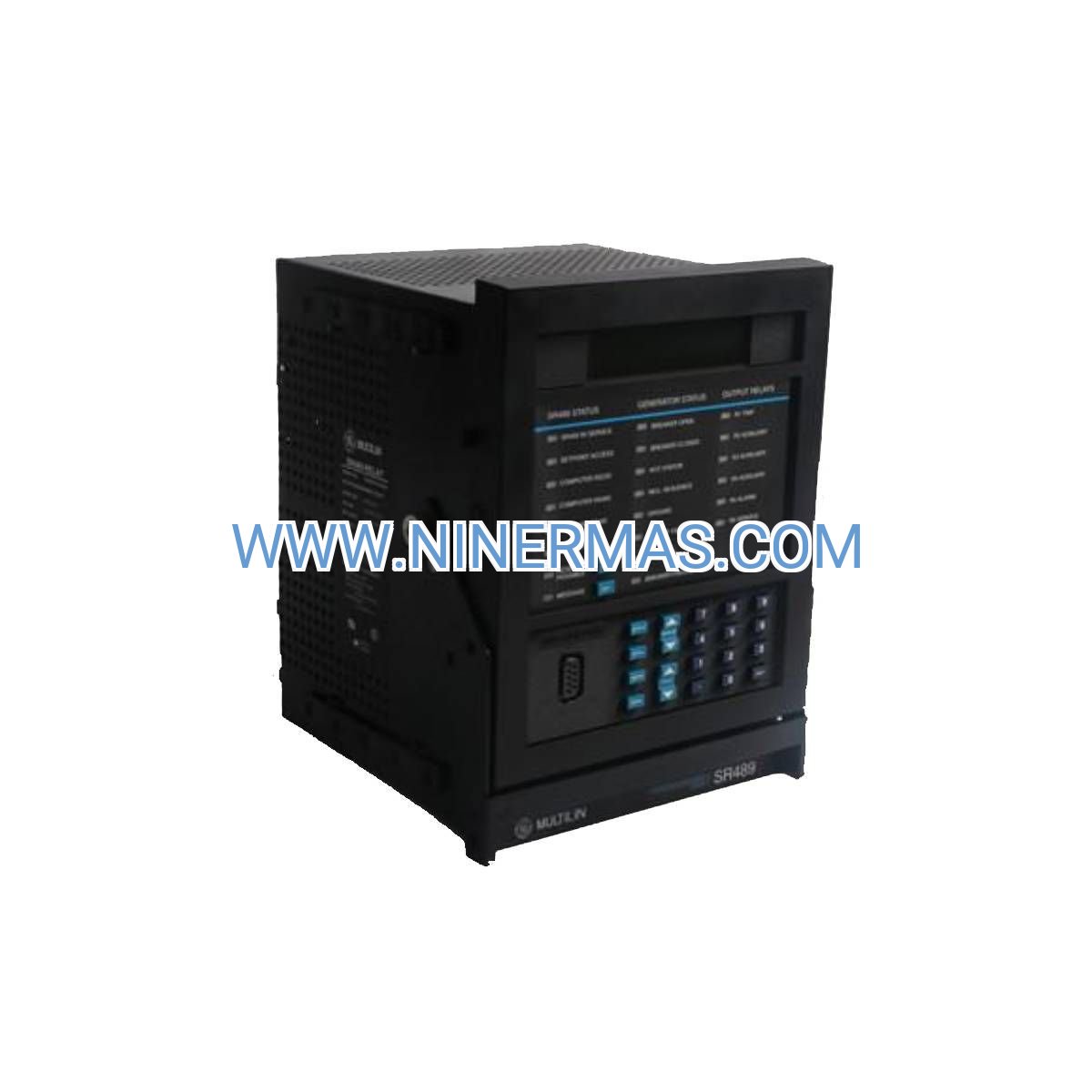

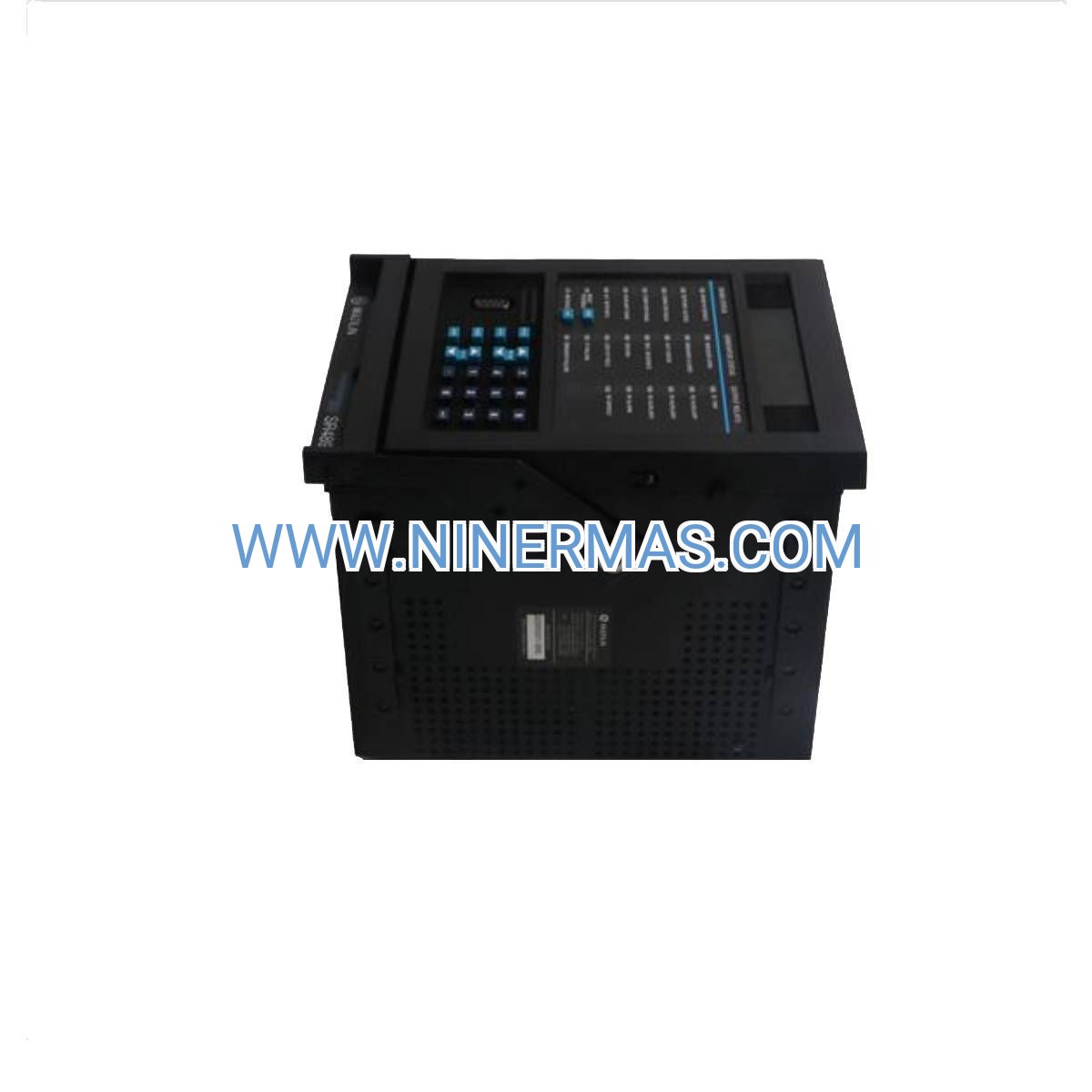

SR489-P1-HI-A20-E Generator Protection Relay (Industrial-Grade Monitoring)

The SR489-P1-HI-A20-E represents GE Multilin's advanced approach to generator safeguarding, combining real-time fault detection with comprehensive system diagnostics. This industrial relay serves synchronous and induction generators from 100 kVA to 3 MVA, delivering protection intelligence that prevents costly downtime and equipment damage.

Designed for facilities requiring uninterrupted power delivery, this relay addresses the critical challenge of generator vulnerability during grid disturbances, load fluctuations, and internal faults. Power engineers and facility managers rely on the SR489 series to maintain operational continuity in data centers, manufacturing plants, hospitals, and cogeneration facilities where generator failure carries severe consequences.

Key advantages include multi-protocol communication (Modbus RTU + Ethernet TCP/IP), high-visibility LCD for challenging lighting environments, and configurable protection schemes that adapt to both grid-tied and islanded operation modes. The A20 communication module enables remote diagnostics and SCADA integration, reducing mean time to repair by 40-60% compared to standalone relay systems.

Protection Capabilities & Technical Benefits

→ Differential Protection Algorithm
Detects internal winding faults within 20-50 milliseconds using percentage restraint characteristics, preventing catastrophic damage to stator windings and rotor assemblies while maintaining stability during external fault conditions.

✓ Loss of Excitation Monitoring
Prevents asynchronous operation that damages rotor structures and prime movers by continuously tracking reactive power flow and impedance trajectories, automatically isolating generators before thermal limits are exceeded.

✓ Reverse Power Detection
Safeguards prime movers (diesel engines, turbines) from motoring conditions by monitoring directional power flow with adjustable sensitivity from 2-20% of rated capacity, critical for cogeneration and parallel operation scenarios.

→ Voltage & Frequency Protection
Configurable overvoltage (105-120% rated), undervoltage (70-95% rated), overfrequency (50.5-65 Hz), and underfrequency (45-49.5 Hz) elements protect connected loads and generator insulation systems from degradation.

✓ Overcurrent Elements (Phase & Ground)
Time-overcurrent and instantaneous overcurrent functions with ANSI curves (IEEE Extremely Inverse, Very Inverse, Moderately Inverse) coordinate with upstream and downstream protective devices for selective fault isolation.

→ Synchronization Check & Control
Verifies voltage magnitude (±10%), phase angle (±20°), and frequency (±0.2 Hz) before breaker closure, preventing mechanical shock and electrical stress during paralleling operations with utility grids or other generators.

Industrial Application Scenarios

Data Center Backup Power Systems
In mission-critical facilities requiring 99.999% uptime, the SR489-P1-HI-A20-E monitors standby diesel generators that activate during utility failures. The relay's fast fault detection (sub-cycle response) and Ethernet connectivity integrate with building management systems, providing real-time status to NOC teams and triggering automated load transfer sequences.

Cogeneration & Combined Heat Power Plants
Facilities generating electricity and thermal energy simultaneously face complex protection requirements during grid synchronization and islanding transitions. This relay manages reverse power scenarios when thermal loads drop, prevents motoring during low steam conditions, and coordinates with utility protective schemes to maintain power quality standards.

Manufacturing Continuous Process Lines
Chemical plants, steel mills, and paper manufacturers operating critical processes deploy the SR489 to protect on-site generation assets. The relay's loss of excitation protection prevents voltage collapse that would trip sensitive variable frequency drives, while overcurrent coordination ensures selective tripping that isolates faults without disrupting entire production lines.

Hospital & Healthcare Emergency Power
Life safety systems demand instantaneous generator availability during utility outages. The SR489's synchronization check function ensures smooth transfer between normal and emergency power, while comprehensive diagnostics enable predictive maintenance that identifies potential failures before they impact patient care operations.

Renewable Energy Hybrid Systems
Solar-diesel and wind-diesel hybrid installations require sophisticated protection during mode transitions. The relay adapts protection settings for grid-connected, islanded, and black-start conditions, managing power flow direction and maintaining frequency stability as renewable contribution varies throughout the day.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the SR489-P1-HI-A20-E when your application requires Ethernet connectivity for remote monitoring, high-visibility displays for outdoor switchgear installations, and comprehensive protection for generators in the 100 kVA to 3 MVA range. For larger generators (>3 MVA), consider the G60 platform. For applications without Ethernet requirements, the base SR489-P1-HI model reduces initial cost while maintaining core protection functions.

Advanced Integration & Customization Options

SCADA & Remote Monitoring Integration
The A20 Ethernet module supports Modbus TCP/IP protocol, enabling seamless connection to Wonderware, Ignition, and Siemens WinCC SCADA platforms. Real-time data points include generator voltage, current, frequency, power factor, active/reactive power, and protection element status. Event logs capture fault records with waveform snapshots for post-incident analysis.

Programmable Logic & Automation
Internal logic equations allow custom protection schemes and control sequences without external PLCs. Examples include automatic voltage regulator (AVR) control, generator start/stop sequencing based on load demand, and load shedding during overload conditions. Up to 32 programmable logic gates combine relay inputs, protection elements, and communication signals.

Multi-Generator Paralleling Systems
When operating multiple generators in parallel, the SR489 coordinates with load-sharing controllers to distribute kW and kVAR evenly across units. Cross-current compensation prevents circulating currents, while reverse power settings detect failed prime movers. Synchronization check elements verify proper phase relationships before breaker closure.

Cybersecurity & Access Control
Password-protected configuration prevents unauthorized setting changes. Ethernet communication supports VLAN segmentation and firewall integration to isolate operational technology (OT) networks from information technology (IT) infrastructure, addressing IEC 62443 industrial cybersecurity requirements.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 7-10 business days for factory-programmed units with customer-specific protection settings, logic equations, and communication parameters pre-loaded and tested.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Lifetime application engineering support via email and phone. Services include protection coordination studies, CT/VT sizing calculations, Modbus register mapping, and SCADA integration assistance. On-site commissioning support available for complex installations.

Documentation Package: Each relay ships with instruction manual (PDF + printed), quick-start guide, wiring diagrams, Modbus communication protocol specification, and EnerVista SR489 setup software (Windows-based configuration tool).

Frequently Asked Questions

What generator power ratings work with the SR489-P1-HI-A20-E relay?
This relay is optimized for generators rated 100 kVA to 3 MVA (approximately 80 kW to 2.4 MW at 0.8 power factor). For smaller generators below 100 kVA, consider the SR469 model. Generators exceeding 3 MVA require the G60 or G650 platform for adequate protection coverage and metering accuracy.

Can I retrofit this relay into existing generator control panels?
Yes, the SR489 uses a standard panel cutout (184mm x 140mm) compatible with most legacy relay footprints. The universal control power input (90-300V AC/DC) eliminates the need for auxiliary power supplies in most retrofit scenarios. Existing CT and VT connections typically require minimal modification.

How does Ethernet communication improve generator monitoring capabilities?
Ethernet connectivity enables real-time data streaming to SCADA systems at 1-second update rates, compared to 5-10 second polling intervals with serial Modbus. Remote access allows operators to retrieve fault records, adjust settings, and perform diagnostics without site visits, reducing mean time to repair by 40-60% in distributed generation applications.

What's the difference between synchronous and induction generator protection settings?
Synchronous generators require loss of excitation protection and field overcurrent monitoring, while induction generators need slip-frequency detection and rotor thermal protection. The SR489 includes pre-configured templates for both generator types, accessible through the setup software. Consult factory documentation or contact technical support for application-specific guidance.

Does the high-intensity display option affect relay performance or accuracy?
No, the HI display option only enhances visual readability in high ambient light conditions (>1000 lux) and does not impact protection accuracy, response time, or measurement precision. The display upgrade is purely ergonomic, beneficial for outdoor switchgear or brightly-lit control rooms where standard LCD displays become difficult to read.

Can this relay coordinate with utility protective devices for grid-connected generators?
Absolutely. The SR489 supports IEEE 1547 anti-islanding requirements and includes adjustable time-overcurrent curves (ANSI Extremely Inverse, Very Inverse, Moderately Inverse, Definite Time) that coordinate with utility reclosers and sectionalizers. Voltage and frequency trip settings comply with utility interconnection standards, and the synchronization check function prevents out-of-phase breaker closure.

Request Technical Consultation

Our application engineers assist with protection coordination studies, CT/VT sizing, communication network design, and custom logic programming. Contact our team with your generator specifications, single-line diagram, and protection requirements for a tailored solution proposal. We provide detailed protection setting calculations, Modbus register maps, and commissioning checklists to ensure successful deployment.

Ready to enhance your generator protection system? Add the SR489-P1-HI-A20-E to your cart or contact our technical sales team for volume pricing, custom configuration services, and integration support. We ship worldwide with comprehensive documentation and lifetime technical support.
