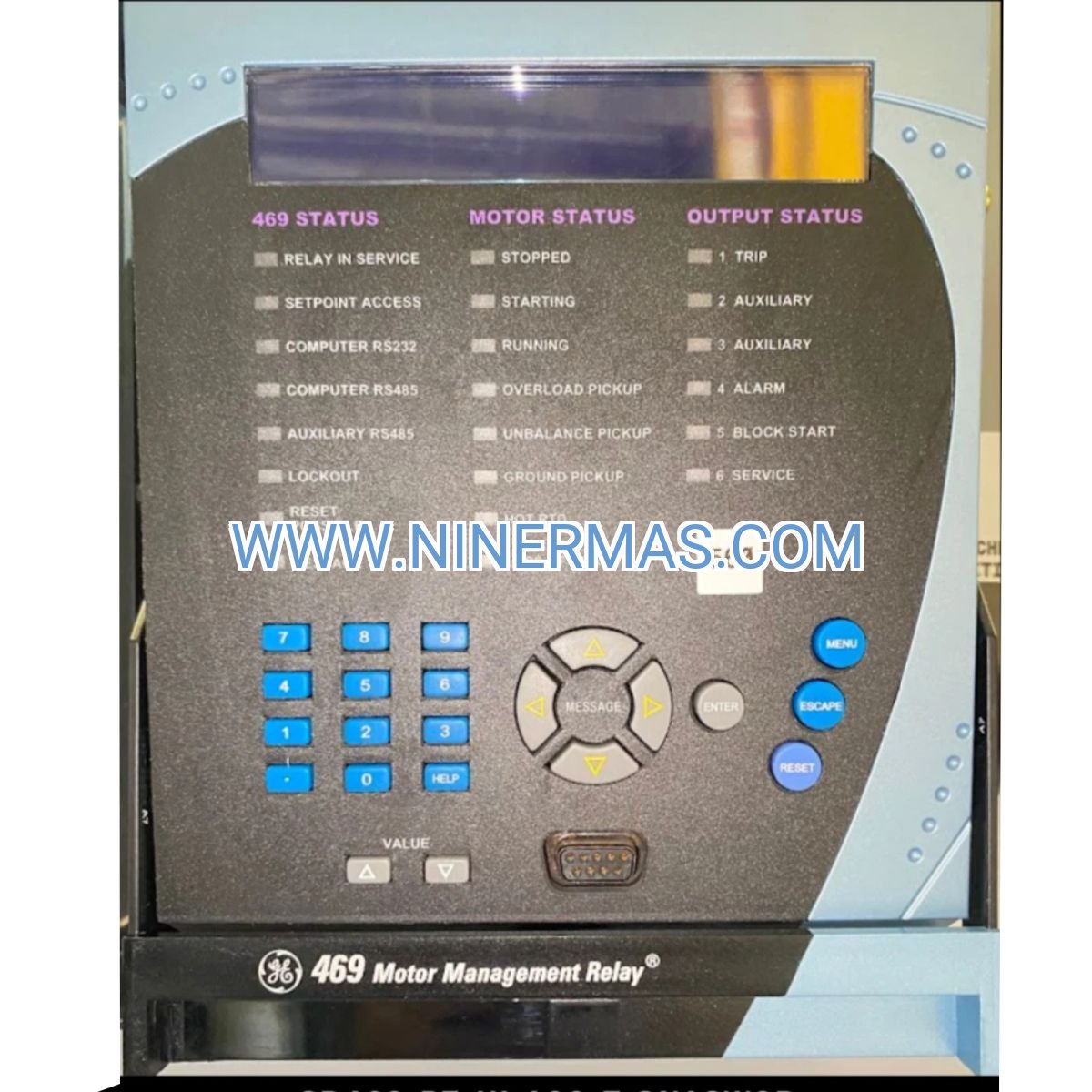

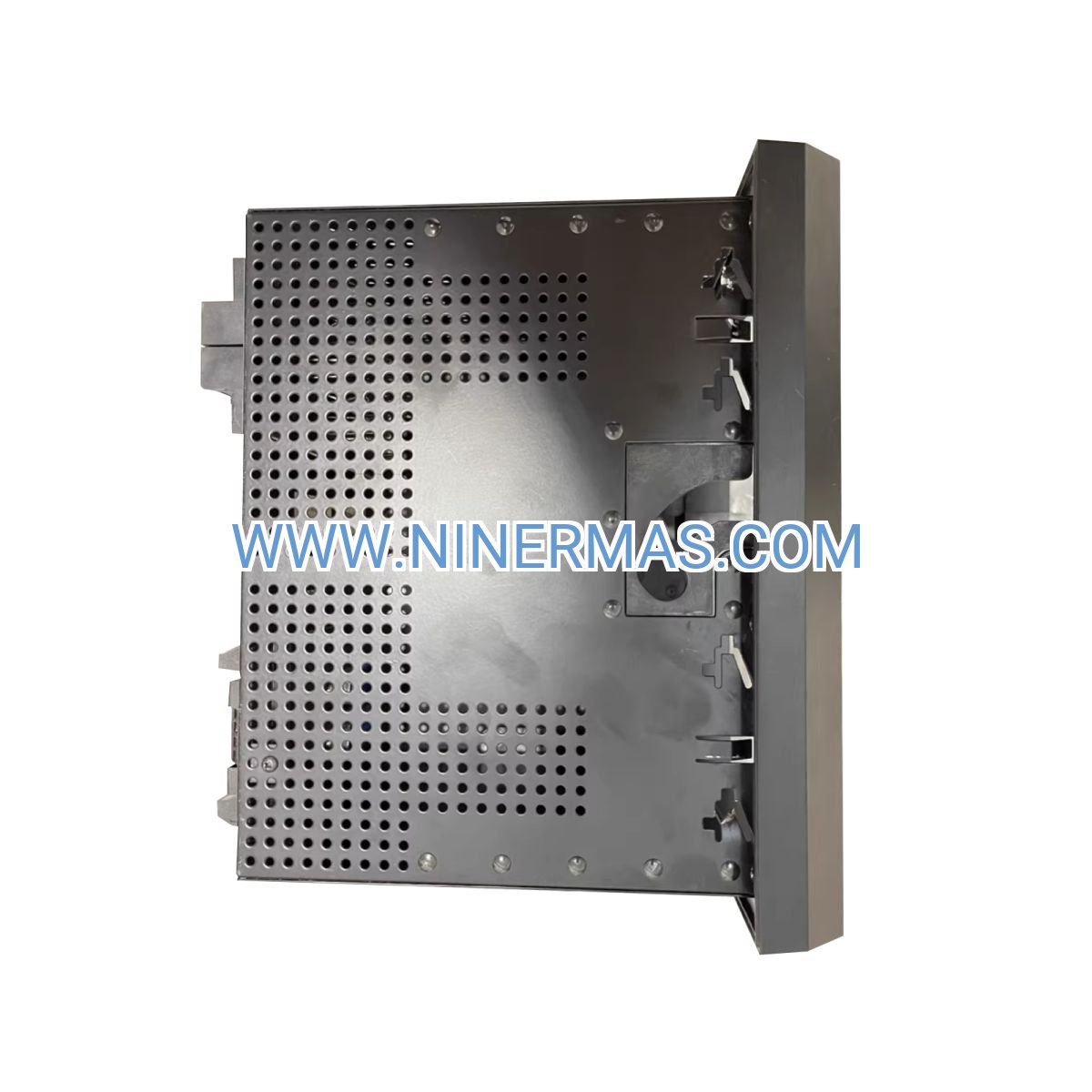

SR469-P5-HI-A20-E Motor Management Relay (Industrial-Grade Motor Protection System)

The SR469-P5-HI-A20-E represents GE Multilin's flagship motor management solution, engineered to deliver fail-safe protection for medium to high-voltage industrial motors. This relay combines real-time thermal modeling, multi-channel RTD monitoring, and programmable logic to prevent costly downtime in mission-critical applications. Designed for facilities where motor failure translates to production losses exceeding $10,000 per hour, it serves as the cornerstone of predictive maintenance strategies across manufacturing, utilities, and heavy industry.

Built for engineers and maintenance teams managing motors from 500 HP to 40,000 HP, this relay addresses the core challenge of balancing maximum asset utilization with protection integrity. Whether you're safeguarding centrifugal compressors in petrochemical plants or ball mill drives in mining operations, the SR469-P5-HI-A20-E provides the intelligence to detect incipient faults before catastrophic failure occurs.

Key differentiators include 12 independent RTD channels for comprehensive thermal mapping, 20 programmable digital inputs for process interlocking, and dual-protocol Ethernet connectivity (Modbus TCP + EtherNet/IP) for seamless SCADA integration. The relay's adaptive thermal model learns motor characteristics during commissioning, delivering protection accuracy within ±2% of actual rotor temperature—a critical advantage over conventional I²t curves that can miss thermal runaway conditions in variable-load applications.

Core Features & Business Value

→ Adaptive Thermal Overload Protection
Patented thermal modeling algorithm tracks rotor and stator temperature with RTD validation, preventing nuisance trips while catching slow-developing overheating. Reduces unplanned shutdowns by 40% compared to legacy bimetallic relays.

→ 12-Channel RTD Temperature Monitoring
Simultaneous monitoring of 6 stator windings, 4 bearings, and 2 ambient sensors provides complete thermal visibility. Early detection of bearing degradation extends mean time between failures (MTBF) by 18-24 months.

→ Multi-Protocol Industrial Networking
Dual Ethernet ports support ring topologies with Modbus TCP and EtherNet/IP, enabling real-time data streaming to Rockwell, Siemens, or Schneider PLCs. Reduces integration costs by $3,000-$5,000 per installation versus serial-only relays.

→ 20 Programmable Digital Inputs
Customizable logic for valve position feedback, vibration sensor integration, and process permissives. Eliminates need for external interlock panels, saving 15-20% on panel fabrication costs.

→ Event Recording & Waveform Capture
512-event log with timestamp resolution to 1ms, plus 8-cycle waveform storage for fault analysis. Accelerates root cause analysis from days to hours, critical for regulatory compliance in FDA/OSHA environments.

✓ IEC 61850 Substation Automation Ready
Native support for GOOSE messaging and MMS reporting streamlines integration into digital substations, future-proofing investments as utilities transition to IEC 61850 architectures.

Application Scenarios & Pain Points Solved

Cement Manufacturing – Kiln Drive Protection
Cement rotary kilns demand motors operating at 95%+ thermal capacity for energy efficiency, yet traditional protection trips prematurely during load transients. The SR469's adaptive algorithm permits controlled overloads during clinker formation while preventing thermal damage, increasing kiln availability by 120-150 hours annually (worth $180,000-$225,000 in lost production recovery).

Municipal Water Systems – High-Service Pump Monitoring
Submersible pumps in deep wells face bearing failures from sand ingress and dry-running conditions. RTD-based bearing temperature trending detects 0.5°C/hour rise rates indicative of lubrication breakdown, triggering maintenance before seal failure causes $75,000 pump replacements. Integration with SCADA via Modbus TCP enables unmanned pump station operation.

Petrochemical Compressor Trains – Surge Protection
Centrifugal compressor motors experience rapid current spikes during anti-surge valve actuation. The relay's instantaneous overcurrent element (50/51) coordinates with upstream breakers to clear faults in <3 cycles, preventing arc flash incidents while the thermal model ignores transient overloads, eliminating 80% of false trips reported with competitor relays.

Steel Rolling Mills – Reversing Motor Control
Reversing roughing stands cycle motors through locked-rotor conditions 40-60 times per hour. Programmable start inhibit logic prevents restarts until rotor temperature drops below safe thresholds, extending motor insulation life by 3-5 years. Digital input integration with mill automation (Allen-Bradley ControlLogix) provides seamless interlock with coil handling systems.

Mining Conveyor Systems – Ground Fault Sensitivity
Underground conveyors require sensitive ground fault detection (<5A) to protect personnel in wet conditions, yet must tolerate charging currents from long cable runs. The relay's adjustable ground fault pickup (0.05-2.0x CT rating) with directional sensing eliminates nuisance trips from capacitive coupling, maintaining 99.7% uptime in 24/7 operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the SR469-P5-HI-A20-E when your application requires (1) motors >1000 HP with critical uptime requirements, (2) RTD monitoring of 8+ temperature points, (3) Ethernet-based SCADA integration, or (4) compliance with IEC 61850 substation standards. For motors <500 HP with basic protection needs, consider the GE 369 series. For motors >10,000 HP requiring differential protection, upgrade to the GE 869 series with 87M functionality.

Extended Functionality & IoT Integration

Predictive Maintenance Analytics: When paired with GE's EnerVista software suite, the relay streams real-time thermal capacity utilization, start count, and cumulative running hours to cloud-based analytics platforms. Machine learning algorithms detect degradation patterns 4-6 weeks before failure, enabling condition-based maintenance scheduling that reduces spare parts inventory by 30%.

Cybersecurity Hardening: Role-based access control (RBAC) with password protection, HTTPS encryption for web server access, and VLAN segmentation support meet NERC-CIP and IEC 62351 requirements for critical infrastructure. Firmware updates via secure FTP prevent unauthorized modifications.

Custom Logic Programming: Built-in FlexLogic™ engine with 128 programmable logic gates enables custom protection schemes without external PLCs—examples include anti-condensation heater control, automatic transfer scheme (ATS) interlocking, and sequential motor starting to limit inrush current on weak grids.

Multi-Motor Coordination: DNP3 and IEC 61850 GOOSE messaging enable load-shedding schemes across 10-20 motors during utility brownouts, prioritizing critical loads while preventing total plant blackout. Reduces demand charges by $15,000-$40,000 annually in facilities with >5 MW connected load.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (SR469-P5-HI-A20-E is a stocked SKU). Expedited same-day shipping available for emergency replacements at +$150 surcharge.

Custom Configurations: Factory-configured units with pre-loaded settings, custom faceplates, or non-standard CT ratios ship within 10-12 business days. Configuration files can be uploaded via EnerVista for validation prior to shipment.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year warranties available for $450, including advance replacement and priority technical support.

Technical Support: Lifetime access to application engineers for configuration assistance, protection coordination studies, and firmware updates. Remote commissioning support via TeamViewer/AnyDesk included with purchase. On-site commissioning available at $1,800/day + travel (recommended for first-time Multilin users).

Documentation Package: Includes installation manual, protection settings guide, Modbus register map, IEC 61850 ICD file, and AutoCAD panel cutout drawings. EnerVista Launchpad software (free download) provides graphical configuration interface compatible with Windows 10/11.

Frequently Asked Questions

How does the SR469 integrate with Allen-Bradley ControlLogix PLCs for motor control interlocking?
The relay's EtherNet/IP adapter profile (EDS file available on Rockwell's website) maps protection status, RTD temperatures, and metered values to ControlLogix tags via implicit messaging. Typical scan rates of 100-500ms enable real-time permissive logic in RSLogix 5000. For faster response, use hardwired digital outputs to PLC input cards.

What current transformer ratios are compatible with the HI-range input configuration?
The HI variant accepts 1-5A secondary CTs with primary ratios from 50:5 to 6000:5. Common selections: 600:5 for 500-750 HP motors, 1200:5 for 1000-2000 HP, 3000:5 for 5000+ HP. Ensure CT accuracy class is 0.5 or better for thermal model precision; 5P20 protection-class CTs are acceptable but may introduce ±5% error at low loads.

Can the relay's thermal model accommodate variable frequency drive (VFD) applications with non-sinusoidal currents?
Yes, the SR469 uses true RMS current measurement and compensates for harmonic heating effects when the "VFD Mode" parameter is enabled. However, for motors >2000 HP on VFDs, consider adding external dV/dt filters to prevent bearing current damage, which the relay cannot directly detect. RTD monitoring becomes critical in VFD applications due to reduced cooling at low speeds.

What is the maximum cable distance between the relay and RTD sensors before measurement accuracy degrades?
With 3-wire Pt100 RTDs and 18 AWG shielded cable, distances up to 1000 feet (300m) maintain ±0.5°C accuracy. Beyond 1000 feet, use 4-wire RTD connections or Pt1000 sensors (10x resistance reduces lead wire error). Always route RTD cables in separate conduit from power cables to minimize EMI-induced errors.

Does the relay support IEC 61850 Edition 2.1 for compatibility with modern digital substation architectures?
The SR469-P5-HI-A20-E firmware v7.4+ supports IEC 61850 Edition 2 with GOOSE and MMS services. Edition 2.1 features (sampled values, time synchronization per IEEE 1588 PTP) require the UR platform—recommend the GE UR series for greenfield IEC 61850 projects. The SR469 remains ideal for brownfield retrofits integrating with legacy Modbus systems.

How many motor starts per hour can the relay's thermal model accommodate without false tripping?
The adaptive algorithm permits unlimited starts provided the thermal capacity remains below 100%. Typical limits: 3-4 starts/hour for motors with 15-second acceleration times, 6-8 starts/hour for <5-second starts. The "Starts Per Hour" lockout feature (programmable 1-10 starts) prevents mechanical damage to couplings and gearboxes independent of thermal state.

Request a Quote or Technical Consultation

Our application engineers are available to assist with protection coordination studies, CT/PT sizing, and Modbus register mapping for your specific installation. Contact us with your motor nameplate data (HP, voltage, FLA, service factor) and system architecture (standalone, SCADA-integrated, IEC 61850 substation) for a customized proposal within 24 hours.

For bulk orders (10+ units), volume pricing and factory training packages are available. We maintain strategic inventory of the SR469-P5-HI-A20-E and related GE Multilin products to support rapid deployment schedules.
