GE Multilin UR9NH CPU Module Service-Ready Spare Part: Minimizing Downtime Risk in Critical Protection Systems

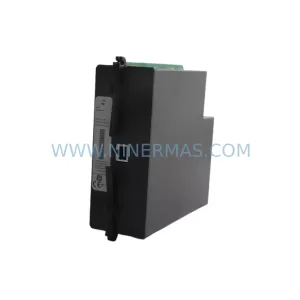

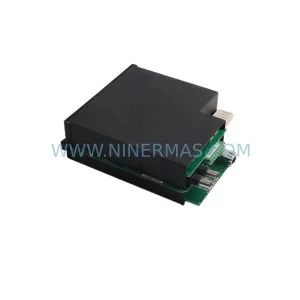

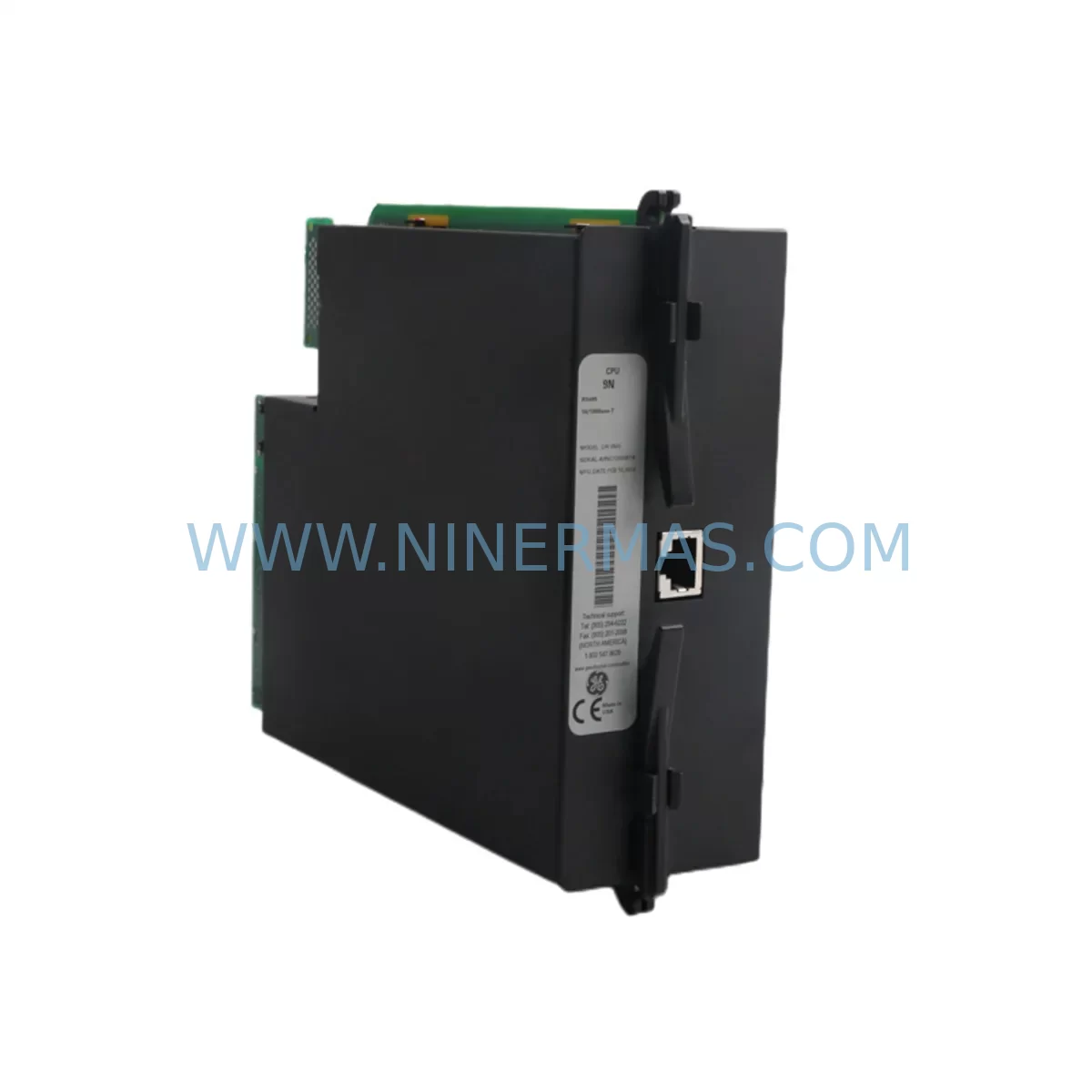

The GE Multilin UR9NH CPU Module is the central processing unit of the Universal Relay (UR) Series platform — one of the most widely deployed digital protection and control relay families in industrial power systems, substations, and utility-grade switchgear. When this module fails or degrades, the entire protection relay becomes inoperative, exposing your electrical system to unprotected fault conditions and unplanned outages. Sourcing a verified, service-ready replacement is not optional — it is a critical maintenance priority.

At NINERMAS, the UR9NH is stocked as a tested, original spare part, ready for immediate dispatch. Every unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to act quickly without compromising quality assurance standards.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A CPU module failure in a GE Multilin UR Series relay rarely occurs in isolation. Experienced maintenance engineers know that when the UR9NH is flagged for replacement, a thorough inspection of the surrounding hardware is essential to prevent repeat failures and ensure the relay returns to full protective function.

Begin with the UR Series backplane — the passive bus that connects all modules within the chassis. Corrosion, mechanical stress, or connector wear on the backplane can cause intermittent CPU faults that are misdiagnosed as module failures. Inspect all slot connectors before installing the replacement UR9NH.

Next, verify the power supply module (typically the 9G or 9H power card). An unstable or under-voltage DC supply is one of the leading causes of CPU module degradation in UR relays. Use a calibrated multimeter to confirm output voltage is within specification before powering the new CPU.

The I/O modules — including digital input cards, digital output cards, and analog input modules — should be inspected for contact wear, blown output drivers, or failed optocouplers. A faulty I/O card can generate spurious signals that stress the CPU and lead to premature failure of a newly installed UR9NH.

If your UR relay is configured for IEC 61850 or DNP3 communications, inspect the communications module (such as the 9E Ethernet card or serial communications card) for firmware version compatibility with the replacement CPU. Mismatched firmware between the CPU and communications module is a known source of post-replacement instability in UR Series systems.

For relays integrated into a SCADA or DCS environment, confirm that the replacement CPU retains the correct settings file and configuration. GE Multilin’s EnerVista UR Setup software should be used to upload the relay’s last known good configuration to the UR9NH before returning the relay to service. This step is critical for substations where protection settings are coordinated across multiple relays.

Procurement engineers managing spare parts inventory for UR Series installations should consider stocking the UR9NH alongside complementary modules: the 9G power supply card for voltage stability assurance, digital I/O modules matched to your relay model, and a communications module appropriate for your network protocol. For aging UR installations approaching end-of-support, maintaining a buffer stock of CPU modules is a proven strategy for extending system life without full relay replacement — a significant capital cost avoidance measure.

During annual control cabinet inspections, include the UR relay chassis in your thermal imaging sweep. Hot spots on the backplane or around the CPU slot are early indicators of connection degradation. Pair this with a review of the relay’s self-test logs via EnerVista to identify any recurring CPU health warnings before they escalate to a trip or protection failure.

For plants running legacy UR Series relays (first or second generation), the UR9NH CPU module is often the most cost-effective path to system life extension. Rather than replacing the entire relay — which requires new panel cutouts, wiring, and commissioning — a CPU module swap restores full functionality at a fraction of the cost, preserving your existing wiring, terminal blocks, and protection settings infrastructure.

Site Replacement Workflow

Step 1 — Isolation and Safety: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the relay panel and confirm isolation at the upstream breaker or disconnect. Verify zero voltage at the relay power supply terminals.

Step 2 — Configuration Backup: Before removing the existing CPU module, connect a laptop running EnerVista UR Setup and export the full relay settings file. Store this file securely — it contains all protection settings, logic, and communications parameters required to restore the relay to its pre-failure state.

Step 3 — Module Removal: Release the CPU module locking tabs and slide the UR9NH out of its chassis slot. Handle with ESD precautions. Inspect the backplane connector for bent pins or contamination before proceeding.

Step 4 — Replacement Installation: Slide the new UR9NH into the chassis slot until the locking tabs engage. Restore power and observe the relay’s front panel LEDs for normal boot sequence. A healthy CPU will complete self-test within 60–90 seconds.

Step 5 — Configuration Restore: Upload the previously saved settings file via EnerVista UR Setup. Verify all protection elements, I/O assignments, and communications settings are correctly restored. Perform a functional test of key protection elements before returning the relay to service.

Step 6 — Documentation: Record the replacement in your maintenance management system (CMMS), including the new module’s serial number, installation date, and post-replacement test results. Update your spare parts inventory accordingly.

Spare Parts Support FAQ

Q1: Is the UR9NH compatible with all GE Multilin UR Series relay models?
The UR9NH CPU module is designed for the GE Multilin UR Series platform and is compatible with a wide range of UR relay models including the C60, D60, F60, G60, L90, T60, and others. Compatibility depends on the chassis generation and firmware version. NINERMAS recommends providing your full relay model number and existing firmware version when ordering to confirm compatibility before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, NINERMAS will provide a replacement or full refund after fault verification. Contact sale@ninermas.com with your order number and a description of the fault to initiate a warranty claim. Units must not show signs of physical damage, improper installation, or operation outside specified environmental conditions.

Q3: How does NINERMAS verify the UR9NH before shipment?
Every UR9NH unit undergoes a pre-shipment functional test to verify processor operation, memory integrity, and communication interface functionality. Units are inspected for physical condition, connector integrity, and correct part marking before packaging. A test report is available upon request for customers with quality assurance requirements.

Q4: Can NINERMAS support long-term or blanket purchase orders for UR9NH stock?
Yes. NINERMAS supports long-term supply agreements for maintenance teams and EPC contractors managing multiple UR Series installations. We offer priority stock reservation, scheduled delivery, and volume pricing for blanket orders. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your annual maintenance procurement requirements.
