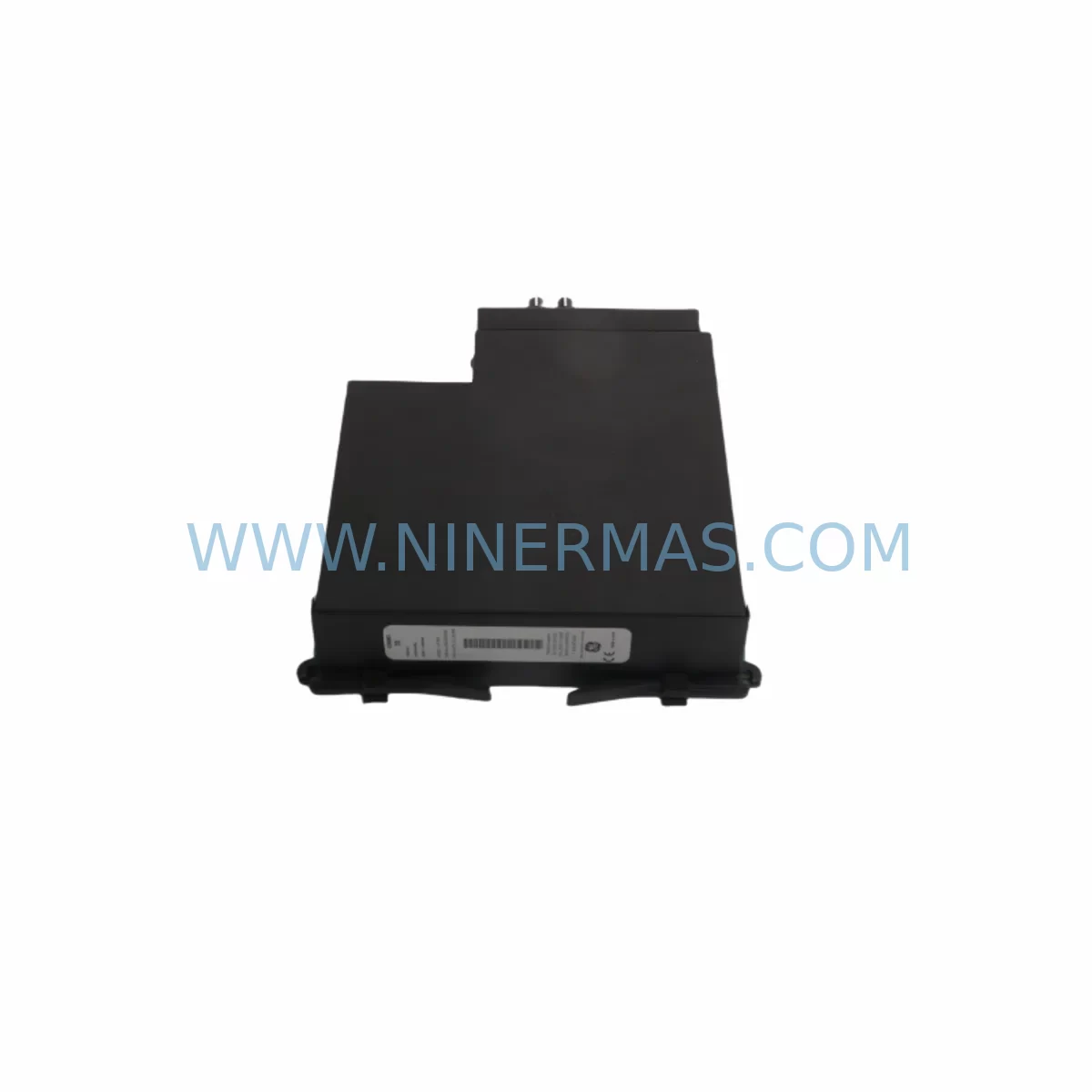

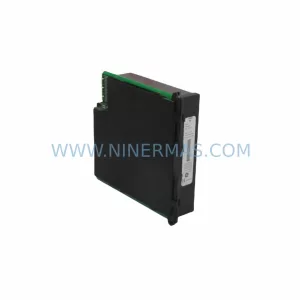

GE Multilin UR7BH Safety-Reliable Communication Module

GE Multilin UR7BH Safety-Reliable Communication Module for Critical Control Sites

The GE Multilin UR7BH is a high-integrity communication module engineered for the UR Series protection and control platform — one of the most widely deployed relay architectures in power generation, petrochemical processing, mining, and heavy industrial environments. Designed to operate continuously in demanding field conditions, the UR7BH delivers stable, low-latency inter-module communication that is essential for maintaining the integrity of protection relay logic, safety interlocks, and critical control loops. In facilities where unplanned downtime carries significant operational and safety consequences, the UR7BH provides the communication backbone that keeps protection systems synchronized and responsive.

Industrial control cabinets in continuous production environments are exposed to a wide range of electrical and environmental stressors — high electromagnetic interference from variable frequency drives and large motor starters, voltage transients from switching operations, ground potential rise events, and thermal cycling from high-load duty cycles. The UR7BH is built to withstand these conditions without signal degradation or communication dropout, ensuring that protection relay commands are transmitted accurately and without delay. Its robust design supports reliable operation in substations, motor control centers, and distributed control architectures where communication failure could trigger cascading protection trips or, worse, leave critical equipment unprotected.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered protection relay panel, the UR7BH communication module does not operate in isolation — it is one element of a coordinated system designed to eliminate single points of failure and maintain continuous protection coverage. When integrating the UR7BH into a UR Series chassis, the reliability of the entire protection system depends on the quality and compatibility of every adjacent module. The GE Multilin UR6AH power supply module, for example, must deliver clean, regulated DC power to the chassis backplane; any ripple or dropout on the supply rail can cause communication errors or module resets that interrupt protection logic. Pairing the UR7BH with a tested UR6AH ensures the communication layer has a stable power foundation.

On the input side, the GE Multilin UR8AH and UR8BH analog input modules handle current transformer and voltage transformer signals that feed into the relay’s protection algorithms. If these modules experience signal drift due to aging components or connector degradation, the protection relay may operate on inaccurate measurements — a risk that the UR7BH’s communication integrity alone cannot compensate for. Regular inspection and timely replacement of CT/VT input modules is therefore a critical companion practice to maintaining UR7BH communication health.

For facilities running IEC 61850 GOOSE messaging or DNP3 communications to SCADA systems, the GE Multilin UR9GH or equivalent Ethernet communication module works in conjunction with the UR7BH to provide both local inter-chassis communication and wide-area network connectivity. In substations where multiple UR Series relays must coordinate protection zones — for example, a GE Multilin D60 line differential relay communicating with a GE Multilin C60 breaker protection relay — the UR7BH provides the low-latency inter-module link that keeps protection logic synchronized across the panel.

In motor control applications, the GE Multilin M60 motor protection relay relies on accurate communication between its internal modules to execute thermal overload, locked rotor, and ground fault protection functions. A degraded communication module in this context can delay trip commands by milliseconds — a margin that, in high-inertia motor applications, can mean the difference between a controlled shutdown and catastrophic winding failure. The UR7BH’s tested communication integrity directly reduces this risk. Similarly, in transformer protection panels using the GE Multilin T60, reliable inter-module communication is essential for differential protection schemes that must distinguish between inrush current and genuine internal faults.

Beyond the relay modules themselves, the overall control cabinet risk reduction strategy should include surge protection devices on all external wiring entries, proper cable segregation between high-voltage CT/VT wiring and low-level communication cables, and periodic thermal imaging of the panel interior to detect hot spots before they cause module failures. When combined with a stocked inventory of critical spare modules — including the UR7BH — these practices form a comprehensive strategy for minimizing unplanned protection system outages.

Critical Industrial Safety Applications

Power Generation and Transmission: In thermal power plants and hydroelectric facilities, GE Multilin UR Series relays protect generators, transformers, and transmission lines. The UR7BH communication module ensures that protection relay panels maintain continuous inter-module communication during high-load generation cycles, frequency excursions, and switching operations. Loss of communication in a generator protection panel could delay trip commands during internal fault conditions, with potentially severe consequences for both equipment and personnel safety.

Petrochemical and Refinery Operations: Continuous process plants in the petrochemical sector operate critical motor-driven compressors, pumps, and agitators that must be protected against electrical faults without nuisance tripping. The UR7BH supports the communication integrity of protection relay systems in these environments, where high ambient temperatures, chemical vapors, and heavy electrical loads create challenging operating conditions. Reliable communication between relay modules ensures that protection functions — including overcurrent, earth fault, and thermal overload — operate correctly and without false trips that could disrupt continuous production.

Mining and Mineral Processing: Underground and surface mining operations rely on robust electrical protection systems to safeguard personnel and equipment in environments characterized by dust, moisture, vibration, and high fault currents from large dragline and crusher motors. The UR7BH’s resistance to electromagnetic interference and its compatibility with the full UR Series chassis range make it a reliable choice for mine substation protection panels where replacement parts must be available quickly to minimize production downtime.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent treatment plants operate pump stations and aeration systems that must run continuously to meet regulatory discharge requirements. Protection relay systems using UR Series modules with UR7BH communication cards provide reliable motor and feeder protection in environments with high humidity, variable loads, and the need for remote SCADA monitoring via DNP3 or IEC 61850 protocols.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines in steel plants impose extreme electrical demands on protection relay systems, including high fault currents, rapid load cycling, and severe electromagnetic interference from arc furnace operations. The UR7BH’s robust communication design supports reliable protection relay operation in these high-stress environments, where a communication failure in a protection panel could result in unprotected equipment exposure during fault conditions.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the GE Multilin UR7BH?
All UR7BH units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication integrity and module compatibility before dispatch.

Q2: How is the UR7BH tested before shipment?
Each UR7BH module is subjected to a full functional test prior to shipment, including communication interface verification and visual inspection for physical integrity. Test records are maintained for quality traceability. Units that do not pass functional testing are not dispatched.

Q3: Is the UR7BH compatible with all GE Multilin UR Series relay chassis?
The UR7BH is designed for use within the GE Multilin UR Series platform, which includes the C30, C60, D30, D60, F35, F60, G30, L30, L60, M60, N60, T35, T60, and URplus relay families. Compatibility should be verified against the specific chassis firmware version and module slot assignment for your application. NINERMAS technical support can assist with compatibility confirmation prior to order.

Q4: Can NINERMAS support long-term spare parts supply for the UR7BH?
Yes. NINERMAS maintains stock of UR Series modules including the UR7BH as part of a long-term spare parts supply program designed to support lifecycle extension for installed UR Series protection relay systems. For facilities with multiple UR Series panels, bulk stock commitment programs are available to ensure parts availability over multi-year maintenance cycles. Contact our team to discuss stocking arrangements tailored to your maintenance schedule.
