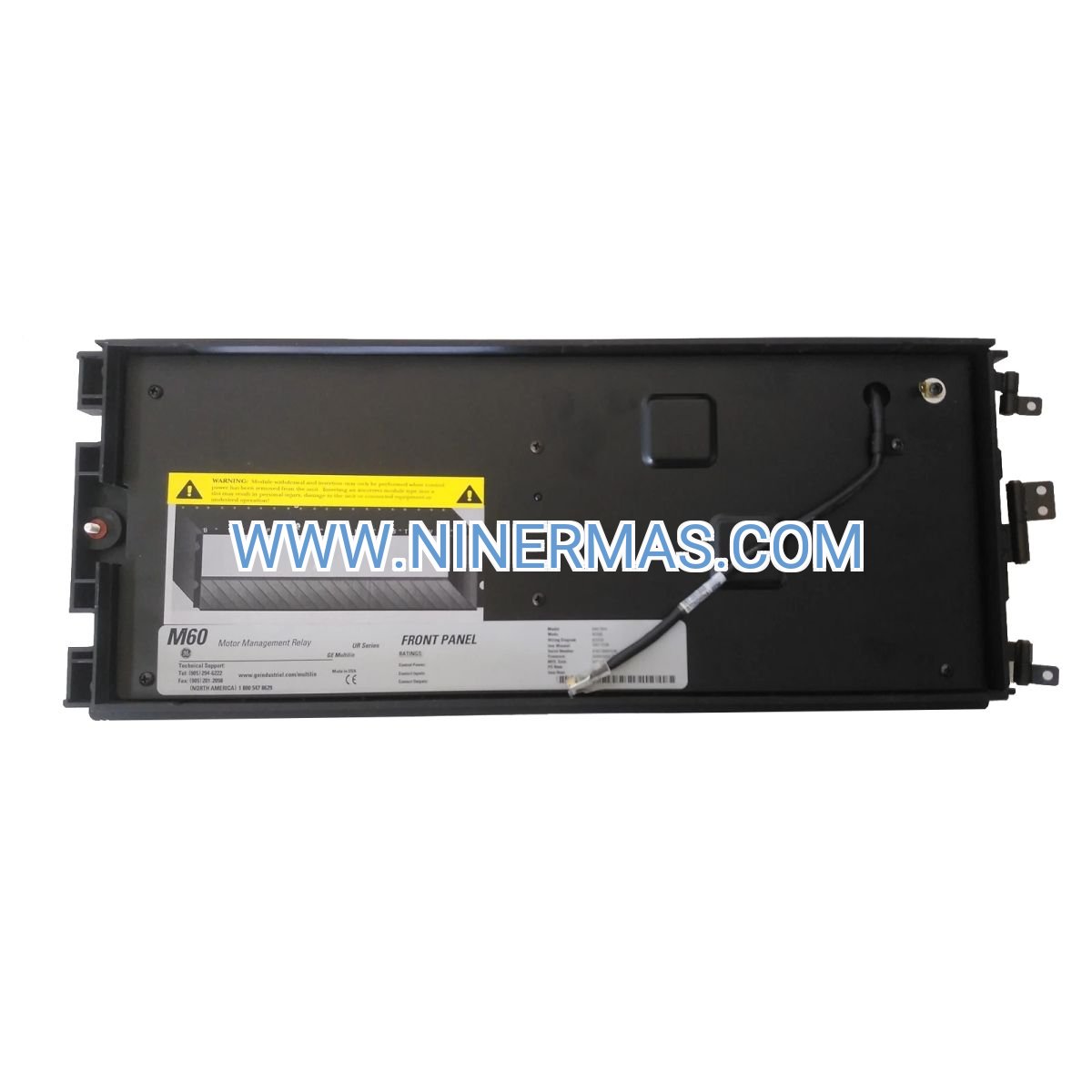

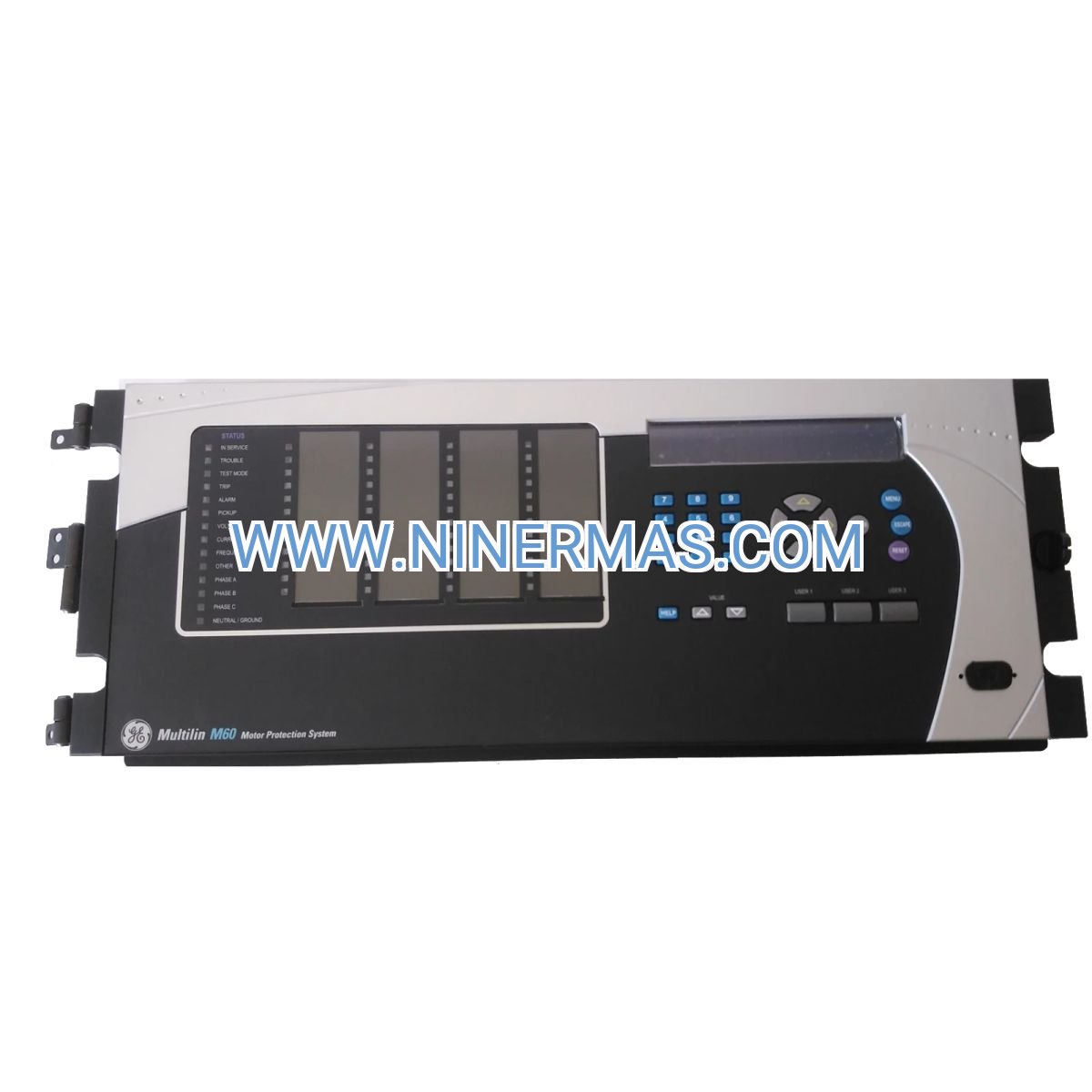

M60 Motor Protection Relay (Industrial-Grade Motor Safeguarding Platform)

The M60 Motor Protection Relay delivers enterprise-level motor asset protection through intelligent monitoring, predictive diagnostics, and multi-layered fault detection. Designed for mission-critical applications where unplanned downtime translates to significant operational losses, this relay combines real-time thermal modeling, comprehensive metering, and flexible communication architecture to ensure maximum motor availability and longevity.

Industrial facilities face mounting pressure to optimize equipment reliability while reducing maintenance costs. The M60 addresses these challenges by providing continuous visibility into motor health parameters, enabling condition-based maintenance strategies that prevent catastrophic failures. From high-horsepower pumps in water treatment plants to conveyor systems in mining operations, this relay serves as the central intelligence hub for motor protection ecosystems.

With support for up to 12 RTD temperature sensors, multi-protocol industrial networking, and advanced protection algorithms, the M60 transforms traditional motor protection into a proactive asset management tool. Operators gain actionable insights through detailed event logs, trending data, and customizable alarm thresholds—empowering data-driven decisions that extend equipment life and maximize production uptime.

Core Features & Business Value

→ Multi-Channel RTD Temperature Monitoring
Track stator winding, bearing, and ambient temperatures across 12 independent RTD inputs. Prevents thermal damage through precise temperature profiling and early warning alerts, reducing motor replacement costs by up to 40%.

✓ Universal Communication Protocol Support
Seamless integration with existing SCADA/DCS infrastructure via Modbus RTU, DNP3.0, and IEC 61850 protocols. Eliminates communication bottlenecks and enables centralized monitoring across distributed facilities.

→ Adaptive Thermal Overload Protection
Dynamic thermal modeling adjusts protection curves based on actual motor loading and ambient conditions. Prevents nuisance trips during legitimate transient events while maintaining rapid response to genuine faults.

✓ Comprehensive Power Quality Metering
Real-time tracking of voltage, current, power factor, energy consumption, and harmonic distortion. Identifies inefficient operating conditions and supports energy optimization initiatives.

→ Configurable Digital I/O Architecture
Flexible contact inputs and Form-C relay outputs enable custom control logic and integration with auxiliary equipment. Supports complex interlocking schemes and automated startup/shutdown sequences.

✓ Enhanced Event Recording & Diagnostics
Time-stamped fault records with pre-fault and post-fault data capture. Accelerates root cause analysis and reduces mean time to repair (MTTR) by providing forensic-level diagnostic information.

Typical Application Scenarios

Petrochemical Processing Facilities
Critical pump and compressor motors driving refinery operations require uninterrupted protection against thermal stress, phase imbalance, and ground faults. The M60's multi-layered protection algorithms prevent costly process interruptions while the RTD monitoring system detects bearing degradation before catastrophic failure occurs.

Power Generation & Cogeneration Plants
Auxiliary motors supporting turbine operations, cooling systems, and fuel handling equipment demand reliable protection with minimal maintenance overhead. The relay's self-diagnostic capabilities and redundant communication paths ensure continuous protection even during network disturbances.

Water & Wastewater Treatment
High-cycle-duty pump motors face unique challenges from frequent starts, variable loading, and harsh environmental conditions. Advanced locked rotor protection and restart inhibit functions prevent mechanical damage during abnormal operating conditions.

Mining & Material Handling
Conveyor drive motors, crusher systems, and ventilation fans operate in demanding environments with high vibration and temperature extremes. The M60's ruggedized design and extended operating temperature range (-40°C to +85°C) ensure reliable performance in the harshest industrial settings.

Manufacturing & Process Industries
Motor control centers managing dozens of motors benefit from the M60's standardized platform and centralized monitoring capabilities. Integration with plant-wide automation systems enables predictive maintenance programs that optimize spare parts inventory and maintenance scheduling.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the M60 for your application, consider motor horsepower rating, starting method (DOL, soft starter, VFD), required RTD monitoring points, and existing communication infrastructure. For motors above 500HP or applications requiring advanced harmonic analysis, consult with application engineers to optimize protection settings. Facilities with multiple motor types benefit from standardizing on the M60 platform to reduce spare parts inventory and training requirements.

Extended Functions

Variable Frequency Drive Compatibility: Specialized protection algorithms compensate for harmonic distortion and non-sinusoidal waveforms in VFD-controlled motor applications. Accurate current measurement and thermal modeling across the full speed range prevent false trips while maintaining protection integrity.

Predictive Maintenance Integration: Trending capabilities for key parameters (vibration via external sensors, temperature drift, insulation resistance) enable condition-based maintenance strategies. Export historical data to asset management systems for long-term reliability analysis.

Custom Logic Programming: Built-in programmable logic controller (PLC) functionality allows implementation of application-specific control sequences, interlocking schemes, and automated responses to process conditions without external controllers.

Cybersecurity Features: Role-based access control, encrypted communication options, and audit logging support compliance with industrial cybersecurity standards (IEC 62351, NERC CIP) in critical infrastructure applications.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days. Custom-configured units with specialized I/O or communication modules require 10-15 business days for factory programming and testing.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring guaranteed uptime.

Technical Support: Access to application engineering team for configuration assistance, protection coordination studies, and troubleshooting support. Remote diagnostic capabilities enable rapid issue resolution without site visits.

Documentation Package: Complete installation manual, protection setting guidelines, communication protocol implementation guides, and EnerVista M60 Setup software included with every relay. CAD drawings and panel cutout templates available for download.

Frequently Asked Questions

How does the M60 integrate with existing Modbus SCADA systems?
The relay includes native Modbus RTU support with configurable register mapping. Standard Modbus templates for popular SCADA platforms (Wonderware, Ignition, FactoryTalk) are provided, enabling plug-and-play integration. Dual RS485 ports allow simultaneous connection to multiple masters or daisy-chain configurations.

What motor horsepower range is suitable for M60 protection?
The M60 effectively protects motors from 10HP to 15,000HP depending on voltage class and CT ratios. For smaller motors (under 10HP), consider cost-optimized solutions; for ultra-large motors, consult regarding advanced differential protection options.

Can the relay monitor bearing temperature in real-time?
Yes, dedicated RTD inputs continuously monitor bearing temperatures with 0.1°C resolution. Configurable alarm stages (warning/alarm/trip) enable graduated response to temperature excursions. Trending functions identify gradual temperature increases indicative of bearing wear.

Does the M60 support remote firmware updates?
Firmware updates can be performed locally via front panel USB port or remotely through Ethernet communication using EnerVista software. Version control and rollback capabilities ensure safe update procedures without risking protection integrity.

What training is recommended for maintenance personnel?
Basic operation and alarm acknowledgment require minimal training (2-4 hours). Advanced configuration and protection setting optimization benefit from GE's 3-day M60 application course. Online training modules and webinars are available for ongoing skill development.

How does ground fault protection function in ungrounded systems?
The M60 supports multiple grounding schemes including solidly grounded, resistance grounded, and ungrounded systems. Zero-sequence current measurement and voltage-based ground detection methods adapt to your facility's grounding philosophy. Consult application notes for specific grounding system configurations.

Ready to Enhance Motor Reliability?

Contact our motor protection specialists to discuss your specific application requirements. We provide complimentary protection coordination studies, configuration assistance, and integration planning to ensure optimal system performance. Request a detailed technical datasheet or schedule a virtual product demonstration to see the M60's capabilities firsthand.
