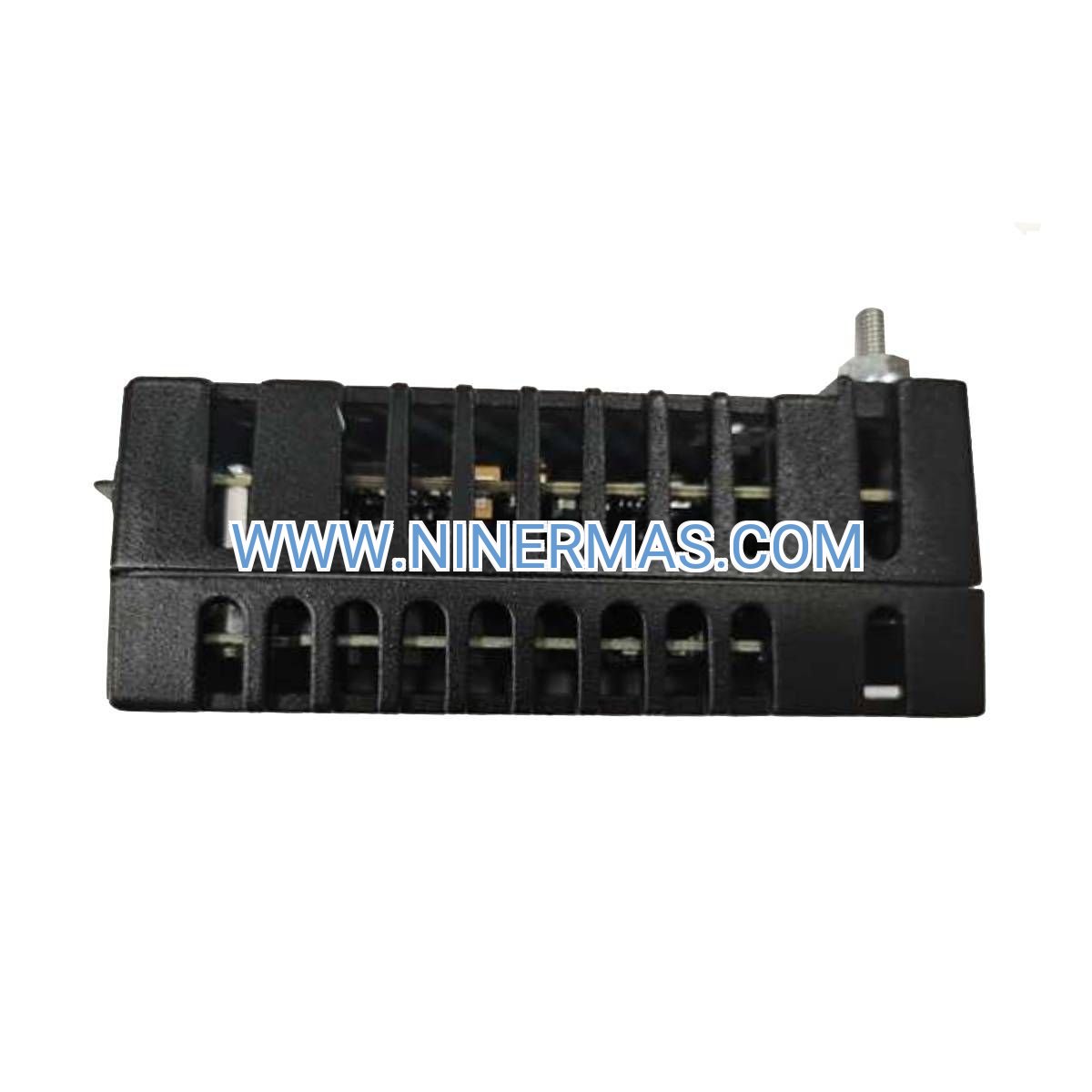

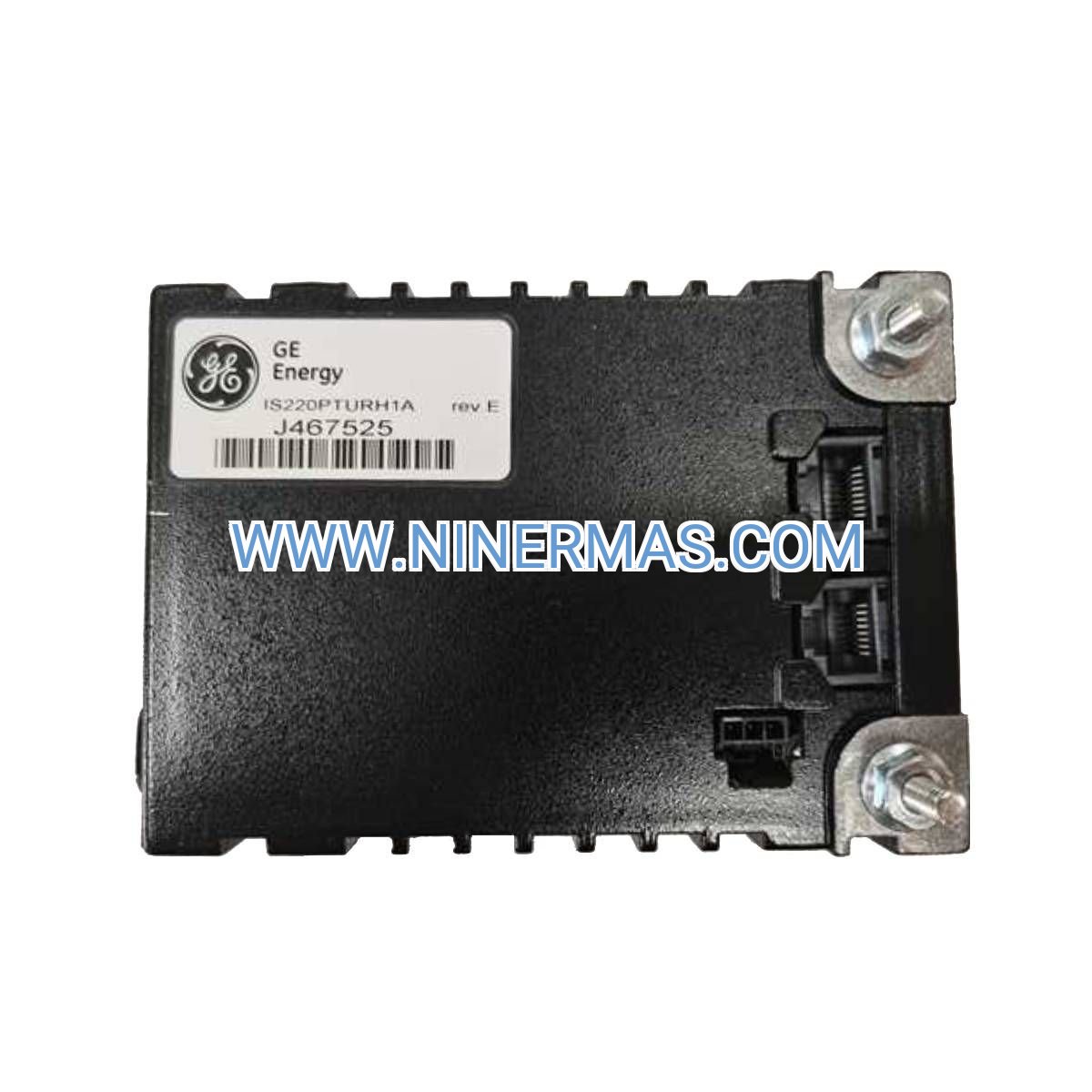

ISP220PTURH1A Primary Trip Module (Industrial-Grade TMR Safety System)

The ISP220PTURH1A represents a mission-critical safety component within GE's Mark VIe turbine control ecosystem. Engineered with triple modular redundant architecture, this primary trip module delivers fault-tolerant protection for gas turbines, steam turbines, and combined-cycle power generation systems where unplanned shutdowns can cost thousands per minute.

Designed for power plants, petrochemical facilities, and industrial cogeneration sites, the ISP220PTURH1A continuously monitors turbine parameters and executes emergency shutdown sequences when operating thresholds are exceeded. Its TMR design ensures that protection remains active even during single-point hardware failures, meeting IEC 61508 SIL-3 safety integrity requirements.

Whether you're upgrading legacy Mark VI systems or building new Mark VIe installations, this module integrates seamlessly with existing control networks while providing hot-swap capability for zero-downtime maintenance. Backed by comprehensive diagnostics and real-time health monitoring, the ISP220PTURH1A minimizes false trips while maximizing asset protection.

Core Capabilities & Business Value

→ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on every decision, eliminating single points of failure. Your turbine protection remains operational even during module replacement or component degradation, reducing unplanned downtime by up to 40% compared to simplex systems.

→ Sub-10ms Trip Response Time
Deterministic fault detection and actuation within 10 milliseconds protects turbine blades, bearings, and seals from catastrophic damage. This rapid response can prevent equipment failures costing $500K+ in repairs and lost production.

→ Hot-Swappable Maintenance Design
Replace individual TMR modules during turbine operation without compromising protection integrity. Schedule maintenance during normal operations rather than costly planned outages, improving annual availability by 2-3%.

✓ Ethernet TCP/IP Communication
Native integration with Mark VIe control networks enables real-time data exchange with HMI systems, SCADA platforms, and plant historians. Reduce commissioning time by 30% compared to legacy serial-based trip systems.

✓ Comprehensive Self-Diagnostics
Continuous internal health checks with detailed fault logging identify degraded components before they fail. Predictive maintenance capabilities reduce emergency callouts and extend mean time between failures (MTBF) beyond 150,000 hours.

✓ Wide Environmental Operating Range
Rated for -30°C to +65°C operation with conformal coating protection against humidity, dust, and chemical exposure. Deploy in harsh offshore platforms, desert power plants, or arctic industrial facilities without environmental enclosures.

Industry Applications & Problem Solving

Combined-Cycle Power Generation
Protects Frame 7/9 class gas turbines in CCGT plants where grid stability demands 99.5%+ availability. The ISP220PTURH1A coordinates with steam turbine protection systems to manage complex trip scenarios during load rejection, frequency excursions, or fuel quality upsets. Integrates with vibration monitoring, flame detection, and emissions control systems for comprehensive plant protection.

Offshore Oil & Gas Production
Provides SIL-3 rated safety shutdown for turbine-driven compressors on FPSOs, fixed platforms, and LNG facilities. Meets API 670 vibration monitoring requirements and coordinates with process safety systems (ESD, F&G) to prevent hydrocarbon releases. Salt-fog resistant design withstands marine environments without accelerated corrosion.

Petrochemical & Refining
Safeguards turbine-driven pumps, compressors, and mechanical drives in continuous process units where unplanned trips cascade into plant-wide shutdowns. Coordinates with distributed control systems (DCS) to execute controlled shutdowns that preserve catalyst beds, prevent polymer fouling, and maintain product quality during emergency stops.

Industrial Cogeneration & District Energy
Ensures reliable protection for combined heat and power (CHP) systems serving hospitals, universities, and manufacturing campuses. Manages complex trip logic for dual-fuel turbines, heat recovery steam generators (HRSG), and grid-parallel operation. Reduces insurance premiums through documented SIL-3 certification and comprehensive trip testing records.

Technical Parameters & Selection Guide

Selection Criteria: Verify your control system is Mark VIe architecture before ordering. The ISP220PTURH1A requires compatible terminal boards (IS200TRPGH1BDE or IS200TURH1BED) and must be configured using GE ToolboxST software version 5.0 or later. For systems requiring quad-redundant protection, consult factory application engineering.

Advanced Integration & Customization

The ISP220PTURH1A supports advanced protection strategies through programmable trip logic and multi-variable voting algorithms. Configure custom trip matrices for overspeed, vibration, exhaust temperature spread, lube oil pressure, and flame detection using GE's ToolboxST configuration environment.

For remote monitoring applications, the module streams real-time diagnostic data to plant SCADA systems via OPC UA or Modbus TCP protocols. Integration with GE's Digital Power Plant suite enables predictive analytics, fleet-wide benchmarking, and cloud-based condition monitoring for multi-site operations.

Custom firmware configurations support specialized applications including aero-derivative turbines, mechanical-drive compressors, and turbine-generator sets with complex auxiliary systems. Factory application engineering services available for non-standard protection requirements.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with express shipping to major industrial hubs worldwide. Custom-configured modules ship within 10-15 business days after order confirmation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Advance replacement available for critical applications to minimize downtime during warranty claims.

Technical Support: Access to certified GE Speedtronic specialists for configuration assistance, troubleshooting, and system integration guidance. Phone and email support included with every purchase, with optional on-site commissioning services available.

Documentation Package: Every module ships with installation manual, wiring diagrams, configuration templates, and safety certification documents. Digital access to GE technical bulletins and firmware updates provided through customer portal.

Frequently Asked Questions

Can the ISP220PTURH1A be retrofitted into existing Mark VI control systems?
No, this module is exclusively designed for Mark VIe architecture and is not backward-compatible with Mark VI, Mark V, or earlier platforms. Mark VI systems require IS200PTURH or IS215PTURH series modules. Contact our team for Mark VI to Mark VIe migration planning assistance.

What is the recommended spare parts strategy for critical turbine applications?
For high-availability installations, maintain one complete TMR module set (three units) as cold spares. The hot-swappable design allows single-module replacement without system shutdown, but having a full TMR set ensures protection during cascading failures or extended vendor lead times.

How does the ISP220PTURH1A handle spurious trip prevention?
The TMR voting logic requires two-out-of-three agreement before executing trip commands, eliminating false trips from single-channel sensor failures or electromagnetic interference. Configurable voting delays (10-100ms) filter transient signals while maintaining rapid response to genuine fault conditions.

What cybersecurity features protect the module from unauthorized access?
The module supports role-based access control (RBAC), encrypted Ethernet communication, and audit logging of all configuration changes. Integration with plant firewalls and network segmentation isolates the Mark VIe control network from enterprise IT systems per IEC 62443 industrial cybersecurity standards.

Is factory calibration required before installation?
No, the ISP220PTURH1A ships factory-calibrated and ready for installation. Configuration of trip setpoints, voting logic, and I/O mapping is performed through ToolboxST software after physical installation. Annual functional testing per API 670 is recommended but does not require module removal or recalibration.

What environmental testing has this module passed for harsh industrial environments?
The module is qualified to IEC 60068 environmental testing standards including vibration (2g, 10-150Hz), shock (15g), salt fog (96 hours), and temperature cycling (-40°C to +85°C). Conformal coating protects against humidity, dust, and chemical exposure in refineries, offshore platforms, and desert installations.

Order Your ISP220PTURH1A Module Today

Protect your critical turbine assets with proven Mark VIe safety technology. Our team provides expert guidance on system configuration, spare parts planning, and integration with existing control infrastructure. Contact us for volume pricing, expedited delivery, or technical consultation on your specific application requirements.
