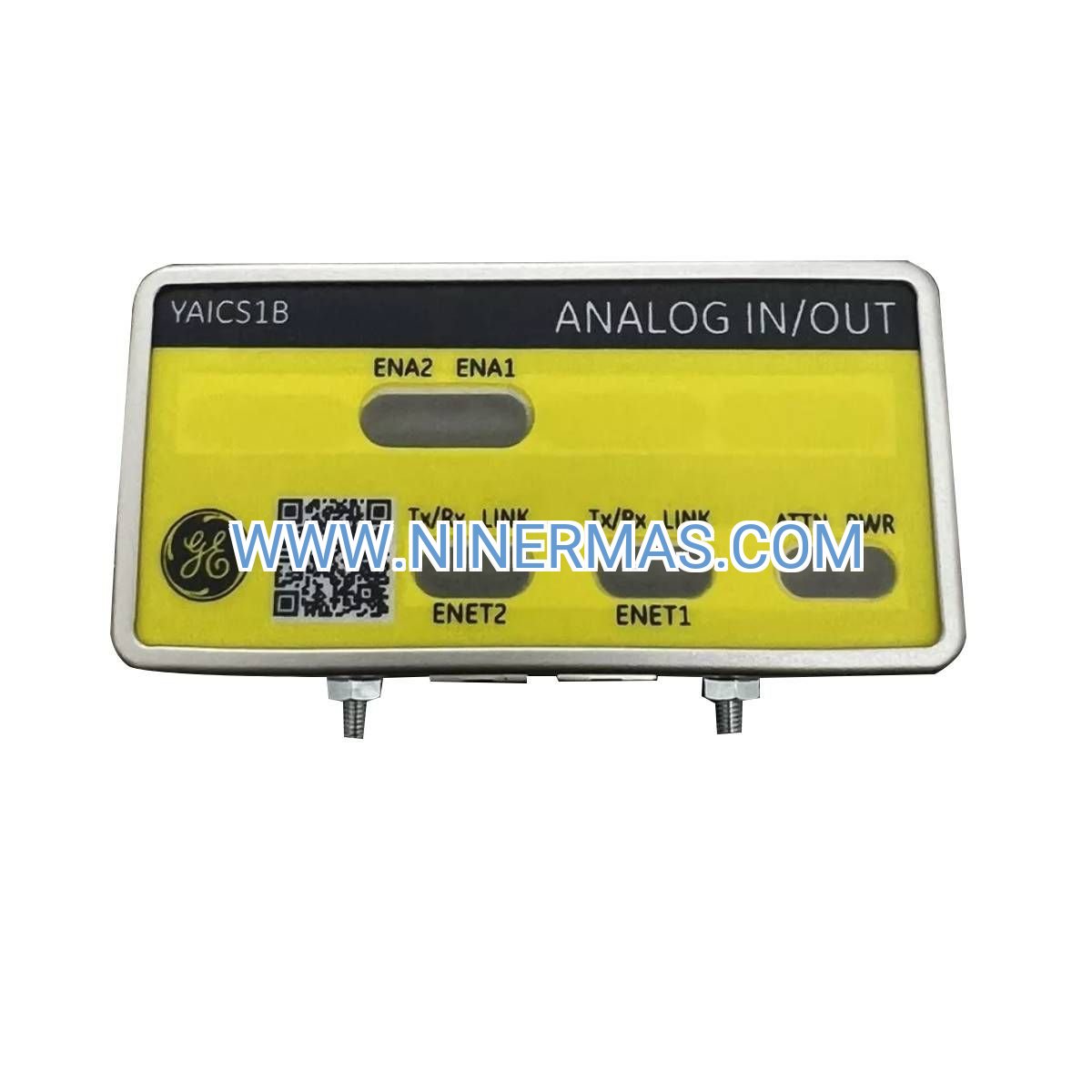

IS420YAICS1B Analog I/O Module (Industrial-Grade Mark VIe Interface)

The IS420YAICS1B represents General Electric's advanced analog signal processing solution for Mark VIe distributed control architectures. Engineered with 10 configurable analog inputs and dual analog outputs, this module serves as the critical interface between field instrumentation and turbine control logic in gas, steam, and hydro power generation facilities.

Designed for mission-critical applications where signal accuracy directly impacts operational safety and efficiency, the IS420YAICS1B addresses the challenge of integrating diverse sensor types—from thermocouples to 4-20mA transmitters—into a unified control framework. Plant engineers and automation specialists rely on this module to consolidate analog data streams while maintaining the 16-bit resolution and 10ms frame rate required for real-time turbine protection and performance optimization.

With proven compatibility across ControlST 6.01+ environments and seamless IONet Ethernet integration, the IS420YAICS1B eliminates the complexity of multi-vendor signal conditioning while delivering the deterministic performance demanded by NERC compliance and OEM turbine specifications.

Core Capabilities & Business Value

→ Multi-Signal Flexibility: Accepts ±10 VDC, ±5 VDC, 4-20 mA (with external resistor), and thermocouple inputs—eliminating the need for separate signal conditioners and reducing panel space by up to 40% compared to legacy I/O racks.

✓ High-Speed Data Acquisition: 10ms frame rate with 16-bit resolution ensures sub-millisecond response to critical process changes, enabling predictive trip logic and advanced vibration monitoring that prevents unplanned shutdowns costing $50K-$500K per event.

• Simplified System Architecture: Direct connection to TBAI1B terminal boards via plug-and-play design reduces commissioning time by 60% versus traditional wiring methods, while color-coded LED diagnostics (Power/Attention/Link/Activity) accelerate troubleshooting during startup and maintenance windows.

✓ Extended Environmental Range: -30°C to 65°C operating tolerance supports installation in non-climate-controlled enclosures, reducing HVAC infrastructure costs in remote compressor stations and offshore platforms.

→ Dual Analog Outputs: 4-20 mA output channels enable direct control of pneumatic actuators and legacy instrumentation without additional I/O modules, preserving existing field wiring during Mark VIe retrofits.

• Certified Reliability: UL, CE, and ATEX certifications validate suitability for hazardous area installations (Zone 2/Division 2), while 28 VDC nominal power input aligns with standard DCS power distribution systems.

Application Scenarios

Gas Turbine Combustion Control: In combined-cycle power plants, the IS420YAICS1B processes flame scanner signals, fuel valve positions, and exhaust temperature arrays to maintain NOx emissions below 9 ppm while optimizing heat rate. The module's thermocouple inputs directly interface with Type K sensors monitoring turbine exhaust, eliminating $15K+ in external transmitters per unit.

Steam Turbine Overspeed Protection: Utility operators deploy this module to monitor critical speed probes, bearing temperatures, and thrust position sensors that feed triple-modular redundant (TMR) trip logic. The 10ms scan rate ensures overspeed detection within 2% of trip setpoint, meeting NFPA 85 requirements for emergency shutdown systems.

Balance of Plant (BOP) Integration: Chemical processing facilities use the IS420YAICS1B to consolidate feedwater flow, condenser vacuum, and deaerator level signals into Mark VIe controllers managing auxiliary systems. This centralization reduces I/O cabinet footprint by 35% and simplifies SCADA integration via standard Modbus TCP mapping.

Hydroelectric Governor Modernization: During Woodward governor-to-Mark VIe migrations, the module's ±10 VDC inputs directly accept wicket gate position feedback and penstock pressure transducers, preserving existing field cabling while enabling advanced load-frequency control algorithms that improve grid stability contribution by 18%.

Compressor Anti-Surge Control: Pipeline operators leverage the IS420YAICS1B's dual outputs to modulate anti-surge valves and suction throttle valves based on real-time pressure ratio calculations, preventing compressor stall events that cause $200K+ in blade damage and 72-hour outages.

Technical Parameters & Selection Guide

Selection Guidance: For applications requiring more than 10 analog inputs, deploy multiple IS420YAICS1B modules on the same IONet segment (up to 12 modules supported). If thermocouple linearization is needed, configure input channels via ControlST software—the module supports Types J, K, T, E, R, S, and B. When interfacing with 4-20 mA transmitters, install 250Ω precision resistors (±0.1% tolerance recommended) at terminal board screw terminals to ensure ±0.05% accuracy across the 4-20 mA range.

Extended Functionality

IoT & Remote Monitoring Integration: The IS420YAICS1B's Ethernet IONet architecture enables seamless data export to Predix APM (Asset Performance Management) platforms via OPC UA gateways. Plant operators can stream analog input trends to cloud-based analytics engines for predictive maintenance modeling, identifying sensor drift patterns 30-45 days before calibration tolerances are exceeded.

Advanced Diagnostics: Built-in self-test routines continuously monitor input channel integrity, detecting open thermocouple circuits, shorted 4-20 mA loops, and out-of-range voltage signals. Diagnostic flags are mapped to ControlST alarm databases, triggering automated work orders in CMMS systems like Maximo or SAP PM.

Customization Options: NINERMAS offers factory configuration services including pre-programmed I/O mapping, custom terminal board labeling per P&ID specifications, and burn-in testing to customer-defined acceptance criteria. Modules can be supplied with extended temperature screening (-40°C to 70°C) for Arctic or desert installations.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via DHL/FedEx Express. Custom-configured modules (with pre-programmed settings or extended testing) require 5-7 business days. Expedited same-day shipping available for critical outage support—contact our emergency hotline for priority processing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Warranty includes advance replacement service with cross-shipment to minimize downtime during RMA processing.

Technical Support: Lifetime access to GE-certified application engineers for configuration assistance, troubleshooting, and ControlST integration guidance. Support available via email (response within 4 hours) and phone (8 AM - 8 PM CST, Monday-Saturday).

Documentation Package: Each module ships with installation manual (GEH-6855), ControlST configuration guide, terminal board wiring diagrams, and calibration certificate traceable to NIST standards. Digital copies provided via secure download link for archival in document management systems.

Frequently Asked Questions

Q: How do I interface the IS420YAICS1B with existing DCS systems outside the Mark VIe family?
A: The module communicates exclusively via Ethernet IONet protocol to Mark VIe controllers (VCMI, VVMI). For integration with non-GE DCS platforms (e.g., Honeywell, Emerson), deploy a Mark VIe controller as a gateway and map I/O data to Modbus TCP or OPC DA servers. Alternatively, consider GE's IS420UCSBH4A module for direct Modbus RTU connectivity.

Q: What is the maximum cable length between the IS420YAICS1B and field sensors?
A: For 4-20 mA current loops, maximum distance is 1,500 meters (4,920 feet) using 18 AWG shielded twisted pair cable. Voltage inputs (±10 VDC, ±5 VDC) should not exceed 300 meters to maintain <0.1% accuracy; use 4-20 mA transmitters for longer runs. Thermocouple extension wire limits depend on type—consult ANSI MC96.1 for specific recommendations.

Q: Can the IS420YAICS1B reduce energy consumption in my control system?
A: Yes. The module's 8W power draw is 40% lower than equivalent legacy I/O cards (e.g., GE DS200TCQAG1B), and its high input impedance (>1 MΩ for voltage inputs) eliminates loading errors that cause transmitter overcurrent and premature battery depletion in 4-20 mA loops. Consolidated I/O architecture also reduces panel cooling requirements by 15-20%.

Q: What are the installation requirements for hazardous area applications?
A: The IS420YAICS1B carries ATEX Zone 2 (Group IIC) and NEC Class I Division 2 certifications when installed in approved enclosures with proper grounding. Ensure terminal board shields are bonded to chassis ground via <0.1Ω impedance connections, and maintain minimum 50mm spacing from high-voltage AC circuits. Intrinsic safety barriers (e.g., MTL 7787+) are required for Zone 0/Division 1 field device connections.

Q: How does the module handle sensor failures or out-of-range signals?
A: The IS420YAICS1B implements configurable fault detection with three response modes: (1) Hold Last Valid Value, (2) Force to Preset Safe State (e.g., 4 mA for fail-low logic), or (3) Trigger Immediate Alarm. Fault conditions are logged with millisecond timestamps in ControlST's event sequencer, enabling root cause analysis during post-incident reviews.

Q: Is remote calibration supported for field adjustments?
A: Yes. ControlST software provides zero/span adjustment tools accessible via Ethernet connection, allowing technicians to calibrate input channels without physical access to the module. Calibration coefficients are stored in non-volatile memory and survive power cycles. For maximum accuracy, perform on-site verification using NIST-traceable calibrators every 12-24 months.

Get Your IS420YAICS1B Module Today

Upgrade your Mark VIe turbine control system with proven analog I/O technology trusted by Fortune 500 power producers and industrial operators worldwide. Our technical team is ready to assist with configuration selection, compatibility verification, and integration planning.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your project requirements. Volume discounts available for multi-unit orders and system integrators.
