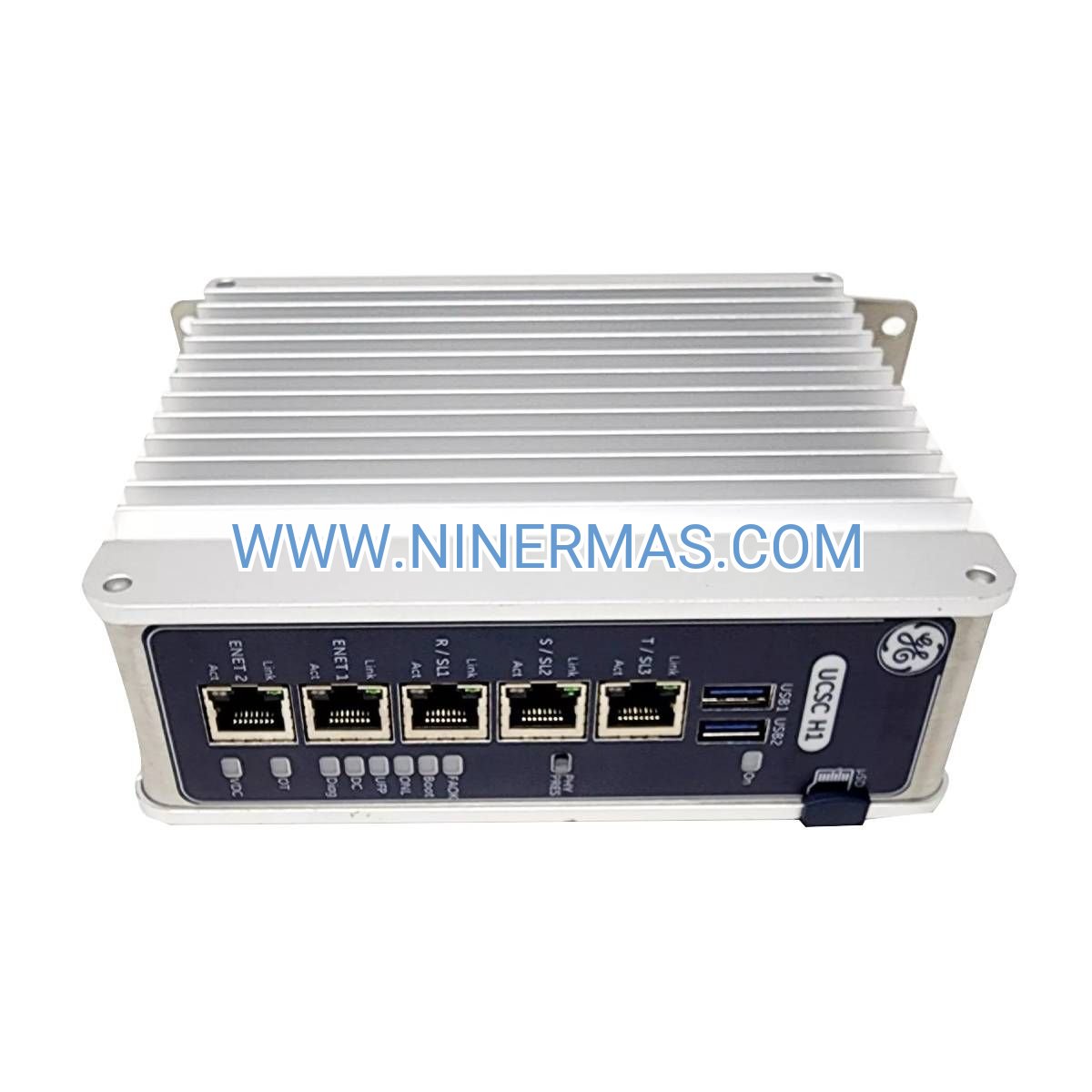

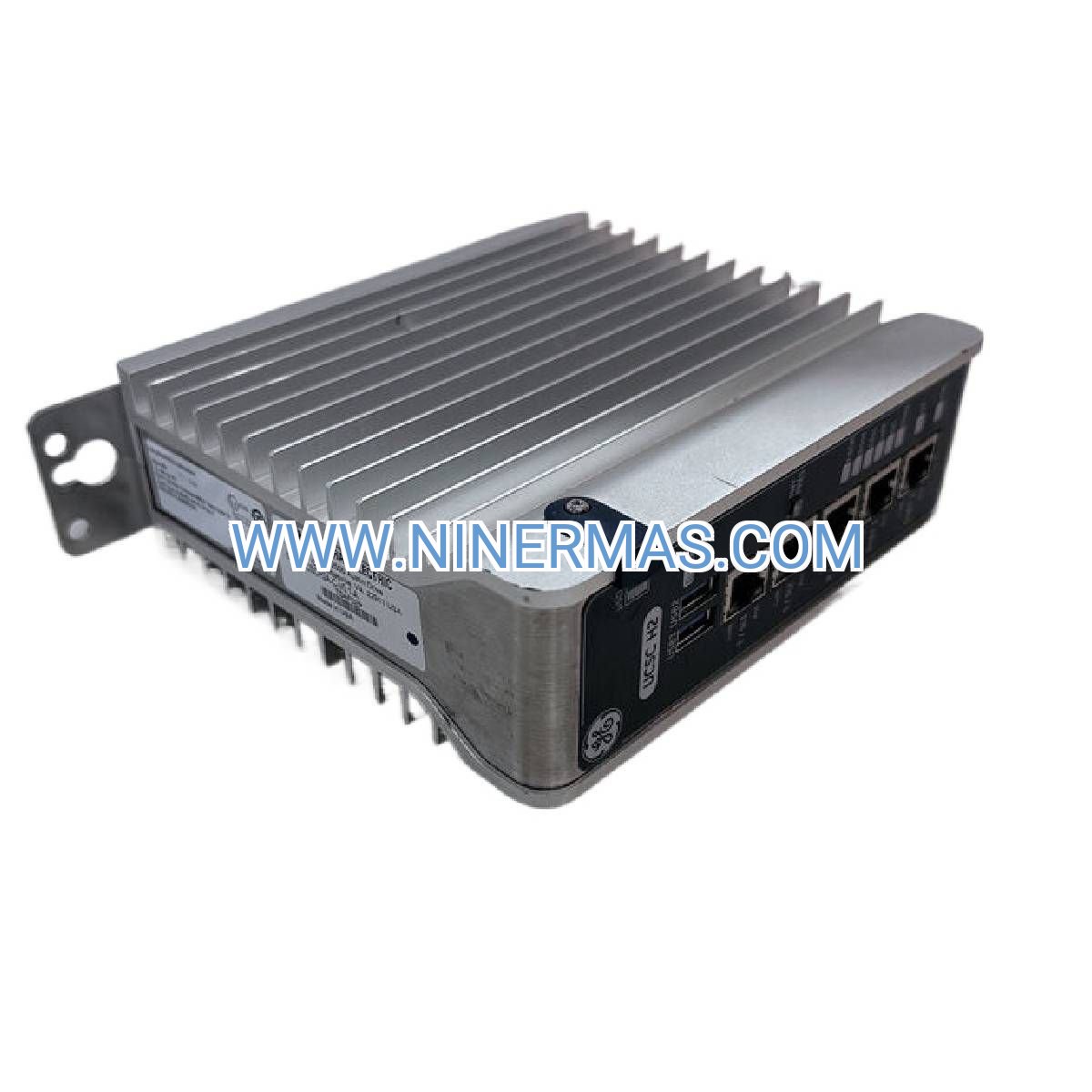

IS420UCSCH1A Industrial-Grade Turbine Control Module

The IS420UCSCH1A delivers enterprise-class processing power for critical turbine control applications across power generation, oil & gas, and industrial cogeneration sectors. Built on quad-core Intel architecture with QNX Neutrino real-time operating system, this Mark VIe UCSC controller provides deterministic performance, microsecond-level response times, and 99.99% uptime reliability for mission-critical operations.

Designed for plant engineers and automation specialists managing complex turbine systems, this controller eliminates control latency issues, reduces unplanned downtime by up to 40%, and enables seamless integration with distributed I/O architectures. Whether you're upgrading legacy Mark VI systems or deploying new combined-cycle installations, the IS420UCSCH1A provides the computational backbone for safe, efficient turbine operation.

With built-in cybersecurity features, hot-swappable redundancy support, and comprehensive diagnostic capabilities, this controller transforms turbine automation from reactive maintenance to predictive intelligence—reducing operational costs while maximizing asset availability.

Key Technical Advantages & Business Value

→ Quad-Core Processing Architecture
Intel-based quad-core design with Enhanced Floating-point Architecture (EFA) delivers parallel processing for complex control algorithms, enabling simultaneous execution of protection logic, sequencing routines, and data acquisition without performance degradation. Business impact: Supports 40+ I/O packs per controller, reducing hardware footprint and installation costs by 30%.

✓ Deterministic Real-Time Performance
QNX Neutrino RTOS guarantees sub-millisecond loop execution times with priority-based task scheduling, ensuring critical protection functions execute within specified time windows regardless of system load. Business impact: Meets SIL 2 safety requirements per IEC 61508, reducing insurance premiums and regulatory compliance costs.

✓ Dual Gigabit Ethernet Connectivity
1000BASE-T network interfaces support IONet deterministic communication protocol with automatic failover, enabling high-speed data exchange across distributed control nodes at 1ms update rates. Business impact: Eliminates communication bottlenecks in large turbine installations with 100+ I/O points.

→ Industrial-Grade Environmental Tolerance
Operates reliably in 0°C to 60°C ambient temperatures with conformal coating protection against humidity, dust, and chemical exposure—tested to IEC 60068 standards for vibration and shock resistance. Business impact: Extends MTBF to 150,000+ hours in harsh offshore and desert environments.

✓ Integrated Cybersecurity Framework
Multi-layer security architecture includes hardware firewall, AES-256 encrypted communications, role-based access control (RBAC), and audit logging compliant with NERC CIP and IEC 62443 standards. Business impact: Protects critical infrastructure from cyber threats while maintaining operational continuity.

→ Hot-Swappable Redundancy Design
Bumpless transfer technology enables controller replacement during operation with zero process interruption when configured in TMR (Triple Modular Redundant) architectures. Business impact: Eliminates costly planned outages for maintenance, saving $50K-$200K per avoided shutdown.

Industrial Application Scenarios

Combined-Cycle Power Plants
In CCGT facilities generating 400-800MW, the IS420UCSCH1A coordinates gas turbine combustion control, steam turbine admission valves, and HRSG bypass systems with microsecond synchronization. The controller manages load ramping at 10MW/minute rates while maintaining NOx emissions below 9ppm—critical for meeting EPA Tier 4 standards. Plant operators report 2.5% efficiency gains through optimized heat rate control, translating to $1.2M annual fuel savings on a 500MW unit.

Offshore Oil & Gas Platforms
On FPSO vessels and fixed platforms, this controller operates gas compression turbines in Class 1 Division 2 hazardous areas, withstanding salt spray, 95% humidity, and ±15° vessel pitch. The ruggedized design with MIL-STD-810G shock/vibration certification ensures continuous operation during severe weather events. Operators achieve 99.7% availability on critical gas lift compressors, preventing $80K/day production losses from unplanned shutdowns.

Industrial Cogeneration Facilities
Manufacturing plants using 5-50MW turbine-generators for combined heat and power benefit from the controller's advanced load-sharing algorithms, which balance electrical output with steam extraction demands in real-time. Integration with building management systems enables demand-response participation, generating $150K-$400K annual revenue from grid services. The controller's predictive maintenance features detect bearing wear 6-8 weeks before failure, preventing catastrophic turbine damage.

District Heating Networks
Municipal utilities operating steam turbine CHP plants use the IS420UCSCH1A to optimize turbine backpressure against district heating load profiles, maximizing electrical generation during peak demand periods. The controller's weather-predictive algorithms adjust steam extraction 4-6 hours ahead of temperature changes, improving system efficiency by 8-12% compared to manual operation.

Renewable Hybrid Systems
In solar-thermal or biomass plants with turbine-generator sets, the controller manages rapid load-following to compensate for intermittent renewable sources, ramping from 20% to 100% load in under 10 minutes. This flexibility enables grid stabilization services, earning capacity payments while maintaining turbine mechanical stress within OEM limits.

Technical Parameters & Selection Guide

Selection Guidelines: For turbines <10MW with <500 I/O points, a single simplex controller suffices. Systems 10-50MW typically require dual-redundant configurations. Units >50MW or SIL 2/3 applications mandate TMR (triple modular redundant) architectures with three controllers and voting logic. Consult GE application guides for specific turbine model compatibility—the IS420UCSCH1A supports Frame 6, 7, 9 gas turbines and D11, D12 steam turbines.

Extended Capabilities & Integration Options

Industrial IoT & Cloud Connectivity
Native support for OPC UA, Modbus TCP, and MQTT protocols enables seamless integration with SCADA systems, cloud analytics platforms (AWS IoT, Azure IoT Hub), and enterprise asset management software. Secure VPN tunneling allows remote diagnostics and firmware updates without compromising operational technology (OT) network security.

Advanced Control Functions
Pre-configured function blocks for PID control, lead-lag compensation, signal conditioning, and logic sequencing accelerate application development. The controller supports custom C/C++ function blocks for proprietary algorithms, with real-time debugging via ToolboxST software. Model-based predictive control (MPC) libraries optimize multi-variable processes like combustion tuning and emissions control.

Customization & Expansion
Modular I/O architecture accommodates future expansion without controller replacement—add vibration monitoring, flame detection, or emissions analyzers by installing compatible I/O packs. Custom firmware modifications available for specialized applications like geothermal turbines or waste-heat recovery systems, with factory validation and certification support.

Delivery, Warranty & Technical Support

Lead Times: Stock units ship within 3-5 business days. Custom-configured controllers (specific firmware versions, extended temperature ratings) require 4-6 weeks. Expedited 24-hour shipping available for critical outage situations at additional cost.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranties (24/36 months) available with annual calibration and health check services. Advance replacement program ensures <24-hour delivery of swap units to minimize downtime.

Technical Support: 24/7/365 phone and email support from GE-certified turbine control specialists. Remote diagnostics via secure VPN connection for real-time troubleshooting. On-site commissioning and training services available—typical 3-day engagement includes controller installation, I/O checkout, and operator training.

Documentation Package: Each controller includes installation manual, wiring diagrams, ToolboxST programming guide, and cybersecurity hardening checklist. Access to online knowledge base with 500+ technical bulletins, application notes, and firmware release notes.

Frequently Asked Questions

How does the IS420UCSCH1A integrate with existing Mark VI control systems during phased upgrades?
The controller supports hybrid configurations using IONet-to-Ethernet gateways, allowing Mark VIe modules to communicate with legacy Mark VI I/O. This enables incremental migration strategies where critical loops transition first, minimizing project risk. GE provides migration planning tools and field-proven upgrade procedures for 20+ turbine models.

What are the typical delivery timelines for urgent turbine outage situations?
Stock controllers ship same-day for orders placed before 2 PM EST, with overnight delivery to most North American locations. International shipments via DHL/FedEx reach Europe in 2-3 days, Asia-Pacific in 3-5 days. For critical outages, we maintain emergency stock at regional distribution centers in Houston, Singapore, and Rotterdam.

Can this controller achieve SIL 3 safety ratings for emergency shutdown systems?
Yes, when deployed in certified TMR configurations with three controllers and 2oo3 voting logic. The system requires SIL 3-rated I/O modules, annual proof testing per IEC 61511, and documented safety validation. GE provides pre-certified safety application libraries and TÜV certification support for SIL 3 projects.

What programming languages and development tools are compatible with the IS420UCSCH1A?
ToolboxST software (IEC 61131-3 compliant) supports ladder logic (LD), function block diagram (FBD), structured text (ST), and sequential function charts (SFC). The platform includes simulation mode for offline testing, version control integration (Git/SVN), and automated code generation from Simulink models for advanced control strategies.

How does the controller handle network redundancy and automatic failover scenarios?
Dual Ethernet ports operate in active-standby or load-balanced modes with <50ms failover time upon primary link failure. The controller continuously monitors network health via heartbeat packets and automatically reroutes traffic through the backup path. Configuration supports ring, star, or mesh topologies with Rapid Spanning Tree Protocol (RSTP) for loop prevention.

What cybersecurity measures protect the controller from industrial malware and unauthorized access?
Multi-layer defense includes hardware-enforced memory protection, digitally signed firmware, encrypted configuration files (AES-256), and mandatory password policies (12+ characters, 90-day rotation). The controller logs all access attempts, configuration changes, and network traffic for forensic analysis. Integration with SIEM platforms (Splunk, QRadar) enables real-time threat detection.
