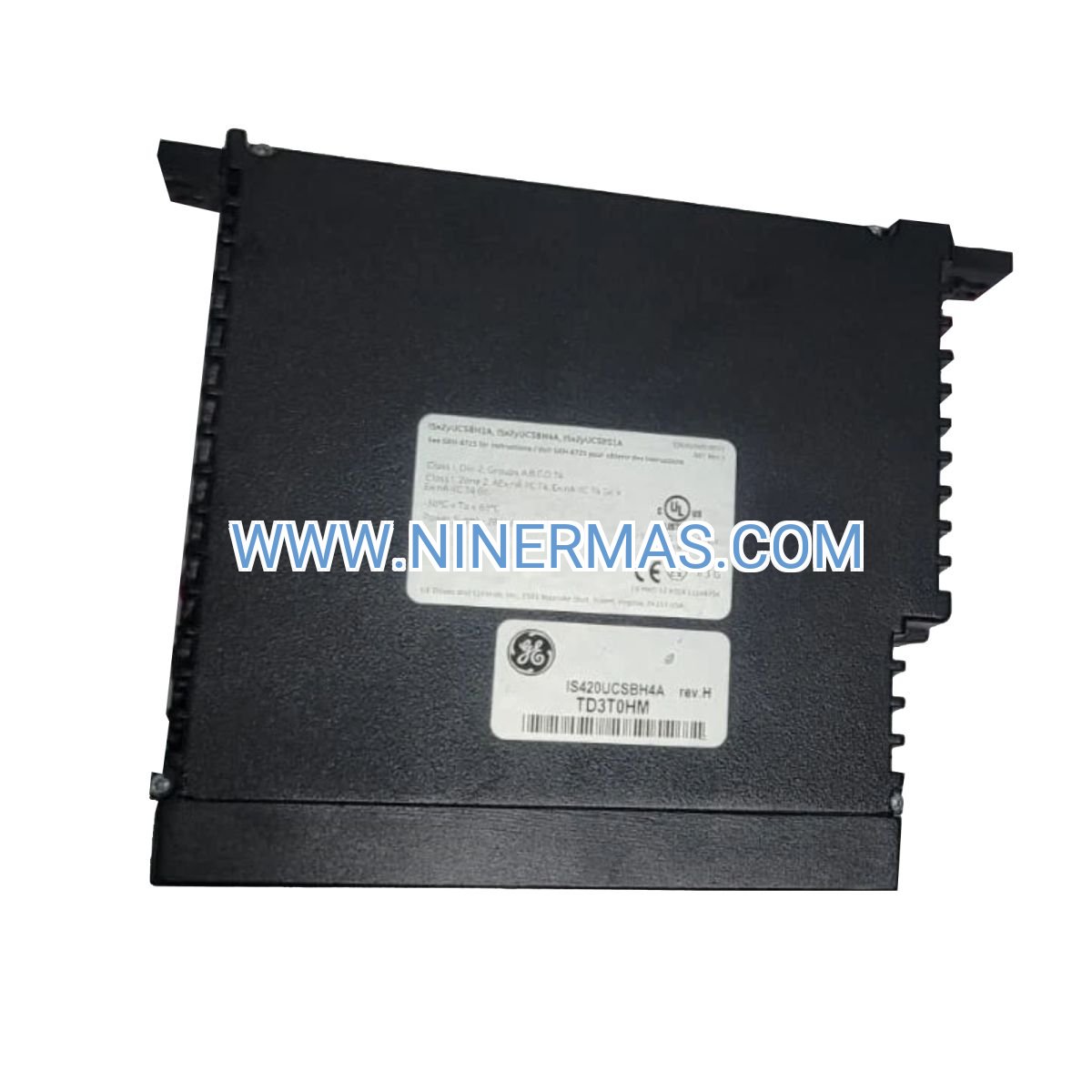

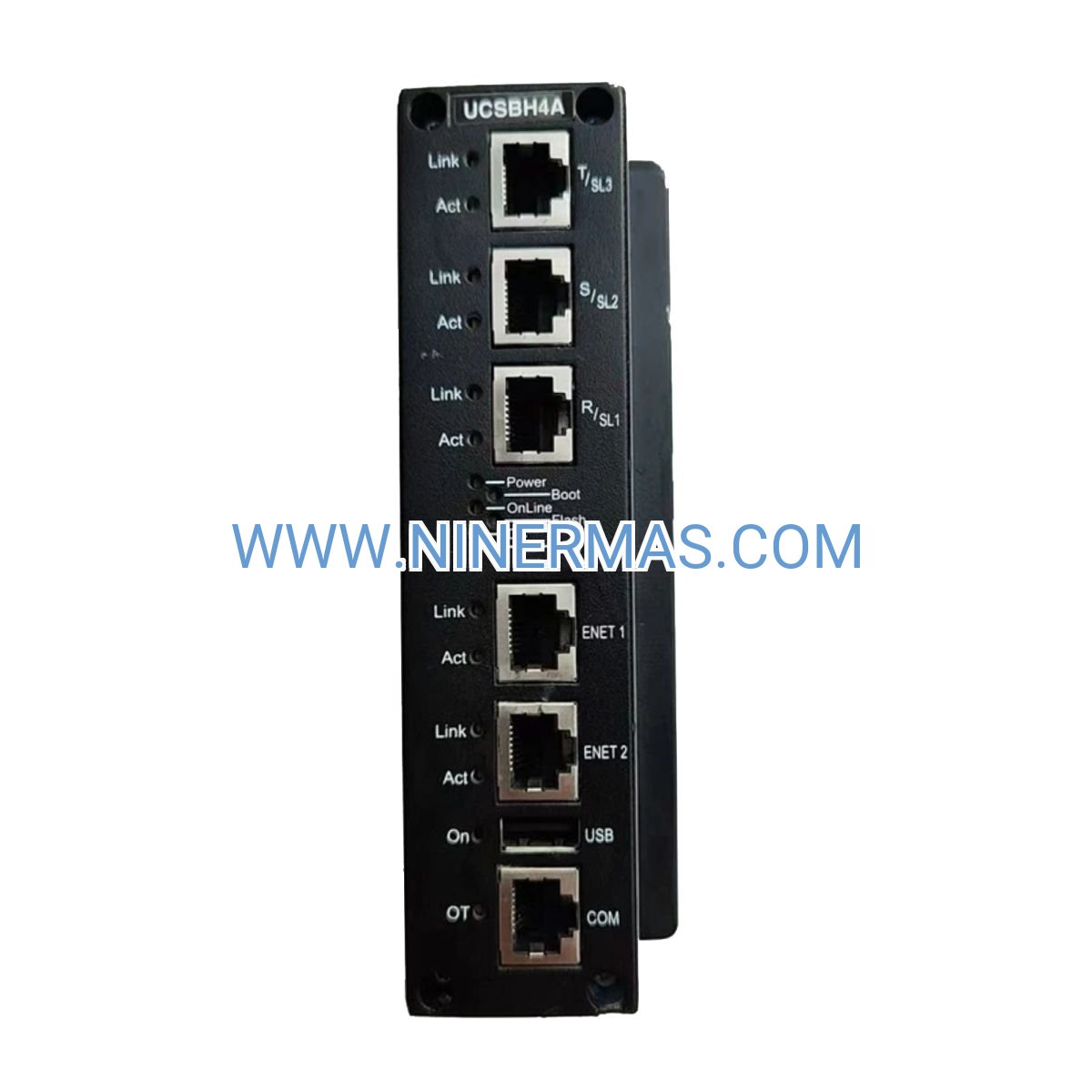

IS420UCSBH4A Mark VIe Controller Module (Industrial-Grade Central Processing Unit)

The IS420UCSBH4A represents GE's advanced controller architecture for Mark VIe turbine control platforms, delivering deterministic execution of mission-critical control algorithms in power generation and industrial turbine applications. Engineered with redundancy-ready design and high-speed backplane communication, this module serves as the computational core for gas turbines, steam turbines, and combined-cycle installations where uptime directly impacts revenue generation.

Designed for system integrators and plant operators managing aging DCS infrastructure or expanding turbine capacity, the IS420UCSBH4A eliminates single points of failure through hot-swappable redundancy configurations. Its compatibility with legacy Mark VIe I/O modules protects existing capital investments while enabling phased modernization strategies. With operating temperature tolerance from -30°C to +65°C and IP20-rated construction, this controller thrives in harsh industrial environments where conventional PLCs fail.

Key differentiators include 512 MB RAM for complex logic execution, multi-protocol communication (IONet/Ethernet/Modbus), and LED-based fault visualization that reduces MTTR by 40% compared to diagnostic-only systems. Whether retrofitting brownfield sites or commissioning greenfield projects, this module delivers the processing power and reliability demanded by utility-scale operations.

Core Capabilities & Business Value

→ Redundant Architecture Support: Seamlessly integrates into dual-controller configurations with automatic failover, ensuring zero-downtime operation during maintenance windows or component failures—critical for baseload power plants with 99.7%+ availability targets.

✓ Real-Time Diagnostic Intelligence: Four-channel LED indicators (power/status/fault/communication) provide instant visual confirmation of system health, while integrated fault logging to ControlST software enables predictive maintenance scheduling and reduces unplanned outages.

• Multi-Protocol Connectivity: Native support for Mark VIe backplane, IONet fieldbus, Ethernet TCP/IP, and Modbus RTU allows integration with SCADA systems, HMI panels, and third-party analytics platforms without protocol gateways—lowering total cost of ownership by 15-25%.

1. High-Speed Signal Processing: Internal DSP handles analog/digital signal conditioning at microsecond intervals, delivering the precision required for vibration monitoring, temperature control, and fuel-air ratio optimization in turbine protection systems.

2. Hot-Swappable Design: Field-replaceable without system shutdown via Mark VIe control panel mounting, minimizing mean time to repair (MTTR) and supporting 24/7 operational requirements in continuous process industries.

3. Extended Environmental Tolerance: Operates reliably in -30°C to +65°C ambient conditions with 5-95% non-condensing humidity resistance, making it suitable for outdoor enclosures, desert installations, and tropical climates without additional HVAC infrastructure.

Industrial Application Scenarios

Combined-Cycle Power Plants: Coordinates gas turbine, steam turbine, and HRSG control loops in 500+ MW facilities, managing load ramping, emissions compliance, and grid synchronization. Solves the challenge of integrating renewable energy sources by enabling rapid start-stop cycling without thermal stress damage.

Petrochemical Compressor Stations: Executes anti-surge control algorithms for centrifugal compressors in natural gas pipelines and LNG facilities, preventing catastrophic equipment damage during flow transients. Delivers ROI through reduced compressor maintenance costs (typically $200K-$500K annually) and improved process efficiency.

Cogeneration Facilities: Manages simultaneous electricity generation and thermal energy production in industrial parks, hospitals, and district heating systems. Addresses the complexity of balancing electrical load following with steam pressure/temperature setpoints across varying demand profiles.

Marine Propulsion Systems: Controls ship-board gas turbines in LNG carriers and naval vessels, handling dynamic load changes during maneuvering while maintaining fuel efficiency. Solves vibration and shock resistance requirements through ruggedized component selection and conformal coating protection.

Waste-to-Energy Plants: Regulates combustion control and emissions monitoring in municipal solid waste incinerators, ensuring compliance with EPA/EU emission standards while maximizing energy recovery. Reduces operator workload through automated feedstock quality compensation and boiler optimization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS420UCSBH4A when your application requires deterministic control loop execution below 10 ms scan times, redundancy support for critical processes, or integration with existing Mark VIe I/O infrastructure. For applications with lower I/O counts (under 128 points), consider the UCSA variant; for extreme environmental conditions beyond IP20 requirements, specify conformal coating options during procurement. Verify backplane compatibility with your Mark VIe panel revision (consult GE documentation GEH-6700 series) and ensure ControlST software version R07.04 or later for full diagnostic functionality.

Advanced Integration Features

SCADA & HMI Connectivity: Ethernet port supports OPC UA and Modbus TCP servers for seamless data exchange with Wonderware, Ignition, and FactoryTalk platforms, enabling centralized monitoring of multi-site turbine fleets without proprietary middleware.

Cybersecurity Hardening: Implements role-based access control (RBAC) and encrypted communication channels compliant with NERC CIP standards for utility applications, protecting against unauthorized configuration changes and cyber threats in connected industrial environments.

Custom Logic Development: Fully programmable via GE ControlST software using IEC 61131-3 languages (Ladder Logic, Function Block, Structured Text), allowing tailored control strategies for non-standard turbine configurations or hybrid renewable integration projects.

Predictive Maintenance Integration: Exports operational data (CPU load, memory usage, communication errors) to GE APM or third-party condition monitoring systems, enabling machine learning models to predict controller failures 30-90 days in advance.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and full traceability documentation. Express 24-hour dispatch available for emergency outage situations (subject to inventory availability).

Custom Configuration: 7-10 business days for pre-loaded firmware versions, custom I/O mapping, or conformal coating applications—ideal for turnkey project deliveries with specific commissioning requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month plans available for critical infrastructure applications with 4-hour response SLAs.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and system integration planning. Includes startup commissioning support via remote desktop or on-site deployment (travel costs apply).

Documentation Package: Every shipment includes installation manual (GEH-6721), wiring diagrams, CE/UL certificates, material traceability reports, and ControlST configuration templates—reducing commissioning time by 40-60% compared to undocumented components.

Frequently Asked Questions

Q: How does the IS420UCSBH4A interface with existing Mark VIe I/O modules in our turbine control cabinet?
A: The controller connects directly to the Mark VIe backplane via a 96-pin high-density connector, automatically discovering all I/O modules (EICM, PPRO, TBTC, etc.) through the IONet protocol. No additional wiring or configuration tools are required—simply insert the module, power cycle the panel, and the ControlST software will recognize the new controller within 30 seconds. For redundant configurations, install two controllers in adjacent slots and enable the redundancy flag in software.

Q: What are the maximum I/O capacity and scan time performance specifications for control loop execution?
A: A single IS420UCSBH4A supports up to 2,000 I/O points (combination of analog/digital inputs and outputs) with a base scan time of 5 ms for critical control loops. Standard regulatory control loops execute at 20 ms intervals, while non-critical monitoring functions run at 100 ms. For applications exceeding 2,000 points, deploy multiple controllers in a distributed architecture using Ethernet-based peer-to-peer communication.

Q: Can this controller reduce energy consumption in our gas turbine cogeneration facility?
A: Yes—the IS420UCSBH4A's high-speed processing enables advanced control strategies like model predictive control (MPC) and adaptive PID tuning, which optimize fuel-air ratios and exhaust gas temperatures in real time. Typical efficiency gains range from 2-4% in heat rate improvement, translating to $50K-$200K annual fuel savings for a 50 MW turbine operating at 80% capacity factor. Integration with GE's Predix platform further enhances optimization through machine learning algorithms.

Q: What are the physical installation requirements and panel space considerations?
A: The module occupies a single Mark VIe control panel slot (150 mm height × 100 mm width) and requires 50 mm depth clearance for backplane connector engagement. Ensure adequate ventilation with minimum 25 mm spacing between adjacent modules for convection cooling. For DIN rail mounting (using optional adapter kit), allocate 200 mm horizontal space and verify 24 VDC power supply capacity of at least 15W per controller to account for inrush current during startup.

Q: Is remote monitoring and diagnostics capability available for offshore or unmanned installations?
A: Absolutely—the Ethernet port supports secure VPN tunneling for remote access to ControlST diagnostics, allowing engineers to monitor CPU utilization, memory status, and communication health from any location. Integration with GE's Remote Monitoring & Diagnostics (RM&D) service provides 24/7 expert analysis of controller performance, with automated alerts for anomalies like excessive scan time jitter or memory leaks. This capability reduces site visits by 60-70% for routine troubleshooting.

Q: How do we ensure cybersecurity compliance for utility-scale power generation applications?
A: The IS420UCSBH4A supports NERC CIP-compliant network segmentation through VLAN tagging and firewall integration. Implement role-based access control (RBAC) in ControlST to restrict configuration changes to authorized personnel, enable audit logging for all parameter modifications, and deploy intrusion detection systems (IDS) on the Ethernet network. GE provides cybersecurity hardening guides (GEH-6850 series) with step-by-step procedures for achieving IEC 62443 compliance in critical infrastructure environments.

Request Technical Consultation

Our application engineering team is ready to assist with system architecture design, I/O mapping validation, and performance optimization for your specific turbine control requirements. Contact us today for detailed datasheets, CAD drawings, and project-specific pricing—we typically respond within 2 business hours for technical inquiries and provide formal quotations within 24 hours.

For urgent outage support or emergency replacement needs, our expedited logistics network delivers to 95+ countries with customs pre-clearance and DDP (Delivered Duty Paid) terms available.
