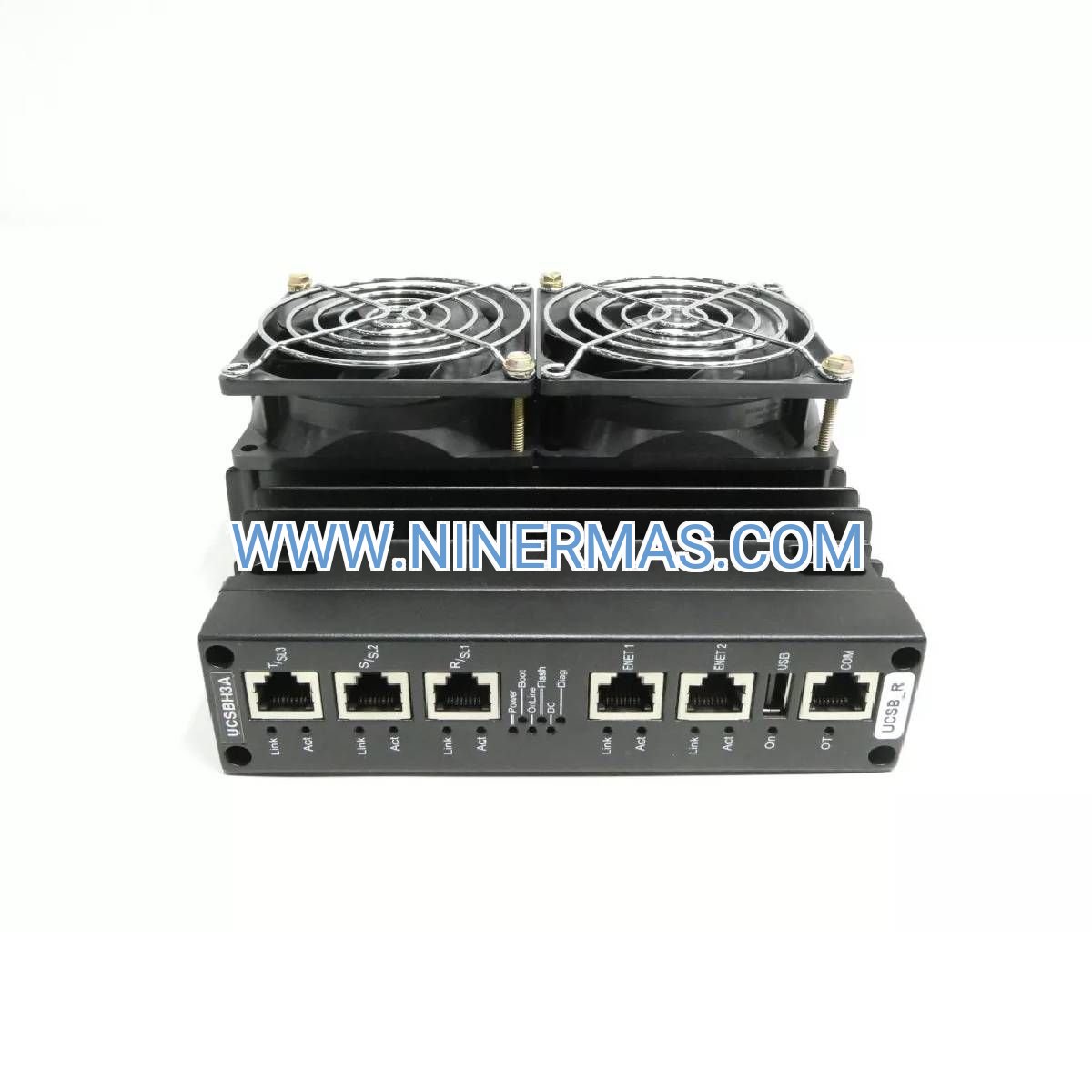

IS420UCSBH3A Triple-Modular Redundant Controller (Industrial-Grade Mark VIe Platform)

The GE IS420UCSBH3A delivers mission-critical processing power for turbomachinery control applications where downtime is not an option. Built on the Mark VIe Speedtronic architecture, this UCSB (Universal Controller Simplex Board) module combines triple-modular redundant logic with deterministic Ethernet IONet communication to safeguard gas turbines, steam turbines, and wind energy systems across power generation, oil & gas, and industrial manufacturing sectors.

Designed for plant engineers and control system integrators managing high-value rotating equipment, the IS420UCSBH3A eliminates single points of failure through synchronized TMR voting algorithms. Whether you're upgrading legacy Mark VI systems or deploying greenfield installations, this controller module provides the computational foundation for API 670 machinery protection, emissions compliance, and load-following optimization strategies.

With SIL 3 certification and proven reliability exceeding 100,000 hours MTBF, the IS420UCSBH3A represents the industry standard for turbine control applications demanding sub-10-millisecond protective response times and continuous operation in extreme environmental conditions ranging from -30°C to +65°C.

Core Capabilities & Business Value

✓ Triple-Modular Redundancy (TMR) Architecture
Three independent processors execute identical control logic simultaneously, with median-value voting that automatically isolates faulty channels while maintaining full control authority—eliminating unplanned shutdowns that cost $50,000+ per hour in lost production.

✓ Deterministic 10ms Control Loop Execution
Guaranteed scan rates enable precise fuel valve positioning, inlet guide vane control, and protective trip logic that meets NFPA 85 boiler safety standards and prevents catastrophic equipment damage from overspeed or vibration excursions.

✓ Hot-Swappable Maintenance Capability
Replace controllers during operation without process interruption when deployed in redundant configurations—reducing maintenance windows from 8-hour outages to zero-downtime component exchanges that preserve revenue generation.

→ Ethernet IONet Distributed I/O Networking
Connect up to 32 I/O packs across 100+ meter distances using deterministic industrial Ethernet, eliminating expensive marshalling cabinets and reducing installation costs by 30% compared to hardwired architectures.

→ SIL 3 Safety Integrity Certification
Meets IEC 61508 requirements for safety instrumented systems protecting personnel and assets in hazardous area installations—satisfying insurance underwriters and regulatory compliance mandates.

→ Extended Temperature & Humidity Tolerance
Operates reliably in ambient conditions from -30°C to +65°C with 5-95% relative humidity, supporting installations in desert climates, offshore platforms, and tropical industrial facilities without expensive HVAC infrastructure.

Industry Applications & Problem-Solving

Combined-Cycle Power Generation
Challenge: Coordinating gas turbine, HRSG, and steam turbine operations during rapid load changes while maintaining NOx emissions compliance.
Solution: The IS420UCSBH3A executes multi-variable control strategies that optimize fuel splits, steam bypass valves, and selective catalytic reduction systems—achieving 15-minute startup times and sub-5ppm NOx emissions.

Mechanical Drive Turbines (Oil & Gas)
Challenge: Protecting compressor trains and pump drives from surge, vibration, and seal failures in unmanned offshore installations.
Solution: Integrated with vibration I/O packs and analog signal conditioning, the controller implements API 617 protective logic with <10ms trip response times—preventing $2M+ equipment failures from bearing damage or rotor rubs.

Wind Turbine Pitch & Yaw Control
Challenge: Maximizing energy capture while preventing blade overspeed and tower oscillation during gusty wind conditions.
Solution: High-speed control loops adjust pitch angles every 10ms based on wind speed, generator torque, and grid frequency—increasing annual energy production by 3-5% compared to slower control systems.

Cogeneration & District Heating Systems
Challenge: Balancing electrical output with thermal load demands across seasonal variations and grid frequency regulation requirements.
Solution: The controller coordinates extraction steam valves, condenser bypass, and generator excitation to deliver optimal heat rates—reducing fuel consumption by 8-12% during partial-load operation.

Industrial Gas Turbine Retrofits
Challenge: Replacing obsolete Mark V or Mark VI controllers while maintaining compatibility with existing I/O infrastructure and minimizing commissioning time.
Solution: Backward-compatible communication protocols and ToolboxST migration utilities enable 3-5 day retrofit installations—extending asset life 15-20 years without complete system replacement costs.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IS420UCSBH3A for simplex or TMR controller applications requiring standard processing capacity. For complex multi-variable control with advanced model predictive algorithms, consider the quad-core IS420UCSCH1A variant. Verify compatibility with existing I/O packs and communication networks during system design—consult factory documentation for specific firmware revision requirements.

Advanced Integration & Customization Options

Predictive Maintenance & Condition Monitoring
Integrate with GE's Asset Performance Management (APM) software to stream real-time vibration spectra, bearing temperatures, and combustion dynamics data to cloud analytics platforms. Machine learning algorithms identify degradation trends 30-60 days before failure thresholds—enabling planned maintenance that reduces emergency repair costs by 40-60%.

Cybersecurity Hardening
Deploy optional firewall modules and encrypted VPN tunnels for remote access compliance with NERC CIP, IEC 62443, and NIST cybersecurity frameworks. Role-based access controls and audit logging satisfy regulatory requirements for critical infrastructure protection.

Custom Control Algorithm Development
Our application engineering team develops bespoke control strategies for unique process requirements—including anti-surge control for centrifugal compressors, steam temperature optimization for HRSGs, and grid-forming inverter coordination for hybrid power plants. Delivered as validated ToolboxST function blocks with comprehensive documentation.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and full traceability documentation
Expedited Service: Next-day delivery available for emergency replacements (additional fees apply)
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: 24/7 phone and email assistance for troubleshooting, configuration guidance, and emergency coordination
Documentation Package: Installation manual, wiring diagrams, ToolboxST configuration files, and factory test certificates included with every shipment

Frequently Asked Questions

How does the IS420UCSBH3A controller integrate with legacy Mark VI I/O modules?
The Mark VIe platform maintains backward compatibility with Mark VI discrete and analog I/O packs through Ethernet IONet bridging. However, native Mark VIe I/O modules like the IS220PDIOH1A offer enhanced diagnostics and faster scan rates—recommended for new installations to maximize system performance.

What programming languages are supported for control logic development?
ToolboxST software supports all five IEC 61131-3 languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC). Most turbine control applications utilize FBD for regulatory control combined with ST for complex calculations.

Can this module operate in hazardous area classifications?

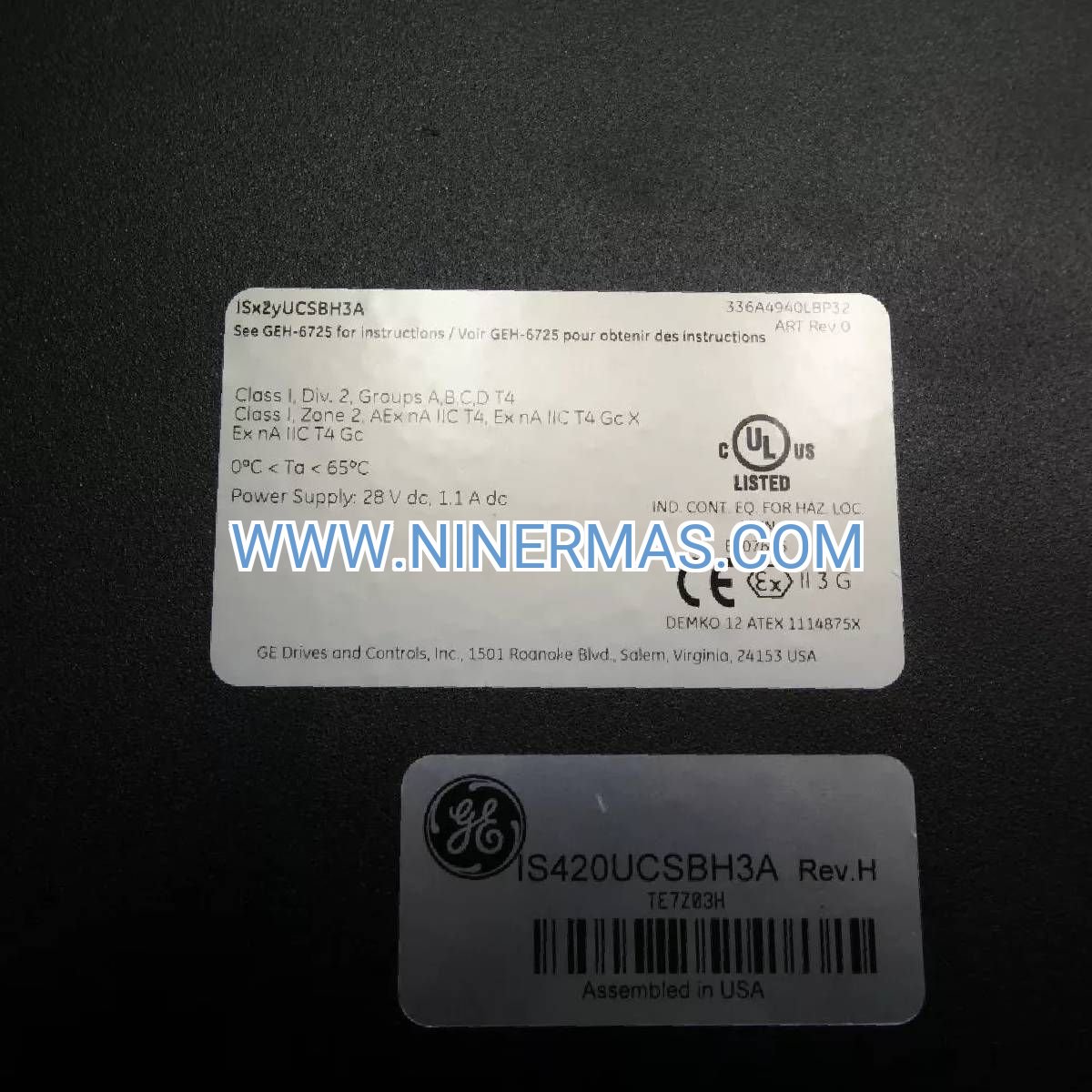

Yes, the IS420UCSBH3A carries ATEX Zone 2 and IECEx certifications for installation in Class I Division 2 / Zone 2 hazardous locations when mounted in approved enclosures with proper grounding and cable gland sealing—common in oil & gas and petrochemical facilities.

What is the typical power consumption impact on UPS sizing?
Each controller module draws 25W typical (35W maximum) at 24V DC. For TMR configurations with three controllers plus associated I/O racks, budget approximately 500-750W total DC load—requiring a 1-2 kVA UPS system for 30-minute ride-through capability during utility power interruptions.

How long does commissioning and startup testing require?
Standard installations with pre-configured control logic require 3-5 days including mechanical mounting, network cabling, software download, I/O checkout, and functional testing. Complex retrofits integrating with existing DCS systems or custom control strategies may extend to 10-15 days depending on scope and site-specific requirements.

What cybersecurity measures protect against unauthorized access?
The controller implements multi-layer security including encrypted Ethernet communication, password-protected configuration access, role-based user permissions, and audit logging of all parameter changes. For critical infrastructure applications, deploy dedicated engineering workstations isolated from corporate IT networks per IEC 62443 zone architecture principles.

Ready to Optimize Your Turbine Control System?

Contact our turbomachinery control specialists today for application-specific configuration guidance, compatibility verification with your existing infrastructure, and expedited delivery coordination. Our team provides complimentary pre-sales engineering support to ensure optimal system performance and seamless integration.
