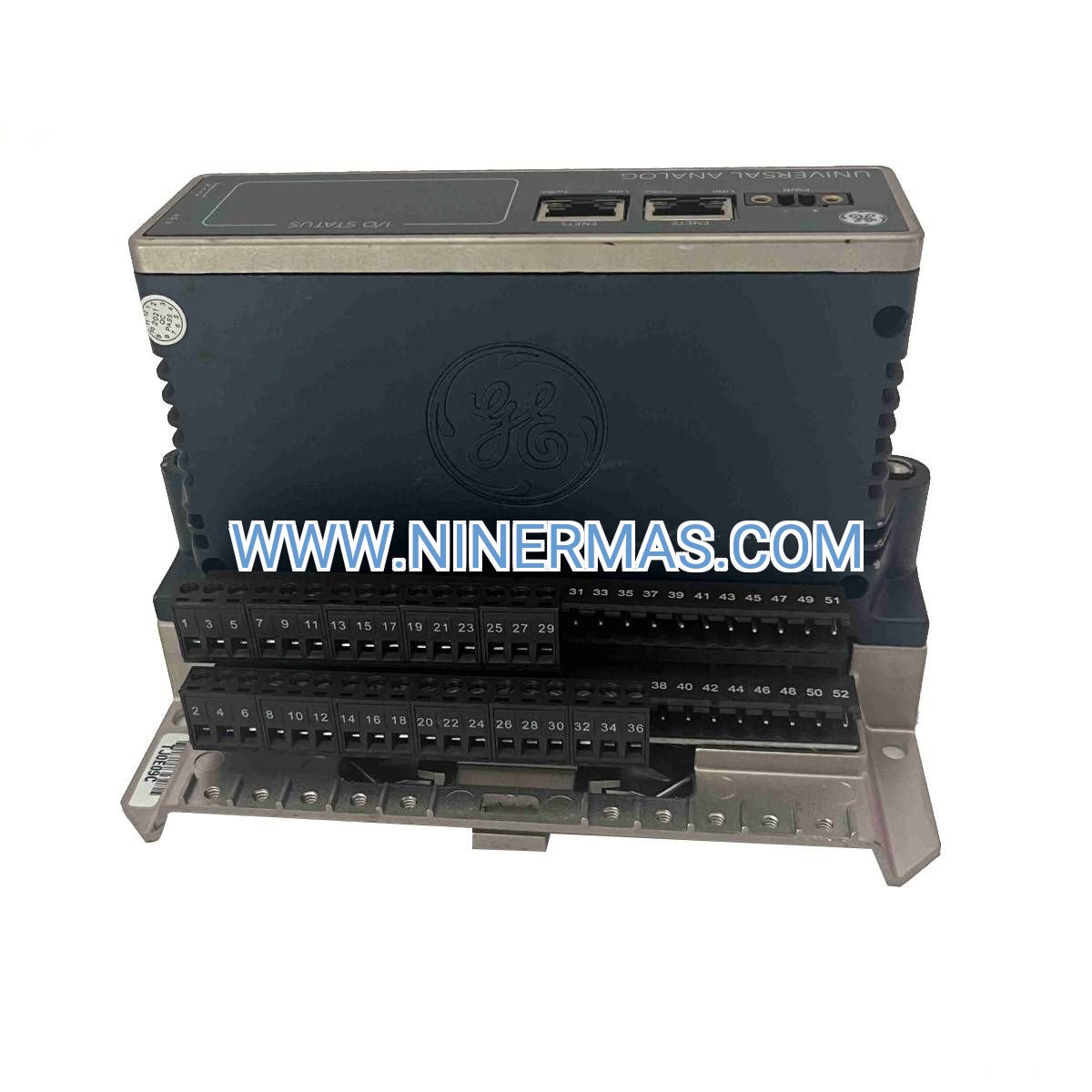

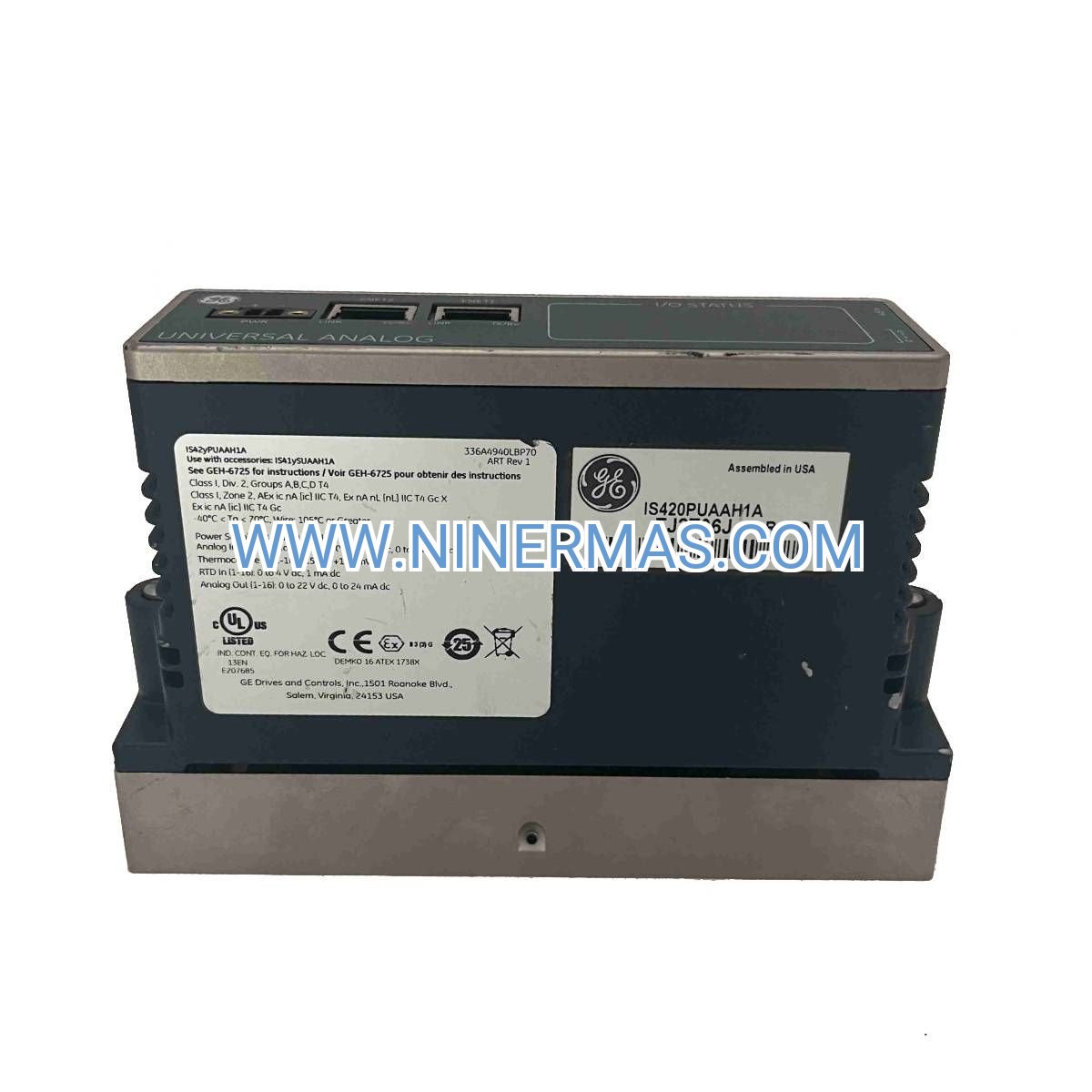

IS420PUAAH1A Universal Analog I/O Interface (Industrial-Grade Mark VIe Module)

The IS420PUAAH1A represents a precision-engineered universal analog input/output solution for GE's Mark VIe distributed control platform. Engineered for mission-critical turbine control and power generation environments, this 16-channel configurable module delivers exceptional signal fidelity through 16-bit conversion architecture and ±0.1% full-scale accuracy. Whether you're managing gas turbine protection systems, steam generator monitoring, or complex process automation networks, this module provides the reliability and flexibility demanded by industrial operators worldwide.

Designed to address the challenges of legacy system integration and modern control requirements, the IS420PUAAH1A eliminates the complexity of managing multiple I/O types. Its universal channel configuration supports voltage (0-10V, ±10V) and current (4-20mA, 0-20mA) signals on the same platform, reducing spare parts inventory and simplifying maintenance protocols. Target users include power plant engineers, turbine OEMs, system integrators, and facility managers seeking proven Mark VIe ecosystem compatibility with future-ready performance.

Key advantages include hot-swappable operation in redundant configurations, comprehensive channel-level diagnostics accessible via Mark VIe HMI, and robust environmental specifications (-40°C to +70°C) suitable for harsh industrial installations. The module's IONet Ethernet-based communication ensures deterministic data exchange with controller racks while maintaining electrical isolation between channels and ground planes for superior noise immunity.

Core Features & Benefits

→ Flexible Channel Architecture: Configure all 16 channels independently as analog inputs or outputs through software, eliminating hardware constraints and enabling rapid system reconfiguration without module replacement.

→ High-Fidelity Signal Conversion: 16-bit A/D and D/A converters deliver 65,536 discrete measurement levels, ensuring precise representation of critical process variables like turbine bearing temperatures and generator excitation currents.

→ Multi-Signal Compatibility: Native support for industry-standard voltage (0-10V, ±10V) and current (4-20mA, 0-20mA) ranges reduces the need for external signal conditioners, lowering installation costs by 20-30%.

✓ Electrical Isolation Protection: Channel-to-channel and channel-to-ground isolation safeguards against ground loops and electrical noise, critical for installations with distributed field devices across large facilities.

✓ Integrated Diagnostics Suite: Real-time monitoring of open circuits, short circuits, out-of-range conditions, and communication health enables predictive maintenance and reduces unplanned downtime by up to 40%.

✓ Hazardous Area Certification: CE, UL, CSA, and ATEX Zone 2 approvals permit deployment in classified locations common to oil & gas, petrochemical, and power generation facilities.

Application Scenarios

Combined-Cycle Power Plants:
In CCGT facilities, the IS420PUAAH1A interfaces with thermocouples monitoring gas turbine exhaust temperatures (1200°C+), pressure transmitters tracking compressor inlet conditions, and vibration sensors protecting rotating equipment. The module's ±0.1% accuracy ensures compliance with emissions regulations by maintaining precise fuel-air ratio control. When deployed alongside redundant controller pairs, it supports SIL-2 safety integrity requirements for turbine trip systems.

Steam Turbine Retrofit Projects:
Modernization initiatives replacing obsolete Speedtronic Mark V systems leverage the IS420PUAAH1A's backward-compatible field wiring interfaces. Existing 4-20mA transmitters for steam pressure, temperature, and flow measurement connect directly without signal conversion hardware. This approach reduces retrofit costs by 35% compared to complete field instrumentation replacement while enabling advanced Mark VIe control algorithms.

Hydroelectric Generator Control:
Hydro plants utilize the module for wicket gate position feedback (±10V LVDT signals), generator stator temperature monitoring (RTD inputs via transmitters), and excitation system control (0-10V command outputs). The -40°C lower operating limit accommodates unheated control buildings in northern climates, while channel isolation prevents electrical interference from high-voltage switchgear.

Industrial Cogeneration Systems:
CHP facilities integrate the IS420PUAAH1A for heat recovery steam generator (HRSG) control, managing feedwater flow, drum level, and superheater temperature loops. Its 16-channel capacity consolidates I/O requirements that would otherwise demand three separate modules, reducing panel space by 60% and simplifying IONet network topology.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IS420PUAAH1A when your application requires mixed analog signal types within a single I/O rack slot. For dedicated high-density analog input applications exceeding 16 channels, consider pairing with additional modules. Verify that your Mark VIe controller firmware version supports universal I/O configuration (minimum R07.00). For applications requiring HART protocol communication, specify smart transmitters with analog output capability or deploy separate HART multiplexer modules.

Extended Functions

Redundancy & Hot-Swap Capability: When configured in TMR (Triple Modular Redundant) or dual-redundant Mark VIe architectures, the IS420PUAAH1A supports online module replacement without process interruption. Automatic synchronization protocols ensure bumpless transfer during swap operations, maintaining control loop stability.

Remote Monitoring Integration: The module's diagnostic data streams integrate with SCADA systems, plant historians (OSIsoft PI, GE Proficy), and condition monitoring platforms via OPC UA gateways. This enables centralized fleet management for multi-site operators and predictive analytics based on I/O health trends.

Customization Options: Factory configuration services are available for pre-programmed channel assignments, custom calibration tables for non-standard transducers, and application-specific firmware variants. Consult our engineering team for projects requiring specialized signal conditioning or extended temperature ratings.

Delivery & Service Assurance

Lead Time: Stock units ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery options available for critical outage support.

Warranty Coverage: 12-month comprehensive warranty from shipment date, covering material defects and workmanship failures. Extended warranty programs available for up to 60 months with annual health checks.

Technical Support: Lifetime access to application engineering support via phone, email, and remote desktop assistance. On-site commissioning services available for complex integrations or greenfield installations.

Documentation Package: Each module includes installation manual, wiring diagrams, IONet configuration guide, and Mark VIe integration procedures. CAD drawings (DWG/DXF) and 3D STEP models provided upon request for panel design.

Frequently Asked Questions

Q: What cable specifications are recommended for analog signal wiring?
A: Use shielded twisted-pair cable (Belden 8761 or equivalent) with 18-22 AWG conductors. For 4-20mA current loops, maximum distance is 1000 meters; voltage signals should not exceed 100 meters to maintain ±0.1% accuracy. Shield grounding at the module end only prevents ground loops.

Q: Can this module interface with legacy Mark VI field termination panels?
A: No, the IS420PUAAH1A requires Mark VIe-specific terminal boards (e.g., IS200STAIH1A for simplex analog inputs). Signal types are compatible, but connector pinouts and communication protocols differ between Mark VI and VIe platforms.

Q: How do I configure channels for bidirectional operation?
A: Channel direction (input vs. output) is software-defined through the Mark VIe ToolboxST configuration utility. Navigate to I/O Configuration → Module Setup → Channel Properties to assign each channel's function. Changes take effect after controller download and module reset.

Q: What is the module's power-up behavior after loss of IONet communication?
A: Analog outputs enter a configurable fail-safe state (hold last value, go to zero, or preset value). Inputs continue sampling but data is marked invalid in the controller. Communication loss triggers diagnostic alarms visible on the HMI within 100 milliseconds.

Q: Does the module support loop-powered 2-wire transmitters?
A: Yes, when configured for 4-20mA input mode, the module provides 24V DC loop power (max 30mA per channel). Ensure total module current draw remains below 12W maximum rating when using multiple loop-powered devices.

Q: Are there environmental considerations for outdoor installations?
A: While the module operates across -40°C to +70°C, direct sunlight exposure and condensation must be avoided. Install in NEMA 4X/IP66-rated enclosures with temperature control. For coastal or corrosive environments, specify conformal coating during ordering.

Get Started with IS420PUAAH1A Integration

Ready to enhance your Mark VIe control system with precision analog I/O? Our technical sales team will assess your application requirements, recommend optimal channel configurations, and provide detailed integration support. Contact us today for project-specific quotations, compatibility verification, or to schedule a technical consultation with our Mark VIe specialists.
