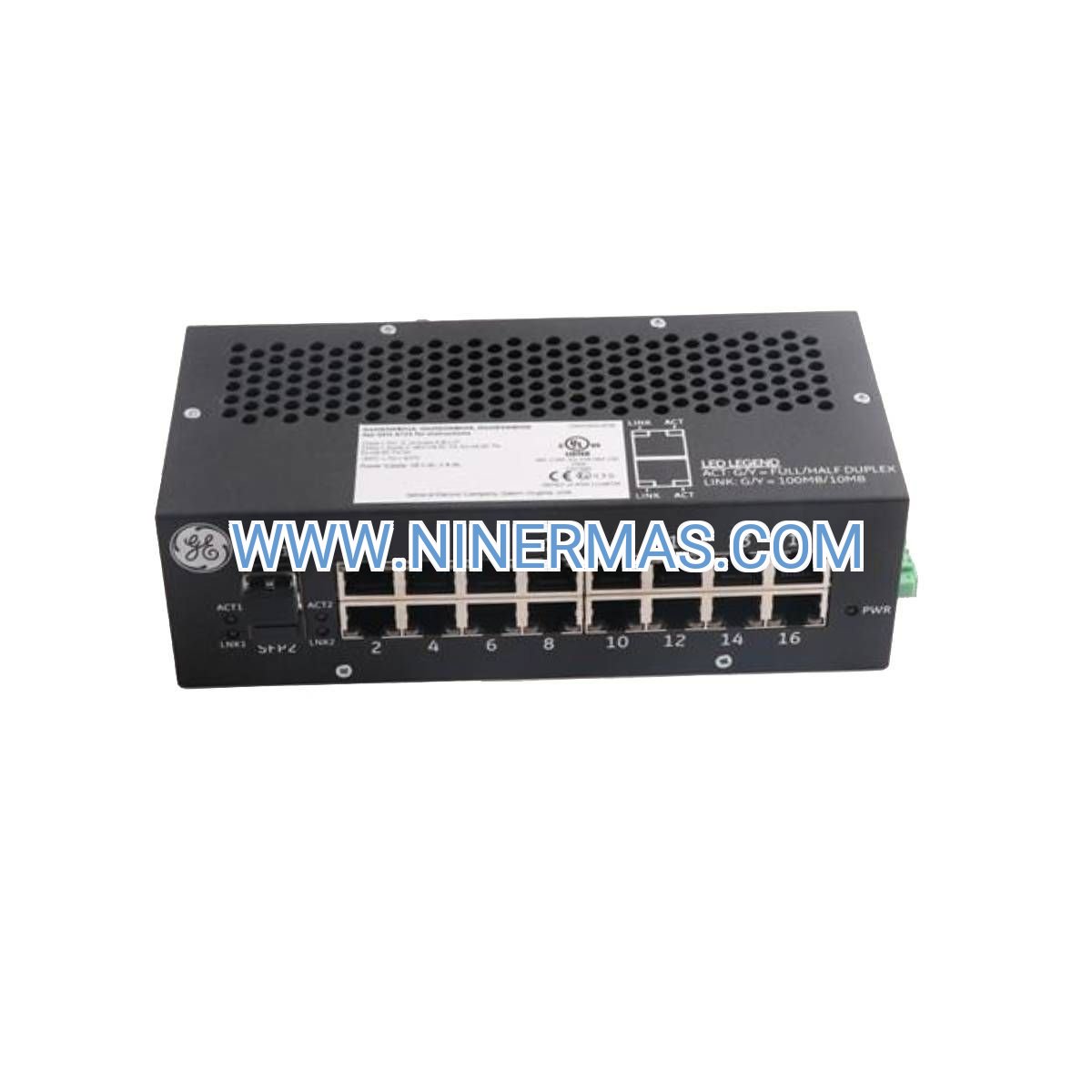

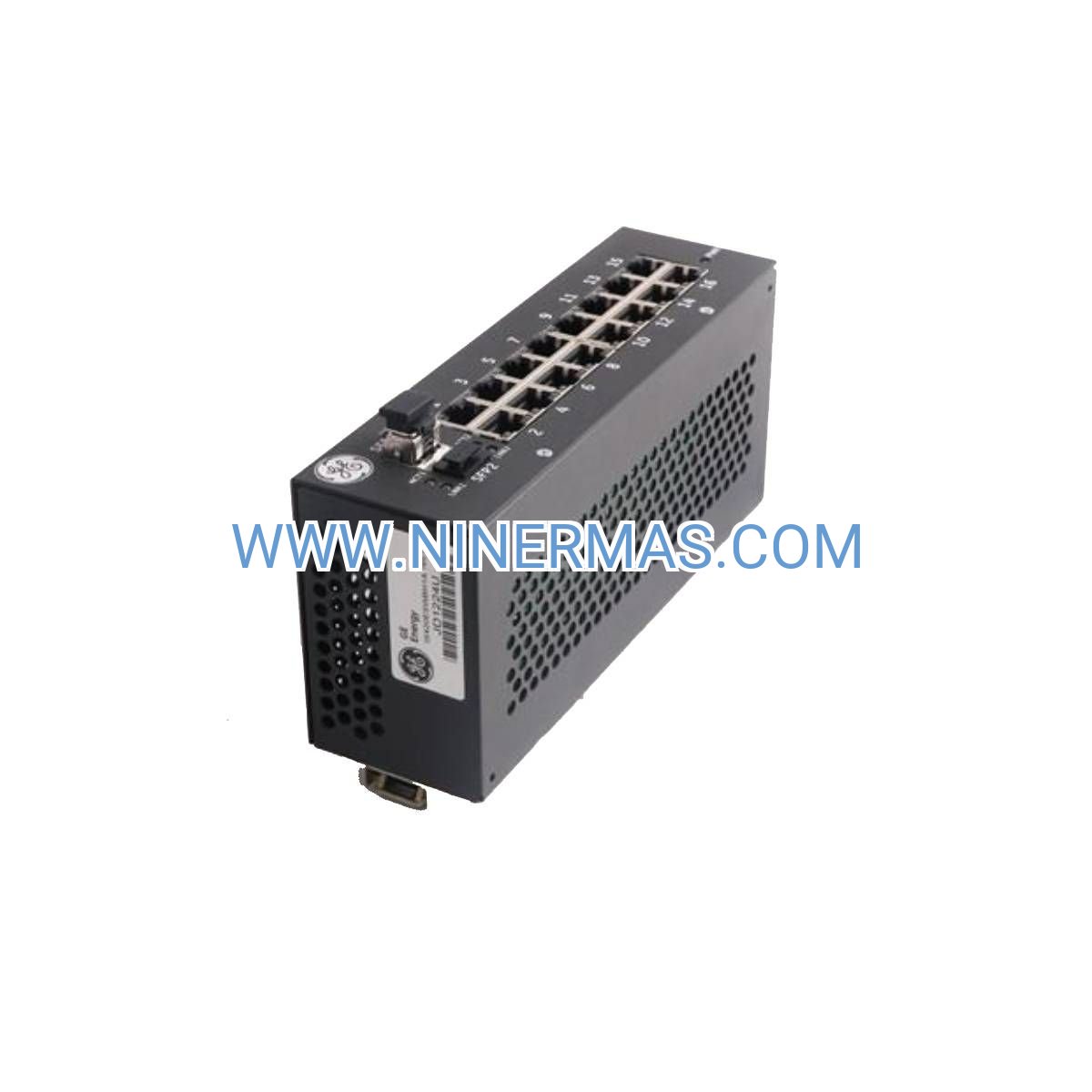

IS420ESWBH1A Industrial-Grade Managed Ethernet Switch

The IS420ESWBH1A represents General Electric's advanced networking solution engineered specifically for Mark VIe and Mark VIeS turbine control architectures. This ruggedized managed switch delivers deterministic, fault-tolerant Ethernet connectivity across distributed control systems in power generation, oil & gas, and heavy industrial environments where network downtime translates directly to production losses.

Built to withstand extreme operating conditions from Arctic installations to desert power plants, this switch maintains reliable performance across a -40°C to +70°C temperature range while resisting vibration, electrical noise, and electromagnetic interference inherent to turbomachinery control cabinets.

Whether you're commissioning a new combined-cycle facility, retrofitting legacy turbine controls, or expanding existing Mark VIe networks, the IS420ESWBH1A provides the industrial-hardened infrastructure required for mission-critical automation systems.

Core Capabilities & Technical Advantages

→ Multi-Port Connectivity Architecture
Features 16 copper Ethernet ports (10/100 Mbps RJ45) plus one 100 Mbps multi-mode fiber optic uplink, enabling flexible network topologies that accommodate both local I/O rack connections and long-distance cabinet-to-cabinet communication up to 2 kilometers.

✓ Redundant Network Topology Support
Implements rapid spanning tree protocol (RSTP) with sub-50ms failover times, ensuring continuous turbine control operation during cable faults, switch maintenance, or component replacement scenarios—critical for maintaining grid stability and preventing costly unplanned shutdowns.

✓ Extended Environmental Specifications
Operates reliably in Class I Division 2 hazardous locations with UL, CE, and ATEX certifications. The 24V DC power input integrates seamlessly with standard control cabinet power distribution, while the DIN rail mounting simplifies installation in space-constrained enclosures.

→ Managed Layer 2 Intelligence
Provides VLAN segmentation to isolate real-time control traffic from engineering workstation and diagnostic communications, plus IGMP snooping for efficient multicast distribution of alarm data to multiple operator interfaces without flooding the network.

✓ Proven Reliability Metrics
Engineered for >200,000 hours MTBF (mean time between failures), this switch minimizes maintenance requirements and maximizes system availability—essential for baseload power plants operating on continuous duty cycles.

✓ Native Mark VIe Integration
Pre-configured for seamless operation within GE's ToolboxST engineering environment, enabling centralized network diagnostics, topology visualization, bandwidth monitoring, and port-level fault analysis without third-party management software.

Industrial Application Scenarios

Combined-Cycle Power Plant Networks
Serves as the communication backbone linking Mark VIe controllers, analog input modules, discrete output packs, and vibration monitoring systems across gas and steam turbine control cabinets. The fiber optic port connects remote I/O racks located in generator enclosures or auxiliary equipment rooms, eliminating copper cable distance limitations while providing electrical isolation between high-voltage areas.

Turbine Protection System Integration
Enables real-time data exchange between overspeed detection modules, vibration sensors, temperature monitoring I/O packs, and emergency shutdown logic. The deterministic network performance ensures protection algorithms receive sensor data within required response times, preventing catastrophic equipment damage during abnormal operating conditions.

Multi-Unit Control Room Consolidation
Facilitates centralized monitoring of multiple turbine-generator sets from a unified HMI system. Deploy IS420ESWBH1A switches in each turbine control cabinet, then interconnect via fiber optic links to aggregate control data at a central operations facility—ideal for peaking plants managing 4-8 generation units with minimal staffing.

Retrofit & Modernization Projects
Provides a migration path for upgrading legacy Mark VI systems to Mark VIe platforms while maintaining existing cabinet infrastructure. The switch's compact form factor and flexible mounting options accommodate space constraints in older control panels, while its interoperability with third-party industrial Ethernet devices supports phased modernization strategies.

Hybrid Automation Environments
Interfaces with Allen-Bradley, Siemens, and other PLC platforms in facilities running mixed-vendor control systems. Use the IS420ESWBH1A for the primary turbine control network, then connect to plant-wide SCADA systems via managed industrial switches at the network edge—maintaining GE's recommended architecture while enabling enterprise-level data integration.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IS420ESWBH1A when your Mark VIe network requires 16 or fewer copper connections per cabinet location. For larger I/O configurations exceeding 16 modules, consider deploying multiple switches in a redundant ring topology. If your application demands single-mode fiber for distances beyond 2km, evaluate the IS420ESWBH3A variant with extended-range optics. Ensure your control cabinet provides adequate ventilation to maintain ambient temperatures within the switch's operating range, particularly in tropical or desert climates.

Advanced Integration & Customization

Network Segmentation Strategy: Configure separate VLANs for control data (priority traffic), engineering access (configuration uploads/downloads), and diagnostic communications (trending/logging). This isolation prevents non-critical traffic from impacting real-time control loop performance while simplifying cybersecurity policies.

Redundancy Architecture: Deploy IS420ESWBH1A switches in dual-ring configurations where each controller and I/O module connects to two switches via separate network paths. During normal operation, RSTP blocks one path to prevent loops; upon detecting a failure, the protocol activates the backup path within 50 milliseconds—faster than most turbine control algorithms' scan cycles.

Fiber Optic Expansion: Utilize the multi-mode fiber port to connect geographically separated control cabinets without copper cable voltage drop or ground loop concerns. This proves essential in large power plants where turbine control rooms may be 500+ meters from generator protection panels or auxiliary equipment buildings.

Third-Party Device Integration: While the IS420ESWBH1A optimally supports GE Mark VIe components, it interoperates with standards-compliant Ethernet devices including Siemens SIMATIC controllers, Allen-Bradley CompactLogix PLCs, and Schneider Electric Modicon systems—enabling hybrid automation architectures in multi-vendor facilities.

Cybersecurity Considerations: Implement port-level security features to restrict unauthorized device connections. The switch supports MAC address filtering and port disable functions accessible through ToolboxST software, helping facilities comply with NERC CIP requirements for critical infrastructure protection.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock IS420ESWBH1A units ship within 1-2 business days via express courier services. International shipments typically arrive within 5-7 business days depending on customs clearance procedures.

Expedited Options: For emergency replacements or critical project deadlines, same-day shipping available for orders placed before 2:00 PM CST. Coordinate with our technical sales team for air freight arrangements to minimize downtime during unplanned outages.

Warranty Coverage: Every IS420ESWBH1A includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for up to 36 months, including advance replacement options that ship a new unit before returning the failed device.

Technical Support: Our applications engineering team provides pre-sale configuration assistance, post-installation troubleshooting, and network optimization guidance. Support services include ToolboxST configuration file review, network topology analysis, and integration planning for complex multi-cabinet installations.

Documentation Package: Each switch ships with installation manual, quick-start guide, DIN rail mounting hardware, and digital access to GE's technical documentation library including wiring diagrams, configuration examples, and troubleshooting flowcharts.

Frequently Asked Questions

Can the IS420ESWBH1A switch integrate with older Mark VI turbine control systems?
No, this switch is engineered exclusively for Mark VIe and Mark VIeS platforms using the IONet communication protocol. Mark VI systems require different network infrastructure—contact our team for compatible alternatives or discuss Mark VIe upgrade pathways for your existing installation.

What fiber optic cable specifications are required for the multi-mode port?
Use 50/125μm or 62.5/125μm multi-mode fiber with SC connectors. Maximum distance: 2 kilometers. For installations requiring longer runs or outdoor cable routing, consider media converters to single-mode fiber or consult regarding switch variants with extended-range optics.

How does the switch handle network storms or broadcast traffic floods?
The IS420ESWBH1A implements broadcast storm control and rate limiting features configurable through ToolboxST software. These protections prevent misconfigured devices or faulty network interface cards from saturating the control network with excessive traffic that could impact turbine control response times.

Is hot-swapping supported during switch replacement procedures?
While the switch supports redundant network topologies that allow removal without disrupting control system operation, always follow proper lockout/tagout procedures and coordinate with operations personnel before performing maintenance. The redundant network path maintains control continuity during planned switch replacements.

What diagnostic tools are available for troubleshooting network connectivity issues?
The switch features front-panel LED indicators showing link status, activity, and fault conditions for each port. Advanced diagnostics accessible via GE's ToolboxST software display network topology maps, bandwidth utilization graphs, error counters, and packet statistics—enabling rapid identification of cabling faults, duplex mismatches, or failing network interface modules.

Can I mix IS420ESWBH1A switches with other industrial Ethernet switch brands?
Yes, the switch adheres to IEEE 802.3 Ethernet standards and interoperates with third-party managed switches. However, for optimal performance and GE technical support coverage, maintain GE-approved switches within the primary Mark VIe control network. Use third-party switches at network boundaries connecting to plant SCADA or enterprise systems.
